StarTech DKT3CHSD4GPD USB-C Multiport Adapter - SD Card Reader - 100W Power Delivery - 4K HDMI - GbE - 1x USB 3.0

DKT3CHSD4GPD - Overview

• Features:

  • Expand the connectivity of your MacBook Pro, Chromebook™, Dell XPS, or other USB-C enabled laptop
  • Power both the multiport adapter and your laptop with up to 100W Power Delivery, using your laptop's USB-C based power adapter (supports USB PD 2.0)
  • Supports 4K Ultra HD HDMI (4096 x 2160p or 3840 x 2160p), one USB 3.0 port, a Gigabit Ethernet port and an SD card reader

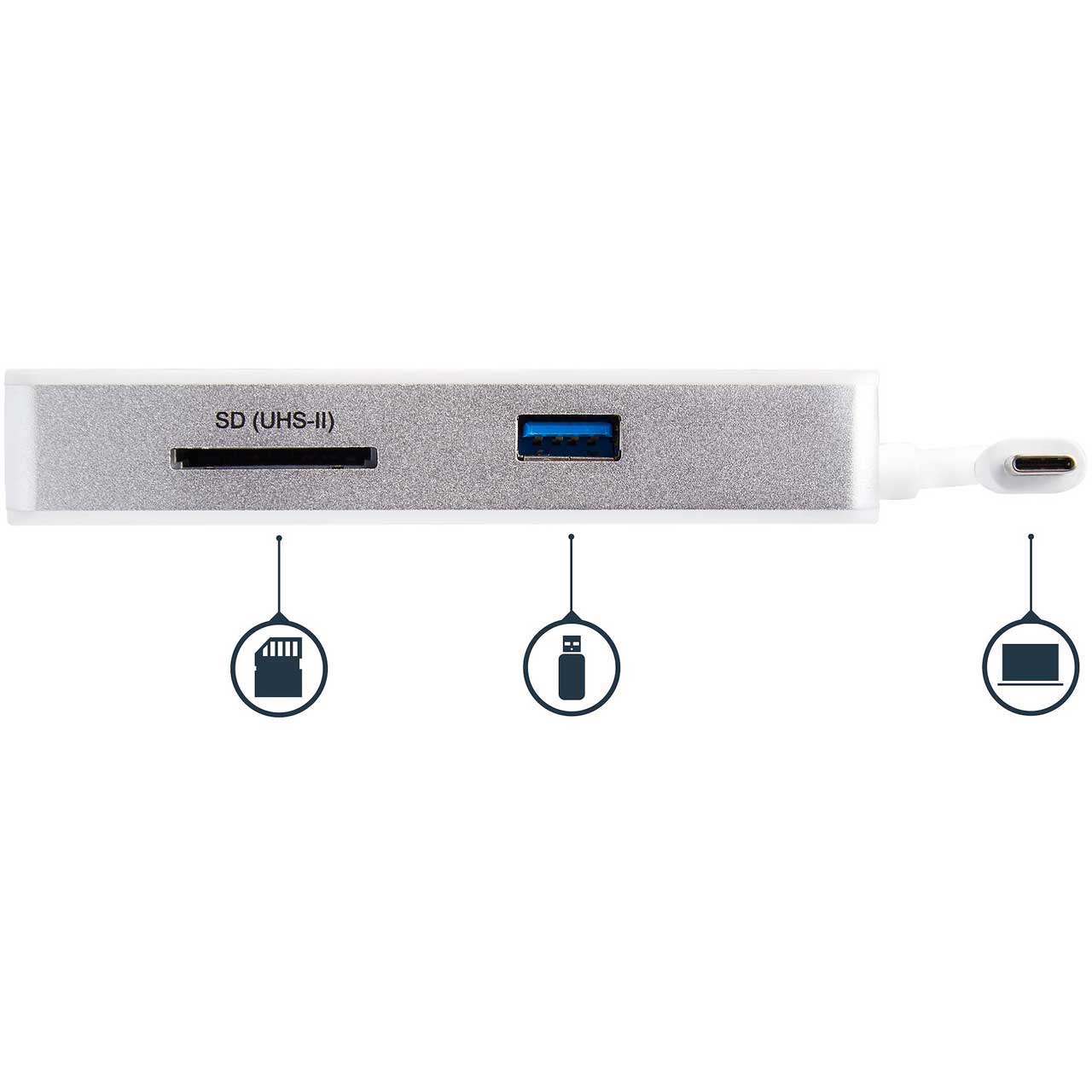

  • SD and microSD (with adapter) memory card reader, supports SD 4.0 and UHS-II (backward compatible with older SD card versions)
  • Sleek, compact and USB-powered for easy portability
  • Thunderbolt 3 port compatible
  • Connect a peripheral device with a USB 3.0 (Type-A) port (backward compatible with USB 2.0 and 1.x devices)

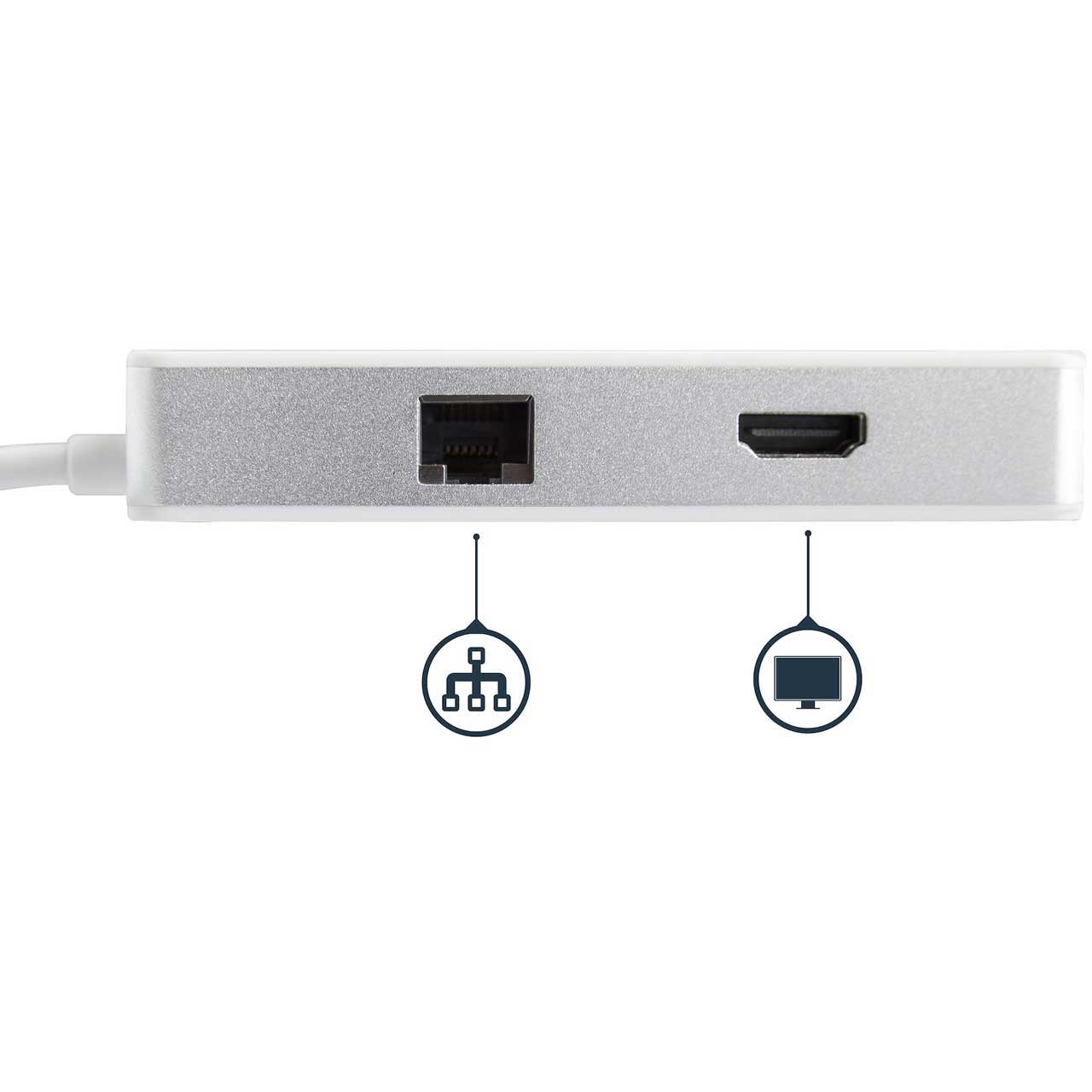

  • Gigabit Ethernet RJ45 port ensures reliable wired network access, supports Wake-on-LAN (WOL), jumbo frames, VLAN tagging, and Energy-Efficient Ethernet


• Specifications:

  • Compatibility
  • Windows 7, 8, 8.1, 10, 11
  • macOS 10.11 to 10.15, 11.0, 12.0, 13.0, 14.0
  • Chrome OS

    Connector(s)
  • Connector Type(s): 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps), 1 - HDMI (19 pin), 1 - RJ-45, 1 - USB Type-A (9 pin, 5 Gbps), 1 - SD / MMC Slot, 1 - USB Type-C (24 pin) USB Power Delivery Only

    Environmental
  • Operating Temperature: 41°F to 95°F
  • Storage Temperature: -4°F to 122°F
  • Humidity: 20~80% RH

    Hardware
  • 4K Support: Yes
  • Fast-Charge Port(s): No
  • Displays Supported: 1
  • Bus Type: USB-C
  • Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1
  • Chipset ID: VIA/VLI - VL813, VIA/VLI - VL101, PS176 (HDMI 2.0), RTS5329, RTL8153

    Packaging Information
  • Shipping (Package) Weight: 5.4 oz
  • Package Quantity: 1
  • Package Length: 6.7 in
  • Package Width: 4.6 in
  • Package Height: 1.0 in

    Performance
  • Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
  • Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz. Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
  • Type and Rate: USB 3.0 - 5 Gbit/s
  • UASP Support: Yes
  • Memory Media Type: SD/MMC (Secure Digital/Multimedia Card), SDHC (Secure Digital High Capacity), SDXC (Secure Digital eXtended Capacity), microSD (Micro Secure Digital) (adapter required), microSDHC (Micro Secure Digital High Capacity) (adapter required), microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
  • Compatible Networks: 10/100/1000 Mbps
  • Auto MDIX: Yes
  • Full Duplex Support: Yes
  • General Specifications: Supports SD 4.0 and UHS-II (Ultra High Speed) for high speed file transfers, with bus speed up to 312MB/s

    Physical Characteristics
  • Color: Silver & White
  • Material: Aluminum and Plastic
  • Cable Length: 5.9 in
  • Product Length: 4.3 in
  • Product Width: 2.0 in
  • Product Height: 0.7 in
  • Weight of Product: 3.2 oz

    Power
  • Power Source: USB-Powered
  • Power Delivery: 100W
  • Output Voltage: 5 DC


• Item Includes:

  • 1x USB-C multiport adapter
  • 1x quick-start guide


• Warranty:

  • 3 Years


• GTIN:

  0065030874304
