ST-HDC5FTD-CNV-2.8 - Overview

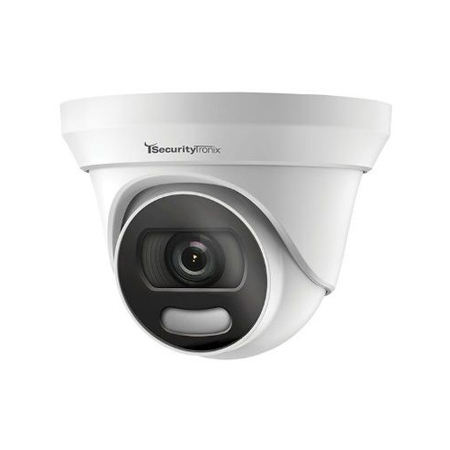

5MP Chroma 4 in 1 Fixed Lens Turret Dome Camera

The SecurityTronix ST-HDC5FTD-CNV-2.8 Chroma Turret Camera provides 24/7 color night vision capturing color images or video in low lit locations while standard IR cameras would automatically shift to black and white mode. With Chroma technology it is easy to identify clothing color, hair color, license plates, and vehicles with clear color images whether day or night and with vivid detail. This camera is a high definition 5MP Turret dome with 4 in 1 TVI/AHD/CVI/CVBS switchable connectivity. It has a fixed 2.8mm lens and can easily be integrated into any existing coax infrastructure or new commercial or residential install.

Please note! This Camera requires a power supply (Sold seperately) Part# is ST-PS12VDC2A .

  • Features:

    • 5 MP
    • 2560 x 1944 resolution
    • 24/7 Full Time Color
    • 2.8/3.6 mm fixed lens
    • 120dB True WDR
    • Light Range: Up to 65' (20m)
    • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
    • Up the Coax (UTC)
    • IP67


  • Specifications:

    • Camera
    • Image Sensor: 5 MP CMOS
    • Signal System: PAL/NTSC
    • Resolution: 2560 (H) x 1944 (V)
    • Frame Rate: TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
    • Min. illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
    • HD-SDI Output: 75 Ohm on standard BNC.
    • Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
    • Slow Shutter: Max. 16 times
    • Lens: 2.8, 3.6 mm fixed lens
    • Horizontal Field of View: 99.7° (2.8 mm), 80.1° (3.6 mm)
    • Lens Mount: M16
    • Strobe Light Alarm: Yes
    • Day & Night: Color
    • Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

      Menu
    • White Light: Auto/Of
    • Image Mode: STD/HIGH-SAT
    • AGC: Yes
    • Day/Night Mode: Color
    • White Balance: Auto/Manual
    • AE (Auto Exposure) Mode: WDR/BLC/HLC/Global/HLS/Anti-banding
    • Privacy Mask: 4 programmable privacy masks
    • Motion Detection: 4 programmable motion areas
    • Noise Reduction: 3D DNR
    • Language: English
    • Function: Brightness, Sharpness, Mirror, Smart Light

      Interface
    • Video Output: Switchable TVI/AHD/CVI/CVBS

      General
    • Operating Conditions: -40°F to 140 °F (-40°C to 60°C), humidity: 90% or less (non-condensing)
    • Power Supply 12 VDC
    • Power Consumption: Max. 3.5 W
    • Protection Level: IP67
    • Material: Main Body: Metal Enclosure: Plastic
    • White Light: Up to 65' (20m)
    • Communication: UTC (Up the coax)
    • Dimensions: 4.32" x 3.37" (109.82 mm x 85.56 mm )
    • Weight Approx. 0.77 lb. (350 g)


  • Item Includes:

    • 1x SecurityTronix ST-HDC5FTD-CNV-2.8 Chroma Turret Camera


  • Warranty:

    • 2-Year Limited Warranty
