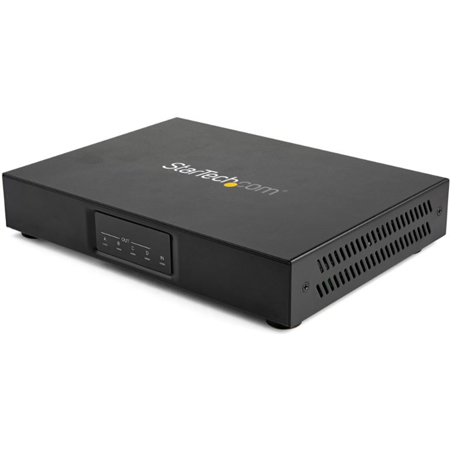

StarTech ST124HDVW 2x2 4K 60Hz HDMI 2.0 Video Wall Multi-Screen Controller for Digital Signage - 4x 1080p Output

ST124HDVW - Overview

Supports True 4K at 60Hz!

• Features:

  • 2x2 HDMI Video Wall Controller: Hardware-based video wall processor can split & scale a 4K 60Hz (4096x2160) HDMI video input into 4x HDMI 1080p output signals to create a large image across 4 displays for digital signage; 7.1ch audio, HDCP 2.2/1.4
  • Easy Setup: The 2x2 video wall setup is pre-configured by default; HDMI video wall splitter w/ EDID emulation allows source video to be detected and properly split w/ the correct video format; Bezel compensation ensures accurate image display
  • Serial & IP Control: Features RS232 & Ethernet ports for input/output control & configuration features w/the Windows-only app, command line, Telnet/UDP; Various layouts: 2x2/1x1/1x4/mirror-duplication
  • Mount Anywhere: Flexible environment/system setup with durable & ventilated metal housing; Built-in mounting brackets for wall/surface mount; Supports screw locking cables (HDMI & power); ESD protection
  • StarTech Advantage: IT professionals choice for over 30 years; 4-screen video wall controller backed for 2-years by StarTech incl. free 24/5 North America based multi-lingual tech support


• Specifications:

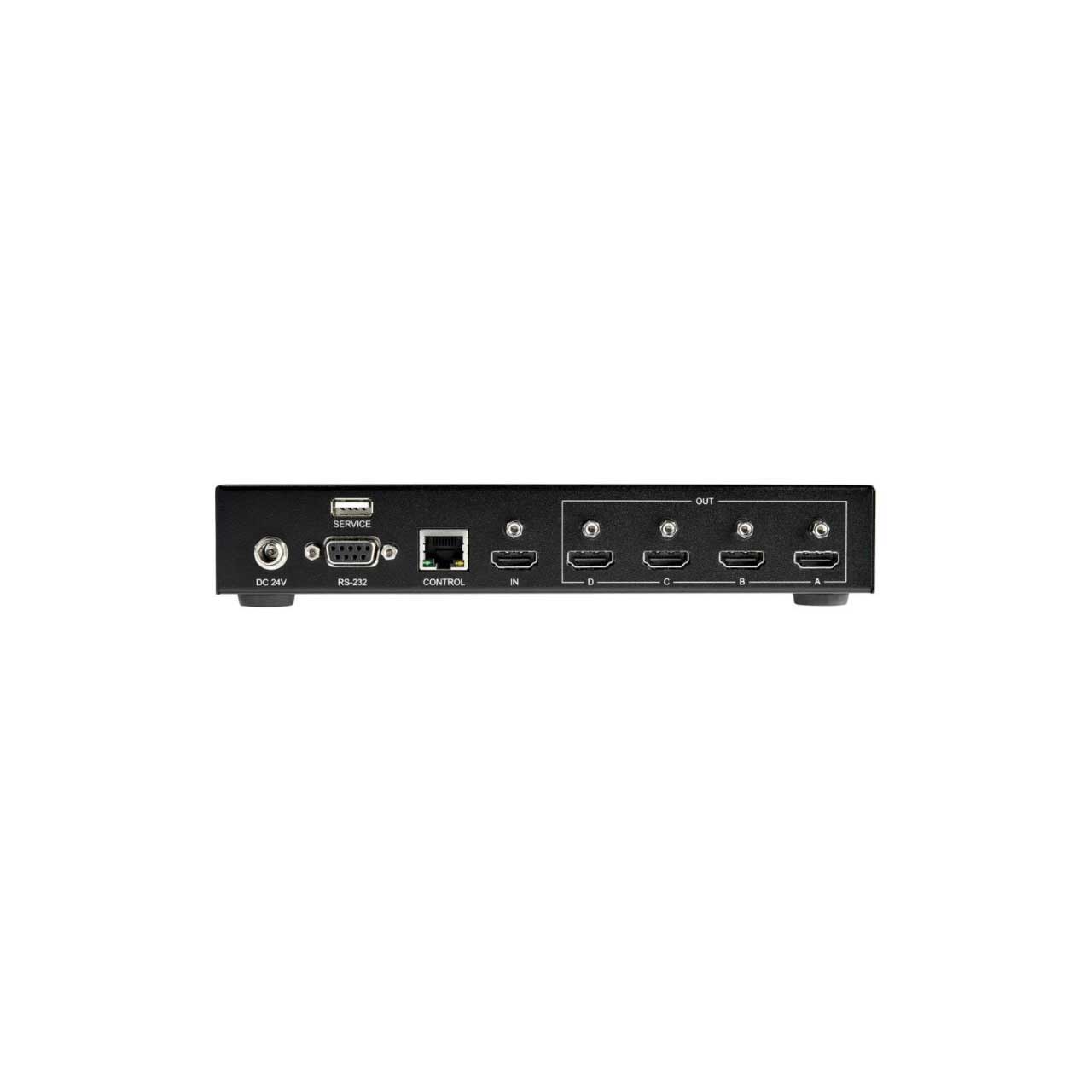

  • Connector A: 1 - HDMI (19 pin) / 1 - RJ-45 / 1 - DB 9-pin Serial / 1 - USB 2.0 Type-A (4 pin, 480Mbps)
  • Connector B: 4 - HDMI (19 pin)
  • Operating Temperature: 32°F to 104°F
  • Storage Temperature: -4°F to 140°F
  • Humidity: 20-90%RH (non- condensing)
  • AV Input: HDMI - 2.0
  • AV Output: HDMI - 2.0
  • Audio: Yes

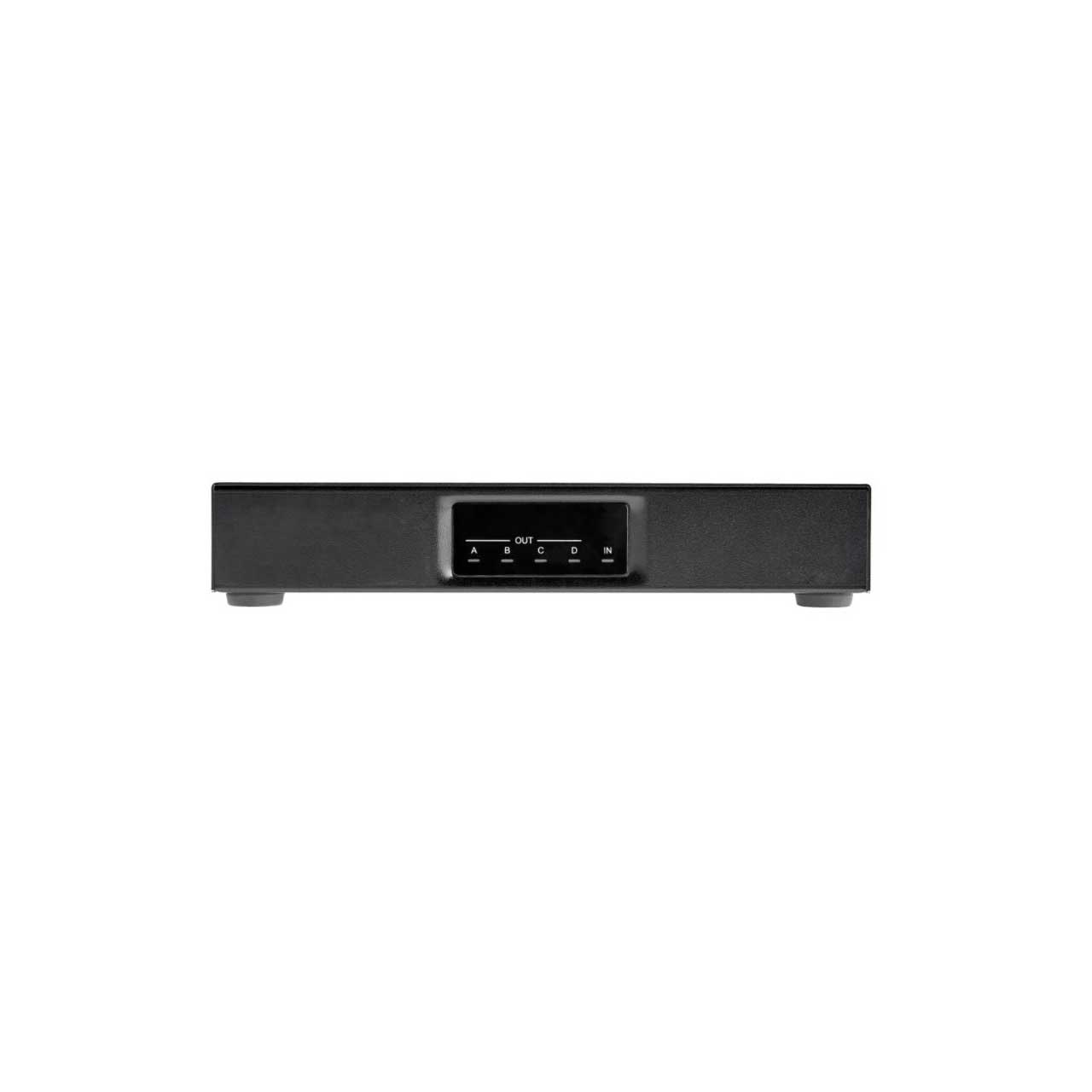

  • LED Indicators: 1 - Video Input (IN) - 4 - Video Output (OUT - A,B,C,D)
  • Video Revision: HDMI 2.0
  • Supported Resolutions: HDMI: 4096x2160 (4K) / 60Hz (Additional resolutions and refresh rates may be supported)
  • Wide Screen Supported: Yes
  • Audio Specifications: HDMI - 7.1 Channel Audio
  • Color: Black
  • Product Height: 1.8 in
  • Product Length: 9.1 in
  • Weight of Product: 2.2 lb
  • Product Width: 6.5 in
  • Material: Steel
  • Power Source: AC Adapter Included
  • Input Voltage: 100 - 240 AC
  • Input Current: 1A
  • Output Voltage: 24 DC
  • Output Current: 1.25A
  • Plug Type: M

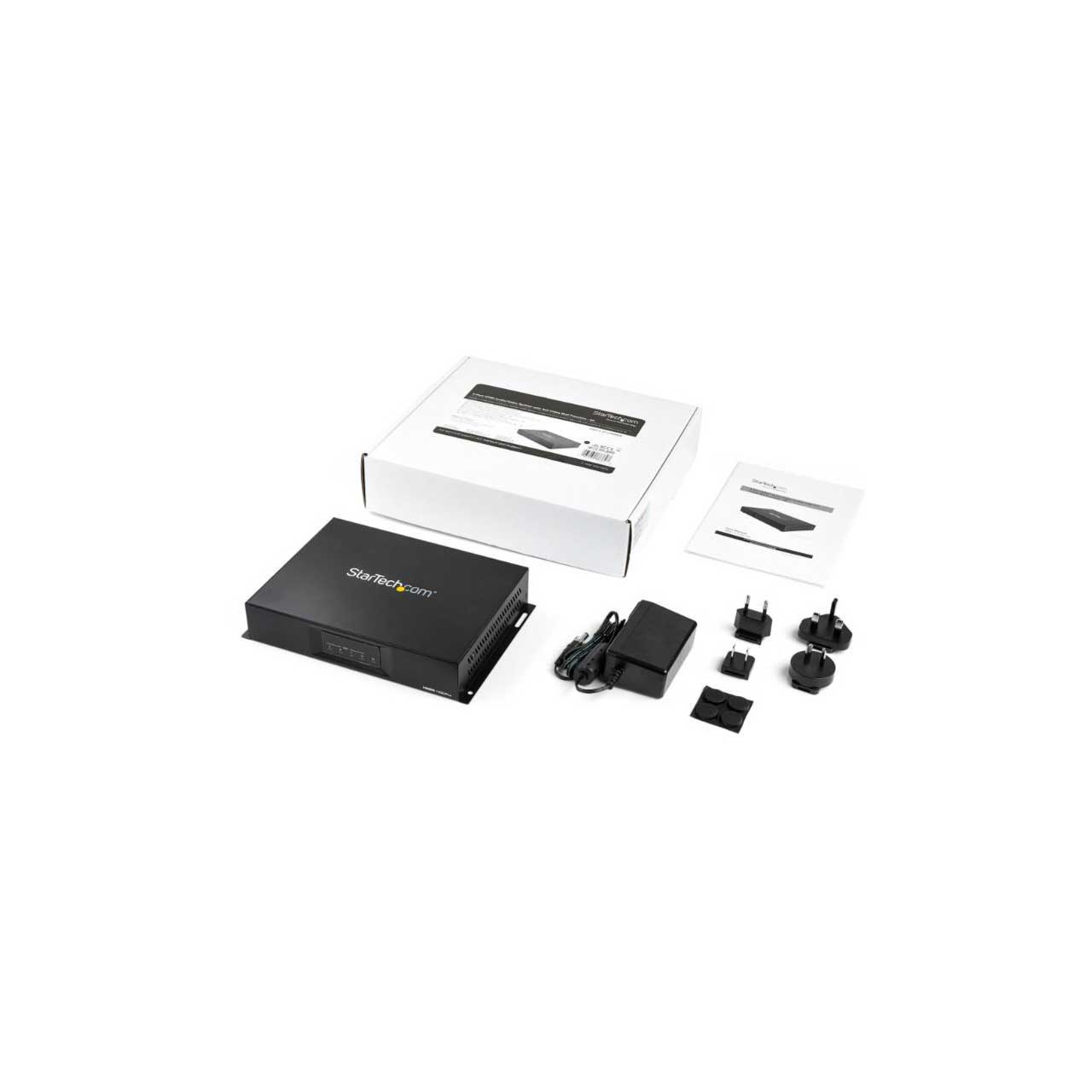

• Item Includes:

  • 1x 2x2 Video Wall Splitter
  • 1x Manual
  • 1x Universal Power Supply


• Warranty:

  • 2-year StarTech.com warranty and free lifetime technical support


• GTIN:

  0065030883603
