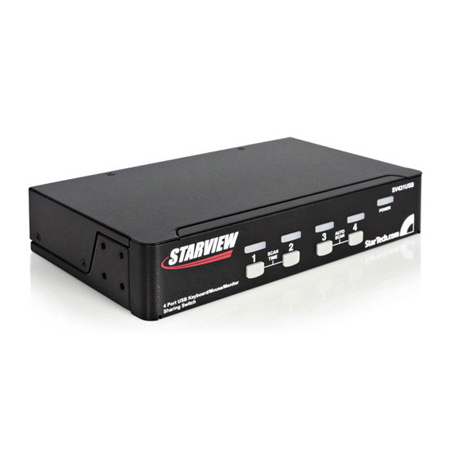

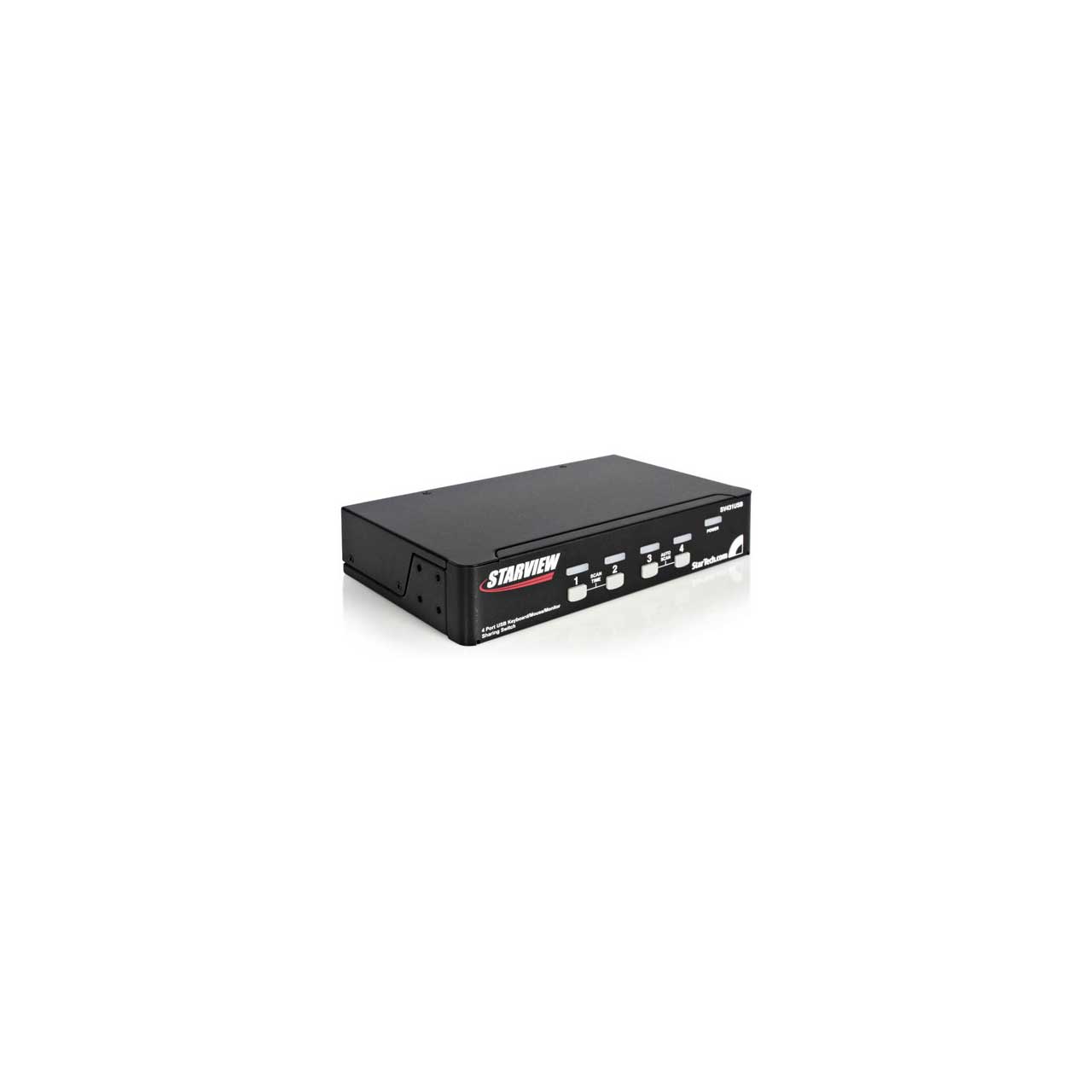

StarTech SV431USB 4 Port VGA USB KVM Switch with Hub

ITEM #: ST-SV431USB MFG #: SV431USB

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$113.99

Our Price:

$106.72

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SV431USB - Overview

The StarTech SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.

Applications
Sharing computers and USB devices in the home/SOHO/multimedia environment
Perfect for manufacturing line computer control, simplifying access to multiple systems
Great for PC test/burn-in computer control saving the desk space required for two monitors, keyboards and mice
Dual system control for single user workstations increasing user productivity in the office

  • Features:

    • Supports hot-plug and disconnect - computers can be added or removed without the need to reboot other connected systems
    • Front panel push-buttons for quick and easy switching
    • High 1920x1440 resolution capability
    • OS independent - No driver or software installation required
    • USB 2.0 hub for peripheral sharing
    • USB self-power operation

  • Specifications:

    • Connector(s)
    • 1 - Console Interface(s): VGA (15 pin, High Density D-Sub)
    • 4 - Console Interface(s): USB Type-A (4 pin) USB 2.0
    • 4 - Host Connectors: USB B (4 pin), VGA (15 pin, High Density D-Sub)

      Hardware
    • Audio: No
    • KVM Ports: 4
    • PC Interface: USB
    • PC Video Type: VGA
    • Number of Monitors Supported: 1
    • Rack-Mountable: Optional
    • Cables Included: No
    • U Height: 1U
    • Daisy-Chain: No

      Packaging Information
    • Package Height: 2.8 in [72 mm]
    • Package Length: 11.6 in [29.5 cm]
    • Shipping (Package) Weight: 2.8 lb [1.3 kg]
    • Package Width: 7.7 in [19.6 cm]

      Performance
    • On-Screen Display: No
    • DVI Support: No
    • IP Control: No
    • Hot-Key Selection: No
    • Maximum Cable Length: 16.4 ft [5 m]
    • Maximum Analog Resolutions: 1920 x 1440
    • Auto Scan: 3, 8, 15 & 30 seconds
    • Maximum Number of Users: 1
    • Port Selection Support: Push Button
    • MTBF: 82506 hours

      Physical Characteristics
    • Weight of Product: 34.9 oz [988 g]
    • Color: Black
    • Material: Steel
    • Product Length: 8.7 in [22 cm]
    • Product Width: 5.1 in [13 cm]
    • Product Height: 1.7 in [4.4 cm]

      Power
    • Power Source: Not Included (not required for standard applications)
    • Input Voltage: 110V-240V AC
    • Input Current: 0.4A
    • Output Voltage: 5 DC
    • Output Current: 2A
    • Center Tip Polarity: Positive
    • Plug Type: N

  • Item Includes:

    • 1x 4-Port VGA USB KVM Switch
    • 1x Instruction Manual
    • 4x Rubber Feet

  • GTIN:

    0065030787192
