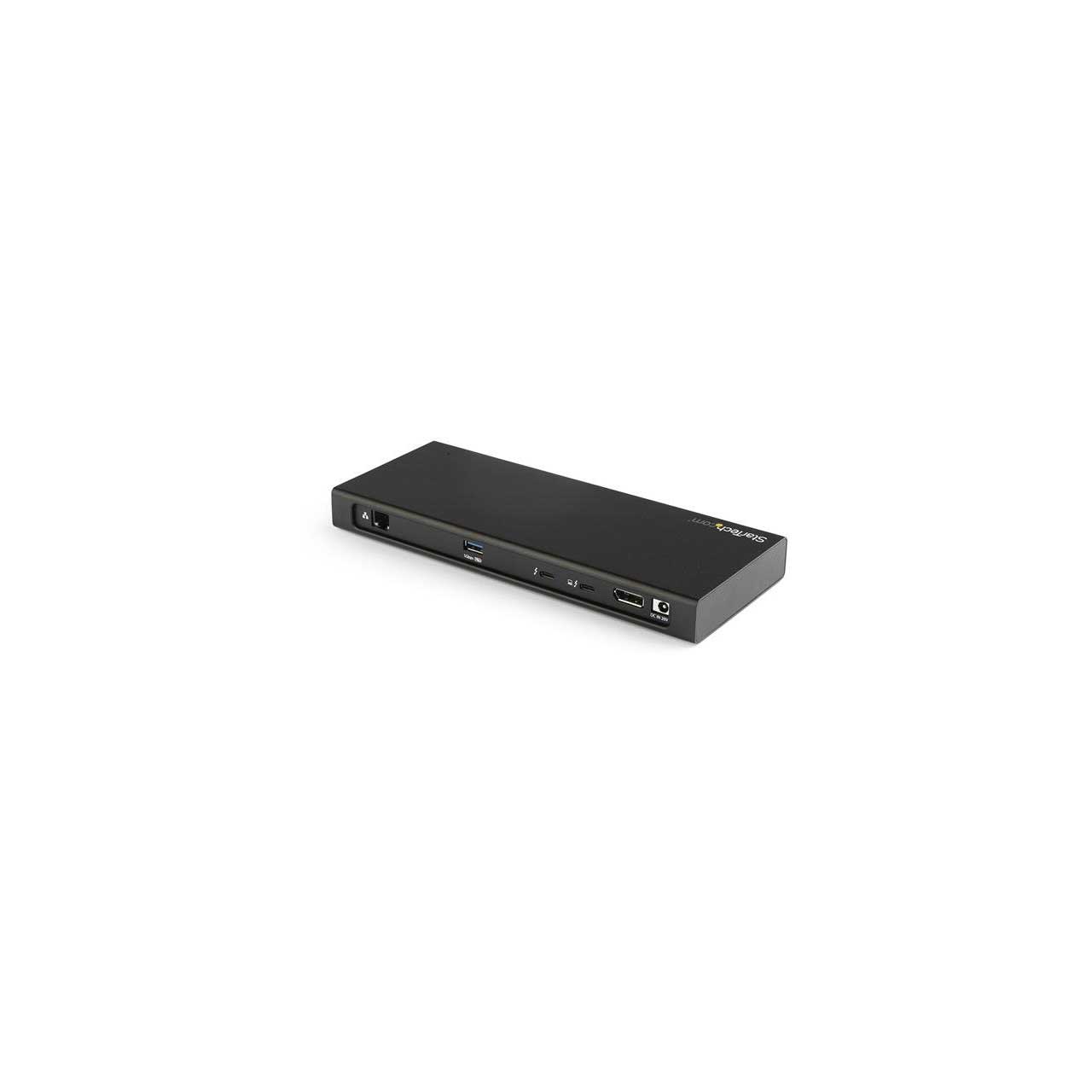

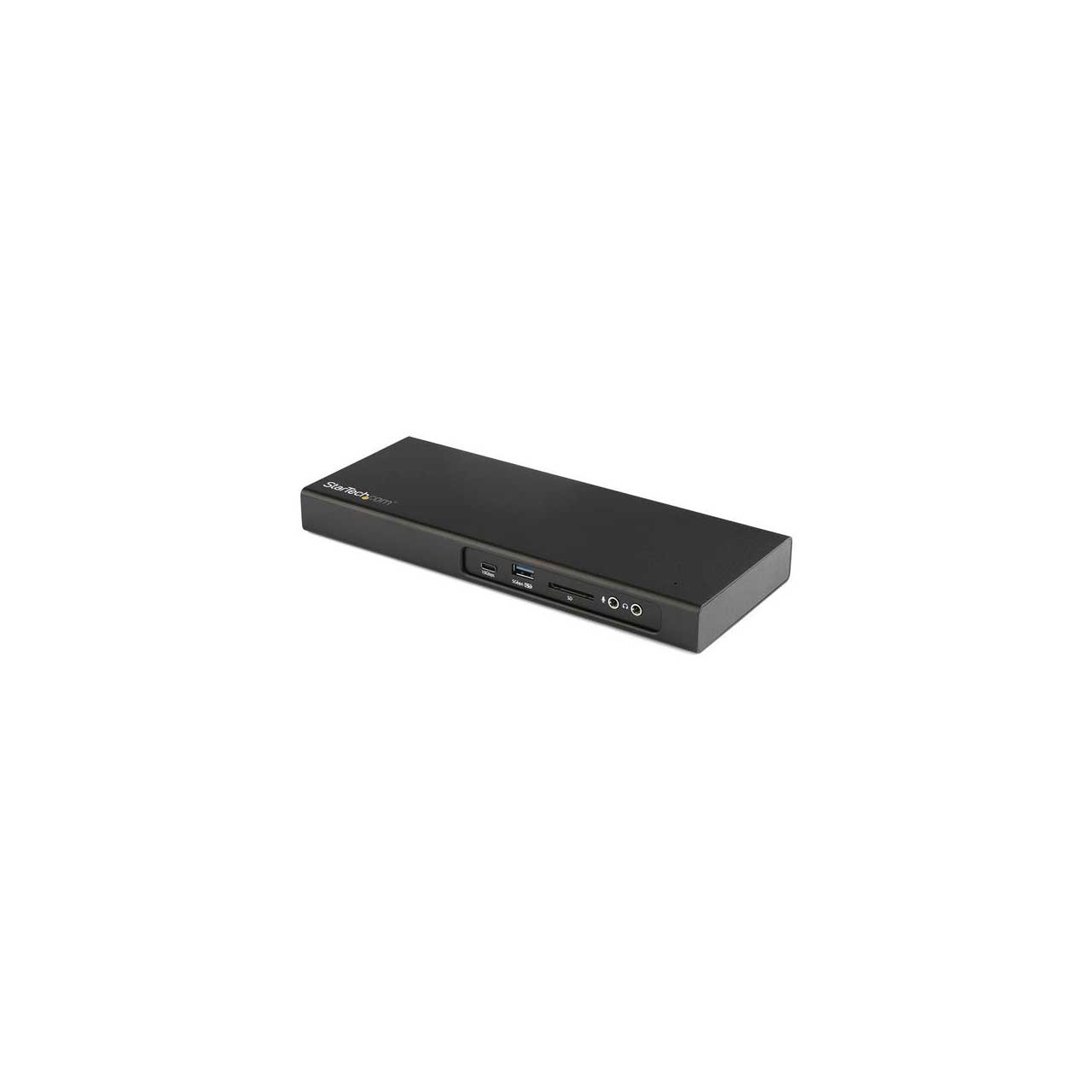

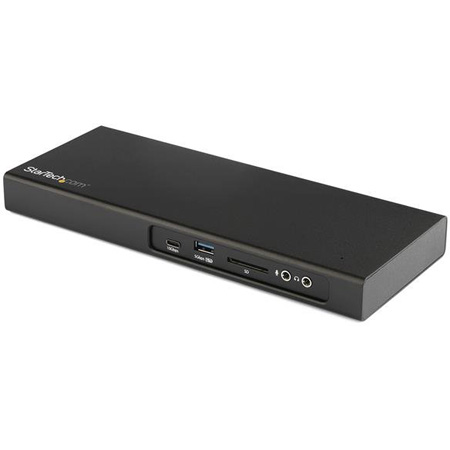

StarTech TB3DK2DPM2 Dual 4K Thunderbolt 3 Dock - PCIe M.2 Slot / SD / PD

TB3DK2DPM2 - Overview

• Features:

  • Connect dual UHD 4K 60Hz monitors: DisplayPort and Thunderbolt 3 USB-C (may require adapter)
  • Easy to set up and ready to go with no driver installation required
  • Connect USB devices with 3x USB ports - 1x USB-C (10Gbps) with 3A charging and 2x USB-A (5Gbps) ports with Fast-Charge

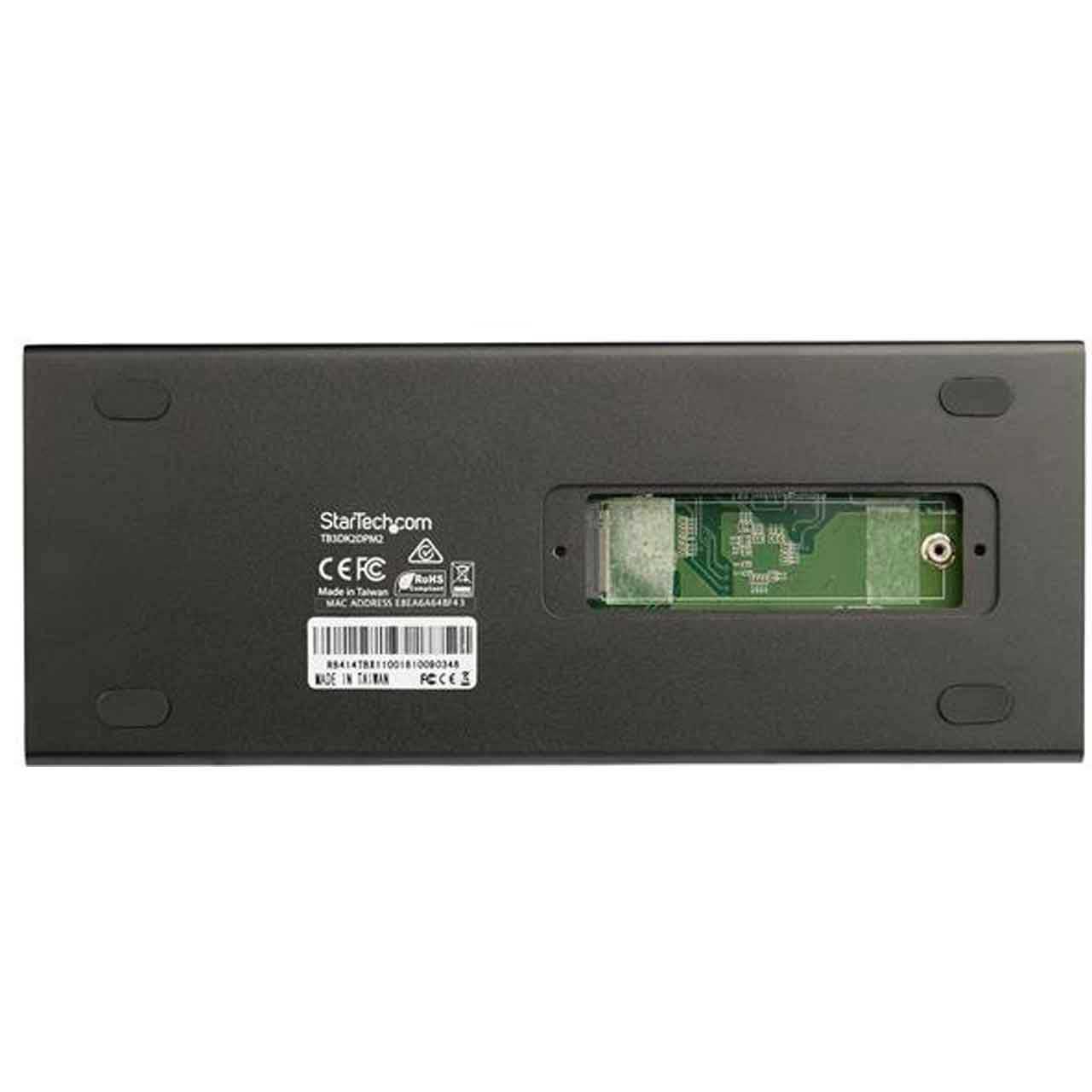

  • Install a PCIe M.2 SSD (NVMe and AHCI 80 mm drive size) directly into the dock's M.2 slot
  • SD card reader (and microSD with adapter) supports SD 4.0 and UHS-II
  • Power and charge your laptop with Power Delivery 2.0 (up to 85W)


• Specifications:

  • Hardware
  • 4K Support: Yes
  • Audio: Yes
  • Bus Type: Thunderbolt 3
    Chipset ID:
  • Intel - Alpine Ridge DP
  • ASMedia ASM1142
  • Realtek RTS5411
  • Realtek RTS5329
  • C-Media - CM6533
  • Intel i210AT


  • Displays Supported: 2
  • Fast-Charge Port(s): Yes
  • Industry Standards: Thunderbolt 3, USB Battery Charging Specification Rev. 1.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1

    Performance
  • Auto MDIX: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: Yes
    Maximum Data Transfer Rate:
  • 40 Gbps (Thunderbolt 3)
  • 10 Gbps (USB 3.1 Gen 2)
  • 5 Gbps (USB 3.0)
  • 2 Gbps (Ethernet; Full-Duplex)
    Maximum Digital Resolutions:
  • Dual 4K displays - DisplayPort and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz
  • Single 4K display - DisplayPort or Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz
  • Single 5K (5120 x 2880p) display (through Thunderbolt 3 USB-C port)
    Memory Media Type:
  • SD/MMC (Secure Digital/Multimedia Card)
  • SDHC (Secure Digital High Capacity)
  • SDXC (Secure Digital eXtended Capacity)
  • microSD (Micro Secure Digital) (adapter required)
  • microSDHC (Micro Secure Digital High Capacity) (adapter required)
  • microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)
  • PXE: Yes
  • Type and Rate: Thunderbolt 3 - 40 Gbit/s
  • UASP Support: Yes

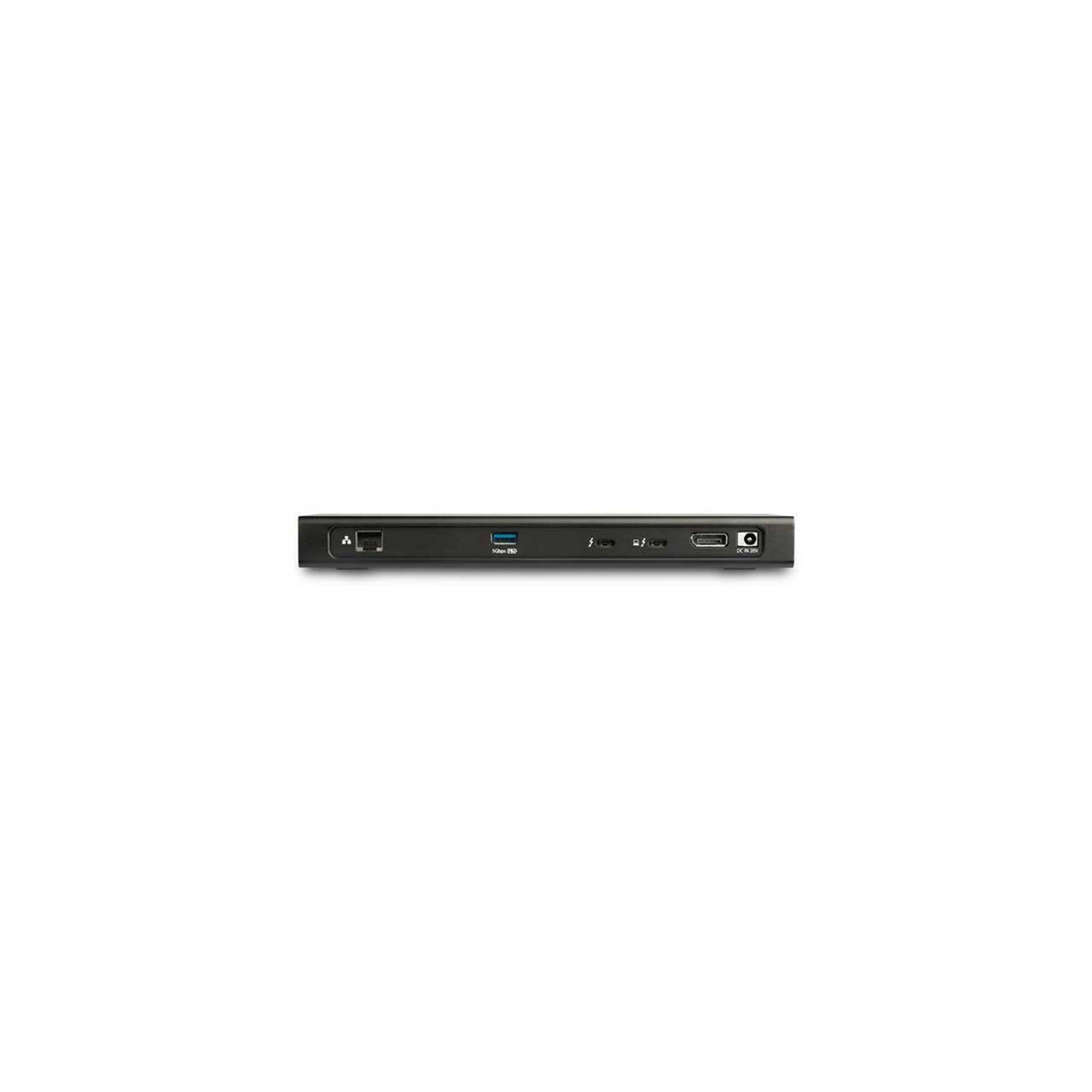

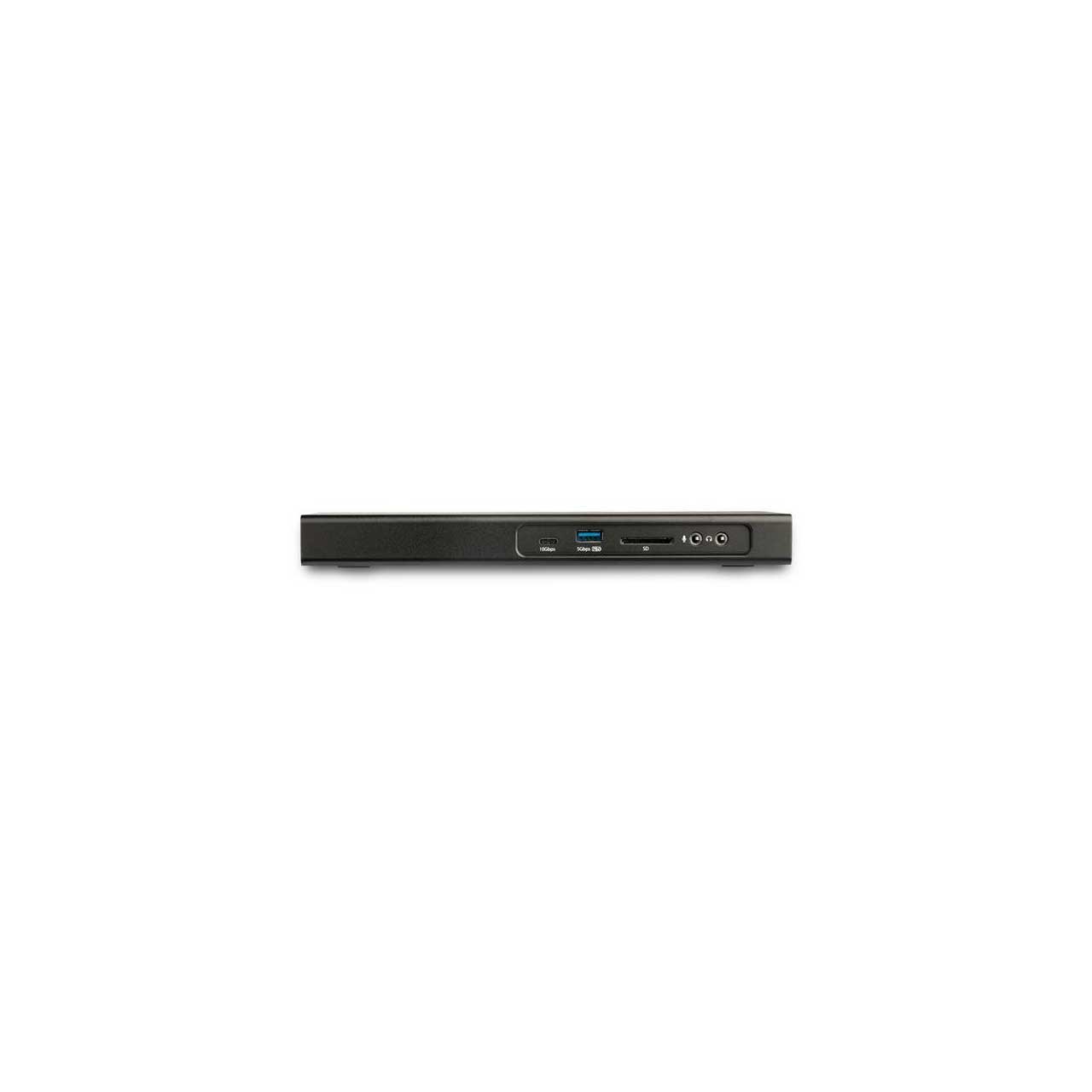

    Connector Type(s)
  • 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female
  • 1 - DisplayPort (20 pin) Female
  • 1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female
  • 1 - SD Slot Female
  • 1 - M.2 (NVMe, M-Key, PCIe x4) Female
  • 1 - USB 3.0 A (Fast-Charge, 9 pin) Female
  • 1 - USB Type-A (9 pin) USB 3.0 Female
  • 1 - RJ-45 Female
  • 1 - 3.5 mm Mini-Jack (3 Position) Female
  • 1 - 3.5 mm Audio Female

    Software - OS Compatibility
  • Windows® 8, 8.1, 10
  • macOS 10.12 - 10.15

    Notes
  • A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
  • When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.
  • USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.
  • System and Cable Requirements: Thunderbolt 3 equipped computer with a Thunderbolt 3 port.
  • Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop.

    Power
  • Center Tip Polarity: Positive
  • Input Current: 2.5 A
  • Input Voltage: 100 - 240 AC
  • Output Current: 7.5 A
  • Output Voltage: 20V DC
  • Plug Type: N
  • Power Consumption (In Watts): 170
  • Power Delivery: 85W
  • Power Source: AC Adapter Included

    Environmental
  • Humidity: 20~80% RH
  • Operating Temperature: 5°C to 35°C (41°F to 95°F)
  • Storage Temperature: -20°C to 50°C (-4°F to 122°F)

    Physical Characteristics
  • Cable Length: 19.7 in [500 mm]
  • Color: Black
  • Material: Aluminum
  • Product Height: 1 in [2.5 cm]
  • Product Length: 3.7 in [95 mm]
  • Product Width: 9.4 in [23.9 cm]
  • Weight of Product: 27.5 oz [780 g]

    Packaging Information
  • Package Height: 4.9 in [12.5 cm]
  • Package Length: 11.3 in [28.8 cm]
  • Package Width: 5.4 in [13.8 cm]
  • Shipping (Package) Weight: 3.1 lb [1.4 kg]


• Item Includes:

  • 1x Docking Station
  • 1x Thunderbolt 3 Cable
  • 1x Universal Power Adapter
  • 1x Power Cords (NA/JP, EU, UK, ANZ)
  • 1x Instruction Manual


• Warranty:

  • 3 Years


• GTIN:

  0065030876254
