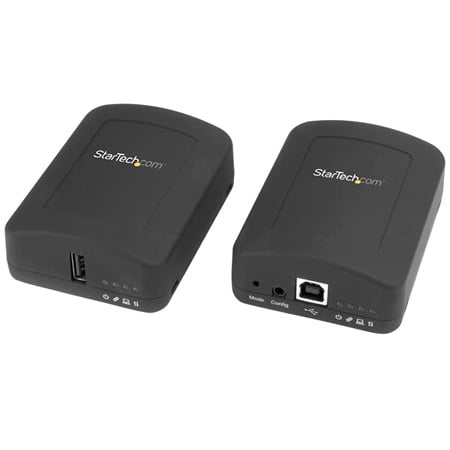

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ST-USB2001EXT2P

USB2001EXT2P - Overview

This single-port USB 2.0 extender lets you access and use your USB device up to 100 m away over Cat5e or Cat6 cable. And, because it can be powered by either the local or the remote unit, you have more flexibility to place your USB device exactly where you need it. The StarTech USB2001EXT2P is the perfect USB extension solution for warehouses, factories, classrooms, boardrooms, homes or offices.

Flexible power input options
Many USB-to-Ethernet extenders require that the remote unit has a power source connected for operation, which can make installation difficult. This versatile extender overcomes that restriction, letting you connect the power adapter to either the local (transmitter) unit or the remote (receiver) unit as needed.

When the power adapter is connected to the local unit, the extender delivers power over your Cat5e or Cat6 cable, eliminating the need for a power adapter in the remote location. Now you have the added convenience to install your USB device even in a remote location where a power outlet is unavailable, up to 100 m away.

Eliminates hassle and smashes distance limitations
This USB extender overcomes the 16 ft. cable length limitations of traditional USB 2.0 cables, so you can create a more efficient, more flexible workspace. It's perfect for connecting webcams, printers, flash drives, and virtually any USB peripheral.

Plus, with the included power adapter, you can connect power-hungry USB devices such as external hard drives. For added installation convenience, the USB-to-Ethernet extender features built-in cable-tie slots for mounting to a pole.

Supports any operating system and older devices
The USB 2.0-over-Cat5-or-Cat6 extender is multi-platform compatible, so it supports a variety of operating systems such as Windows, Mac, Linux and Chrome OS. Setup is easy with no additional drivers or software required, and the universal USB extender is backward compatible with USB 1.1 and 1.0 peripherals.

  • Features:

    • Flexible power input, with the versatility to power the USB extender from the local unit (transmitter), or from the remote unit (receiver)
    • Place your USB device exactly where you need it (up to 100 m), with this cost-effective USB-to-Ethernet extender
    • Universal, multi-platform compatible, and OS independent with no drivers required, for fast, hassle-free setup
    • Features built-in cable-tie slots for mounting to a pole
    • Supports transfer rates of up to 480Mbps
    • Supports plug-and-play operation, as well as and hot-swap and hot-plugging

  • Specifications:

    • Hardware
    • Cabling: Cat 5e UTP or better
    • Ports: 1

      Performance
    • Max Distance: 330 ft
    • Maximum Data Transfer Rate: 480Mbps

      Connector(s)
    • Local Unit Connectors: 1 - USB B (4 pin) Female, 1 - RJ-45 Female
    • Remote Unit Connectors: 1 - USB A (4 pin) Female, 1 - RJ-45 Female

      Software
    • OS Compatibility: OS Independent; No additional drivers or software required

      Special Notes / Requirements
    • System and Cable Requirements: A host computer with an available USB-A port (USB Type-A) / An RJ45-terminated UTP Cat5e or better Ethernet cable

      Indicators
    • LED Indicators-
    • 1 - Power
    • 1 - Link
    • 1 - Host
    • 1 - Activity

      Power
    • Center Tip Polarity: Positive
    • Input Current: 0.58 A
    • Input Voltage: 100 ~ 240 AC
    • Output Current: 1 A
    • Output Voltage: 24 DC
    • Plug Type: M
    • Power Consumption (In Watts): 24
    • Power Source: AC Adapter Included

      Environmental
    • Humidity: 20~80% RH (Non-condensing)
    • Operating Temperature: 32°F to 122°F
    • Storage Temperature: -4°F to 158F

      Physical Characteristics
    • Color: Black
    • Enclosure Type: Plastic
    • Product Height: 2.6 in
    • Product Length: 3.5 in
    • Product Weight: 21.9 oz
    • Product Width: 1.2 in
    • Shipping Weight: 3.2 lb

  • Item Includes:

    • USB 2.0 extender local unit
    • USB 2.0 extender remote unit
    • USB 2.0 cable
    • universal power adapter (NA, JP, UK, EU, ANZ)
    • quick-start guide

  • GTIN:

    0065030866149
