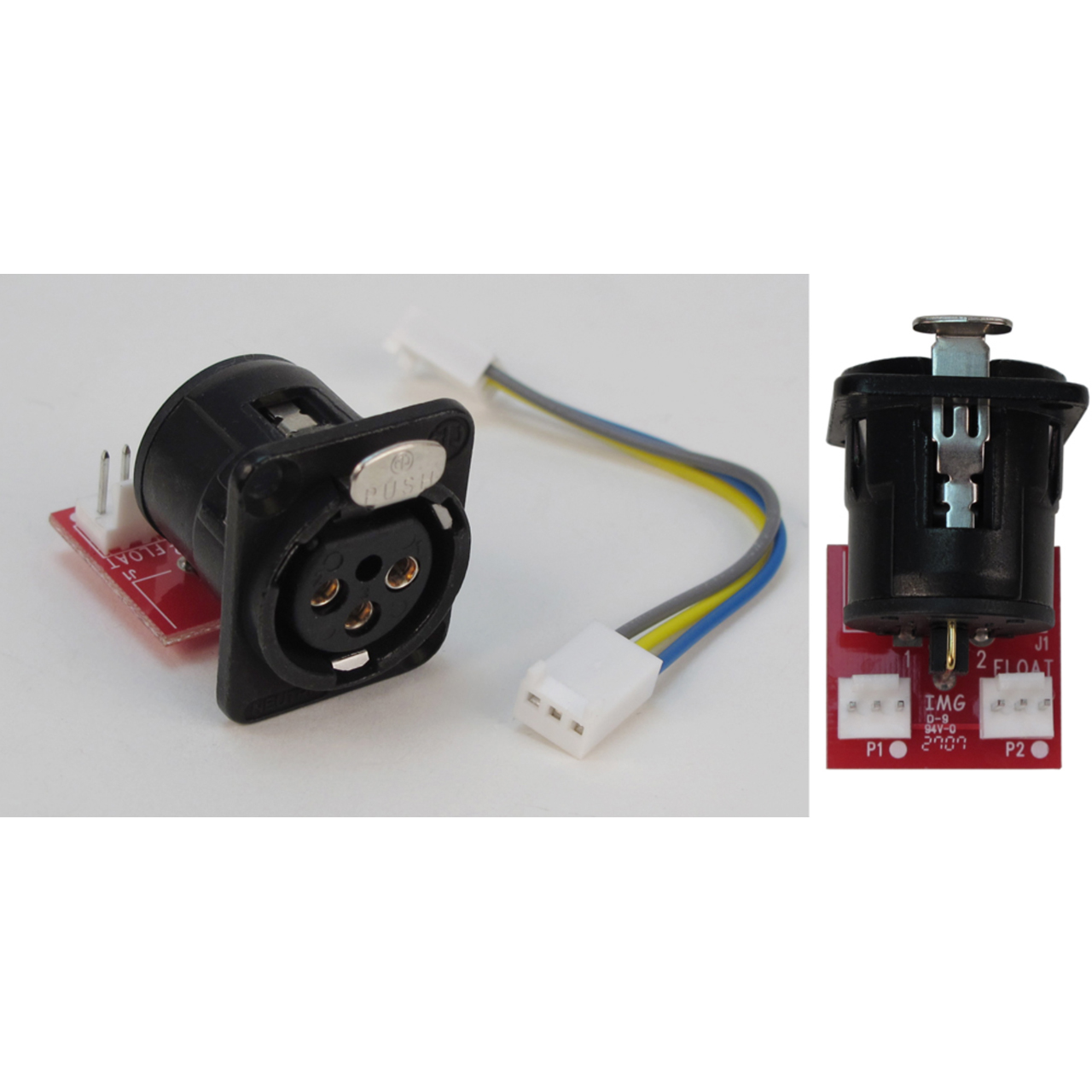

The Studio Technologies 31201 is a kit that allows a technician to add a "mult" or special-function connector to Model 200-Series Announcer's and Producer's Consoles. Installs in one of the back-panel spare-connector locations. The card features a 3-pin female XLR connector and two 3-pin headers. Each kit includes card, interface cable, and hardware.
This card kit can be used on the following products:
Model 210 Announcer's Console
Model 211 Announcer's Console
Model 212 Announcer's Console
Models 214A/215A/216A Announcer's Consoles
Model 233 Announcer's Console
Models 232/234/236 Announcer's Consoles
Model 240 Producer's Console
This card kit can be used with the following factory-discontinued products:
Models 214/215/216 Announcer's Consoles
Model 220 Announcer's Console
Model 230 Announcer's Console
