318BTS - Overview

Stereo version of the iconic Switchcraft 318BT.

Switchcraft 318BTS is a low latency, high reliability, rugged dongle, utilizing Bluetooth® 4.2 technology to convert input devices into Bluetooth® enabled devices, using A2DP as a slave device.

318BTS is designed to be powered by Phantom Power available in most professional audio consoles, and guarantees that it will work 100% of time without the worries of charging or maintaining power to the dongle. With enhanced range, better sound and low latency, 318BTS is the best solution to connect your Bluetooth® enabled devices to any microphone input. Simply plug, power and connect, and enjoy high quality audio from any Bluetooth® enabled device.

Like all Switchcraft® products, 318BTS is built to last, durable, highly reliable, and fully certified to be used in both; commercial and residential environment.

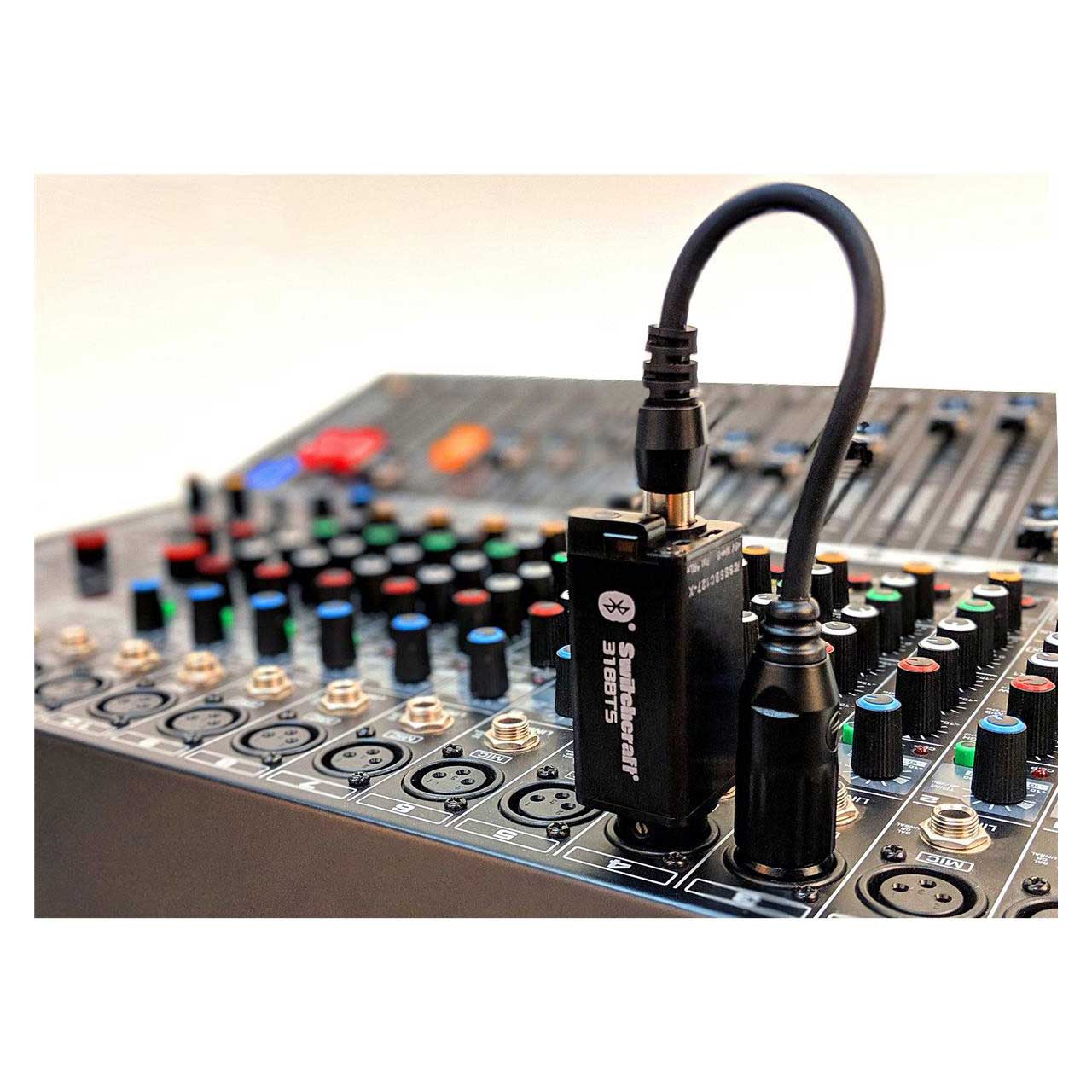

What makes the 318BTS stand out from the standard 318BT is the addition of an extra XLR output cable which plugs directly into a 2nd channel on your mixer giving you true stereo sound. Pan hard left on one channel and hard right on a 2nd channel and you've instantly got that magical wide spread stereo sound where the "sweet" spot can be found!

  • Features:

    • AudioStix from Switchcraft® are the newest additionsto our expanding line of premium pro audio products. They can
    • be used as stand-alone adapters, rear mounted into our modular QGPK Series rack panels, or permanently installed
    • into any number of custom racks and wall plates. AudioStix are made in the USA.

  • Specifications:

    • Bluetooth version: 4.2
    • Maximum output level: -24dBu
    • Certification: FCC Class B, CE, KC, JRF, ACMA
    • Frequency band: 2402 to 2480 MHz
    • DAC resolution: 16 bit
    • Codec: SBC
    • A2DP frequency response: 73Hz - 17.5 kHz (ref 1 kHz, ± 3dB)
    • Working range: Up to 100 ft.
    • Minimum Phantom power voltage: 47VDC
    • Rated voltage: 48VDC
    • Rated current: 4.6mA
    • Aux power (Micro USB port): 4-6 VDC
    • Housing: Anodized aluminum
    • Connector: Switchcraft® XLR connector
    • LED indicators: Red and Yellow
    • Size: 1.23" x 1.03" x 3.65" (3.15 x 2.62 x 9.25 cm)
    • Weight: 2.7 Oz (76.5 g)
    • Operating temperature: -40°C to 85°C

  • GTIN:

    0853592007274
