Switchcraft 860 DC Power Plug with a Black Insulator Tip

Name: Switchcraft 860 DC Power Plug with a Black Insulator Tip
Brand: Switchcraft
SKU: SW-860
Price: 11.05 USD
Availability: InStock

ITEM #: SW-860 MFG #: 860

Switchcraft

List Price:

$12.00

Our Price:

$11.05

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

860 - Overview

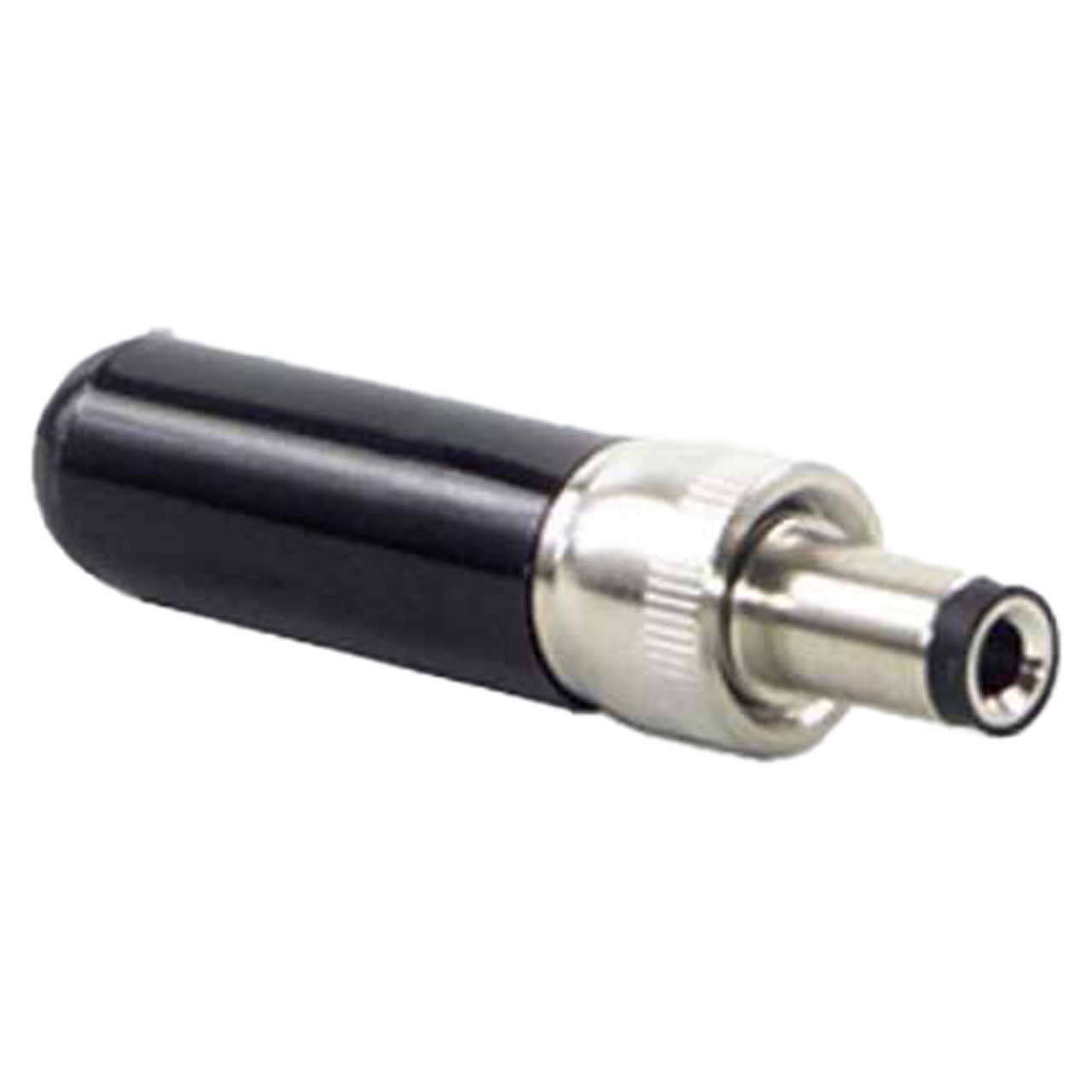

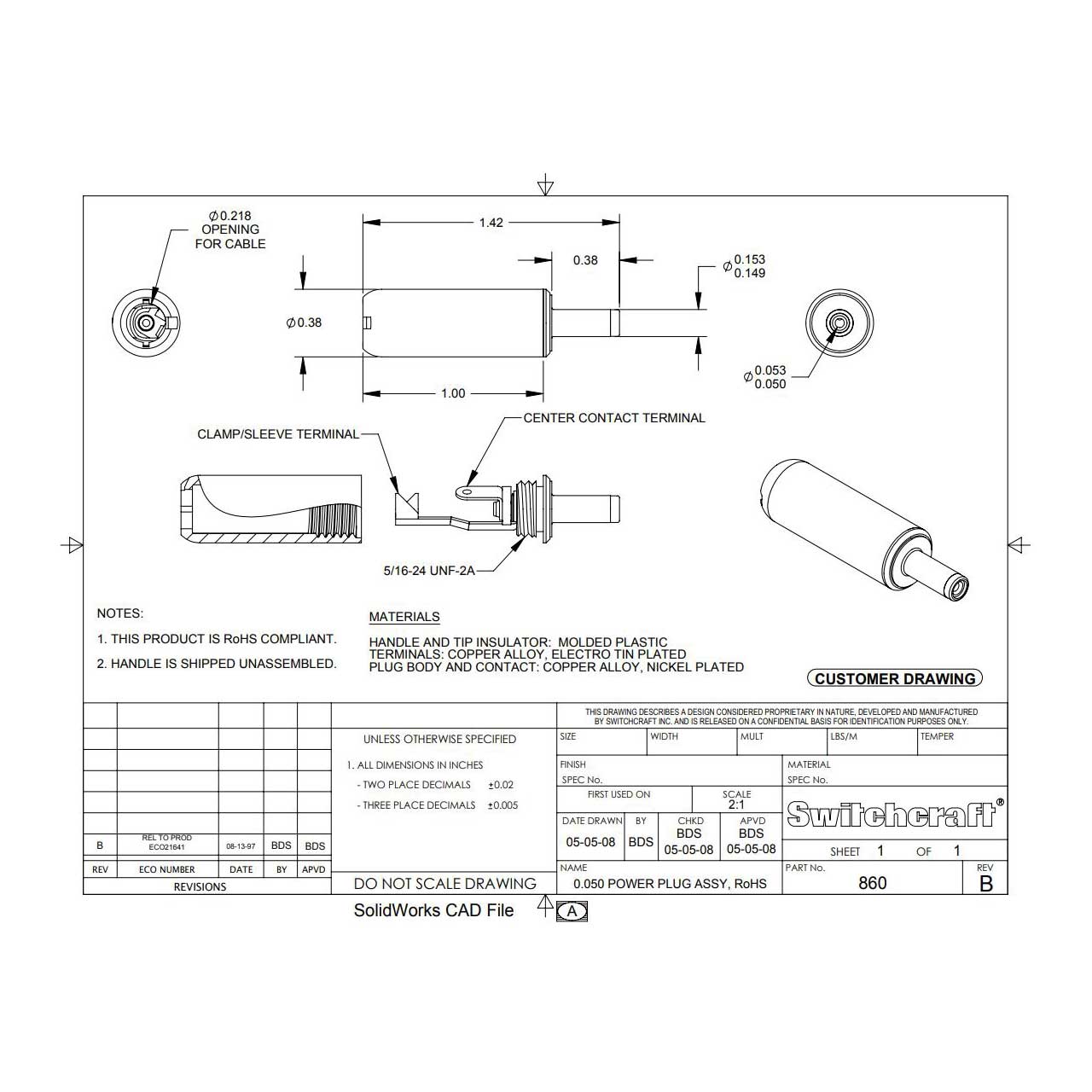

The Switchcraft 860 is a 0.050 inch (1.27mm) DC Power Plug with a 1.42 inch (36.07mm) overall length, black insulator tip, and black handle.

Features:
- 2-conductor power jacks.
- Locking option available for added security in critical applications.
- Molded plastic handles available in black or red.
- Sleeve terminal serves as cord clamp.
Specifications:
- Plug Sleeve and Pin: Nickel-plated copper alloy.
- Lock ring: Nickel-plated copper alloy.
- Lock ring Thread Size: 5/16 - 32 UNEF 2B.
- Finger Insulator: Molded plastic.
- Insulating Washers: Rigid plastic.
- Sleeve Terminal: Copper alloy, electro-tinned.
- Handle: Molded plastic.
- Handle Thread Size: 5/16 - 24 UNF 2B.
- Electrical: Current (Carry): 5 amps.
