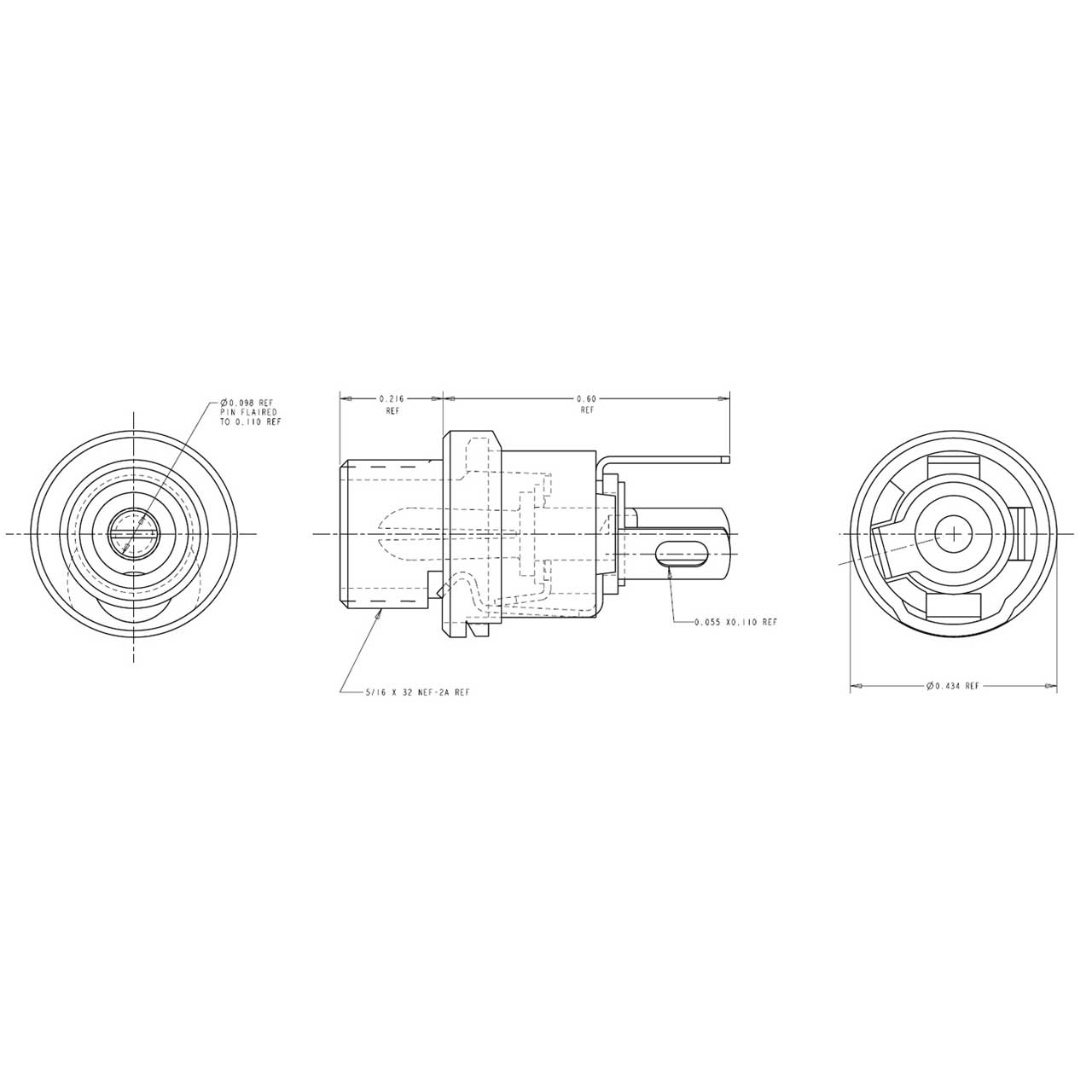

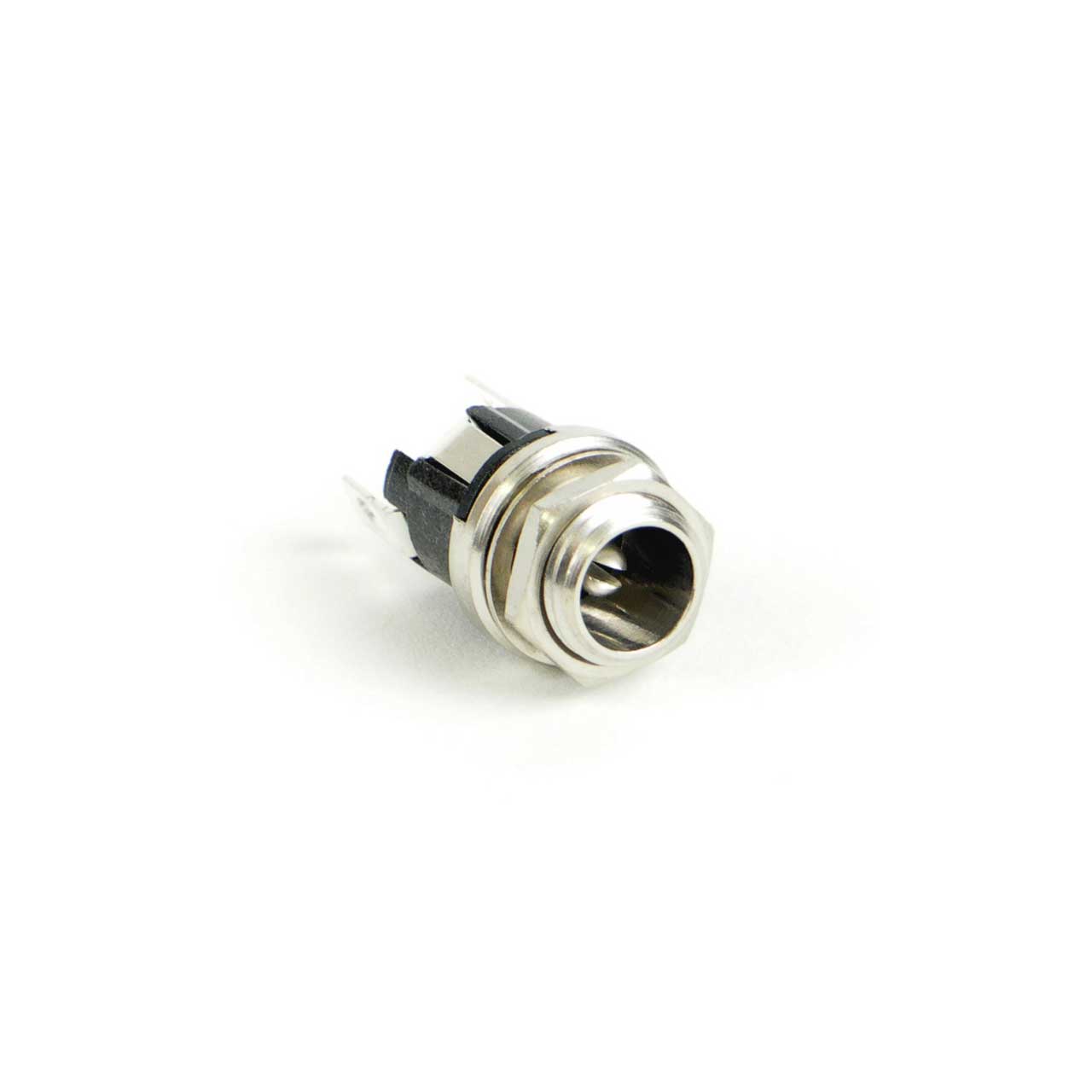

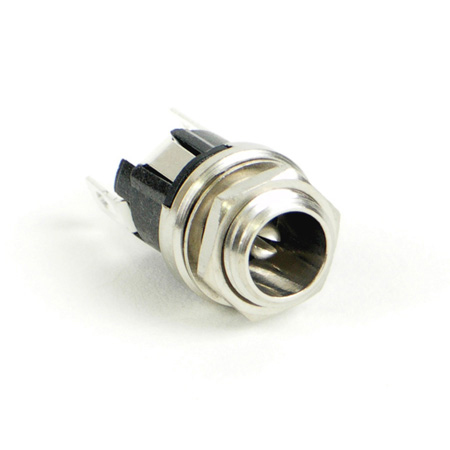

Switchcraft 712A DC Power Jack 0.100in (2.5mm) Pin - Solder Lugs Termination

Name: Switchcraft 712A DC Power Jack 0.100in (2.5mm) Pin - Solder Lugs Termination
Brand: Switchcraft
SKU: SW712A
Price: 3.79 USD
Availability: InStock

ITEM #: SW712A MFG #: 712A

Switchcraft

List Price:

$4.00

Our Price:

$3.79

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

712A - Overview

Straight versions of our DC power jacks. These versions have threaded bushings to allow use of both standard and locking power plugs. The L versions of the power jacks have a longer bushing (0.319")to accommodate thicker panel mount applications. Available in pin diameters of 0.050", 0.080", and 0.100".

Specifications:
- MATERIALS:
- Housing: Thermoplastic
- Bushing: Plated copper alloy
- Terminals: Plated copper alloy
- Insulators: Rigid Plastic
- Hardware: Supplied with one P2439 nickel plated copper alloy hex nut, and one P2441 nickel plated steel flat washer
  ELECTRICAL:
- Current Rating: 5A, 12V DC resistive
- Contact Resistance: 0.01 Ohms max. (initial),
- 0.02 Ohms max. (after humidity, durability exposure),
- 0.10 Ohms max. (after salt spray)
- Insulation Resistance: 10,000 Mohms min. (initial),
- 1,000 Mohms min. (after humidity, durability exposure)
- Dielectric Withstanding Voltage: 500 VAC max.
  MECHANICAL:
- Lifecycles: 10,000 cycles min.
