Switchcraft Power Plug- 5.5mmx2.5mm I.D.x1.42L

ITEM #: SW760 MFG #: 760

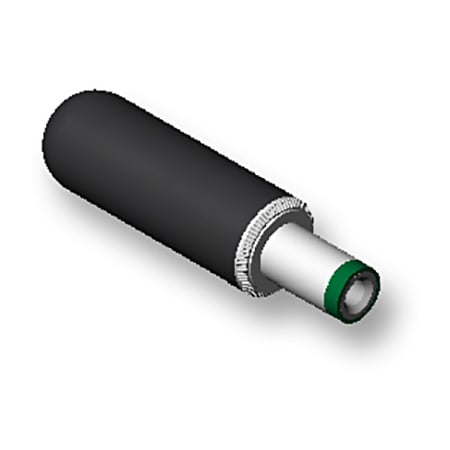

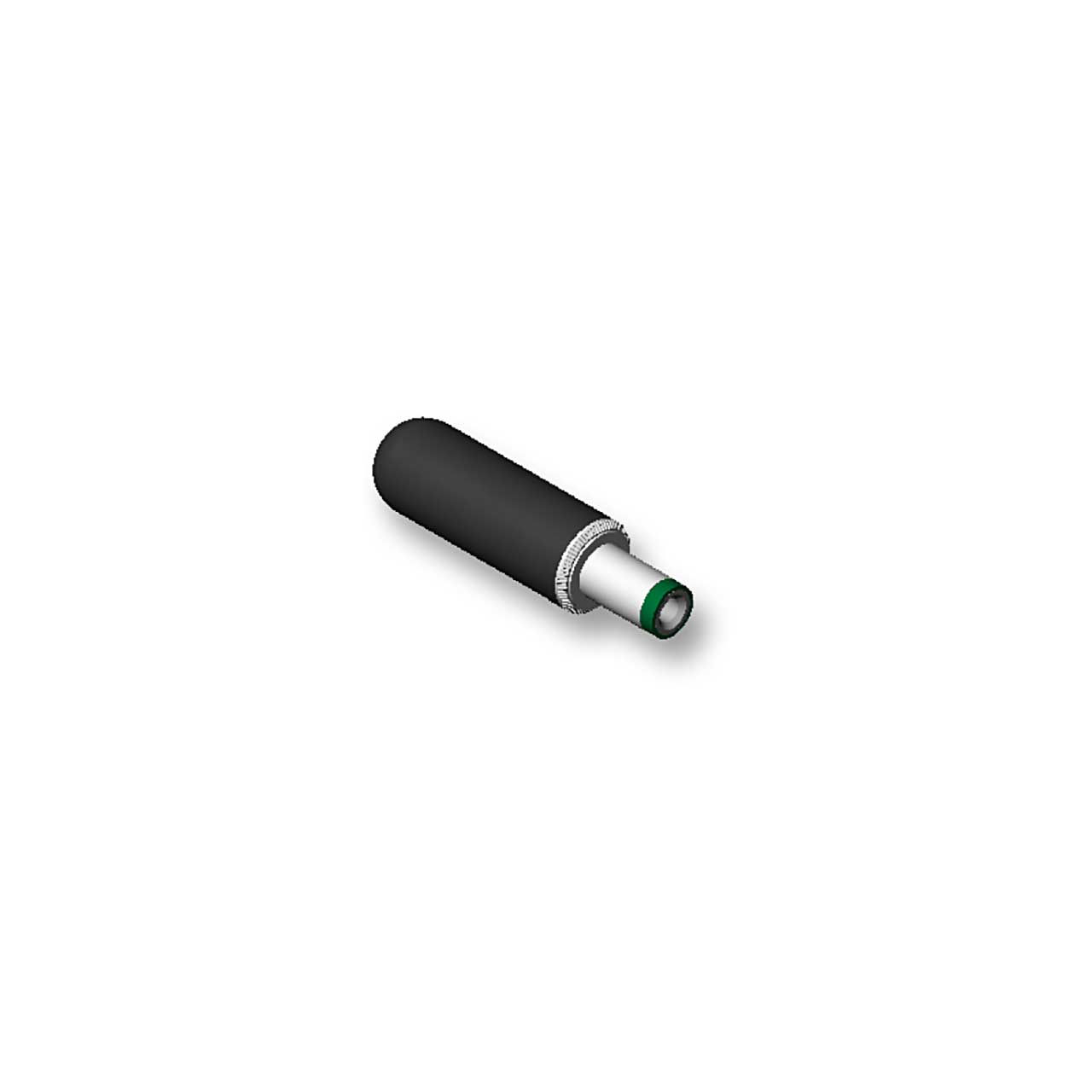

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$5.00

Our Price:

$3.86

Availability: In Stock
iAvailability Description Popup


760 - Overview

The new 760 high temperature jacks and plugs from Switchcraft utilize a specially engineered, high RTI thermoplastic capable of withstanding much higher temperature and current than standard power jacks. This is ideal for applications with a high ambient temperature and is better able to withstand the high temperatures introduced by soldering than typical power jacks and plugs. They are made in the USA using the same high quality components as our standard power jacks and plugs and are fully mateable with either high temperature or standard jacks and plugs from Switchcraft.

  • Specifications:

    • Electrical
    • Voltage Rating: 24V DC resistive
    • Current Rating: See current carry table on drawings
    • Insulation Resistance: 1,000 MΩ min.
    • Contact Resistance: 0.01Ω max. (initial); 0.02Ω max. (after humidity/ durability); 0.10Ω max. (after salt spray)
    • Dielectric Withstanding: 500 VAC max.

      MATERIAL (PLUGS)
    • Plug Sleeve and Pin: Nickel-plated copper alloy.
    • Lock Ring: Nickel-plated copper alloy.
    • Lock Ring Thread Size: 5/16 - 32 UNEF 2B.
    • Finger Insulator: High RTI Thermoplastic
    • Insulating Washers: Phenolic
    • Terminals: Copper alloy, electro-tinned.
    • Handle: High RTI Thermoplastic
    • Handle Thread Size: 5/16 - 24 UNF 2B.

      Mechanical/Environmental
    • Life: 5,000 insertion/withdrawal cycles min
    • Operating Forces: 3 pound maximum insertion, 4 ounce minimum withdrawal
    • Temperature Limits: -40°F to 221°F
