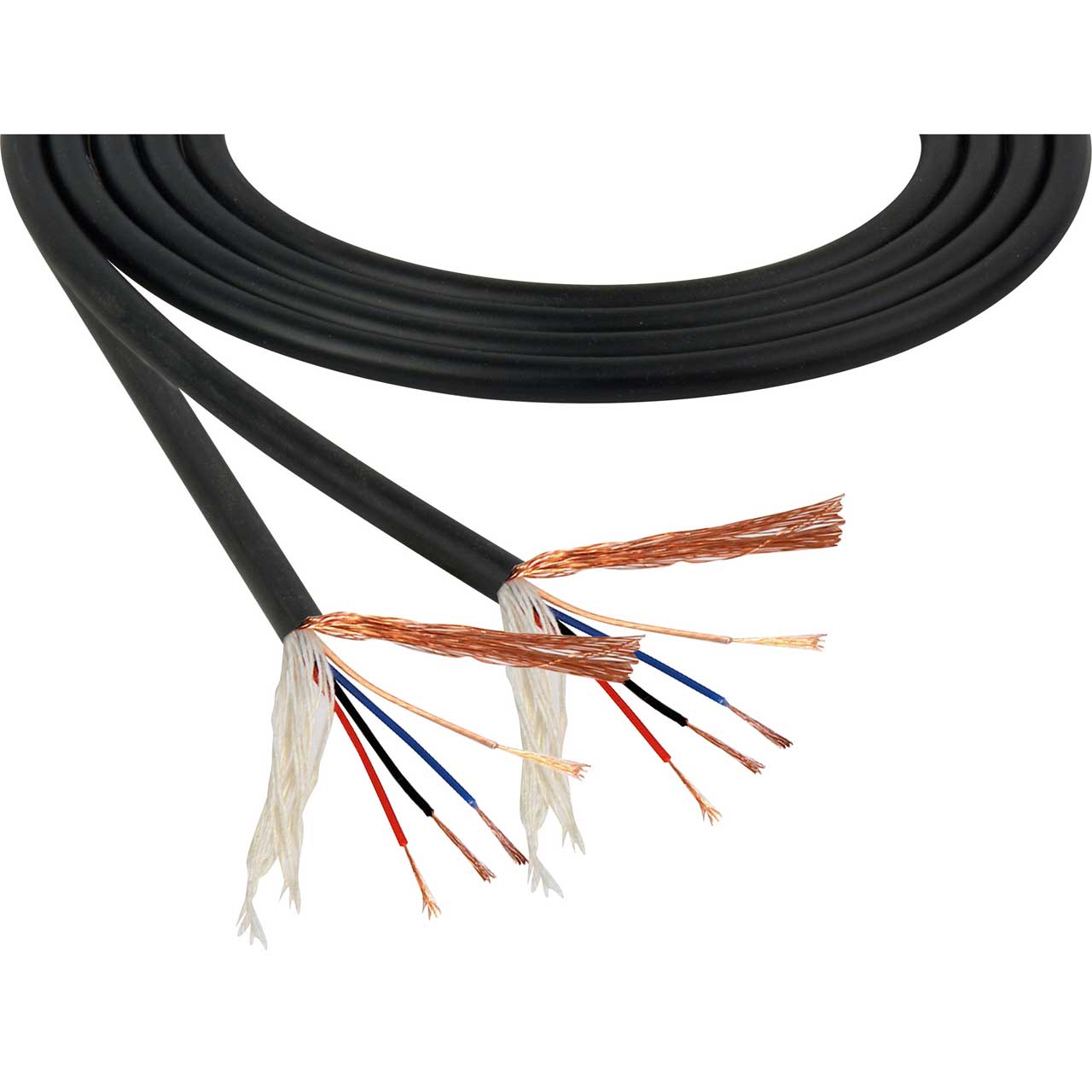

Mogami W2893 4-Conductor Mini Quad Superflexible Microphone Cable - Per Foot - Black

2893 - Overview

• Features:

  • Conductor insulation is XLPE (Cross-Linked Polyethylene) which has excellent electrical characteristics and prevents shrink-back during soldering.
  • Served (spiral) Bare Copper Shield is superior to foil or braided shields for sound quality and simplifies termination.

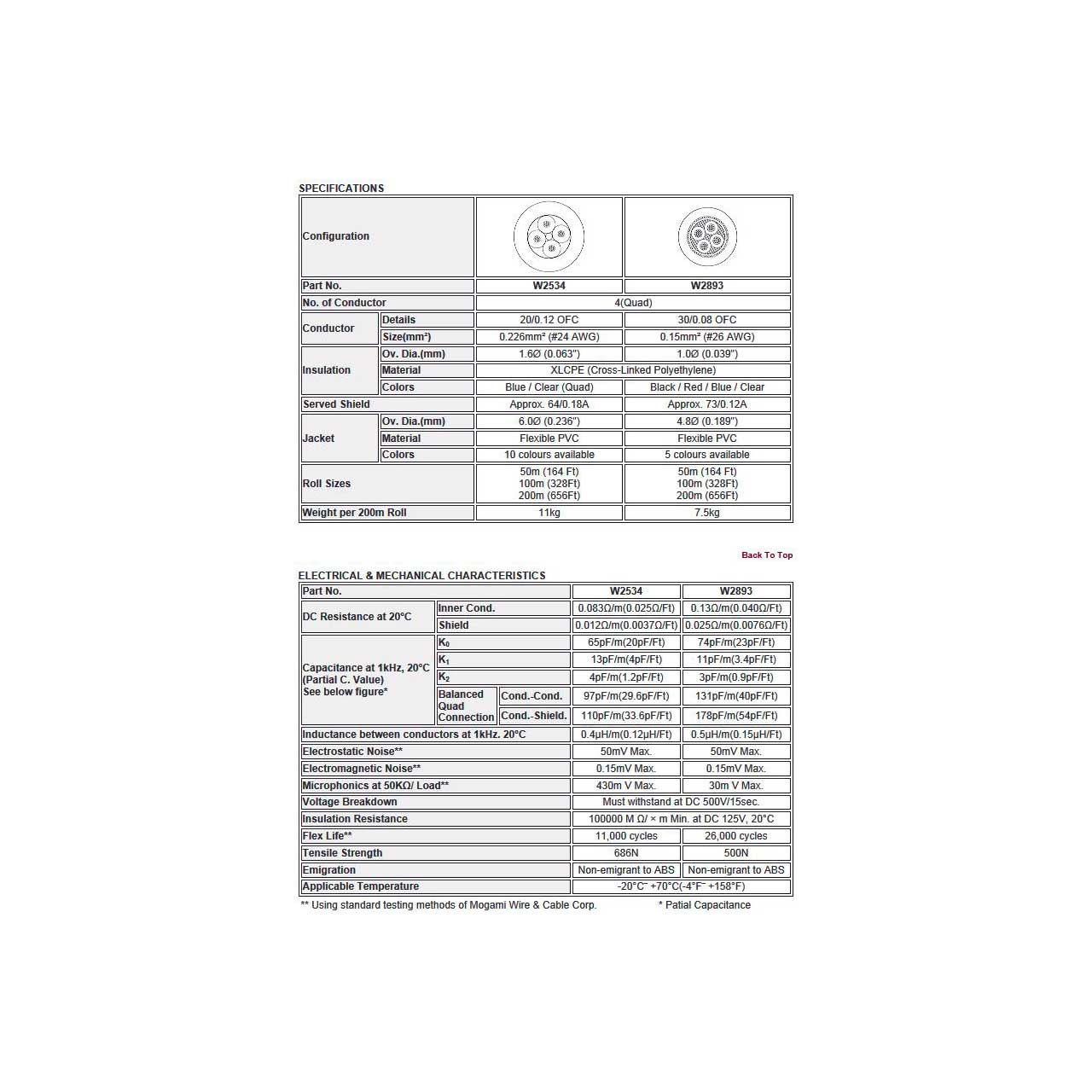

• Specifications:

  • Cable
  • No. of Conductor: 4 (Quad)
  • Conductor:
    - Details: 30/0.08 OFC
    - Size (mm²): 0.15mm² (#26 AWG)
  • Insulation:
    - Ov. Dia. (mm): 1.0∅ (0.039")
    - Material: XLCPE (Cross-Linked Polyethylene)
  • Served Shield: Approx. 73/0.12A
  • Jacket:
    - Ov. Dia. (mm): 4.8∅ (0.189")
    - Material: Flexible PVC

    Electrical & Mechanical
  • DC Resistance at 68°F (20°C):
    - Inner Cond.: 0.13Ω/m (0.040Ω/ft)
    - Shield: 0.025Ω/m (0.0076Ω/ft)
  • Capacitance at 1kHz, 68°F (20°C):
    - K₀: 74pF/m (23pF/ft)
    - K₁: 11pF/m (3.4pF/ft)
    - K₂: 3pF/m (0.9pF/ft)
  • Balanced Quad Connection:
    - Cond. Cond.: 131pF/m (40pF/ft)
    - Cond. Shield.: 178pF/m (54pF/ft)
  • Inductance Between Conductors at 1kHz, 68°F (20°C): 0.5µH/m (0.15µH/ft)
  • Electrostatic Noise: 50mV Max
  • Electromagnetic Noise: 0.15mV Max
  • Microphonics at 50KΩ/Load: 30m V Max
  • Voltage Breakdown: Must withstand at DC 500V/15 sec
  • Insulation Resistance: 100000MΩ/x m Min. at DC 125V, 68°F (20°C)
  • Flex Life: 26,000 cycles
  • Tensile Strength: 500N
  • Emigration: Non-emigrant to ABS
  • Applicable Temperature: -4°F - 158°F (-20°C - 70°C)
