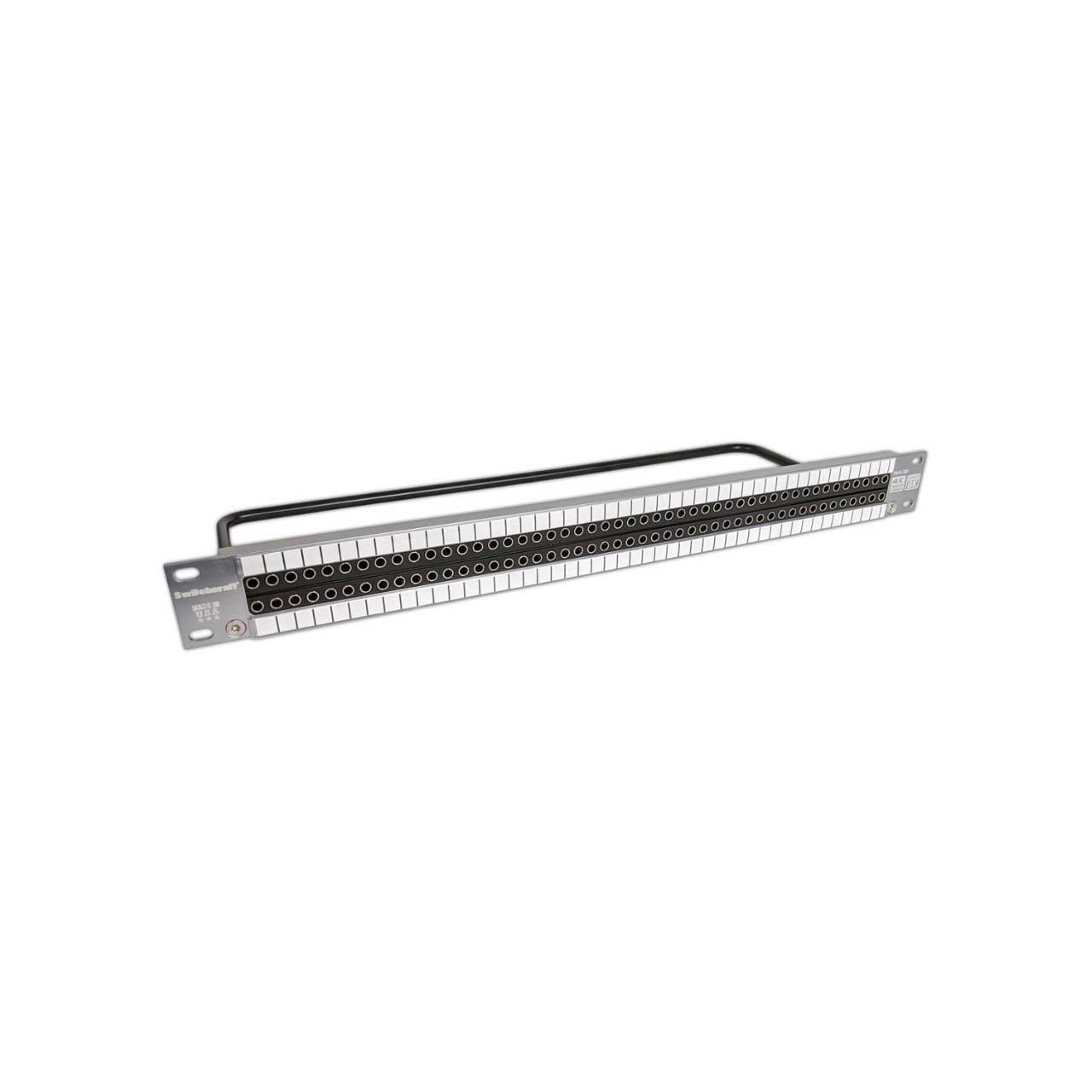

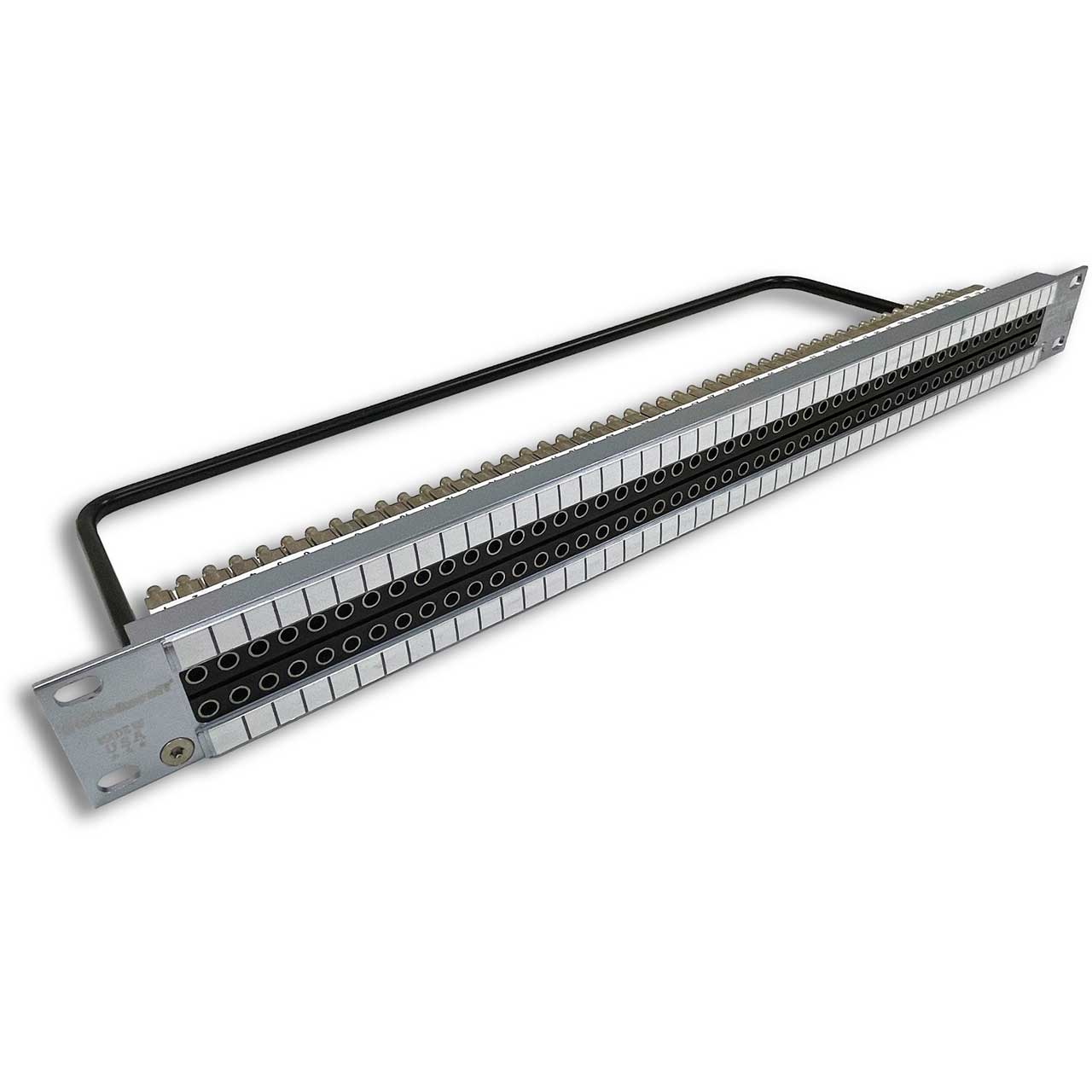

Switchcraft SW-MMVPD48K175T 1RU 2x48 Micro UHD Video Patchbay Panel - Full Normal - DIN 1.0/2.3

Name: Switchcraft SW-MMVPD48K175T 1RU 2x48 Micro UHD Video Patchbay Panel - Full Normal - DIN 1.0/2.3
Brand: Switchcraft
SKU: SW-MMVPD48K175T
Price: 4267.65 USD
Availability: PreSale

ITEM #: SW-MMVPD48K175T MFG #: MMVPD48K175T

Switchcraft

Normaling:

Normaling

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,482.00

Our Price:

$4,267.65

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

MMVPD48K175T - Overview

The Switchcraft Ultra VideoPatch line is a full line of 4K,8K UHD video patching solutions: Mid-Size/Mini-WECO single jacks, 2x48 1RU patch bay, patch cables, and accessories. This innovative product line meets and exceeds SMTPE ST 2081-1 and ST 2082-1 with low return loss, 75 ohm impedance and life cycle of 30,000. Passing quality signals for 4K, 8K and Beyond.

Features:
- 1RU, 2X48 MicroSize 12G 4K/8K Video Patchbay.
- Full Normal (No Looping Plug) Micro Video Plug to UHD DIN 1.0/2.3
Specifications:
- Electrical:
- Meets SMPTE 2082-1
- Characteristic Impedance: 75 Ohms
- Contact Resistance: Less Than 50 Milliohms

  Interface:
- Mating Plug: 0.175 Outside Diameter
- Center Conductor: Accepts 0.029 Pin Diameter

  Mechanical:
- Vibration: Per Mil - Std 202, Method 201
- Insertion Force: 9 Lbs Max.
- Withdrawal Force: 2 Lbs Min.
- Life Cycle: 20,000 MIN.

  Environmental:
- Operating Temperature: -40°F to 149°F
- Storage Temperature: -40°F to 149°F
- Thermal Shock: Per Mil-Std- 202, Method 107
- Moisture And Humidity: Per Mil-Std- 202, Method 106
- Salt Spray: Per Mil-Std- 202, Method 101

  *Use UHDDIN94 (4594R Cable) And VMMPUHD Patchcords or VMMLPUHD Looping Plugs to Meet SMPTE 2082-1.
Item Includes:
- 1x SW-MMVPD48K1NNT 2x48 Micro UHD Video Patchbay Panel - Full Normal - DIN 1.0/2.3
