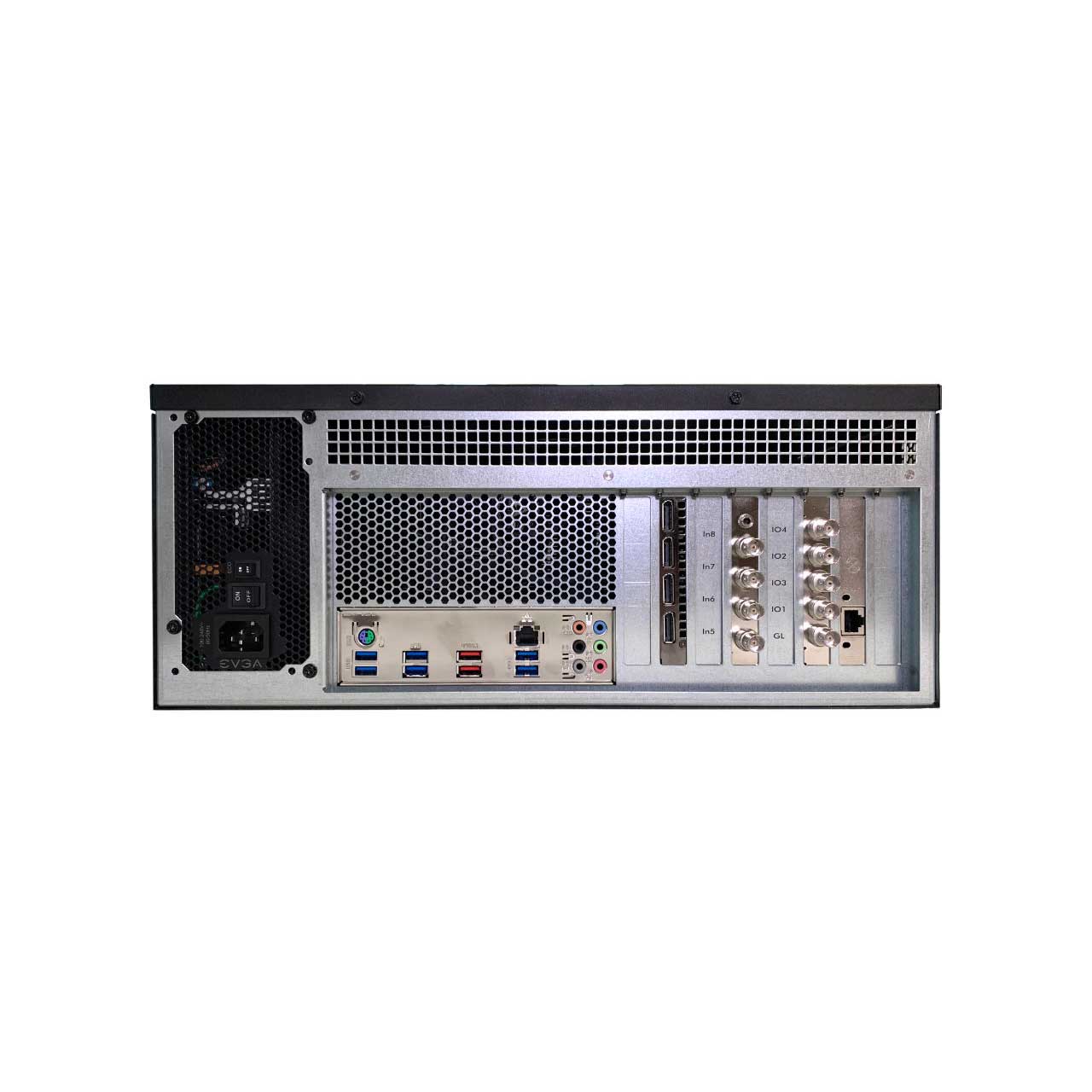

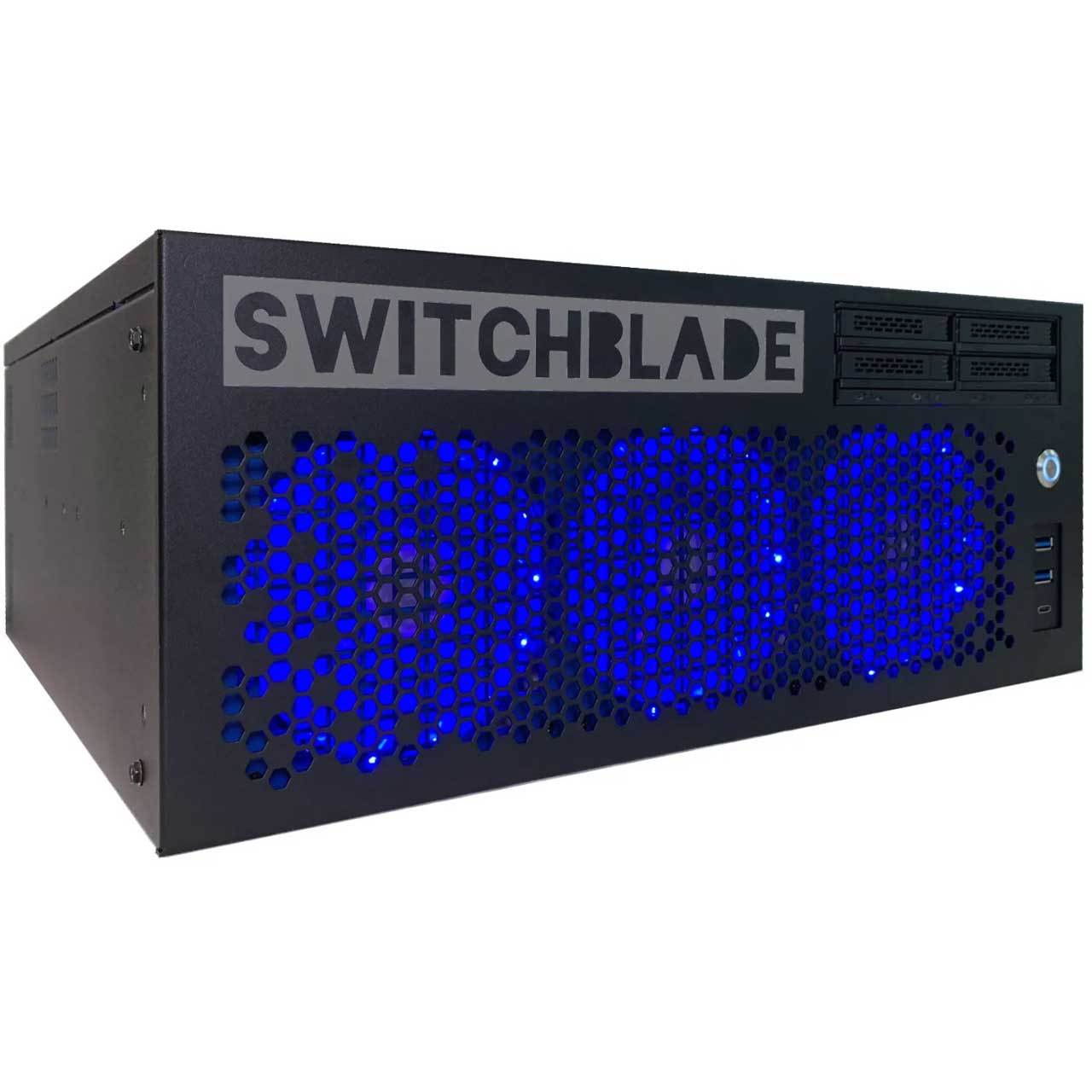

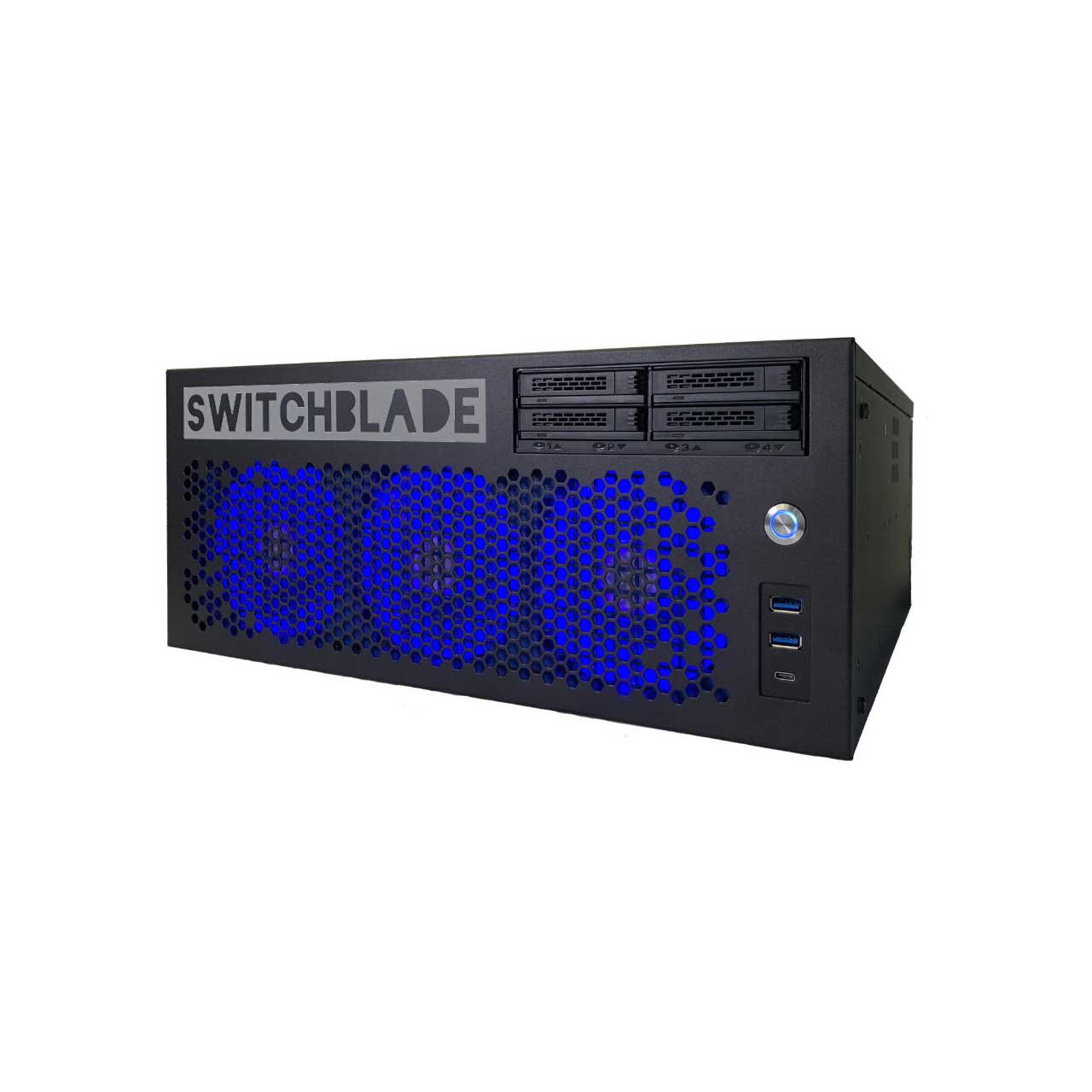

Switchblade Systems LPU4 4RU 4K vMix Video Production Switcher with 8x 3G-SDI Inputs

SWBS-LPU4-4SDI-4SDI-T2 - Overview

• Features:

  • Short-depth rack chassis (10-20")
  • 1U to 4U models
  • 4-16 SDI inputs
  • 4K HDMI input options
  • NDI I/O support
  • Removable SSD bays
  • Multiple 1G and 10G networking options
  • Optional integrated PoE switch


• Specifications:

  • Chassis Height: 4RU (6.96" / 176.75mm)
  • Chassis Depth: 16.89" / 429
  • Processor: 10-core Intel Core i9
  • Graphics: NVIDIA RTX A4000
  • Memory: 16GB DDR4
  • Base Storage: 1TB SSD
  • Networking: 1x 1GbE RJ-45, Optional 10GbE fiber or copper
  • Video Inputs: 8x 3G-SDI Inputs
  • Video Outputs: Up to 2x SDI Outputs
  • Audio Inputs: 1x 3.5mm line-in, 1x 3.5mm mic-in
  • Audio Outputs: 1x 3.5mm line out
  • Software: vMix 4K
  • Max Input Resolutiot: 4096 x 2160
  • Overlay Channels: 4
  • Recorder: 2 channel recording
  • Streaming Outputs: 3 RTMP streaming outputs (Facebook, YouTube, custom URL)
  • NDI Inputs: Unlimited inputs (depending on video and project settings)
  • SRT Outputs: 4
  • Replay Channels (vMix Replay): 1 camera
  • Titling Software Included (All Versions): GT Designer Standard - Includes 100+ Built-In Animated Titles, Scoreboards, Tickers. GT Designer Advanced - Build custom animated titles, including using layered Adobe PSD files
  • Playlist: Switch between multiple live inputs or prerecorded videos without manual intervention.
  • Video List: Create playlists of video files to play in sequence - a great way to stream prerecorded content when your event is offline.
  • Scripting: Yes
  • PTZ Control: Yes


• Item Includes:

  • 1x Switchblade LPU4 4RU 4K vMix Video Production Switcher with 4x 3G-SDI Inputs


• GTIN:

  0653559998672
