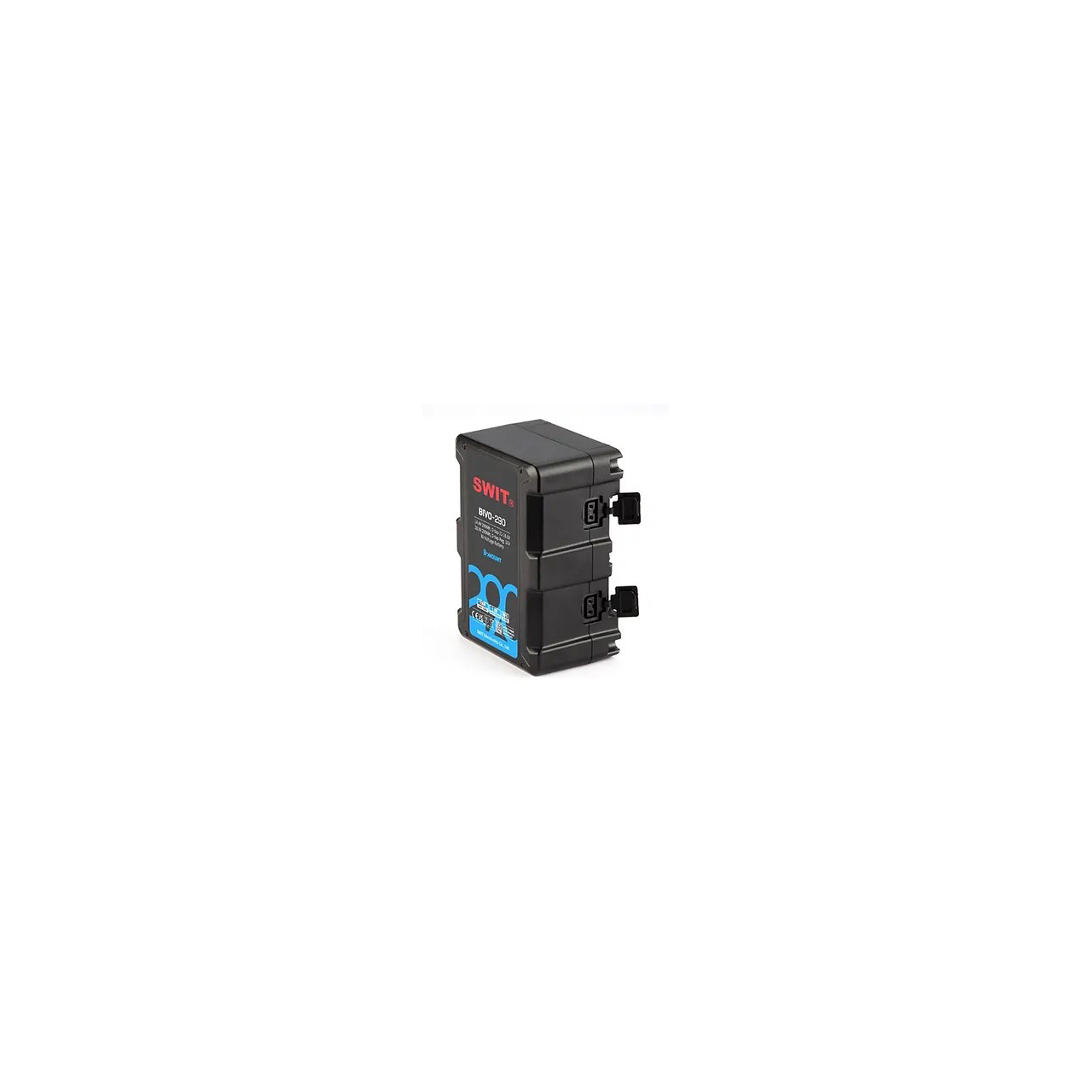

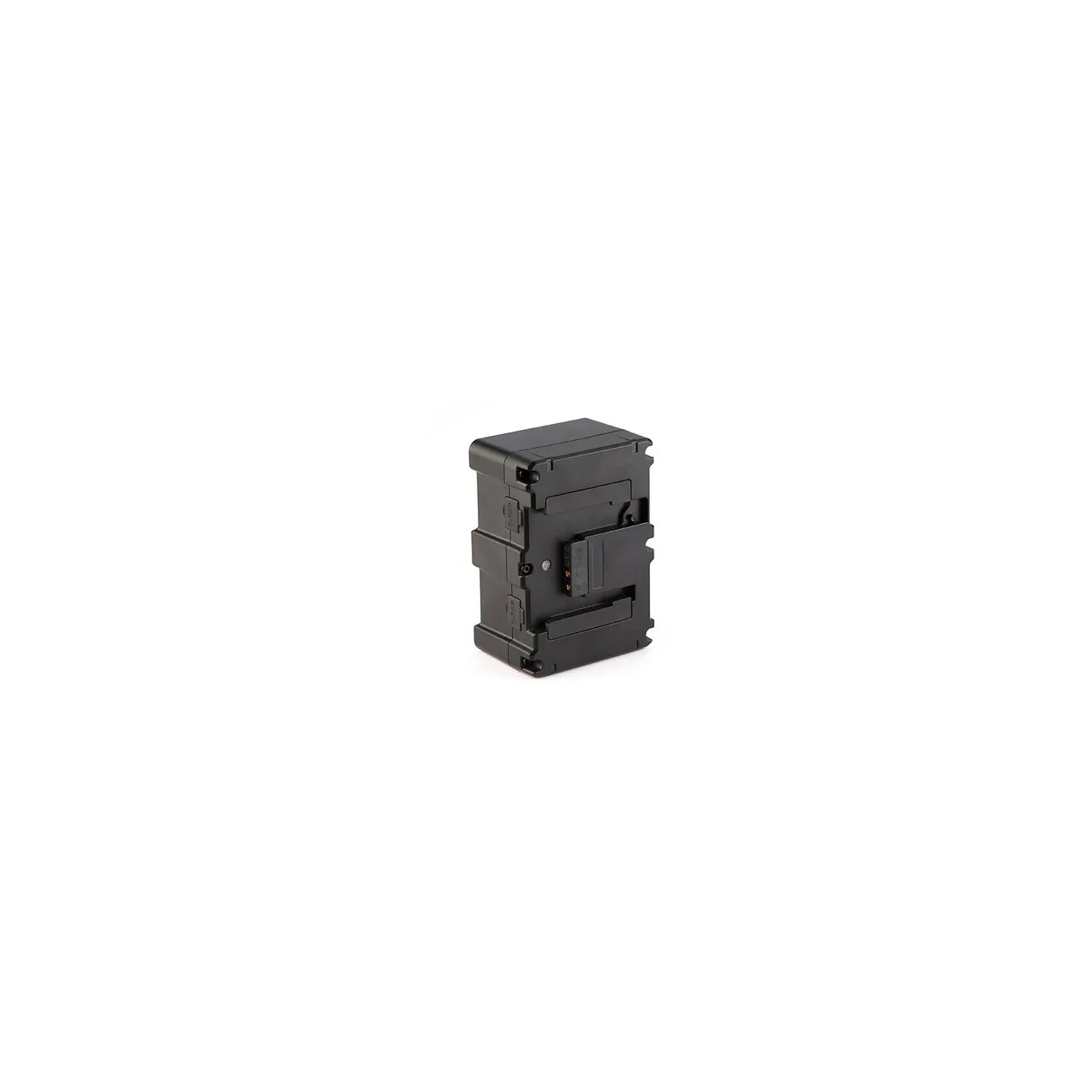

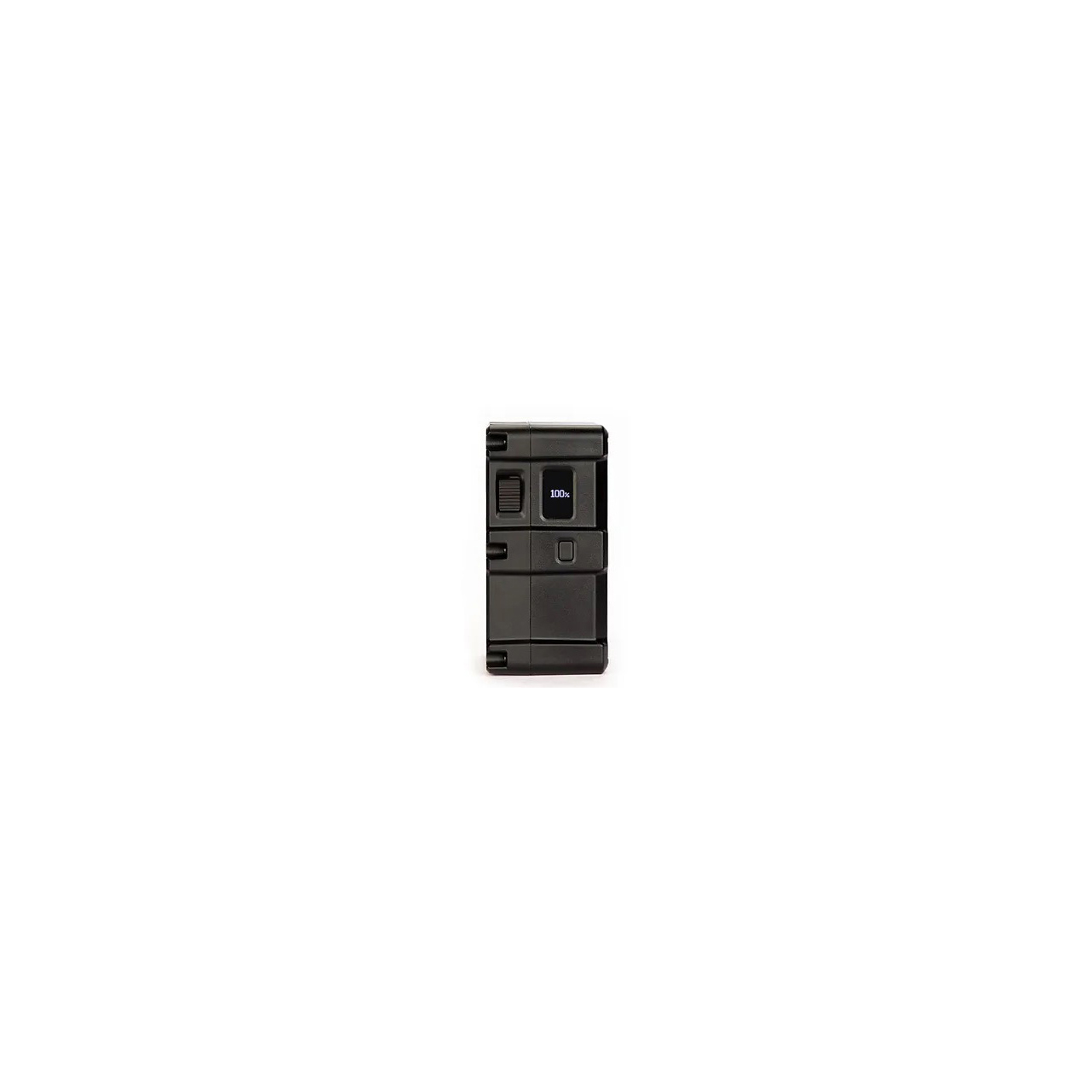

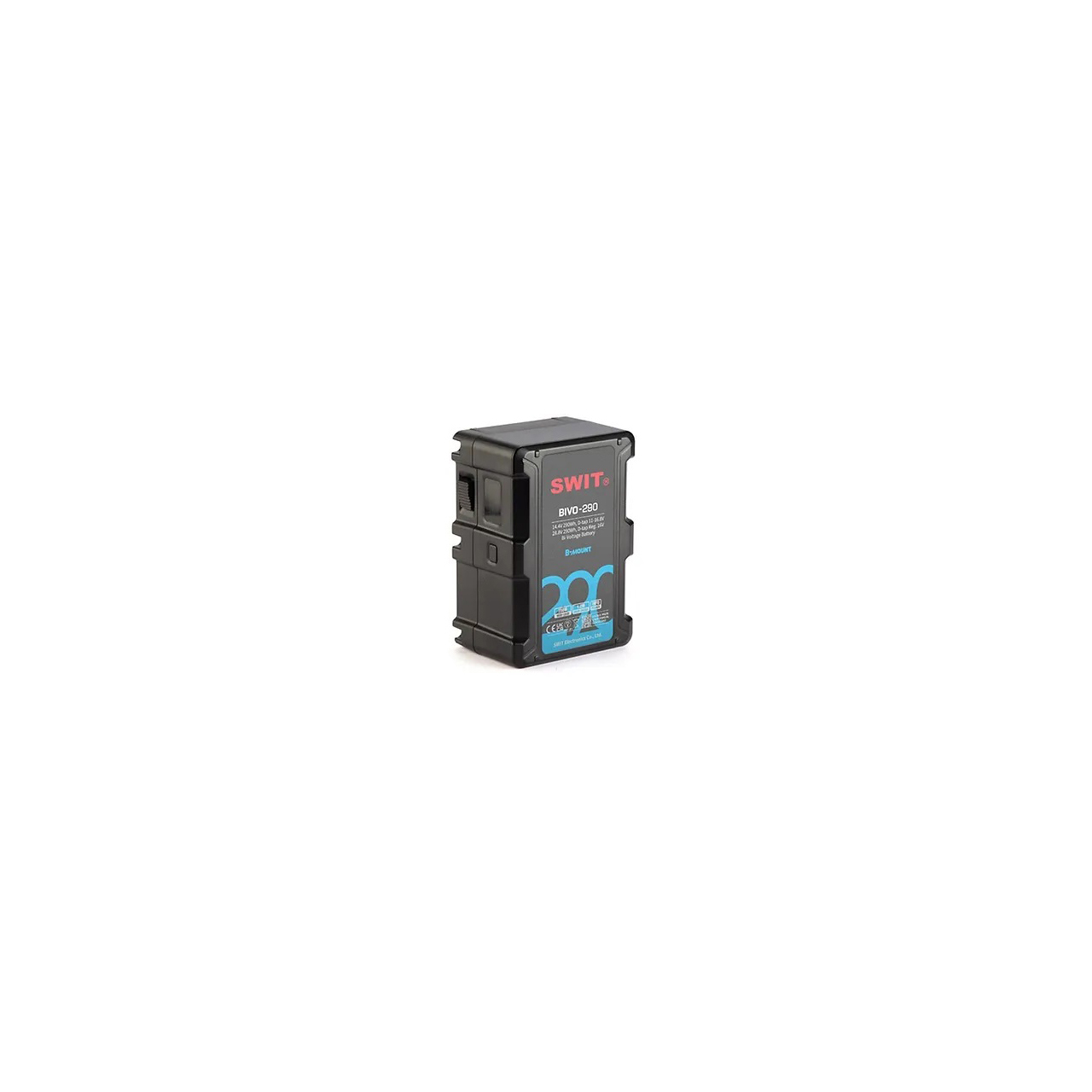

The BIV0-290 is a 290Wh 14.4V/28.8V Dual Voltage B-mount battery with 250W power output, it is suitable for powering the most cine cameras, lights or other cine gears. The battery can recognize the voltage value via the voltage ID pin of the B-mount plate, and then automatically select output 14.4V or 28.8V to prevent misuse or damages of the devices. BIVO-290 features 2x D-tap outputs for powering other devices simultaneously. It also features an OLED screen to display battery status and power information, includes output voltage, remaining power in percentage, remaining running time, charging status and the warning code if any abnormal detected. The battery support 33.6V/100W charging by SWIT charger PB-P461B(sold separately), it takes 3hours and 50mins for fully charged 4 batteries.
3.9' (1.2m) Drop-off protection
Battery was built with special strong material that can survive from 3.9'(1.2 meters) drop-off at any angles.
Power Drawing: (28.8V) 250W, 10A; (14.4V) 250W, 20A. It can run more than 3 hours on ARRI ALEXA 35 camera.
2x D-tap Outputs
Works at 14.4V voltage, the D-tap output at 10.8-16.8V with 250W load
Works at 28.8V voltage, output regulated to 16V
Built-in LED Flash Light
Double press the Power Check button to switch on LED flash light on the rear side of the battery, to help you to find B-mount plate in dark environment.
(Double press the Power Check button again to switch the light off, or it will be automatically off after 30 seconds).
Please note: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.
