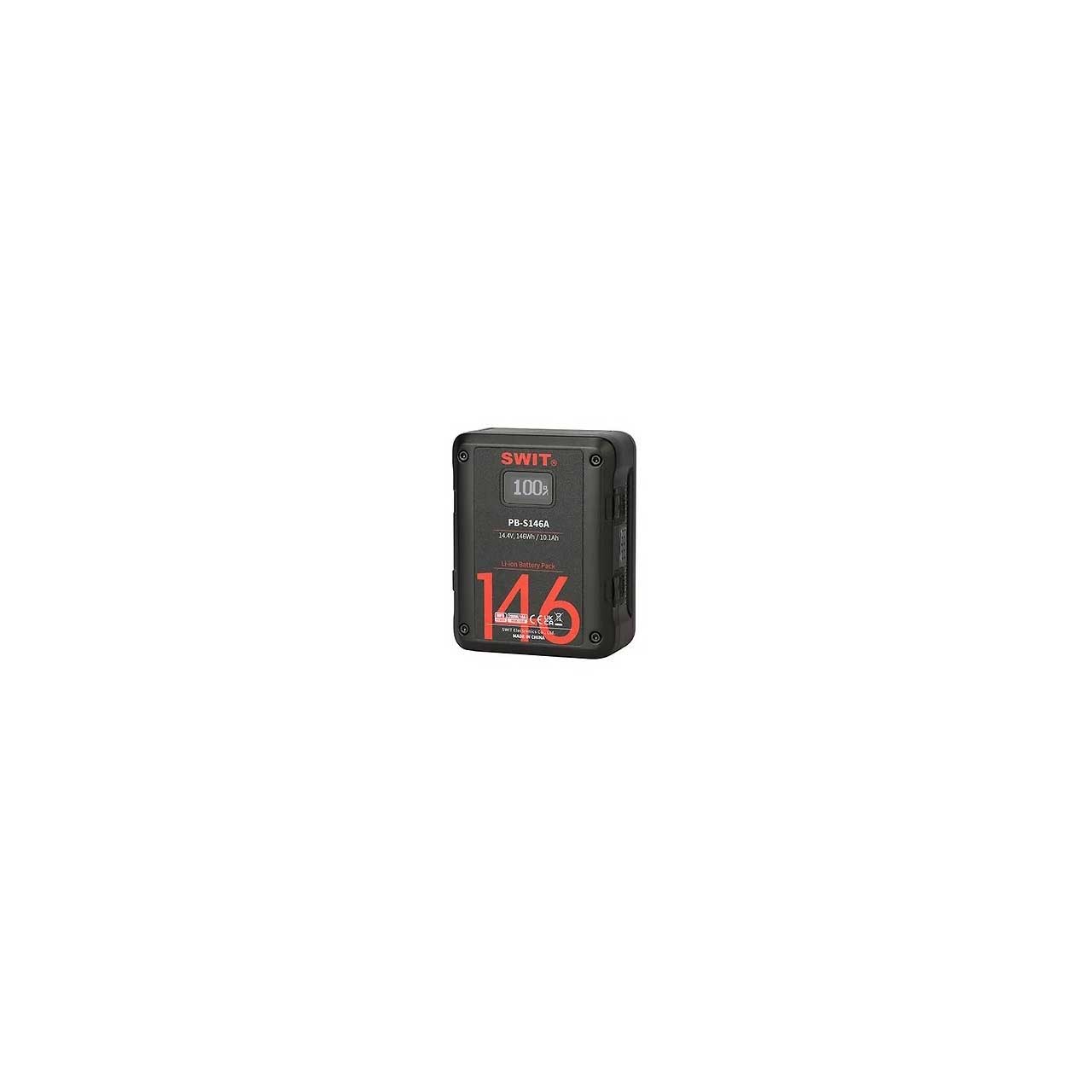

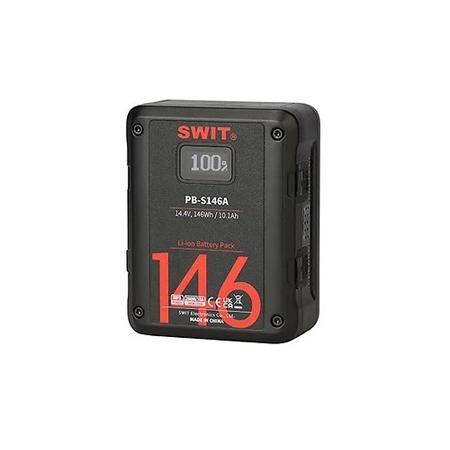

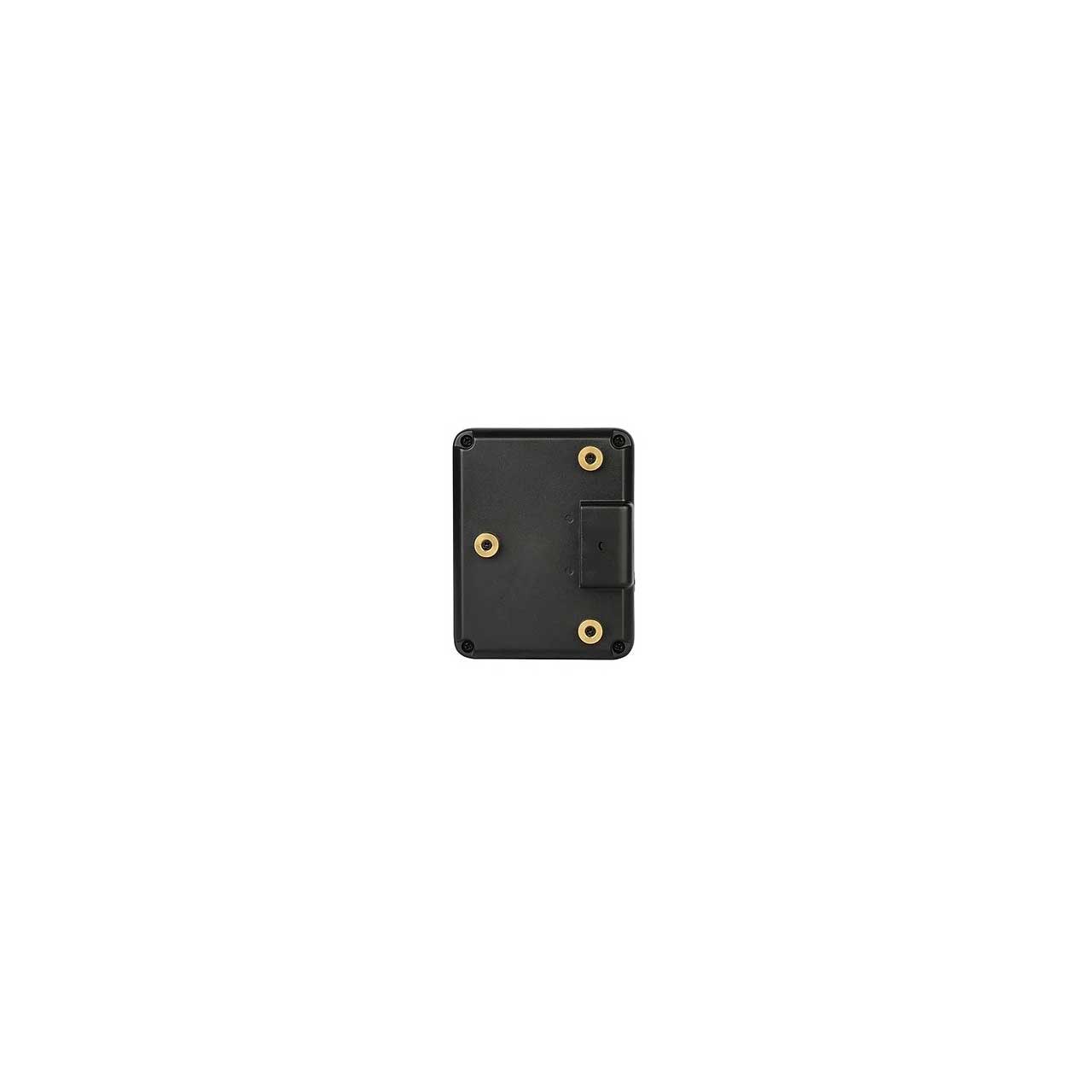

Swit PB-S146A is a 146Wh multi-socket square digital battery with gold-mount battery plate, designed for Cine-Cameras.
PB-S series camera batteries are compact designed, shorter than normal Gold mount batteries, and match perfectly with most of the Cine-cameras.
PB-S146A consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 146Wh / 10.1Ah high capacity. Can run approx 5 hours for normal 30W cameras.
PB-S146A provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing
to normal load batteries if long time full load output.

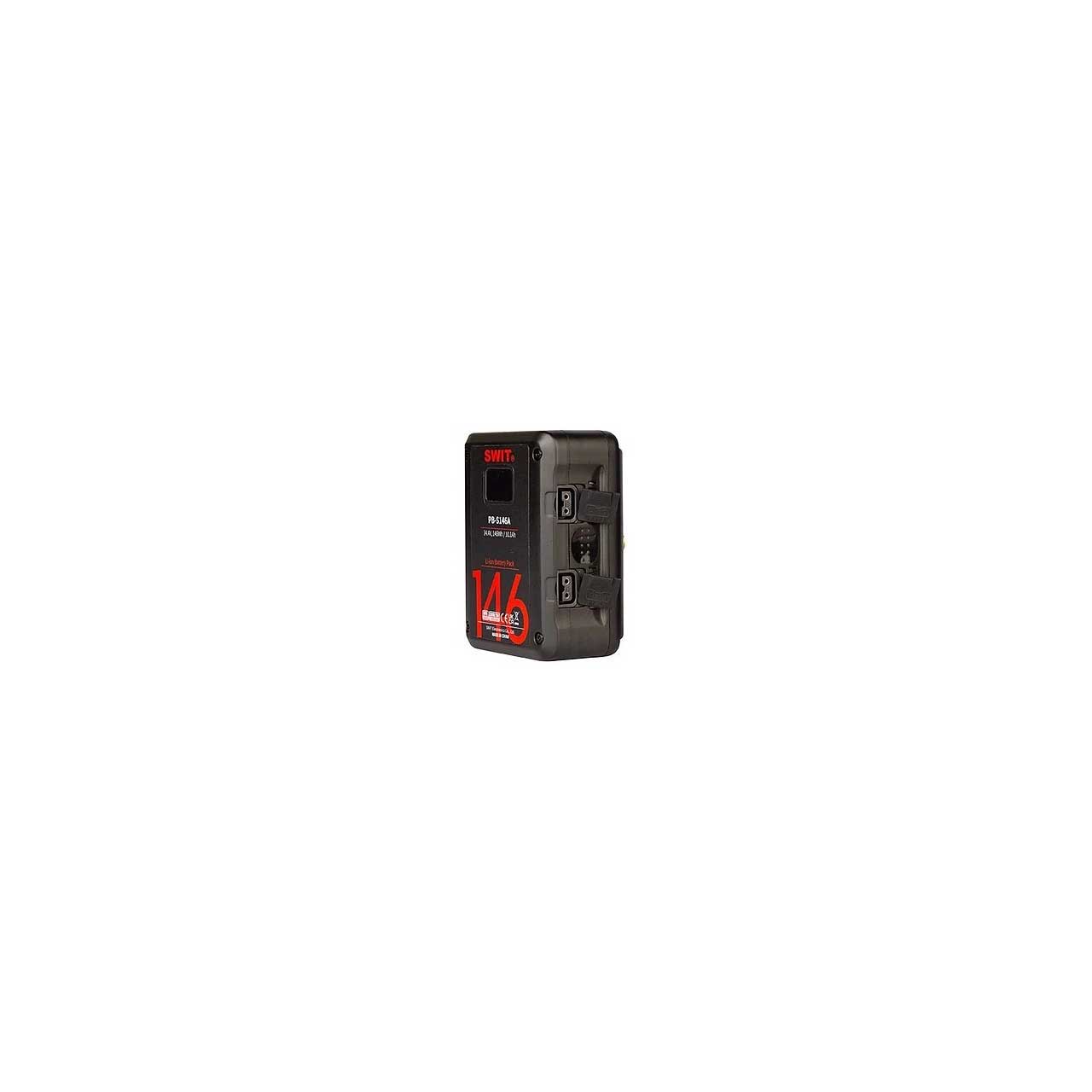

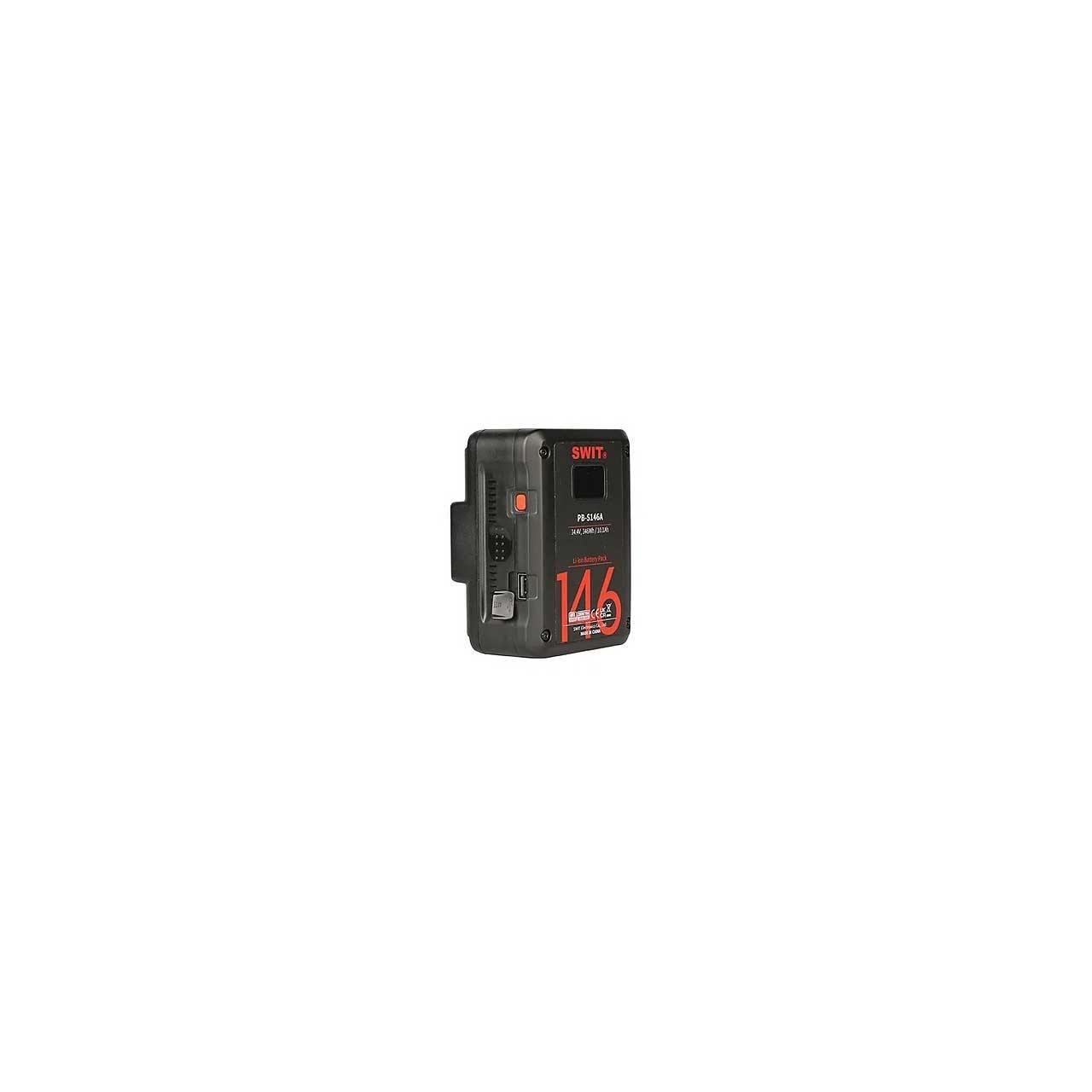

PB-S146A provides two D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
The PB-S146A battery has an OLED display with accurate remaining run time. The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.
PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.
