Heavy Duty Battery - High load & IP54 waterproof

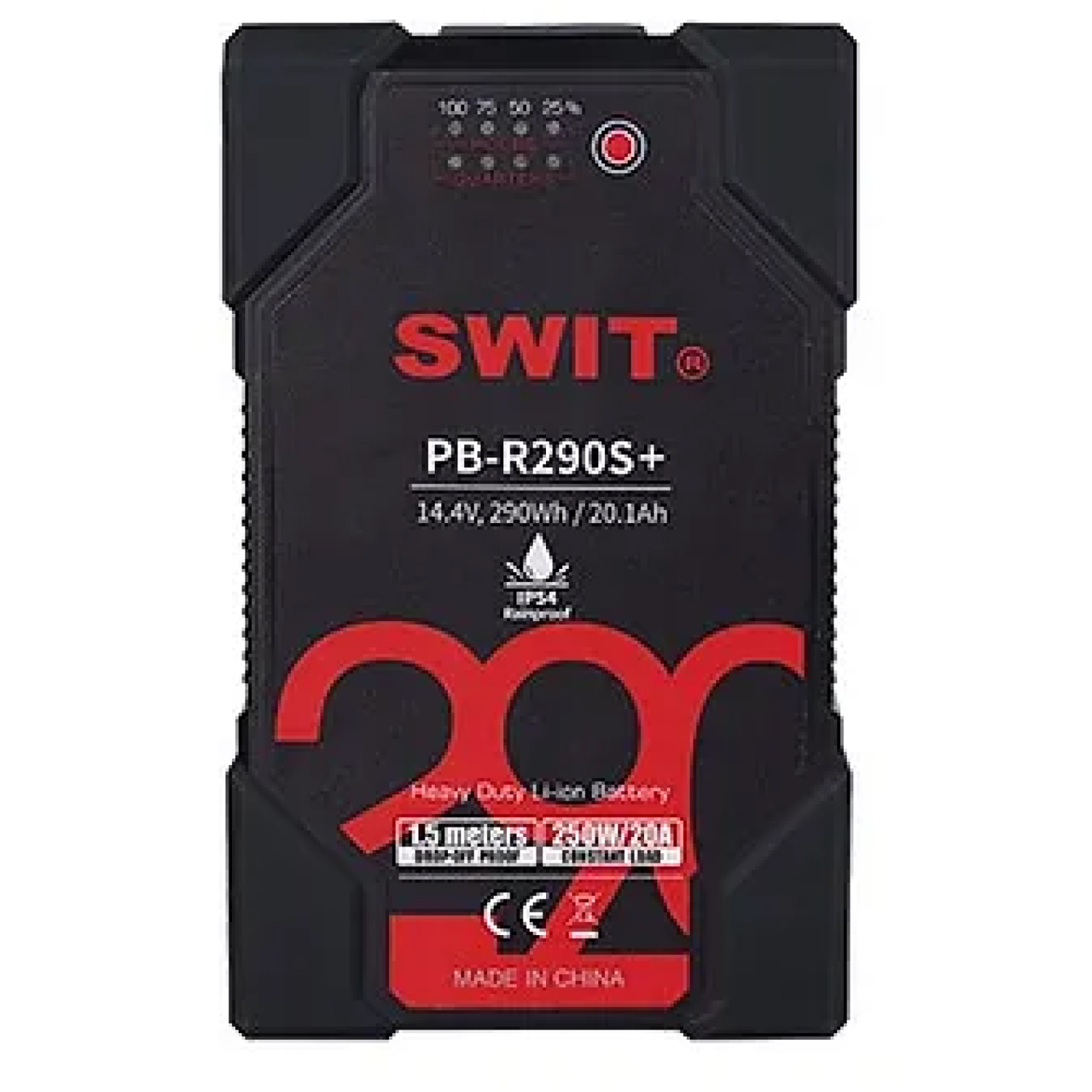

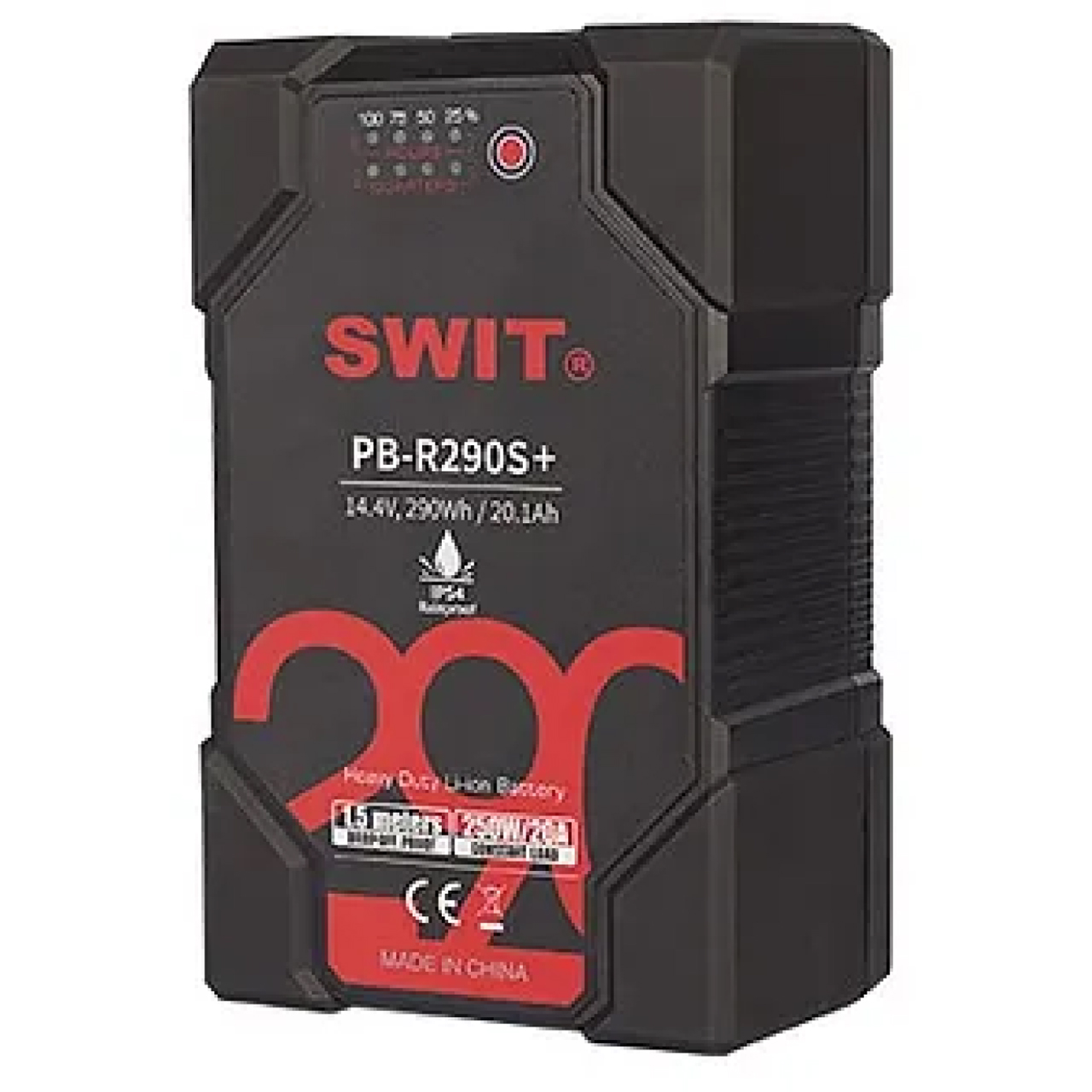

SWIT PB-R290S+ is a 290Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications.
IP54 Waterproof
1.5 meters drop-off proof PB-R290S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off.
290Wh/20.1Ah Capacity
Consists of 24pcs high class 18650 battery cells, and reaches 290Wh/20.1Ah high capacity. Can run approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA.
High Load for Cine Cameras - 250W / 20A Constant Load
PB-R290S+ provides at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.
6A Fast Charging
Using SWIT 6A fast charger PB-R290S+ supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 290Wh PB-R290S+ battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.
