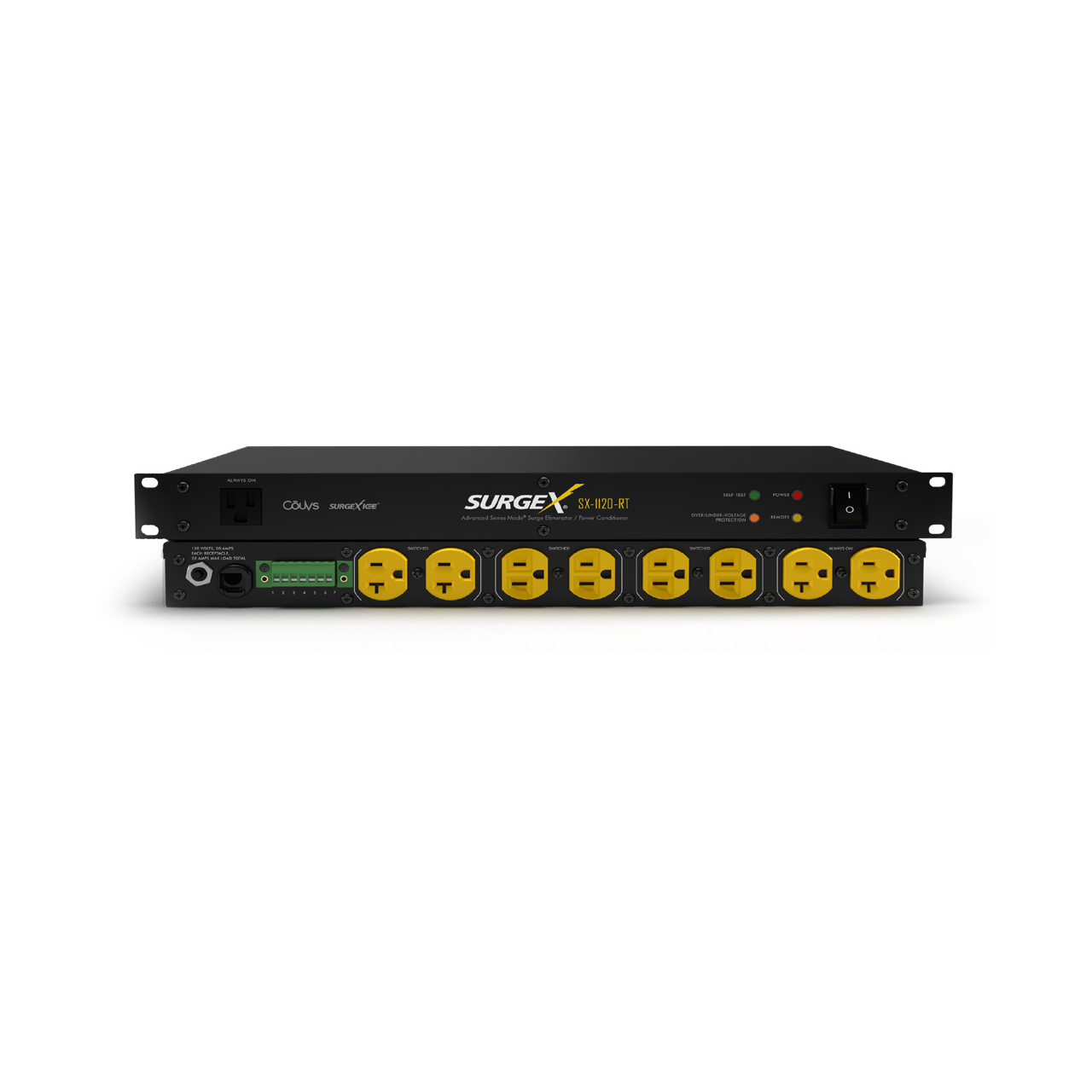

SurgeX SX-1120-RT Advanced Series 9-Outlet Rack-Mount Surge Protector & Power Conditioner 20A/120V with Remote Turn-On

ITEM #: SX-1120RT MFG #: SX-1120-RT

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,179.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SX-1120-RT - Overview

Surge Elimination with Remote Turn-On

The SurgeX SX-1115-RT and SX-1120-RT rack mount surge protectors offer comprehensive power protection and conditioning to safeguard AV equipment from harmful electrical transients that can cause malfunction and downtime. They allow technicians to turn equipment on or off remotely for quick reboots that can reduce service calls.

Featuring Advanced Series Mode technology, this rack mount surge protector eliminates all surge energy to make sure the connected equipment is protected from surges, spikes, electrical transients and noise. It does not produce ground contamination or common-mode disturbances that cause hissing sounds and pixelation on AV equipment. It shall withstand at least 1000 occurrences of surge pulse voltages up to 6000 volts with zero let through voltage..

  • Features:

    • Remote turn-on
    • Thermal circuit breaker overload protection
    • Self-test circuit with visual indicator
    • Magnetic shielding steel enclosure
    • Non-sacrificial components
    • 9' grounded 3-wire cord

  • Specifications:

    • Load Rating: 20A
    • Voltage Rating: 120V
    • Power Requirement (No Load): 15W
    • Surge Let-Through Voltage (6000 Volt Surge): 0 Volts
    • Maximum Applied Surge Voltage: 6000 Volts
    • Maximum Applied Surge Current: Unlimited (Due to current limiting - 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41)
    • Maximum Applied Surge Energy: Unlimited (Due to current limiting - 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41)
    • Endurance (C62.41-1991 Category B3 Pulses): 1KV > 500,000; 3KV >10,000; 6KV >1,000
    • EMI/RFI Filter:
      Normal Mode (50Ω Load):
      >30dB 80kHz-50MHz
      37dB @ 100kHz; 56dB @ 300kHz
      75dB @ 3MHz; 46dB @ 30MHz
      Common Mode (50Ω Load):
      >20dB 230kHz-50MHz
      >30dB 700kHz-20MHz
      23dB @ 300kHz; 32dB @ 1MHz
      50dB @ 5MHz; 32dB @ 20MHz
    • Under-Voltage Auto Shutdown: 90V
    • Over-Voltage Auto Shutdown: 145V
    • Over-Current Auto Shutdown: Circuit Breaker
    • Over-Temperature Auto Shutdown: None
    • Network Port: No
    • Serial Port: None
    • Temperature Sensor Input: None
    • Auxiliary Relay Outputs: 2x screw terminal
    • Contact Closure Input: 2x screw terminal
    • Dimensions (HxWxD): 1.75 x 19 x 10.5"
    • Weight: 11Lbs
    • Temperature Range: 41° to 95°F (5° to 35°C)
    • Humidity Range: 5 to 95% RH, non-condensing
    • Agency Listings: Conforms to UL Stds 1283 & 1449; Certified to CSA Std C22.2 No. 8

  • Warranty:

    • ADVANCED SERIES REMOTE TURN-ON - Limited Lifetime Product Warranty and Limited Five (5) Year Connected Protection Warranty - See attached info for further details

  • GTIN:

    0859971002489
