SurgeX SX-AEP-159 Axess Elite Plus 9 Outlet 1RU Rackmount 12A Surge Eliminator/Power Conditioner - IP Connected

ITEM #: SX-AEP-159 MFG #: SX-AEP-159

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SX-AEP-159 - Overview

The Surgex Axess ELITE+ SX-AEP-159 sets a new standard in power filtration and management with features like IP outlet control, Advanced Series Mode surge protection, in-rush current elimination, advanced sequencing, and scheduling. It offers seamless integration with third-party control systems and SurgeX CONNECT, enabling remote power cycling, analytics, and management from anywhere. With 9 NEMA or 11 IEC individually switchable outlets, a front service outlet, a swappable locking power cord, and external sensors, it's designed for versatility and safety. Whether managing a single unit or linking up to 16, the Axess ELITE+ ensures reliable performance through an intuitive web interface, empowering users with unparalleled control and oversight.

Built for the modern world, the Axess ELITE+ integrates effortlessly with third-party control systems and SurgeX CONNECT, giving you the ability to manage power anytime, anywhere. From advanced scheduling to remote analytics, this solution empowers you to optimize performance and maintain complete oversight of your power systems.

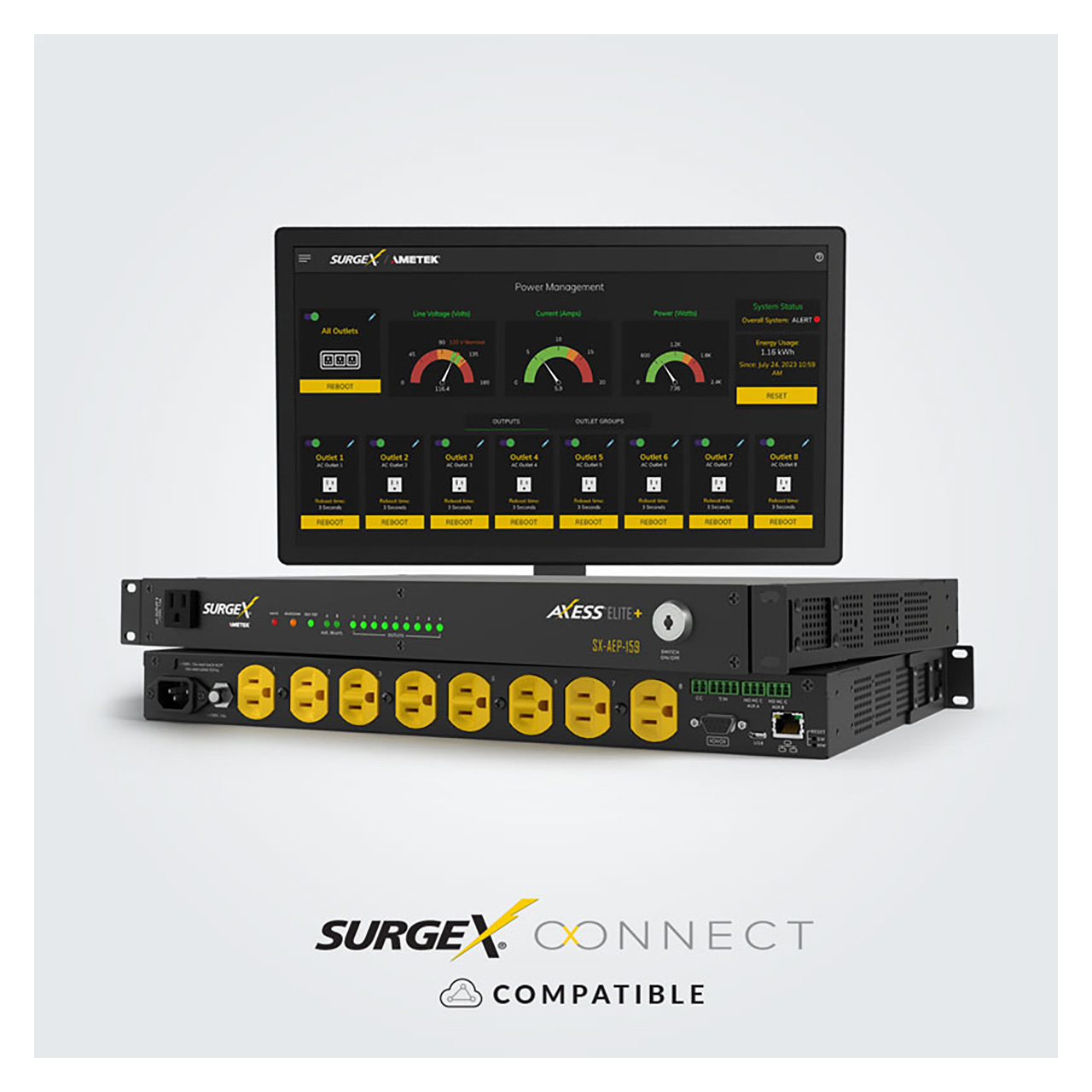

Please Note: Image for illustration only. Tablet not included.

  • Features:

    • Advanced Series Mode®
    • IP-Controlled: Convenient remote monitoring and management
    • Advanced Remote Management
    • In-Rush Current Elimination
    • Scalable Control
    • Swappable Power Cord with Lock
    • External Temperature and Humidity Sensor
    • Locking On/Off Switch
    • Third-Party Integration
    • Plug Config: 12A/5-15P
    • Outlet Config: 9 Outlets/5-15R

  • Specifications:

    • AC Load Rating: 12A @ 120V
    • Freq: 50/60Hz
    • No of Outlets - Back: 8
    • No of Outlets - Front: 1
    • Measurement Accuracy:
      - Voltage ± 2%
      - Current ± 5%
      - Power ± 7%
      - Energy ± 7%
    • Timestamp Accuracy: ± 1%
    • Auxiliary Relay Outputs: 2x 3-screw terminal
    • Contact Closure Input: 1x 2-screw terminal
    • Temperature and Humidity: 1x 4-screw terminal
    • Serial Port: RS232 port
    • Network Port:
      - 10/100 Ethernet connection on Female RJ-45, Auto Negotiating with 10/100 network connections with Link and Activity LEDs
      - USB RNDIS Device on micro-AB
    • Weight: 12.4lbs (5.6kg)
    • Dimensions (HxWxD)(Enclosure): 1.73" x 17.4" x 11.8" (44mm x 442mm x 300mm)
    • Temperature Range (100% Load): 32°F - 113°F (0°C - 45°C)
    • Humidity Range: 5% - 95% R.H. Non-condensing
    • Altitude: 0ft - 10,000ft (0m - 3048m)
    • Safety:
      - Certified to UL 62368-1
      - CAN/CSA C22.2 No 62368-1:19, 3rd Ed, 2021-10-22
      - WEEE
      - RoHS: Compliant
      - Prop 65
    • EMC:
      - FCC 47 CFR PART 15, SUBPART B (Using ANSI C63.4-2014)
      - ICES-003 ISSUE 7
    • Surge Protection: Advanced Series Mode
    • IP Protection Class: IPX0
    • AC Power System Type: TN
    • Pollution Rating: Pollution degree (PD) PD 2

  • Warranty:

    • Lifetime Warranty
