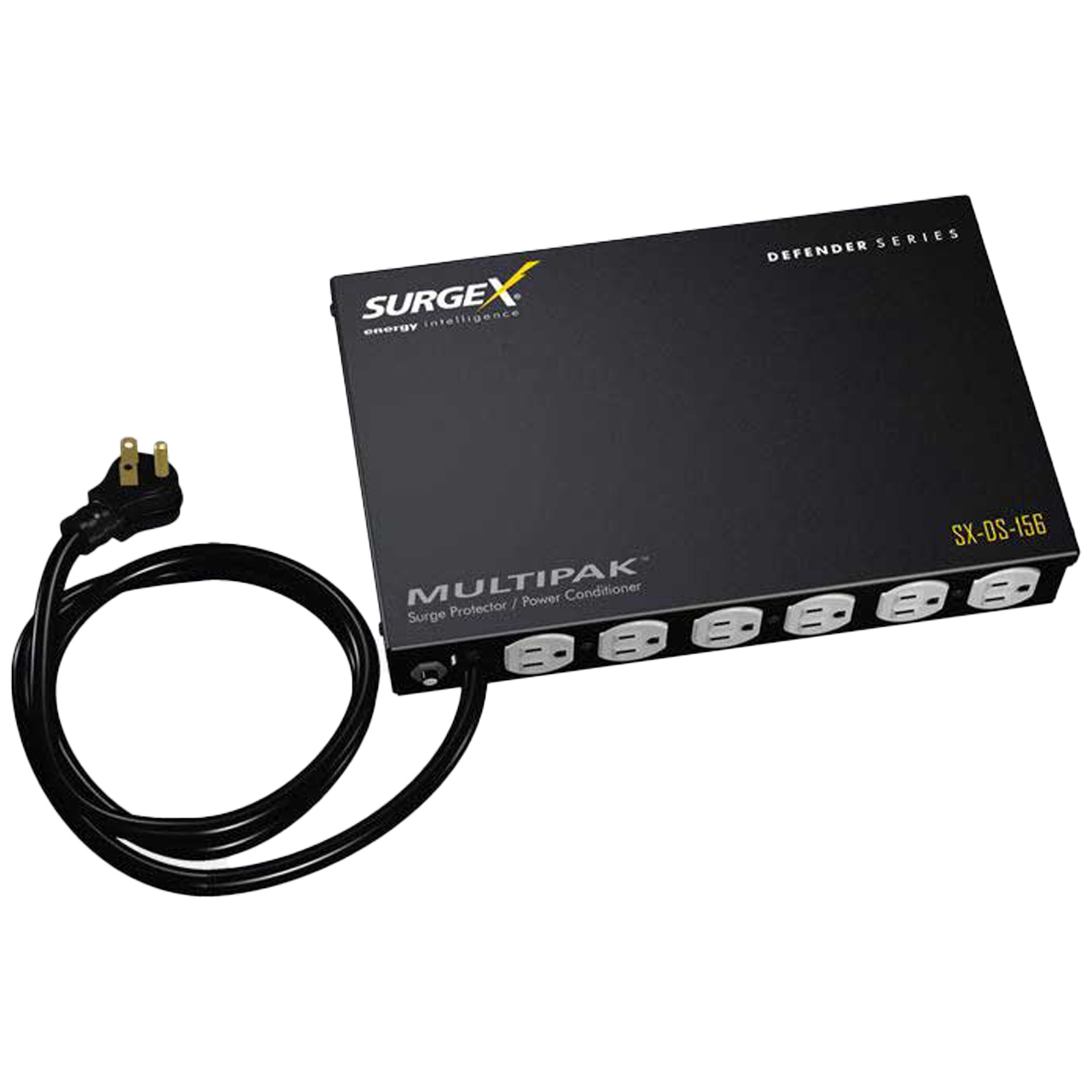

Surgex SX-DS-156 DEFENDER MultiPak Surge Suppressor and Power Filter - Multi Array Solution - 120V/15A x6 w/Brackets

ITEM #: SX-DS-156 MFG #: SX-DS-156

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$449.00

Add to Cart for Better Price


Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SX-DS-156 - Overview

The SurgeX SX-DS-156 MultiPak is the premier power protection choice to safeguard multi panel digital displays and projectors from the dangers associated with electrical transients. Its Multi-Stage technology is superior to the single-stage MOV circuitry found in conventional surge protectors and is instrumental in reducing downtime. This technology ensures the highest level of protection from damaging surges, spikes, over/under voltage, EMI/RFI noise, and wiring faults to increase the reliability of connected equipment and its uptime. The MultiPak is completely non-sacrificial and never requires reset, even after repeated disturbances.

The compact design easily integrates with wall/ceiling mounting systems to conceal it from view. Available in four and six receptacle configurations, the MultiPak is the clear choice to protect multi panel displays.

  • Features:

    • Protects equipment from power disturbances that can cause downtime, disruption, shutdown, and loss of income
    • Superior technology to conventional single-stage MOV circuitry
    • Improves audio and video performance
    • Increases the reliability of connected equipment
    • Completely non-sacrificial and never requires rest
    • Compact design easily integrates with wall/ceiling mounting systems

  • Specifications:

    • Load Rating: 15 Amps @ 120 Volts
    • Voltage Protection Rating (VPR): 330V All Modes
    • EMI/RFI Filter, Normal Mode (50-ohm load): > 30 dB 80kHz - 50MHz
    • EMI/RFI Filter, Common Mode (50-ohm load): > 30 dB 70kHz - 50MHz
    • Overvoltage Shutdown: Adjustable from 135V to 160V. Restores at 130V
    • Undervoltage Shutdown: Adjustable from 80V to 95 V, or Disabled. Restores at 105V
    • Dimensions (W x D x H): 11.212" x 7.272" x 1.79"
    • Weight: 5.0 lbs.
    • Temperature Range: 5° to 35° C
    • Humidity Range: 5% to 95% R.H., non-condensing
    • Agency Listings: ETL and cETL Certified to UL 1449 (pending)
    • FCC: Part 15 Class B

  • Warranty:

    • Defender series (DS) - Limited Five (5) year Product Warranty and Limited Five (5) Year Connected Protection Warranty - See attached info for further details
