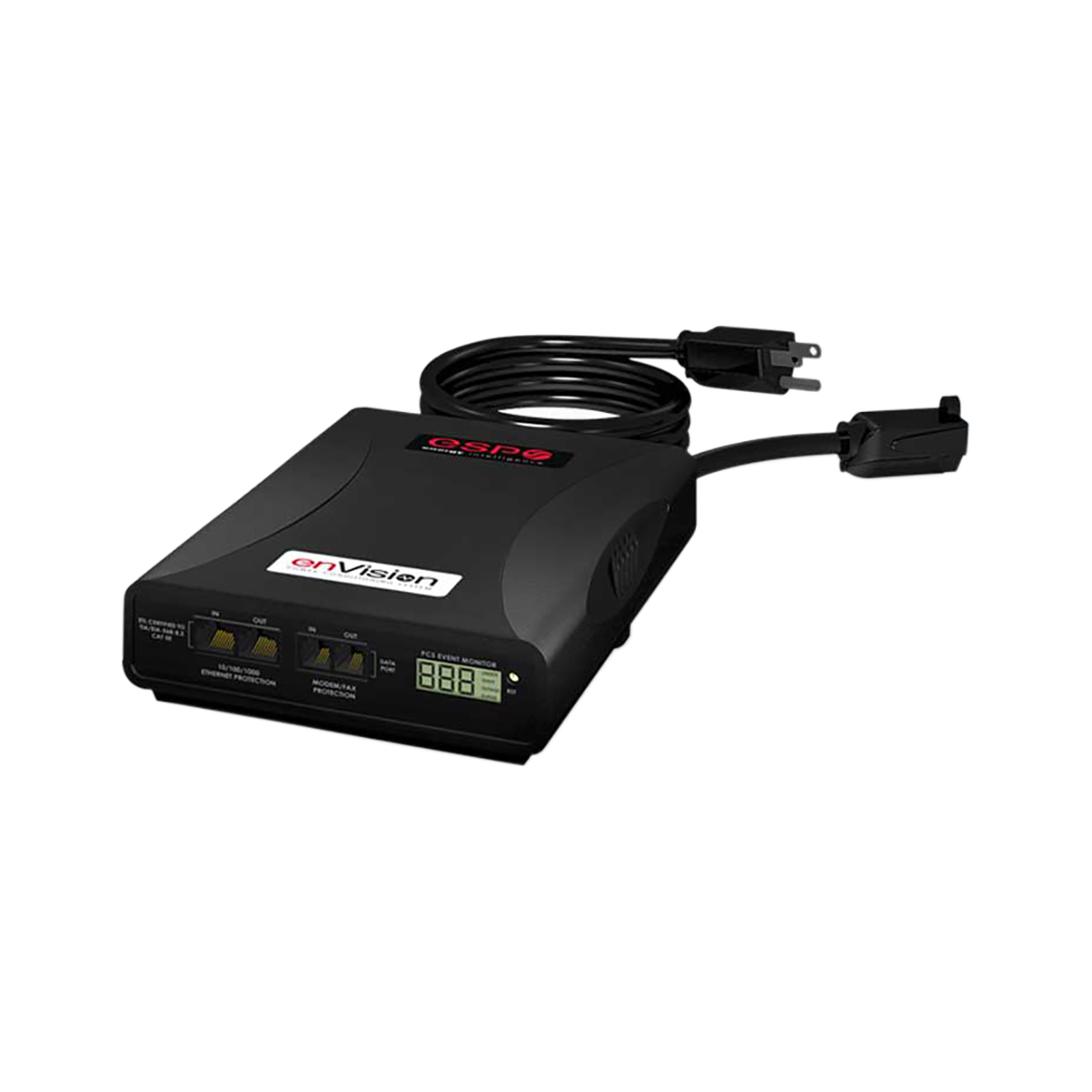

SurgeX enVision EV-12020 IC Diagnostic Power Conditioner w/Predictive Analysis Software - 20A/120V - 5-20R/5-15R

Name: SurgeX enVision EV-12020 IC Diagnostic Power Conditioner w/Predictive Analysis Software - 20A/120V - 5-20R/5-15R
Brand: SurgeX
SKU: SX-EV-12020IC
Price: 749.00 USD
Availability: InStock

ITEM #: SX-EV-12020IC MFG #: EV-12020 IC

SurgeX

Our Price:

$749.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

EV-12020 IC - Overview

The enVision's analytical software monitors, identifies, analyzes, and offers solutions to resolve power issues that can cause equipment error codes, malfunctions and downtime.

SurgeX EV-12020 IC is an AC Diagnostic and Scope Meter Tool with Interface Cable.

enVision provides visibility and control into the power conditions at a installation site by gathering and analyzing data to facilitate root cause discussions with affected end users. It interprets the data into key metrics and trends, and baselines the factors that influences equipment operation, damage conditions, and inefficiencies.

Using innovative algorithms and predictive analytics software, the enVision discovers anomalies, patterns, and gives solutions to resolve electrical problems. It attempts to identify issues that can lead to connected equipment failure in advance. This enables technicians to proactively remedy issues rather than reacting to disruption or downtime.

Features:
- Measures line and neutral to ground voltage, crest factor, power factor, and line frequency metrics
- 512 time stamped events with specific date and time
- Historical max./min./avg. data up to 138 days
- Customizable settings
- Identifies pre-existing power issues
- Internal battery
- Remote access with optional Remote Portal module
Specifications:
- Load Rating: 20 Amps at 120 Volts
- Voltage Protection Rating (VPR): 330V All Modes
- Attenuation:
  Normal Mode: > 30 dB 80kHz – 50MHz
  Common Mode: > 30 dB 70kHz – 50MHz
- Power Requirement (no load): 4 Watts
- Under-Voltage Shutdown: Adjustable from 0 V to 110 V. Default 80 V.
- Under-Voltage Record: Adjustable from 0 V to 110 V. Default 100 V.
- Under-Voltage Restore: Adjustable from 80 V to 110 V. Default 105V.
- Over-Voltage Shutdown: Adjustable from 130 V to 160 V. Default 150 V.
- Over-Voltage Record: Adjustable from 130 V to 160 V. Default 145 V.
- Over-Voltage Restore: Adjustable from 130 V to 160 V. Default 140 V.
- Internal Memory Capacity:
  512 Power Quality Events with Timestamp
  138 Day Electrical Parameter History at 30 minute intervals
  2.25 Day Electrical Parameters at 10 second intervals
- Timestamp Accuracy: ± 1% Typical Product Accuracy
- Measurement Accuracy: 120V Models ± 2% Typical product accuracy
- Response Time:
  Over-Voltage 90 ms
  Under-Voltage 200 ms
- Power Outage Event: Definition AC Voltage has dropped below 20V
- Surge Event Definition: Filter has been exposed to a transient voltage in one of the 3 possible modes (between Live and Neutral, between Live and Ground, between Neutral and Ground) with a peak amplitude of 500V* or higher and a frequency of 20 kHz or higher. *500V surge voltage amplitude applies to IEEE C62.41 Category B Impulse; surge voltage amplitudes necessary for detection of other surge types may vary. *The allowed range was changed from 260-300V to 220-300V in firmware version 1.JB3, released in December 2016.
- Modem/Fax Protection: Single telephone line surge suppression
- Ethernet Protection: CAT6 network surge protection
- Dimensions (WxDxH): 6.125 x 8.375 x 2"
- Weight: 2.25Lbs
- Temperature Range: 41° to 95°F
- Humidity Range: 5 to 95% R.H. non-condensing
- Agency Listings:
  ETL Certified to UL 1449 3rd Edition
  ETL Certified to UL 1283 5th Edition
  ETL Certified to CSA 22.2 No. 8-M1986 (R2008)
Warranty:
- enVISION SERIES - Limited Lifetime Product Warranty - Limited Lifetime Connected Imaging Equipment Protection Warranty - Limited Five (5) Year Connected Non-Imaging Equipment Protection Warranty - See attached info for further details
