IBOOT-PDU4SA-N15 - Overview

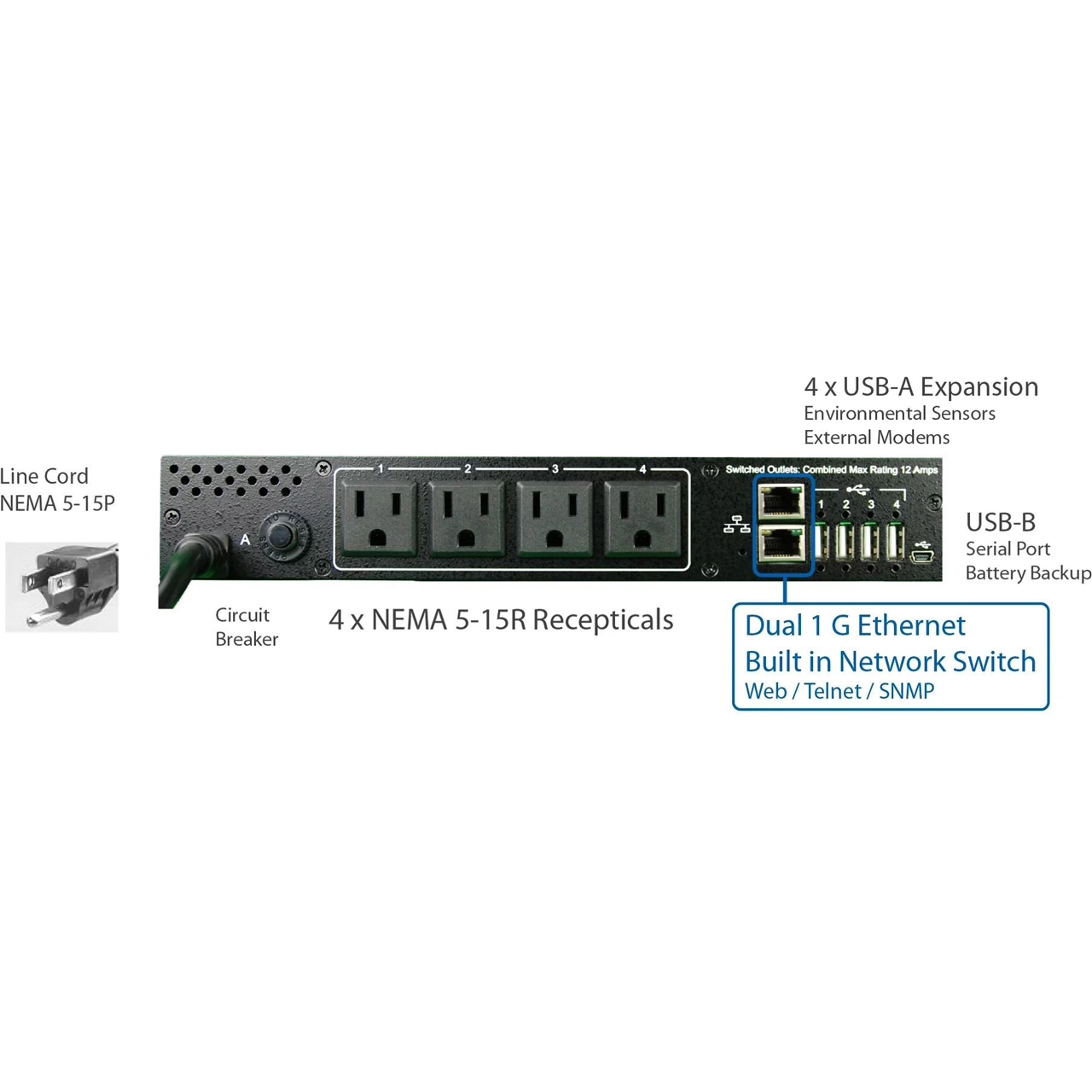

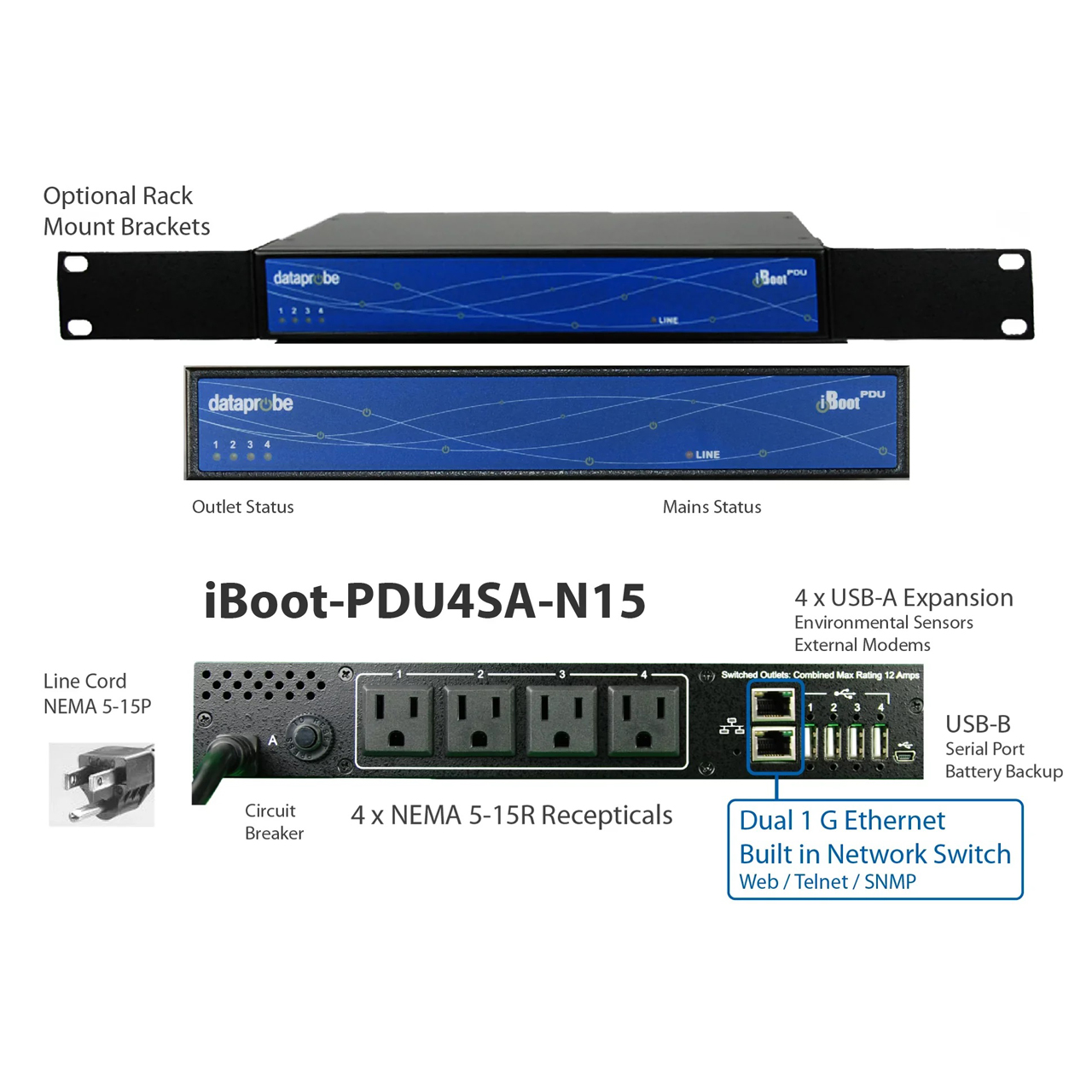

Dataprobe iBoot-PDU4SA-N15 is a 1RU 4-Outlet 15A Intelligent PDU with a Dual Port 1G Ethernet Switch, 1x NEMA 5-15P input, 4 x NEMA 5-15R 15 Amp total output and attached NEMA 5-15 Linecord.

Clear Status and Easy Control
Power Distribution Units with clear easy to use web interface. This rack mounted PDU makes it easy to manage A/C power from any location. This is a switched and managed PDU, each outlet is independently controlled.

The web page presents a clear status indication of each outlet, current draw across all inputs and the AutoPing monitoring, if implemented. Multiple PDUs can be managed from a single web page.

Each outlet on this PDU can be individually selected, or multiple outlets can be simultaneously operated. User selectable cycle timer allows single command reboot. Delay timer limits inrush current by staggering power up when multiple devices are simultaneously controlled.

Independently Controllable Outlets
The iBoot-PDU series is designed to provide power distribution and remote power control. Each iBoot-PDU allows four or eight outlets to be independently switched on and off for reboot, energy management and security. The iBoot-PDU has many features to make the management of power distribution simple and cost effective:

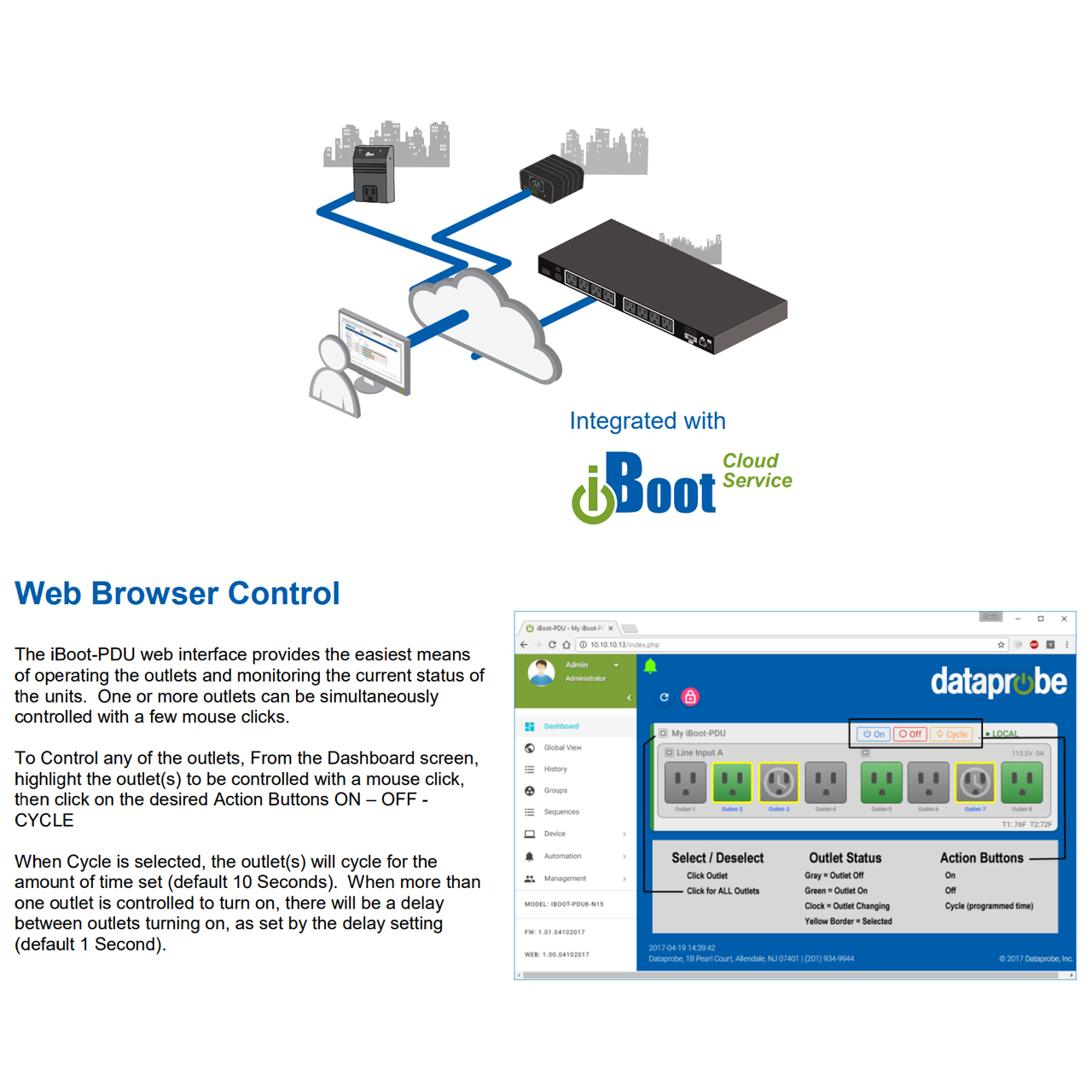

Web Browser Control
Simple web browser interface is easy to use and provides complete status information and control of the outlets, and groups.

Integrated 1Gig Ethernet Switch
Simplify network wiring and reduce home runs to the router. This two port passive switch makes it easy to add remote power management to existing installations.

Telnet/Serial CLI Control
Telnet and serial access use the same Command Line Interface (CLI) structure and syntax to completely configure the iBoot-PDU, or multiple iBoot-PDUs in a cluster configuration.

Multiple Users
Multiple users can be assigned administrator or user only rights, plus access to specific outlets and groups. Users only see the outlets and groups they are assigned to.

Grouping of Outlets for Simultaneous Management
Multiple outlets, across multiple iBoot-PDUs in clustered configurations can be linked together in named groups and managed together. This allows for example, power cycling all devices of a certain type together.

Multiple iBoot-PDU Cluster Configuration
Additional iBoot-PDUs can be managed from a single unit. One master iBoot-PDU provides the communication to the users and continuously receives status information from the rest of the iBoot-PDUs in the cluster. Groups can be created across multiple PDUs and controlled simultaneously.

Automation
The iBoot-PDU can monitor voltage, current and temperature to provide automatic response to the physical environment. AutoPing testing monitors network elements. Program complex sequences of outlet actions and notifications to respond instantly to out of normal situations. Temperature monitoring requires add-on probe.

Real-Time Event Control
Set automatic power actions based on your schedule. Restart systems every day to reduce memory bloat. Power up resources only when needed for energy management, lifecycle extension or security.

  • Features:

    • Independently Controllable Outlets
    • Integrated 1Gig Ethernet Switch - Web, Telnet, SNMP, SMTP
    • Multiple Users
    • Multiple iBoot-PDU Cluster Configuration
    • Real-Time Event Control
    • Network Management
    • Web Browser Control
    • Telnet/Serial CLI Control
    • Grouping of Outlets for Simultaneous Management
    • Automation
    • Landline Modem Option

  • Specifications:

      Physical
    • Height: 1RU 1.75" (4.5cm)
    • Width: 11.0" (27.94cm)
    • Depth: 6.00" (15.25cm)
    • Weight: 4.5lbs (2kg)
    • Operating Temperature: 32°F - 149°F (0°C - 65°C)
    • Storage Temperature: 14°F - 185°F (-10°C - 85°C)
    • Relative Humidity: 0% - 95% Non-Condensing
    • Altitude: 2000m Operating

      AC Input
    • 115 VAC
    • 15 AMP Models: NEMA 5-15 Linecord 115VAC
    • 20 AMP Models: NEMA 5-20 Linecord 115VAC

      Network
    • Single or Dual (S Models) 1G Ethernet
    • Web, Telnet, SNMP, SMTP
    • Port Assignable for Web and Telnet.
    • SSL Security on Web control

      USB Ports
    • 4x USB A ports for accessories, modem, temperature probe, etc.
    • 1x USB B port for serial port and external battery

      Temperature Module Option
    • USB Dual Temperature Sensors. Sensor 2 on 1m cable.

      Landline Modem Option
    • 56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control

      Switched Outlet
    • 4 or 8 NEMA 5-15 Recepticle
    • 12 Amps Max per Receptacle
    • -N15 Models:, 15 Amps Max Total per Linecord
    • -N20 Models , 20 Amps Max Total per Linecord

      Compliance - Safety
    • Complies with UL62638-1, 2nd Edition, 2014-12-01 (US),
    • IEC62638-1:2014 EN 62368-1:2014 + A11:2017
    • Complies with CAN/CSA C22.2 No. 62638-1-14, 2nd Edition, 2014-12-01 (Canada)

      Compliance - Emmissions
    • ANSI C63.4:2014 & 47 CFR Part 15, Subpart B, Class B
    • ICES-003:2016 Issue 6, Class BFCC Part 15 Class B

      Compliance - Environmental
    • RoHS 3 Directive (EU) 2015/863Compliant
    • WEEE Compliant
    • Rated Pollution Degree 2 (PD 2) for use in business/laboratory environments with only Non-Conductive pollution present

  • Item Includes:

    • 1x Dataprobe iBoot-PDU4SA-N15 Series S 1RU 4-Outlet 15A Intelligent PDU with 1-Port Ethernet Switch - 4x NEMA 5-15R
