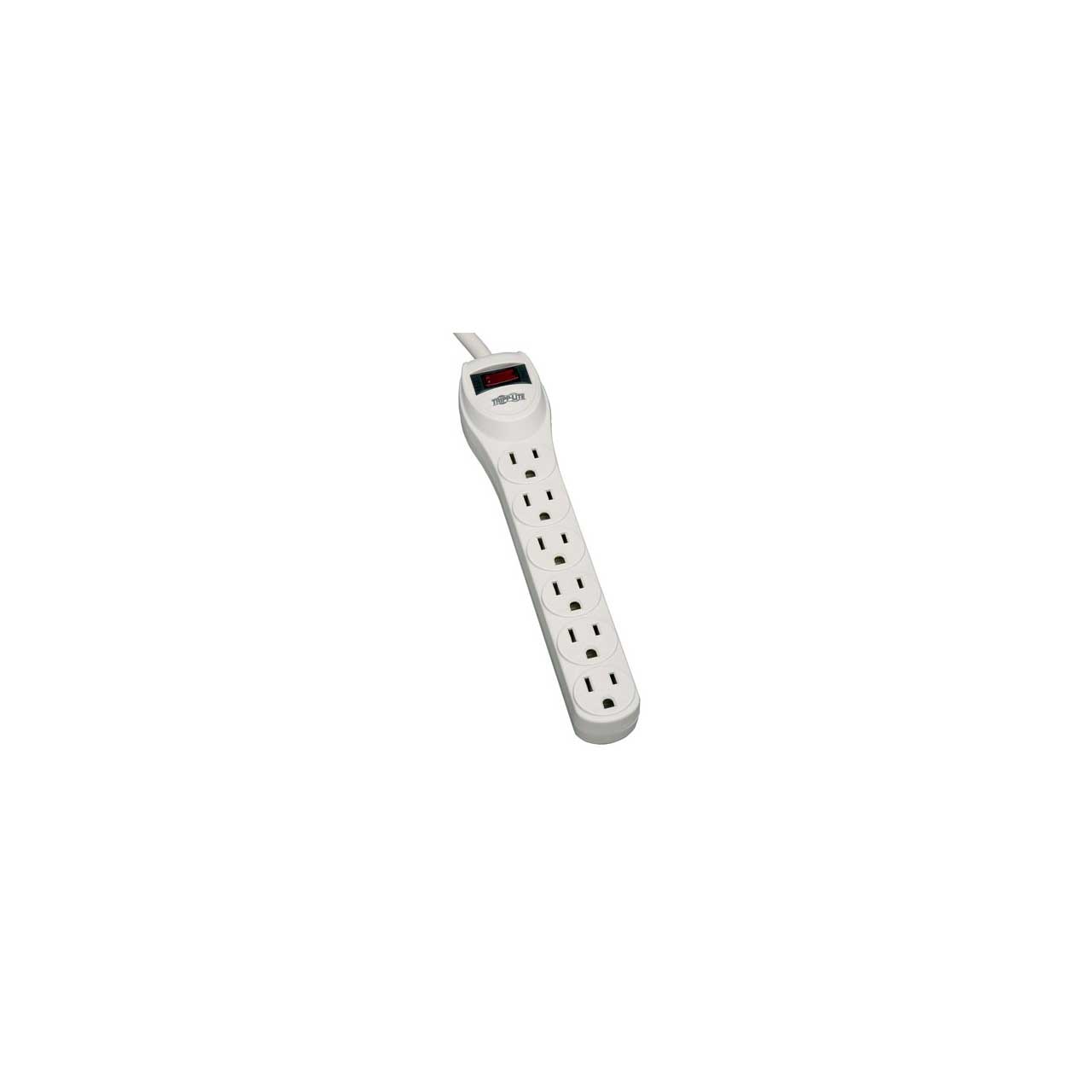

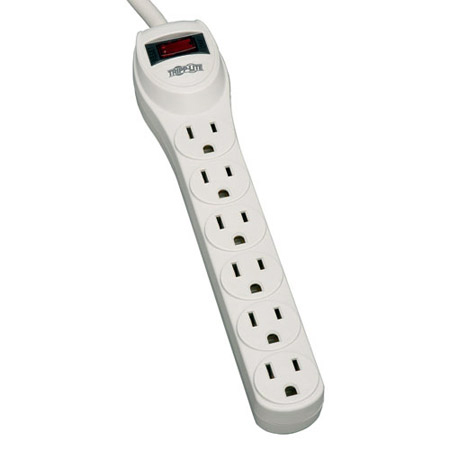

Tripp Lite TLP602 Surge Protector Strip 120V 6 Outlet 2ft Cord 180 Joule

ITEM #: TRL-TLP602 MFG #: TLP602

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$15.18

Our Price:

$10.80

Availability: In Stock
iAvailability Description Popup


TLP602 - Overview

Tripp Lite's TLP602 offers economical AC surge suppression for workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLP602 offers 6 total outlets, 2 foot cord. AC suppression rated at 180 joules shields equipment from surges and line noise. Attractive gray housing with keyhole mounting tabs and 1 designated transformer plug outlet offers convenient protection of desktop computer equipment and accessories.

What is the main culprit of electrical surges?
Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.

When should you use a surge protector?
All the time. The real question is really which devices you should connect to a surge protector. You don't need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It's better to be safe than sorry.

  • Features:

    • 6 outlets
    • 2-ft. cord
    • Surge suppression rating: 180 joules
    • 15 amp resettable circuit breaker
    • Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
    • Can accommodate 1 large transformer plug without covering remaining outlets, 4 total transformers
    • Keyhole support for wall mounting
    • Lighted power switch
    • $2,500 Ultimate Lifetime Insurance (USA and Canada Only)

  • Specifications:

    • Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 120V (110-125V)
    • Voltage Compatibility (VAC): 120
    • Maximum Surge Amps: 12000
    • Input Plug Type: NEMA 5-15P
    • Input Cord Length (ft.): 2
    • Right-Angle Plug: No
    • Integrated Cord Clip: No

      Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output (Watts): 1800
    • Output Receptacles: (6) 5-15R
    • Circuit Breaker (amps): 15
    • Transformer Accommodation: (2) Yes
    • Outlet Orientation: Single row

      User Interface, Alerts & Controls
    • Diagnostic LED(s): No
    • Switches: Combination AC circuit breaker and 2 position on/off power switch

      Surge / Noise Suppression
    • AC Suppression Joule Rating : 180
    • AC Suppression Response Time : < 1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS) : 150
    • UL1449 Let Through Rating: 500V
    • Automatic Shut-Off : No

      Dataline Surge Suppression
    • Telephone/DSL Protection: No
    • Cable (Coax) Protection: No
    • Network (Ethernet) Protection: No

      Physical
    • Anti-Microbial Protective Coating: No
    • Color: Light Gray
    • Color (AC Line Cord): Light Gray
    • Housing Color: Light Gray
    • Integrated Keyhole Mounting Slots: Yes
    • Keyhole Slot Mounting Measurement (Center to Center): Distance between slots = 101mm; Distance between slot height = 28mm
    • Material of Construction: Plastic
    • Outlets Measurement (Center to Center): 28.5mm
    • Receptacle Color: Light gray
    • Shipping Dimensions (hwd / in.): 2.00 x 4.00 x 11.20
    • Shipping Weight (lbs.): 0.74
    • Unit Dimensions (hwd / in.): 1.18 x 1.69 x 9.44
    • Unit Weight (lbs.): .57

      Special Features
    • Rotatable Outlets: No

      Standards & Compliance
    • Canada: cUL
    • Approvals: Exceeds IEEE 587 category A&B specifications
    • UL1449 3rd Edition (AC Suppression): UL1449 3RD EDITION
    • UL1363 (Power Tap): UL1363

  • Item Includes:

    • TLP602 Surge Suppressor
    • Instruction manual and warranty information

  • GTIN:

    0037332095404
