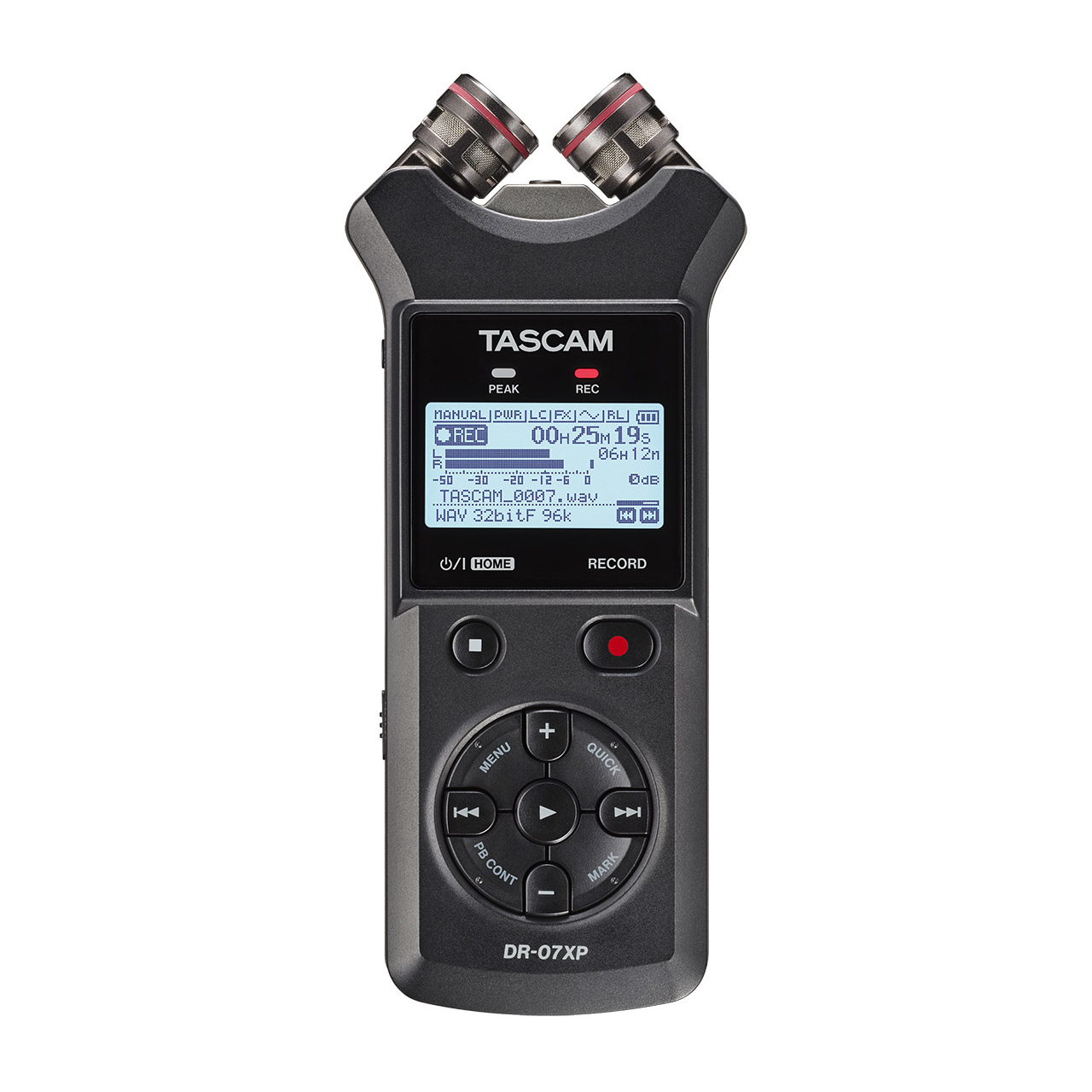

Tascam DR-07XP 2-Channel 32-Bit Float Handheld Recorder with USB-C Interface and Adjustable Mics

ITEM #: TCM-DR-07XP MFG #: DR-07XP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$209.00

Our Price:

$159.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DR-07XP - Overview

Pro-Quality Portable Recording, Simplified

The TASCAM DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording — and you'll never need to worry about setting input levels.

Adjustable Stereo Condenser Microphones

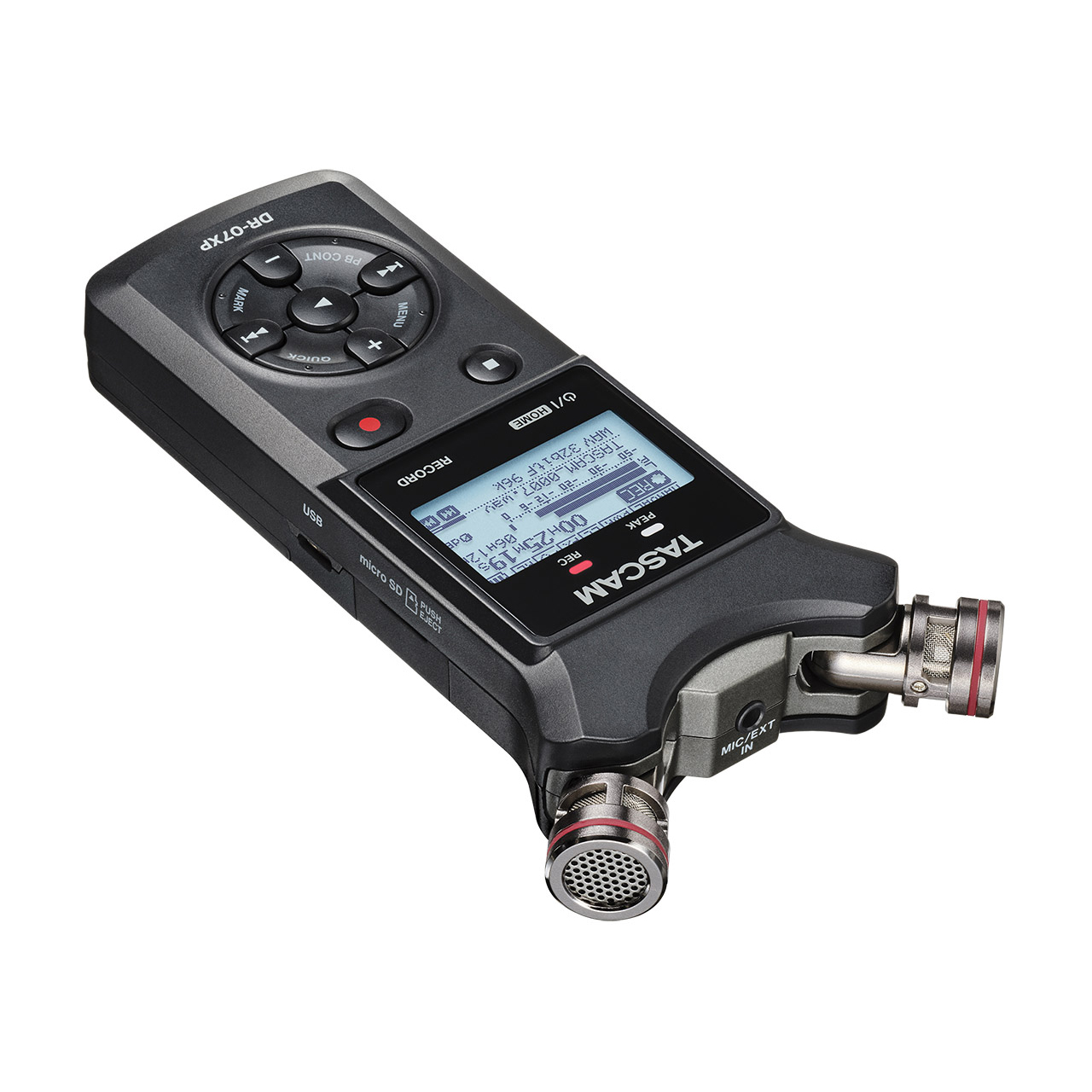

The DR-07XP features unidirectional stereo condenser microphones with adjustable A/B or X/Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.

Simplicity In Your Palm

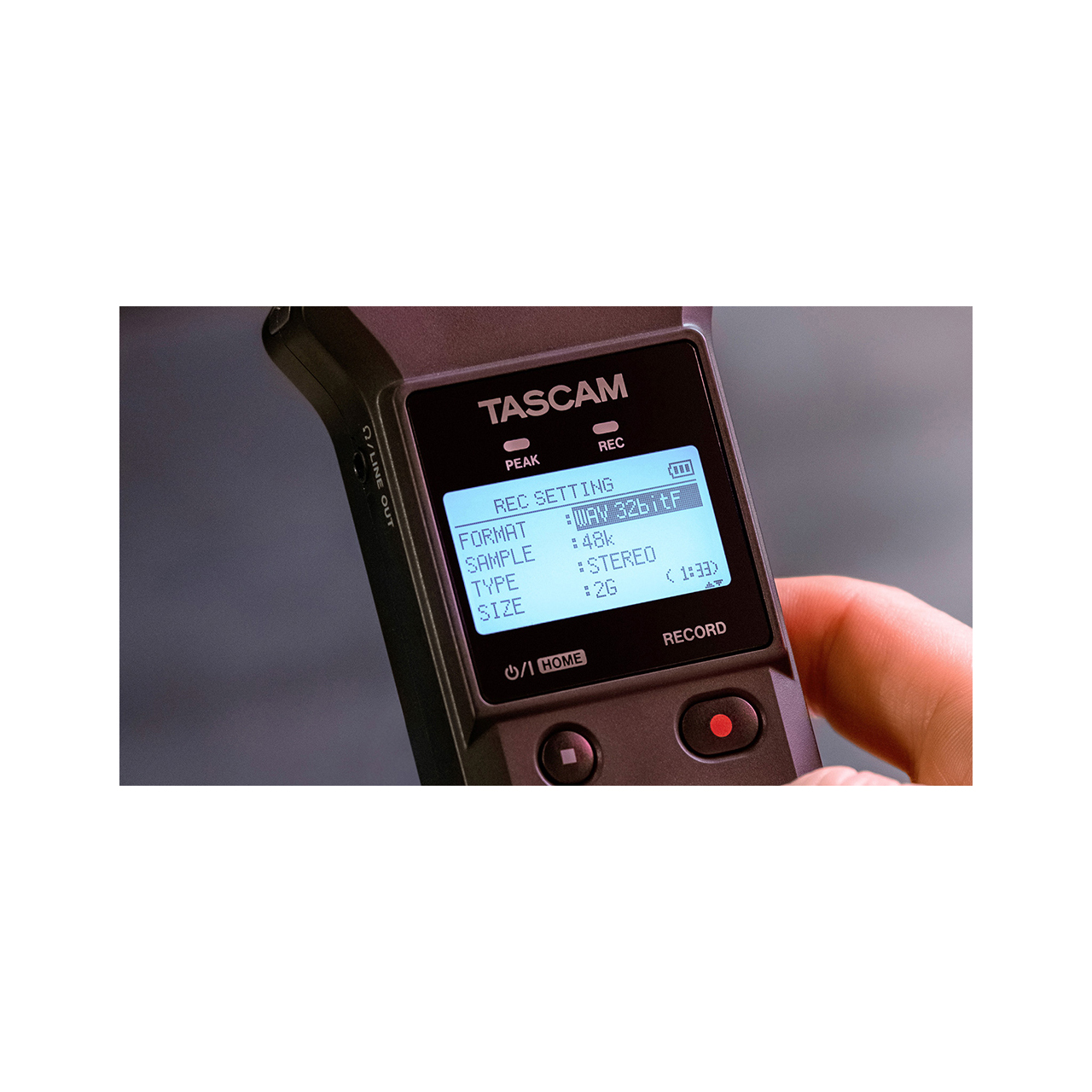

With the DR-07XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

Your Portable Recording Studio
The DR-07XP isn't only a powerful portable recorder — it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal for Musicians
The DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On Location
With its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.

Record Anything, Anywhere
From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.

Please Note! The following items are necessary to record and play files with this unit (sold separately):

  • A microSD card.
  • 2 AA batteries (Alkaline or Ni-MH)

Also note that this unit can be powered via an optional AC adapter (sold separately) - model number PS-P520U.

  • Features:

    • Long Battery Life: With up to 17.5 hours of continual usage from two AA alkaline batteries, users can focus on the audio rather than how much power is left.
    • Large Recording Capacity: Supports up to 512GB microSDXC cards gives you ample recording capacity for on-the-go use.
    • Sound-Sensitive Auto Recording: Automatically start recording when sound is detected with Auto Recording mode.
    • Ready for DSLR: Auto Tone output for DSLR optimizes DR-05XP for use in videography and content creation.
    • Built-in Reference Speaker: A built-in monaural speaker allows you to check your recordings without putting on headphones.
    • External Inputs: Equipped with a stereo mini jack for external stereo microphones, as well as stereo line-level input.
    • Built-In Chromatic Tuner: The ideal portable recorder and song sketchpad for musicians.
    • Multiple Language Menu: Allows users to access ten of the most widely used languages (English, French, German, Italian, Spanish, Russian, Portuguese, Japanese, Chinese, and Korean) to easily navigate the onscreen menus.

  • Specifications:

      Recorder
    • Recording Media/File Systems: microSD cards, microSDHC cards, microSDXC cards (up to 512GB)
    • Recording/Playback Formats:
      - WAV/BWF Sampling Frequency: 44.1kHz/48kHz/96kHz
      - WAV/BWF Quantization Bit Depth: 16-bit/24-bit/32-bit float
      - MP3 Sampling Frequency: 44.1/48kHz
      - MP3 Quantization Bit Depth: 32/64/96/128/192/256/320kbps
    • Maximum Number of Input Channels: 2
    • Maximum Number of Recordable Tracks: 2

      Analog Audio Input/Output Ratings
    • MIC/EXT IN Jack:
      - Connector: 3.5mm stereo mini jack
      - Input Impedance: 18kΩ or more (when plug-in power is turned off); 2kΩ or More (when plug-in power is turned on)
      - Nominal Input Level: - 20dBV
      - Maximum Input Level: -4dBV
    • PHONES/LINE OUT Jack:
      - Connector: 3.5mm stereo mini jack
      - Output Impedance: 12Ω
      - Nominal Output Level: - 14dBV (10kΩ loaded)
      - Maximum Output Level: +2dBV (10kΩ loaded)
      - Maximum Output: 20mW + 20mW (32Ω load)
      - Working Impedance: 16Ω - 250Ω
    • Built-In Speaker:
      - Output: 0.3W (monoaural)

      USB
    • Connector: USB Type-C
    • Format:
      - USB 2.0 High Speed Mass Storage Class
      - USB 1.1 Full Speed Audio Class

      USB Audio
    • Sampling Rate: 44.1/48kHz
    • Quantization Bit Depth: 24-bit
    • Number of Inputs: 2 channels (output from this unit)
    • Number of Outputs: 2 channels (input to this unit)

      General
    • Power:
      - 2x AA batteries (alkaline or NiMH)
      - USB bus power (5V/0.5A) from a computer, etc.
      - TASCAM PS-P520U AC adapter (sold separately)
    • Power Consumption: 1.7W (maximum)
    • Weight:
      - 0.30lbs (136g) without batteries
      - 0.406lbs (184g) with batteries
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Dimensions (Mic Closed): 2.68" x 6.28" x 1.06" (68mm x 159.6mm x 27mm)
    • Dimensions (Mic Open): 3.56" x 6.228" x 1.06" (90.3mm x 159.6mm x 27mm)

  • Item Includes:

    • 1x DR-07XP
    • 1x Safety guide (including warranty)
    • 1x TASCAM ID registration guide

  • Warranty:

    • 1 Year Warranty

  • GTIN:

    4907034135387
