Tascam DR-10X Plug-On Micro Linear PCM Recorder (XLR)

DR-10X - Overview

• Features:

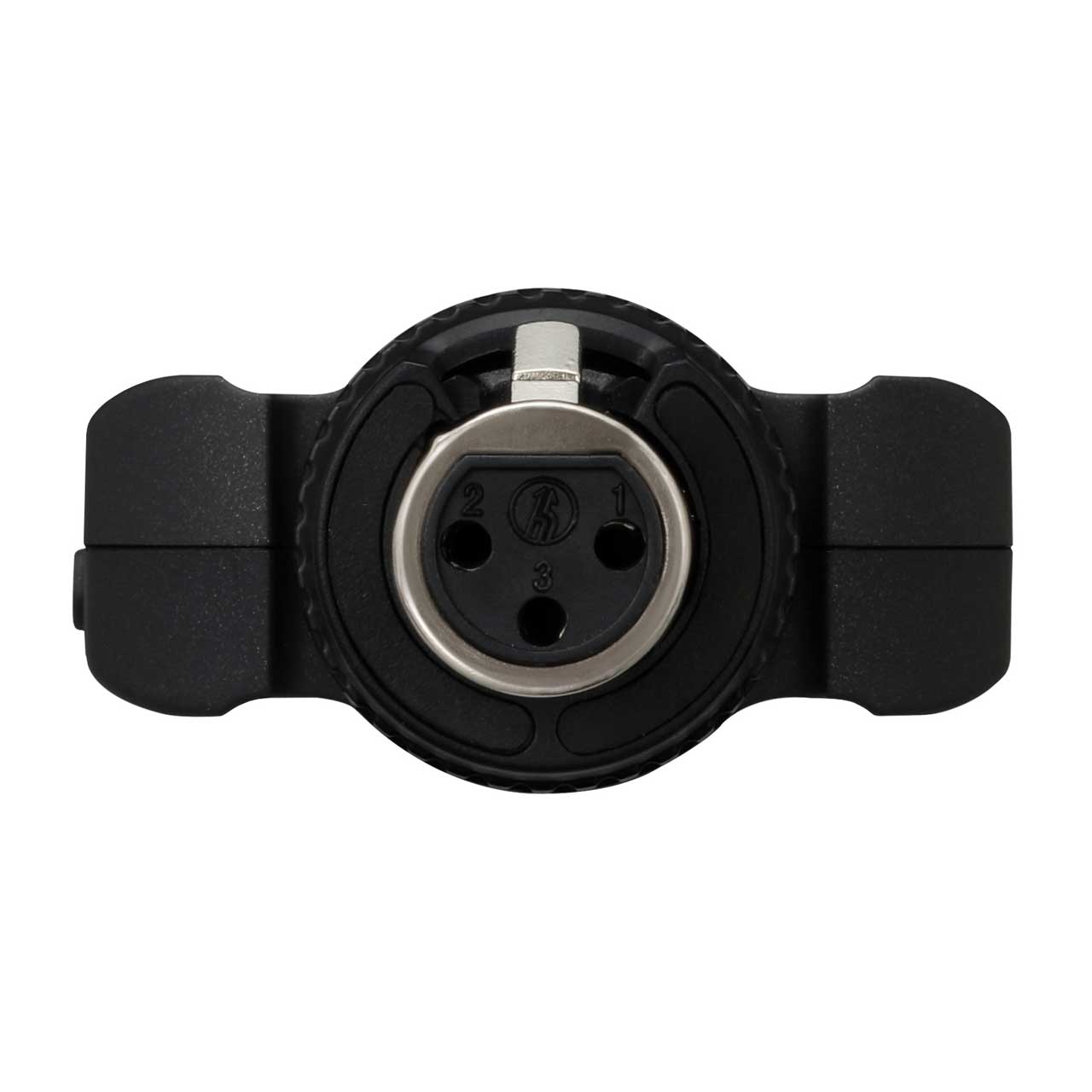

  • XLR plug-on connection
  • Compatible with dynamic mics as well as bettery-powered condenser mics
  • 48kHz/24-bit linear PCM mono recording
  • WAV files (compatible with BWF format)
  • Media: microSD/SDHC cards (supports 32GB capacities)
  • Sliding record switch and hold function to prevent misoperation during recording
  • Dual recording function
  • automatic file closing function to prevent the loss of already recorded data
  • XLR connector also can use as external input for external input
  • High/Mid/Low recording level settings
  • Low-cut filter
  • Limiter
  • Automatic level function
  • With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching
  • Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
  • Playback function allows recorded data to be checked immediately
  • Headphone output
  • Locking mechanism assure a tight connection with the microphone body
  • Easy-to-read organic EL display
  • micro USB B port enables easy data exchange with computers
  • Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)
  • Unit settings can be created and transferred as a computer text file
  • Settings can be transferred between multiple DR-10X units using the infrared transmission function
  • Firmware can be updated using a microSD card
  • RoHS-compliant product


• Specifications:

  • Recording media microSD card(64MB to 2GB),
  • microSDHC card(4GB to 32GB)
  • Media discharging Push-Push type (Guard cover mounted)
  • Recording format
  • WAV(BWF)
  • Sampling frequency 48kHz
  • Quantization bit rate 24bit
  • Number of channels 1-channel (Mono)
  • Analog audio Inputs
  • Connector XLR-3-31
  • Input Impedance 10k ohm or more
  • MIC input gain LOW / MID / HIGH
  • PHONES
  • Connector 3.5mm(1/8") stereo mini jack (DUAL MONO)
  • USB
  • Connector Micro-B type 4pin
  • Maximum Output USB2.0 HIGH SPEED mass storage class
  • Power 1 AAA batteries (Alkaline or NiMH),
  • USB bus power
  • Power consumption
  • Battery operation time
  • Alkaline batteries (EVOLTA) About 10 hours
  • Battery (RTC) Lithium x 1(built in with soldering)
  • Dimensions 52(W) x 94.4(H) x 28(D) mm
  • Weight 68.3g (including batteries) / 56.3g (without batteries)
  • Accessories USB cable, Owner's Manual (including warranty)


• GTIN:

  0043774031283
