Tascam FR-AV2 Compact 32-Bit Float Field Recorder and Timecode Generator with Mixer

FR-AV2 - Overview

• Features:

  • Dual ACD's with 32-bit float recording for fast setup and worry-free capture

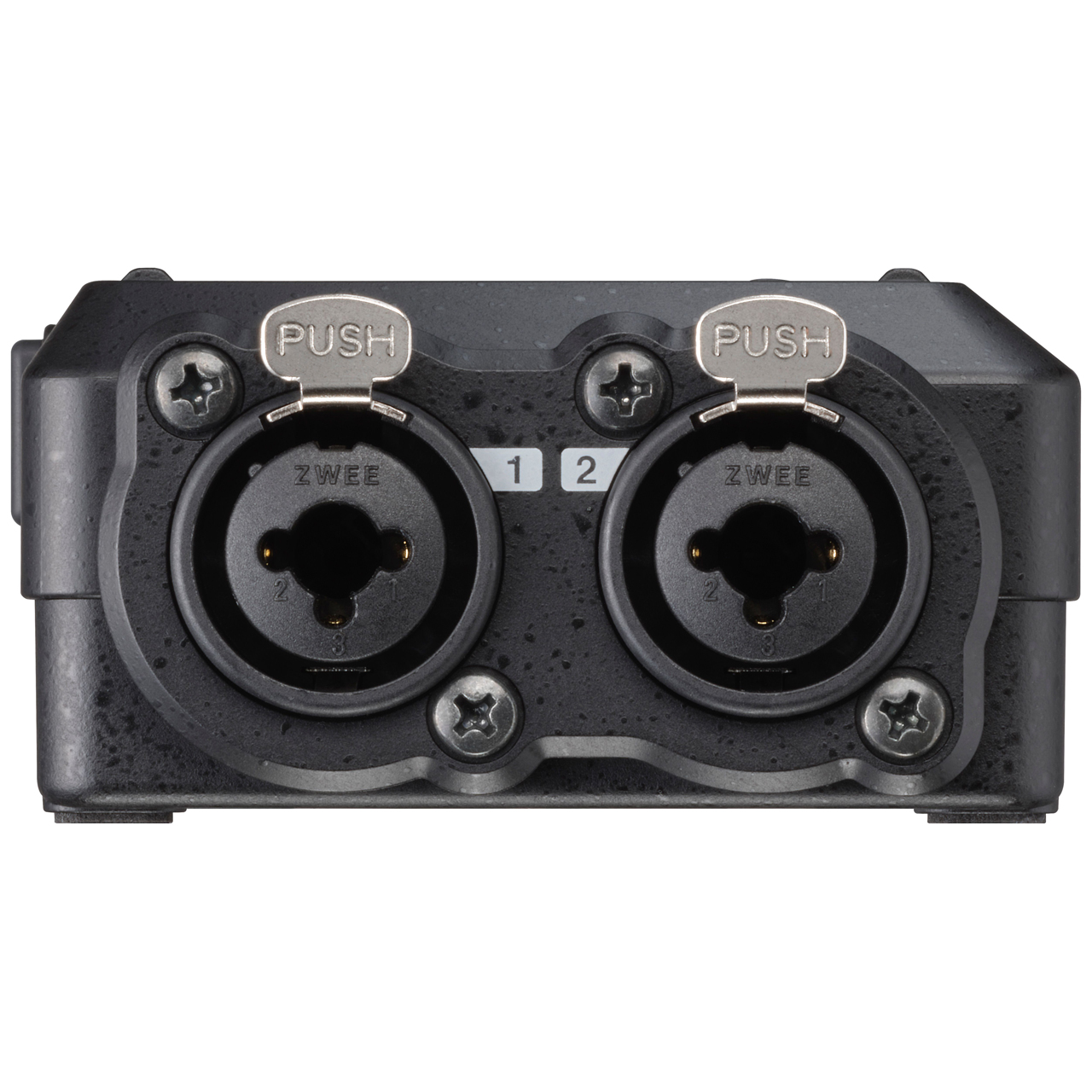

  • 2 XLR/TRS Combo inputs with Ultra HDDA Preamps, EIN -127dBu, and 3.5 mm input
  • Rec format: 48k/96k/192kHz
  • Timecode IN/OUT and timecode generation/sync function with high accuracy TCXO
  • Wireless audio monitoring with the optional AK-BT2 Bluetooth adapter (sold separately)
  • 2-in/2-out USB-C audio interface for Mac/Windows/iOS devices supporting 32-bit float
  • Supports up wo SDXC 512 GB recording media
  • Free TASCAM RECORDER CONNECT for iOS, iPasOS and Android allows you to control multiple units including FR-AV2 and DR-10L Pro with the Optional AK-BT2 Bluetooth Adapter (Sold seperately)

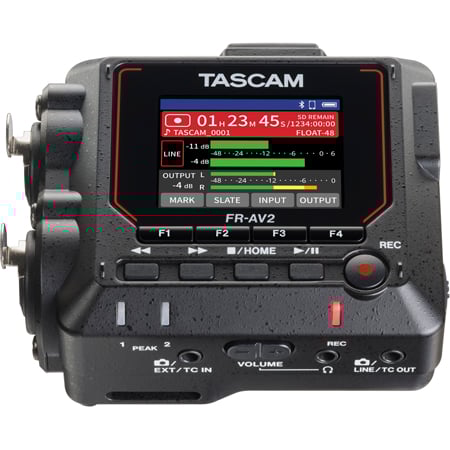

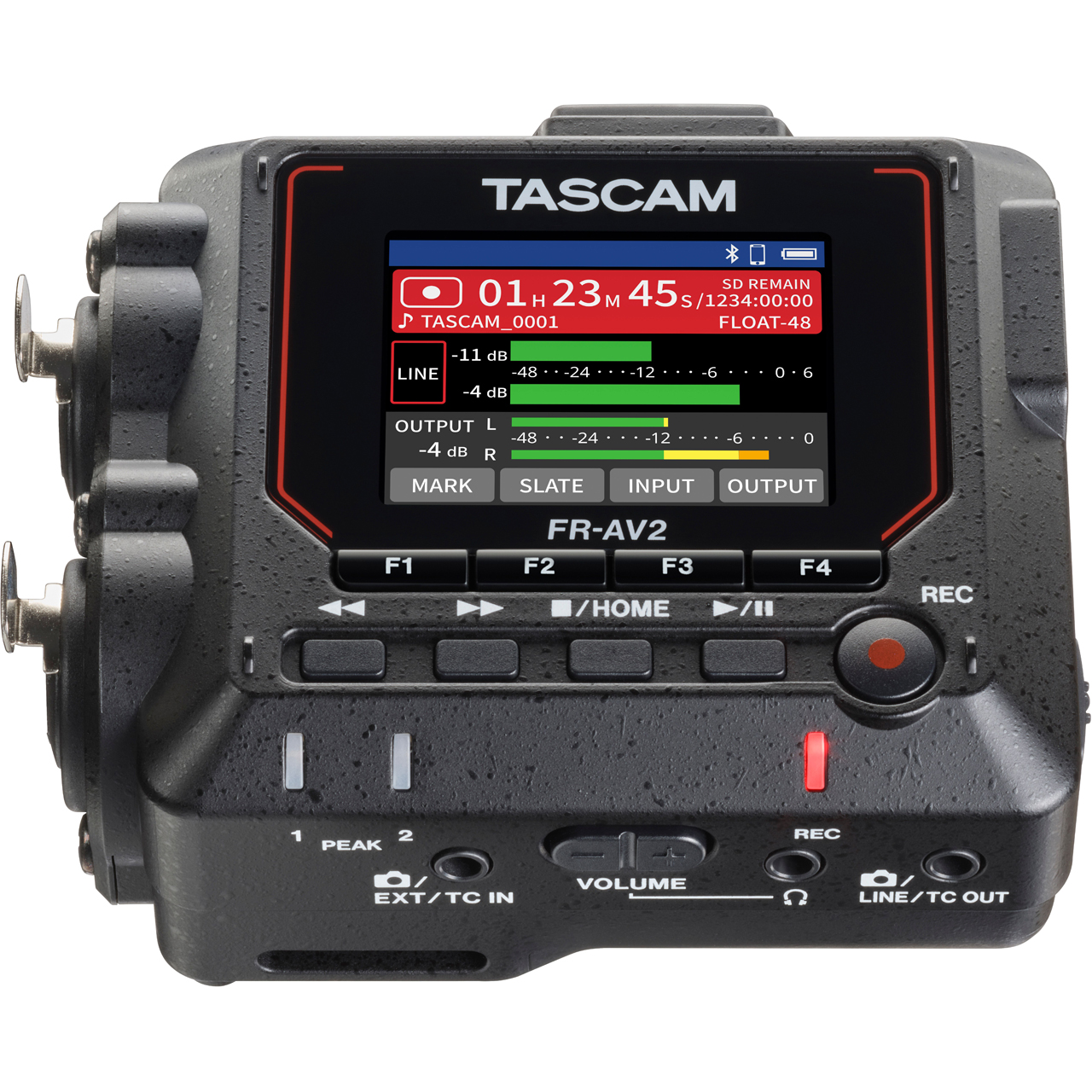

  • 2 Inch Color LCD screen for easy visibility and operatbility

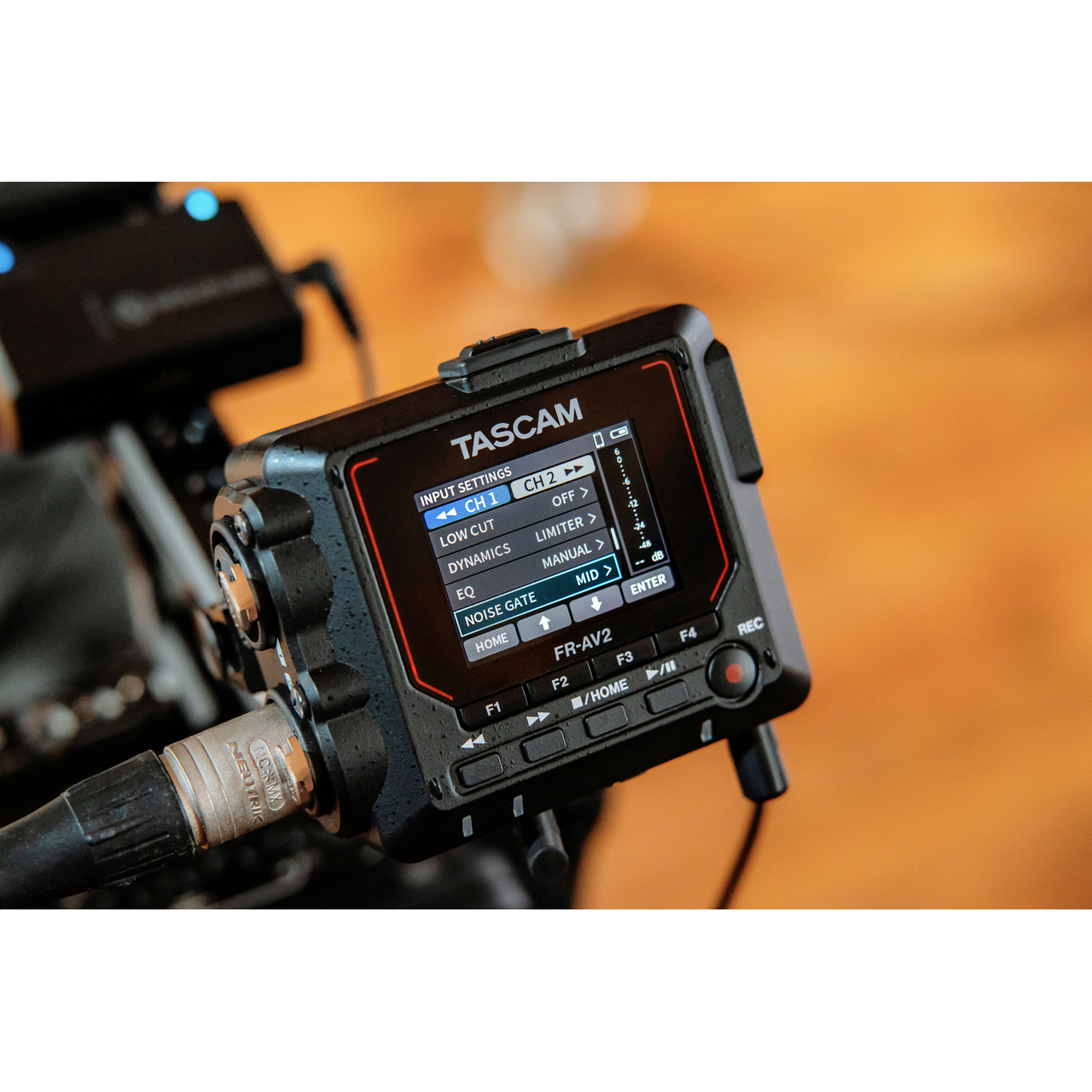

  • Multiple functions on inputs, including low-cut, compressor, limiter, and noise gate
  • Adjustable input delay to compensate for distance between microphones (0-300 ms)
  • Output delay adjustment available to compensate for camera video and audio output (0-300 ms)
  • 3.5mm stereo headphone jack
  • Camera/EXT input with plug-in power (+2.5V/+5.0V) function and Canera/Line outputs
  • Wireless timecode synchronization with Atomos UltraSync Blue
  • Supports capturing metadata (WAV file BEXT and iXML) when recording

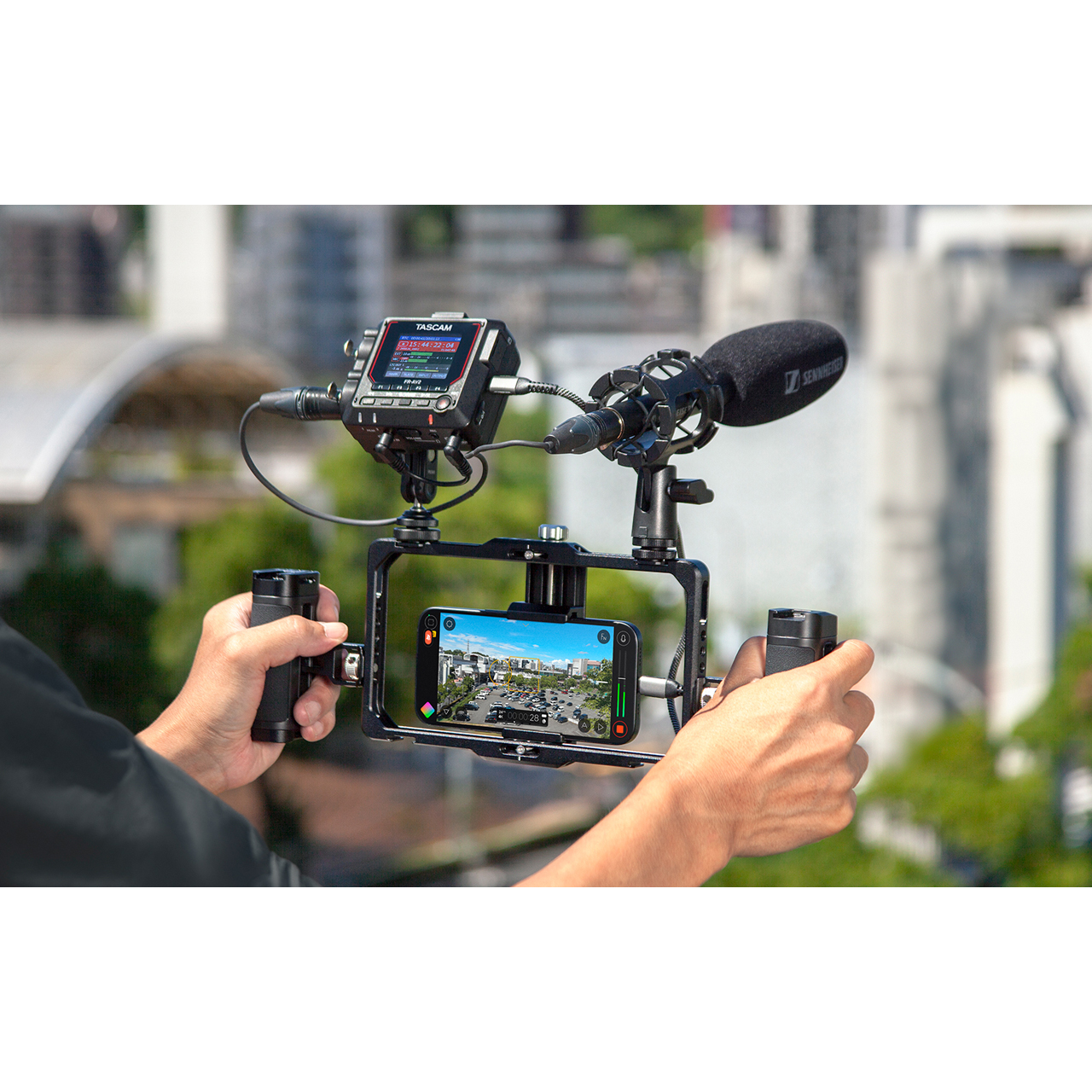

  • Compact, lightweight, fiberglass enclosure designed for use with camera rigs


• Specifications:

  • Recorder
  • Recording Media/File Systems:
    - microSD cards (64 MB - 2 GB)
    - microSDHC cards (4 GB - 32 GB)
    - microSDXC cards (48 GB - 512 GB)
  • Recording/Playback Formats: WAV (BWF)
  • Sampling Frequency: 48kHz, 96kHz, 192kHz
  • Quantization Bit Depth: 24-bit/32-bit float
  • Max Number of Input Channels: 2
  • Max Number of Recordable Tracks: 2

    Analog Audio Input Ratings
  • With [MIC] Input Selected:
    - Max Input Level: +4dBu
    - Min Input Level: -76dBu
    - Input Impedance: 2.0kΩ or more
    - Phantom Power: +24V/+48V (selectable when [MIC] input is selected)
  • With [LINE] Input Selected:
    - Max Input Level: +24dBu
    - Nominal Input Level: +4dBu (GAIN setting at minimum)
    - Input Impedance: 8kΩ or more
  • Line Input (unbalanced): Camera/EXT/TC IN jack (can provide plug-in power)
  • Connector: 3.5mm stereo mini jack
  • Max Input Level: +1dBV
  • Nominal Input Level: - 19dBV (GAIN setting at minimum)
  • Min Input Level: - 79dBV
  • Input Impedance:
    - 6.0kΩ or more (when plug-in power is turned off)
    - 1.6kΩ or more (when plug-in power is turned on)
  • Plug-In Power: +2.5V/+5.0V
  • TC IN: (Tip: Timecode IN, Ring: -, Shield: GND)
  • Signal Level Range: 0.5Vp-p - 5.0 Vp-p
  • Input Impedance: 10kΩ or more

    Analog Audio Output Ratings
  • Line Output (unbalanced): Camera/LINE/TC OUT jack
  • Connector: 3.5mm stereo mini jack
  • Camera/LINE: (Tip: L ch, Ring: R ch, Sleeve: GND)
  • Max Output Level: +6dBV
  • Nominal Output Level: - 10dBV (with - 16dBFS as standard)
  • Output Impedance: 210Ω

    TC OUT
  • LTC Selected: (Tip: Timecode OUT, Ring: -, Shield: GND)
  • Output Level: 1.8 Vp-p
  • Output Impedance: 1.0kΩ
  • When MIC Selected: (Tip: Timecode OUT, Ring: R ch, Shield: GND)
  • Output Level: 50 mVp-p
  • Output Impedance: 110Ω

    Headphone Output: Headphone Jack
  • Connector: 3.5mm stereo mini jack
  • Max Output: 50mW + 50mW (THD + N less than 0.1% into 32 Ω load)
  • Recommended Headphone Impedance: 16Ω - 400Ω

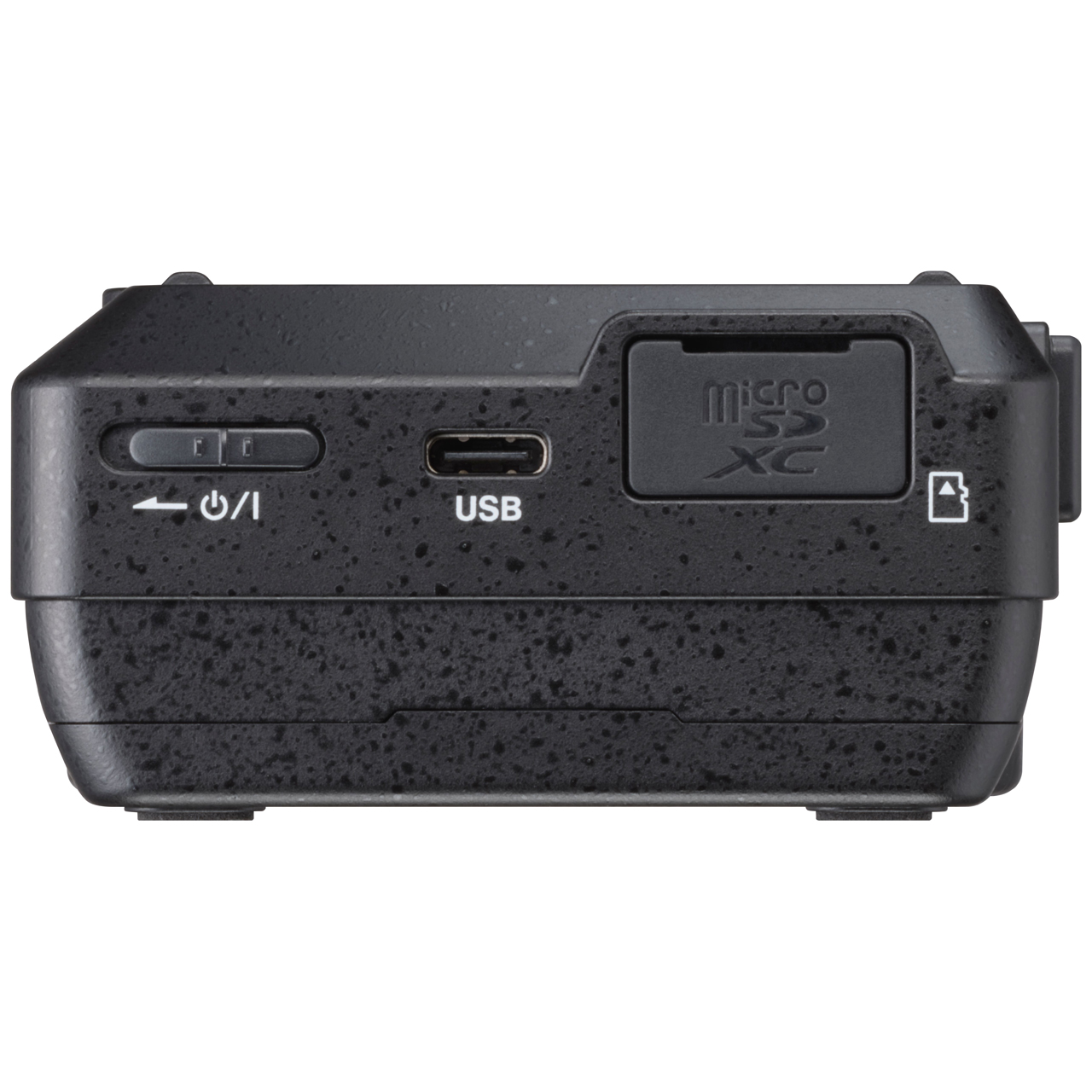

    USB
  • Connector: USB Type-C
  • Transfer Format: USB2.0 High Speed
  • Device Class:
    - Mass Storage Class
    - USB Audio Class 2.0 (USB Class Compliant)

    USB Audio
  • Sampling Frequency: 48/96kHz
  • Quantization Bit Depth: 24-bit/32-bit float
  • Number of Inputs: 2 channels * output from this unit
  • Number of Outputs: 2 channels *input to this unit

    Time Code Input/Output
  • Format: According to SMPTE ST 12-1 (LTC)
  • Frame Rate: 23.98, 24, 25(50), 29.97(59.94), 29.97DF(59.94DF), 30(60) fps (Half frame rate time code is used for high frame rate videos of 50 fps or higher.)
  • Bluetooth Device Connector: For Bluetooth adapter (AK-BT2) only

    General
  • Power:
    - 3x AA batteries (alkaline, NiMH or lithium-ion)
    - USB bus power from a computer, etc.
    - TASCAM PS-P520U AC adapter (sold separately)
  • Power Consumption: 3.8W (maximum)
  • Weight:
    - 0.59lbs (267g)(including batteries)
    - 0.21lbs (195g)(not including batteries)
  • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
  • Dimensions: 3.9" x 3.17" x 1.59" (99mm x 80.4mm x 40.3mm) (WxHxD, including protrusions)


• Item Includes:

  • 1x FR-AV2
  • 1x Safety Guide
  • 1x TASCAM ID Registration Guide


• Warranty:

  • 1 Year Warranty


• GTIN:

  4907034135202
