Tascam US-2X2 - 2x2 Channel USB Audio Interface - Includes Steinberg Cubase LE DAW

ITEM #: TCM-US-2X2 MFG #: US-2X2

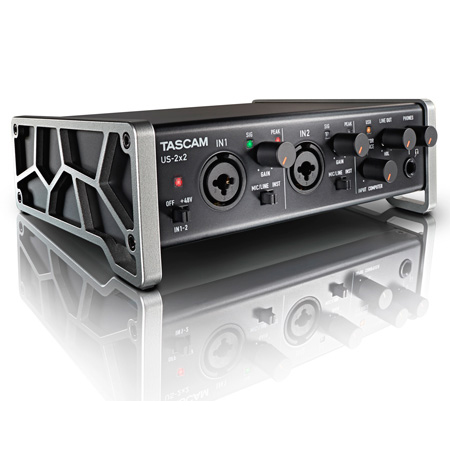

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TCM-US-2X2

US-2X2 - Overview

TASCAM’s US-2x2 features a new ergonomic design and some of the best audio specifications available for the ultimate 2-channel interface for home, project, and mobile studios. A pair of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.

The 2-in/2-out audio interface is powered through its USB 2.0 connection or an optional power adapter. Driverless operation is possible for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers. The US-2X2 now includes a free copy of Steinberg Cubase LE. This venerable cross-platform DAW supports up to 24 MIDI, 8 instrument and 16 audio tracks and will allow recording of up to 8 individual inputs at one time. These features, combined with decades of experience in the pro audio arena make Cubase LE a powerful choice for any PC or Mac based musician or producer.

With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-2x2 is the perfect choice for desktop and mobile studios.

  • Features:

    • High-quality Ultra-HDDA mic/line preamps with up to 57dB of gain
    • Two-in/two-out USB 2.0 interface with up to 96kHz/24-bit resolution
    • XLR/1/4" combination input jacks
    • Zero-latency Direct Monitoring
    • High-quality audio components like NE5532 op amps for 125dBu EIN and 105dB S/N ratio
    • USB Audio Compliant 2.0 drivers for iOS compatibility
    • Independent line out and headphone level controls
    • MIDI Input and Output
    • Aluminum body with angled design for better desktop visibility
    • Includes a free copy of Steinberg Cubase LE

  • Specifications:

    • Sampling frequency: 44.1k/48k/88.2k/96kHz
    • Quantization bit rate: 16/24bit
    • MIC IN: IN 1-2
    • Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
    • Input impedance: 2.2k ohms
    • Nominal input level: GAIN MAX: -65dBu (0.0004Vrms); GAIN MIN: -8dBu (0.3090Vrms)
    • Maximum input level (GAIN:MIN): +8dBu (1.9467Vrms)
    • Gain: 57dB
    • INST IN: IN 1-2
    • Connector: 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED
    • Input impedance: 1M ohms
    • Nominal input level: GAIN MAX: -63dBV(0.0007Vrms); GAIN MIN: -6dBV(0.5015Vrms)
    • Maximum input level (GAIN:MIN): +10dBV(3.162Vrms)
    • Gain: 57dB
    • LINE IN: IN 1-2
    • Connector: 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
    • Input impedance: 10k ohms
    • Nominal input level: GAIN MAX: -53dBu(0.0017Vrms); GAIN MIN: +4dBu(1.228Vrms)
    • Maximum input level (GAIN:MIN): +20dBu(7.75Vrms)
    • Gain: 57dB
    • LINE OUT Connector: 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
    • Output impedance: 110ohms
    • Nominal output level: +4dBu (1.273Vrms)
    • Maximum output level: +20dBu (7.75Vrms)
    • PHONES Connector: 6.3mm(1/4") stereo phone jack
    • Maximum output level: 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded)
    • MIDI IN/OUT Connector: Din 5-pin
    • Format: Standard MIDI format
    • USB Connector: USB B type 4-pin
    • Format: USB2.0 HIGH SPEED
    • Power: When connected PC - USB bus powered; When connected iOS - AC Adapter (TASCAM PS-P520, sold separately)
    • Power consumption: 2.5W
    • Dimensions (W x H x D): 7.32" x 2.56" x 6.3"
    • Weight: 2.43lbs
    • Operating temperature: 5 to 35° C
    • Bundled software: Steinberg Cubase LE

  • GTIN:

    0043774031009
