Manage your IP infrastructure by using ST 2110-22 JPEG XS to carry multiple UHD streams, saving bandwidth across the network.
Telestream MPSDP-JPXS option enables you to monitor 2110-22 JPEG XS inputs and adds a tab to the Video Session application if the current input in JPEG XS for the PRISM MPS / MPD and MPP Models.
What is special about JPEG XS?
JPEG XS offers a "virtually lossless" codec to compress high data rates streams like UHD/4K from over 10Gb/s with a 10:1 compression ratio, allowing IP networks to carry multiple UHD streams more efficiently within the system without increasing network bandwidth. JPEG XS also offers low latency to ensure minimal processing delay within the facility. With the JPXS option in PRISM, the monitor can decode these ST 2110-22 streams showing trace applications and picture display.
How does PRISM handle JPEG XS?

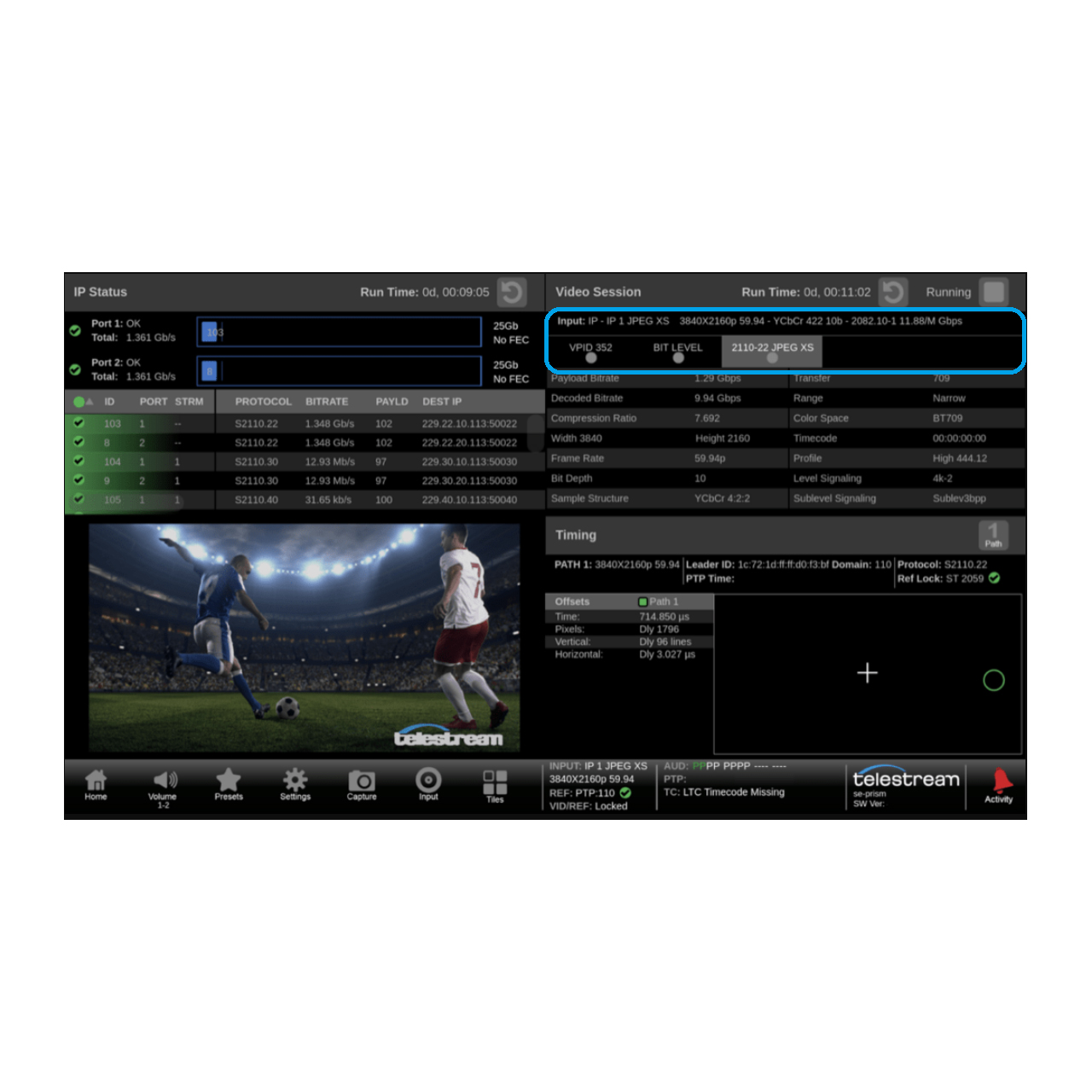

PRISM can decode a range of HD and UHD/4K formats (720p, 1080i, 1080p, 2K, UHD/4K) providing flexibility to meet the needs within remote production and broadcast facilities. To aid operators and engineers in monitoring these signals, the Video Session display shows the JPEG XS metadata to verify compression ratio and syntax within the stream. An AUX-SDI output of the decode ST 2110-22 is available to be fed to a picture monitor to ensure the quality of the signal.
Note: Incoming 10-bit ST 2110-20 data is supported in the range 4-1019. Incoming data below the minimum is reduced to 4 and data above the maximum is reduced to 1019.
