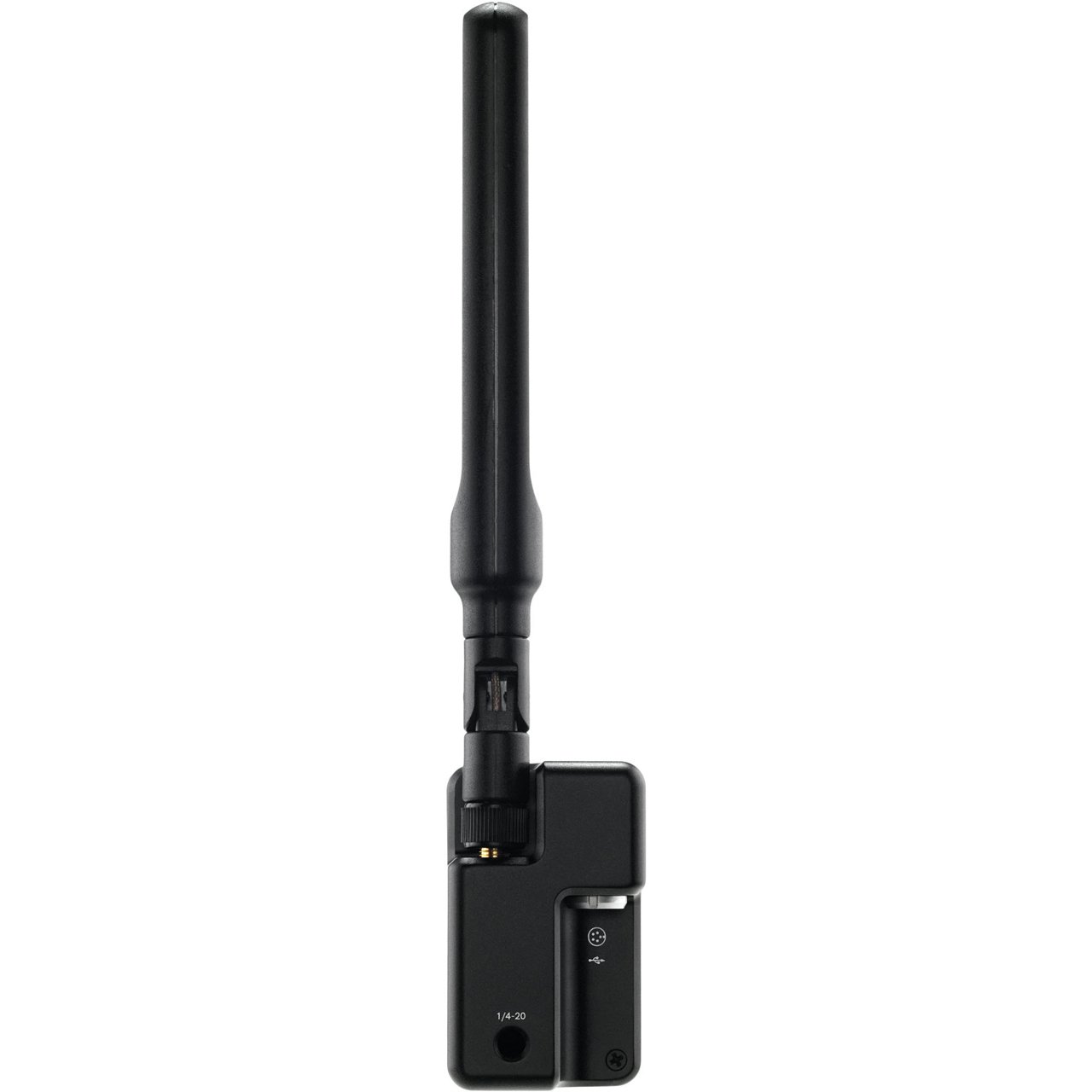

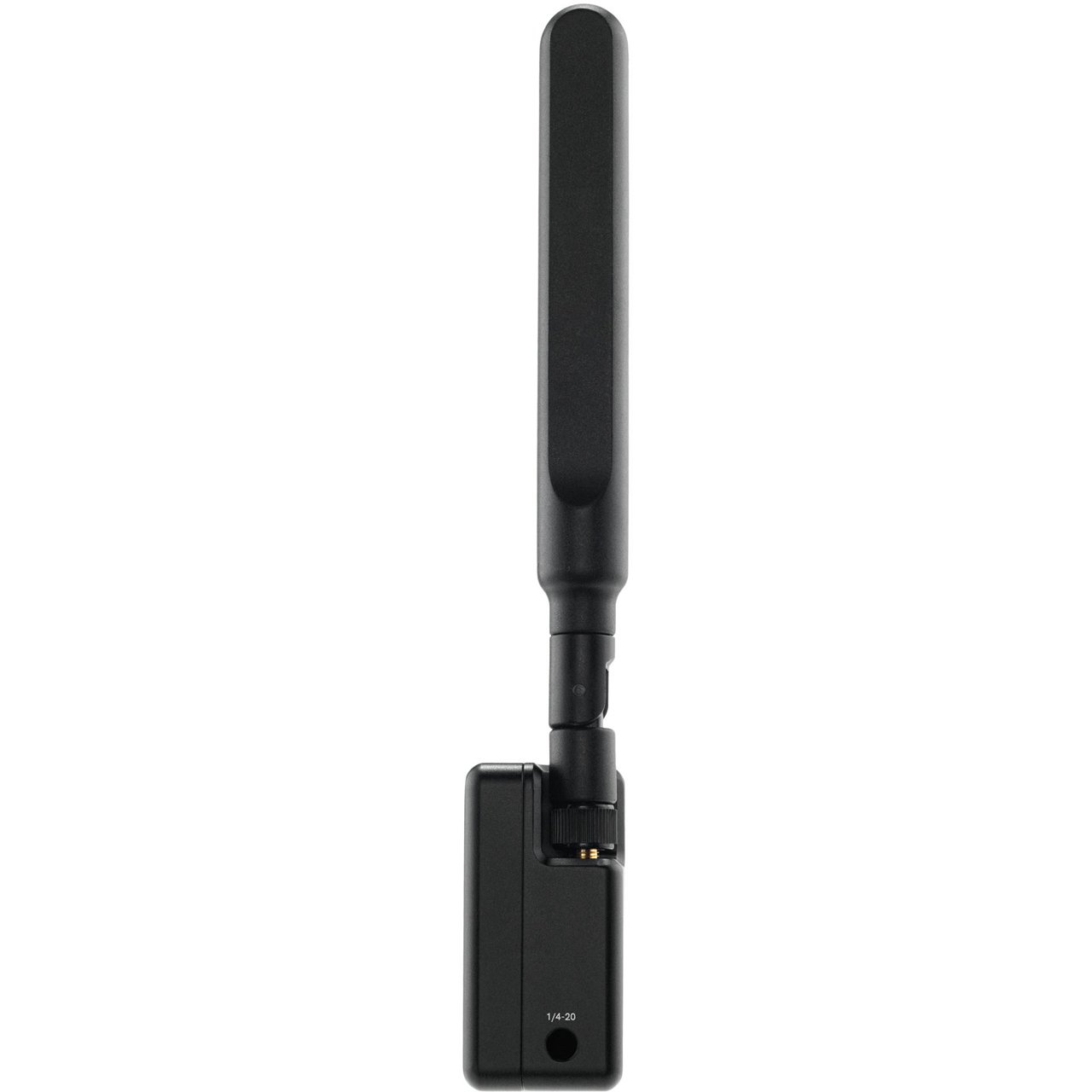

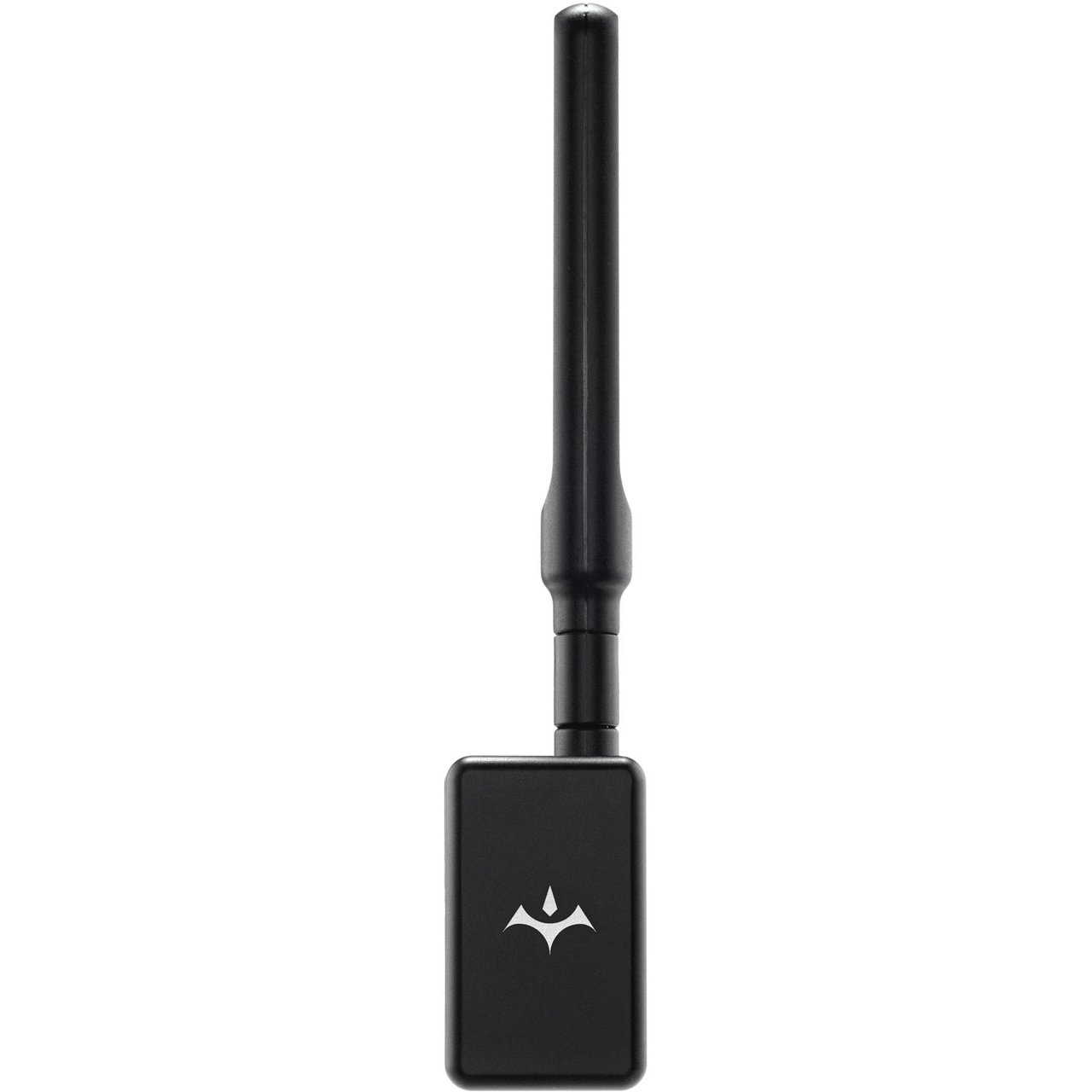

Teradek Node II High-powered LTE/4G/3G Modem with Global Internet Connectivity - USB A Cable

ITEM #: TER-NODEIIUSBAG MFG #: 10-0028

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


10-0028 - Overview

Get exceptional internet connectivity anywhere in the World with the all-new Node II: Teradek's high-performance LTE/4G/3G modem. Node II gives you nearly world wide band coverage and universal cellular SIM card compatibility and set to work with virtually every carrier, including Verizon, AT&T, and T-Mobile.

Node II delivers 4x faster download speeds (Max. 600 Mbps) and 3x faster upload speeds (Max. 150 Mbps) than its predecessor. Featuring with 3 mounting options and dual SIM slots (nano & micro SIM adapters included).

Housed in a rugged aluminum chassis that's weather-resistant and durable enough to withstand regular use in the field.

Exceptional Cellular Connectivity
With external high-gain antennas and the industrial-grade Cat. 12 LTE modem, Node II gives you a robust internet connection in the most challenging broadband environments.

Universal Data Band and SIM Support

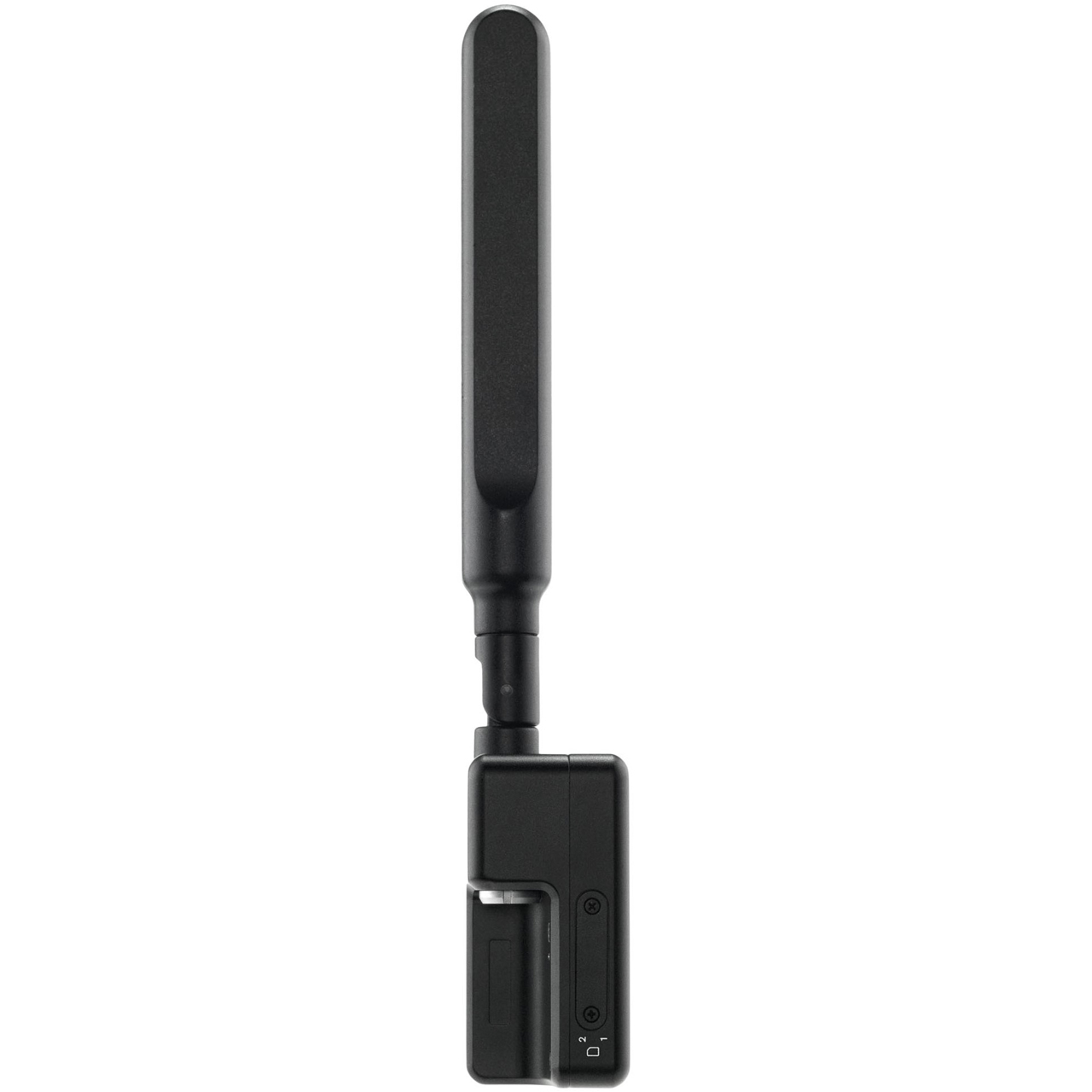

Node II works with virtually any SIM card, and can operate on most LTE/4G/3G data bands in the world. With dual SIM slots, swap from one provider to another without needing to unplug the Node II. Only one SIM card can be used at a time.

Super Durable and Weather Resistant

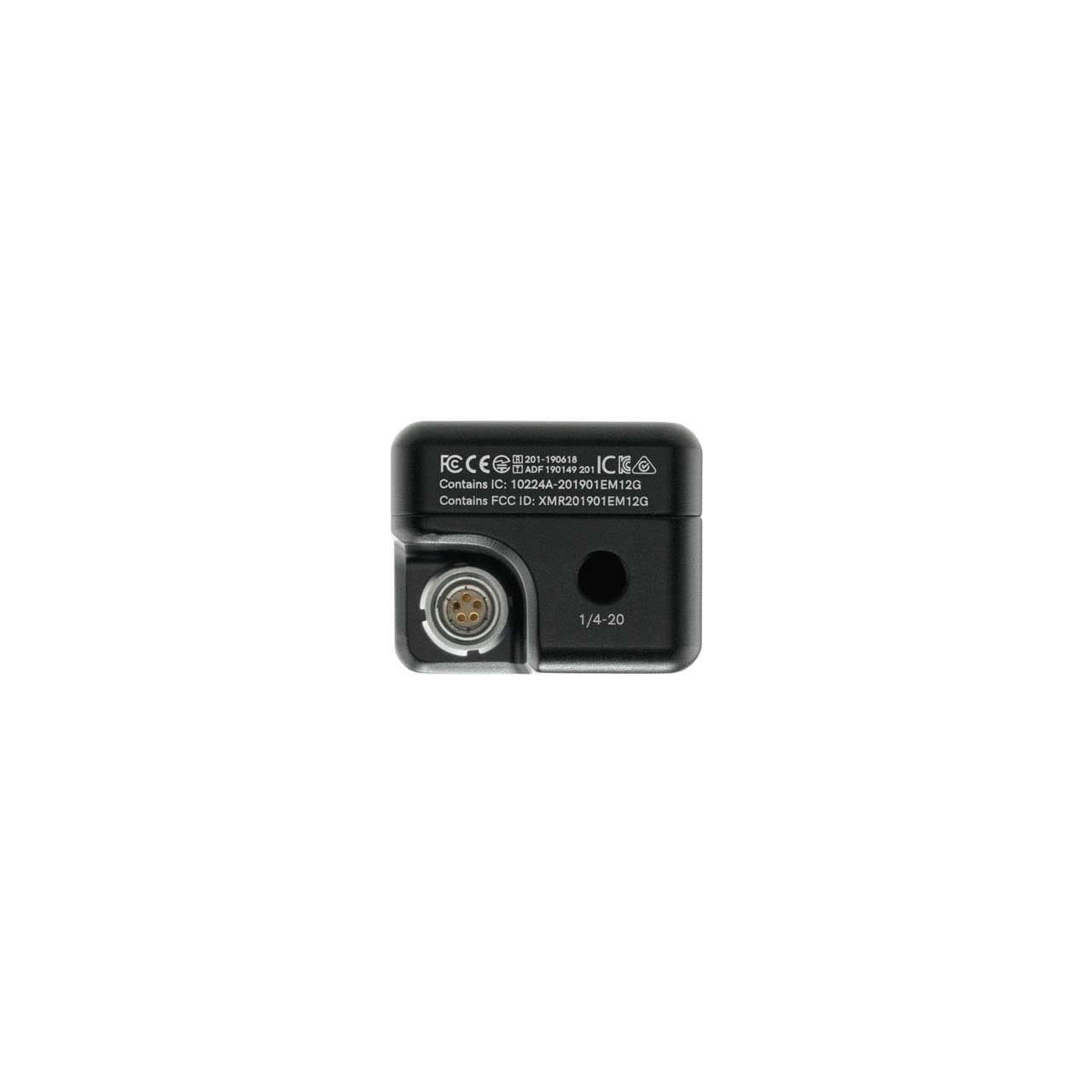

Traditional USB modems are easily broken during extended use in the field. Node II solves the durability problem with an aluminum chassis, 3 ¼"-20 mounting options, and a 5-pin locking connector to attach to your Teradek device.

Node II modems are compatible with the following Teradek products: Vidiu X, Vidiu Go, Wave, Prism Flex, Serv 4K, Cube 600 and 700 Series, Bond 600 and 700 Series

  • Features:

    • High-powered LTE/4G/3G modem
    • Global internet connectivity
    • External high-gain antennas
    • Universal SIM compatibility

  • Specifications:

    • Physical
    • Dimensions: 2.47 x 1.50 x 1.20"
    • Weight: 3.2oz (90g)
    • Construction:
      Milled Aluminum (Chassis), regulation compliant
      PCB
    • Mountability: 3 x 1/4"-20 threaded hole

      Environmental
    • Operating Temperature: 14° to 122°F (-10° to 50°C)
    • Operating Humidity: 5% to 95% (non-condensing)
    • Storage Temperature: -40° to 194°F (-40° to 90°C)
    • Storage Humidity: Max. 90%

      Interfaces
    • Interface: 2 Status LEDs
    • Interface: USB to 5-pin connector

      Network
    • Lte Fdd: B1/B2/B3/B4/B5/B7/B8/B9/ B12/B13/B14/B17/B18/B19/B20/ B21/B25/B26/B28/B292 /B30/B32/ B66
    • Lte Tdd: B38/B39/B40/B41
    • Wcdma: B1/B2/B3/B4/B5/B8/B9/B19
    • Data Rate: LTE FDD Cat 12: Up to 600 Mb/s DL, 150 Mp/s UL
    • Sim: Full size SIM

      Power
    • Power Input: 5-Pin Connector, 5V
    • Battery: None
    • Nominal Power Consumption: 5W Max

  • Item Includes:

    • 1x Node II
    • 1x 5pin Lemo to USB type A male r/a - 12in Cable
    • 1x SIM Card Holder
    • 1x Teradek SIM Card - North America
    • 1x Sticker for Universal Box - Node II
    • 1x Antenna 2G/3G/4G sma mount
    • 1x Antenna penta straight sma mount
