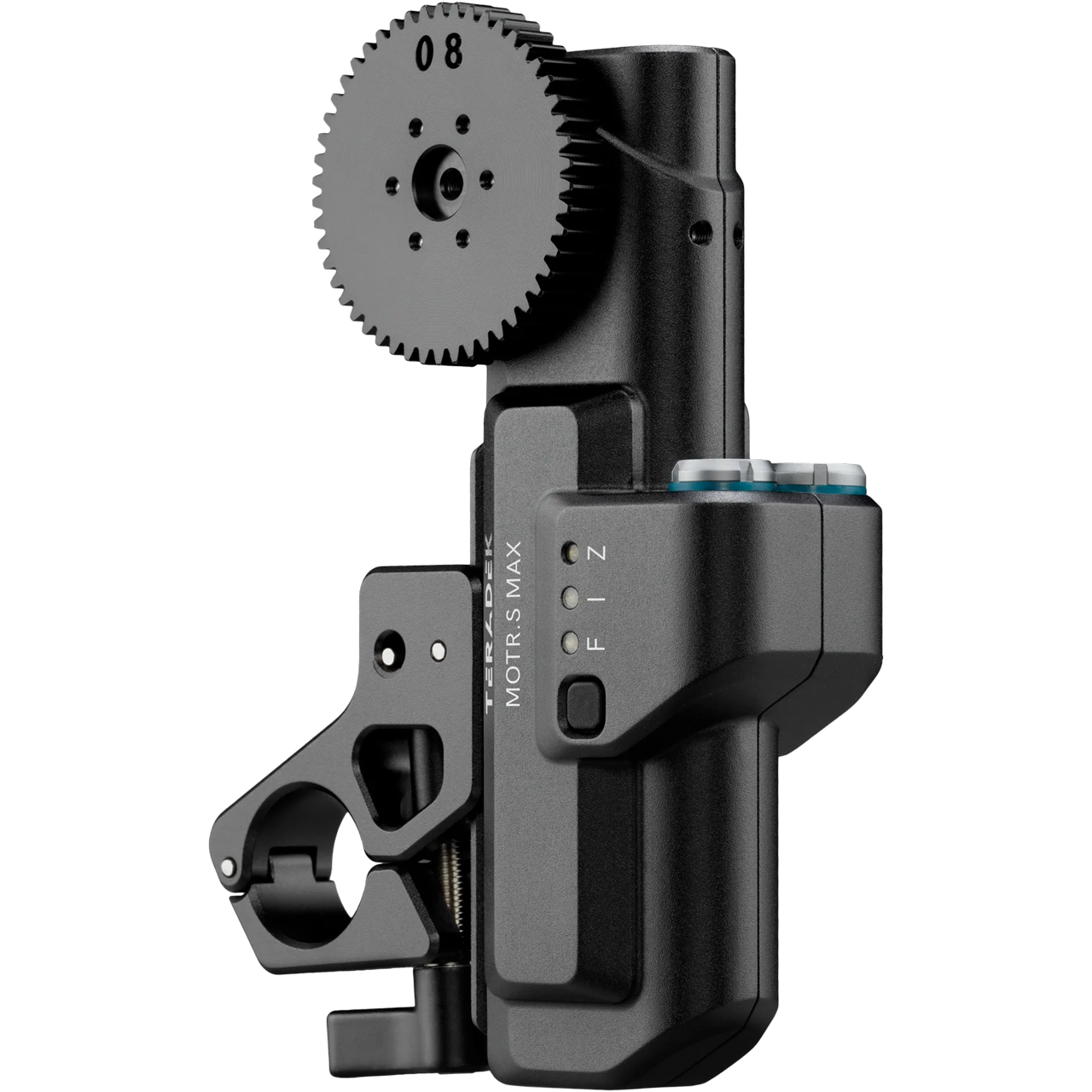

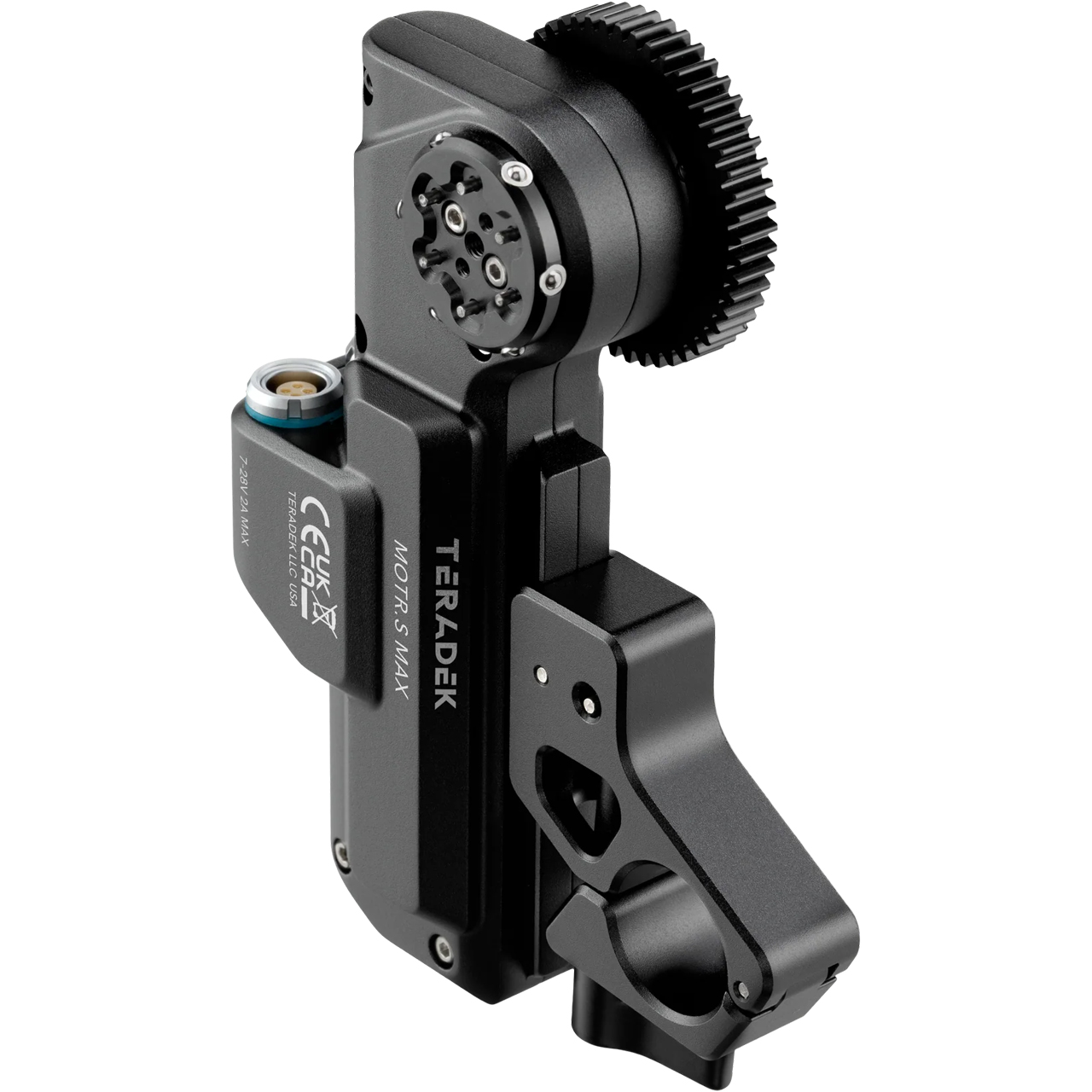

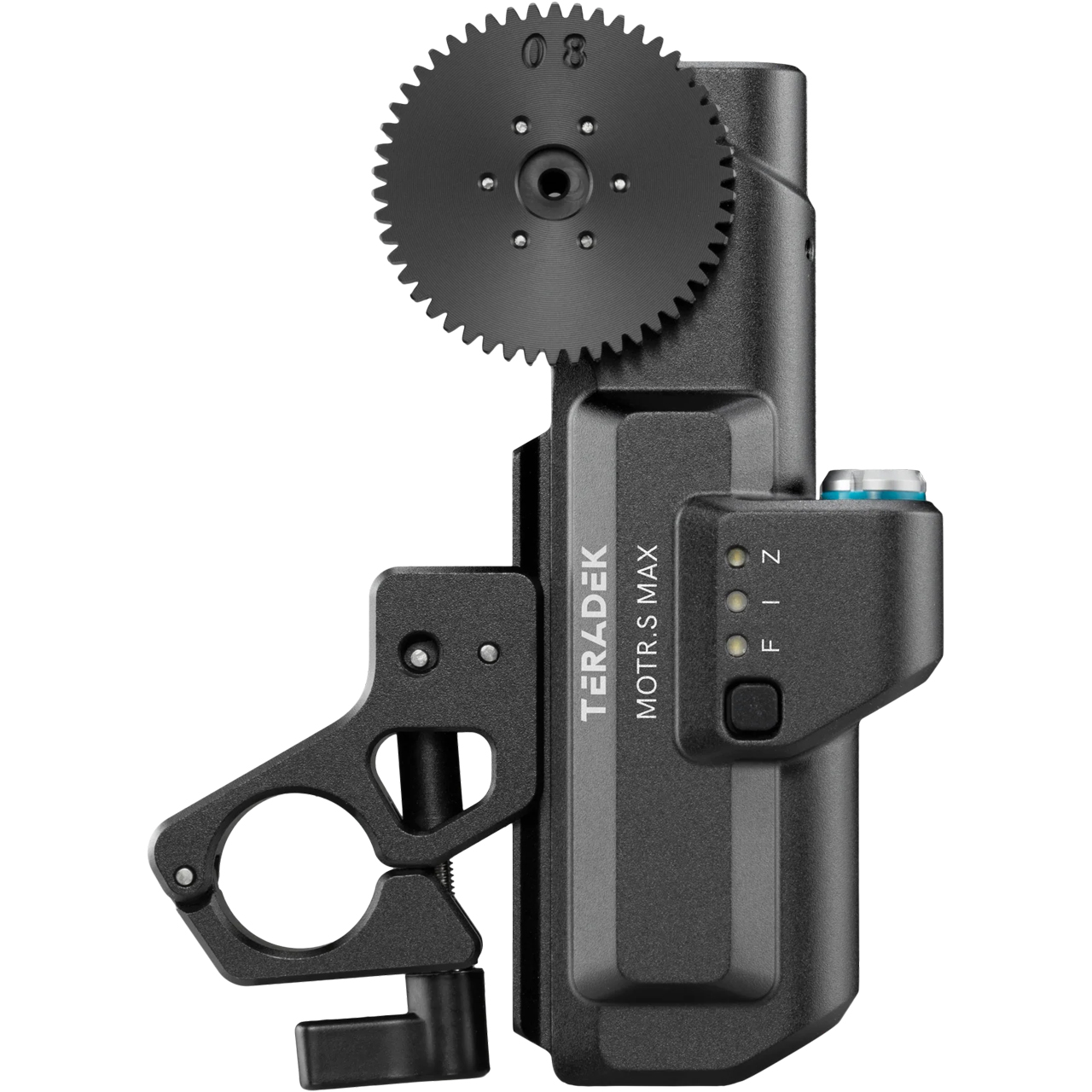

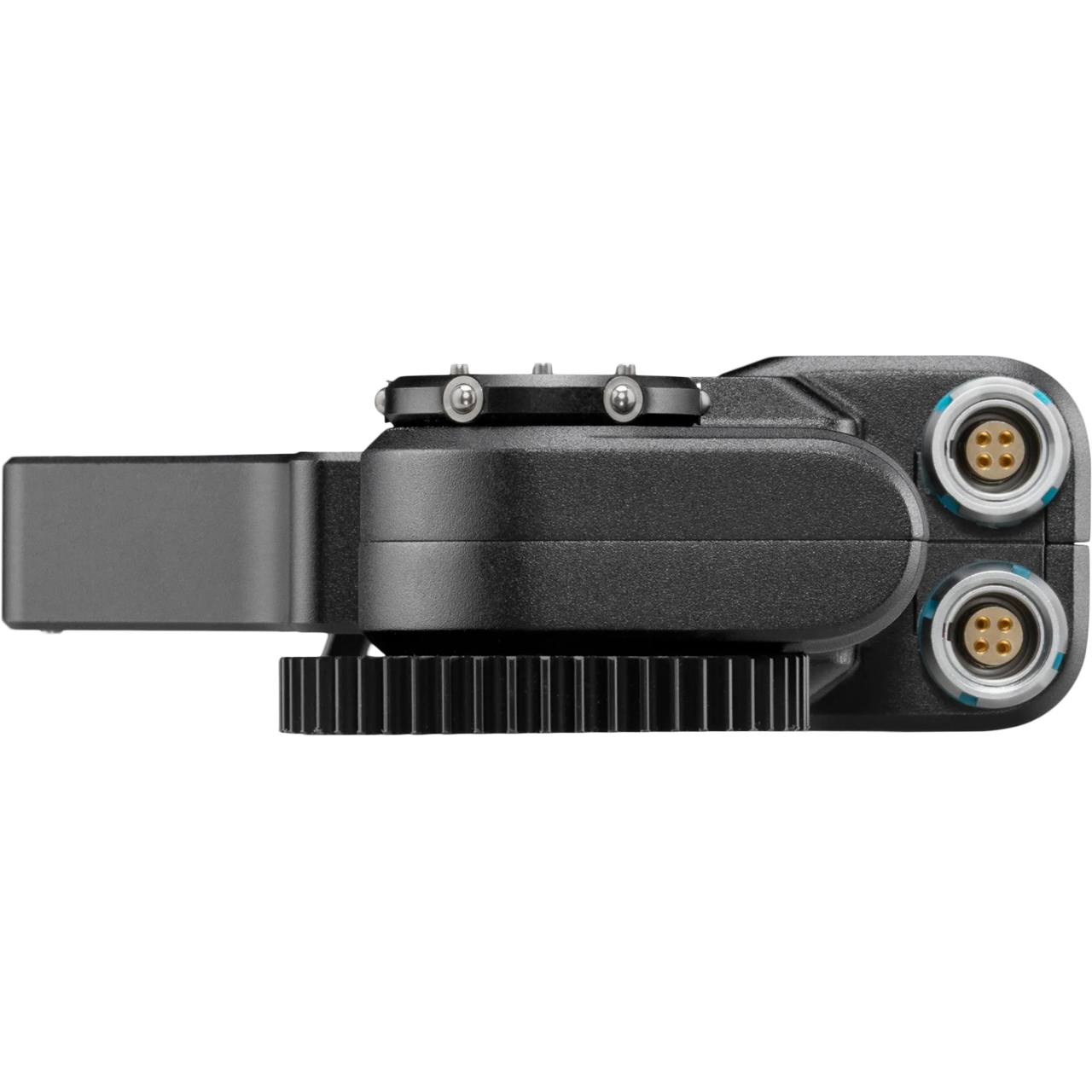

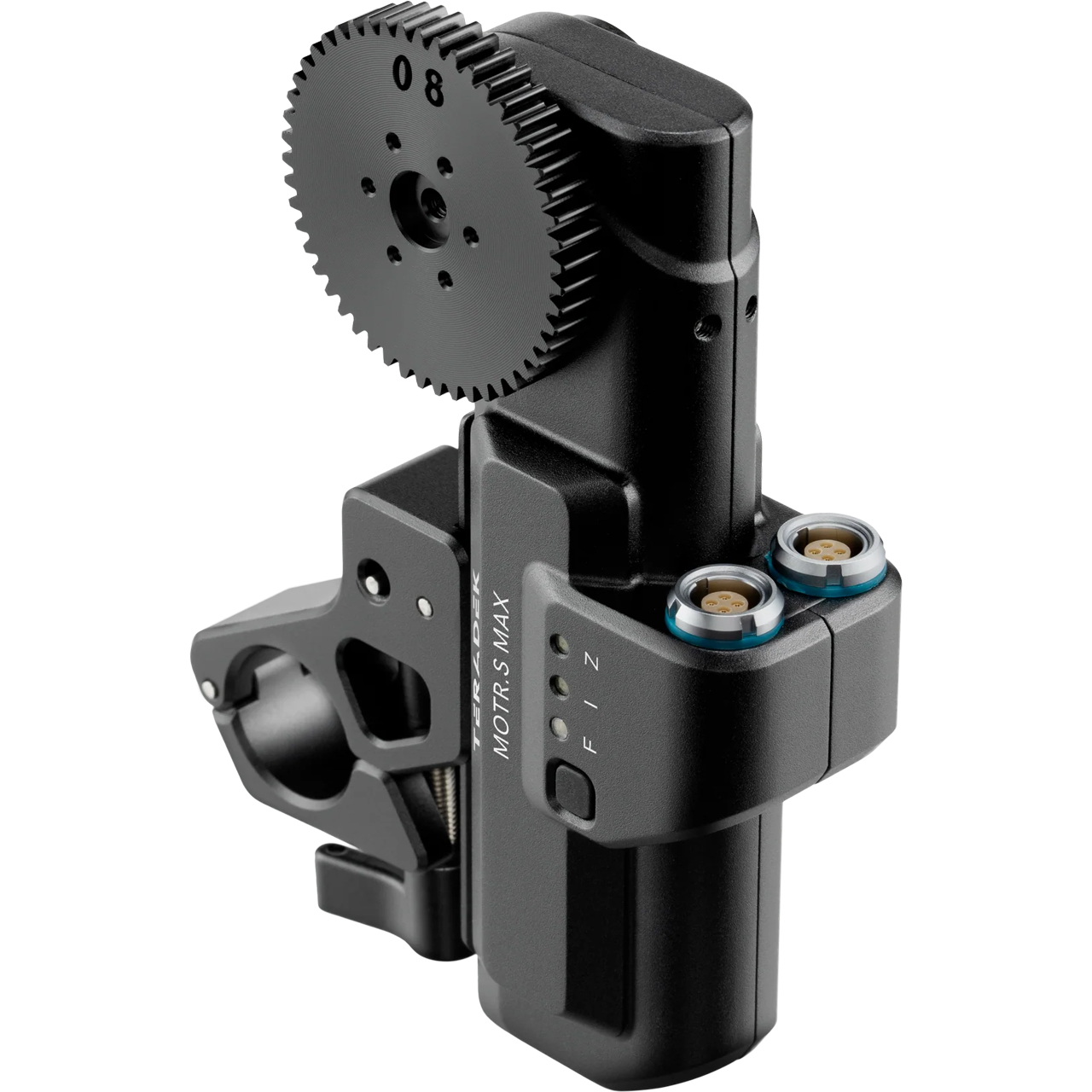

Teradek RTMOTR.SMAX Aluminum Wireless High-torque Lens Motor for RT Lens Control Systems

ITEM #: TER-RTMOTR-SMAX MFG #: 15-0053

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Availability: In Stock
iAvailability Description Popup


15-0053 - Overview

The Teradek MOTR.S MAX Lens Motor is the high-torque wireless lens-control solution for heavy-duty lenses with stiff, grinding gears. Completely redesigned from the ground up, MOTR.S MAX delivers 1.2 Nm of peak torque at up to 275 teeth per second for precise focus-pulling on heavy-duty lenses. It features durable, all-aluminum construction and reinforced sockets, a quick-release gear for intuitive setup and quick transitions, and is daisy-chainable.

  • Features:

    • Quick-release gear system
    • For heavy-duty lenses with stiff, grinding gears
    • 275 teeth per second
    • Daisy-chainable
    • Power inputs up to 32V

  • Specifications:

      Physical
    • Gear Pitch: 0.8 Mod standard (others available)
    • Max Torque: 1.2 Nm peak, 0.8 Nm continuous
    • Max Speed: 275 teeth/second
    • Construction: All aluminium
    • Mountability: Compatible with 19, 15 mm Rods
    • Dimensions: 4.6" x 2.4" x 1.2" (117.5mm x 59mm x 31mm)
    • Weight: 7.8oz (222g)

      Power
    • Operating Voltage: 7V - 32V
    • Power Input: 0.1A idle. 2.5A peak

      Interface
    • Connectors: 2x 0B.4 (chainable)

      Environmental
    • Operating Temperature: -4°F - 122°F (-20°C - 50°C)

  • Item Includes:

    • 1x Teradek RT MOTR.S MAX Wireless Lens Motor
    • 1x 0.8 MOD Gear
    • 1x MOTR.S Bracket

  • Warranty:

    • 1 Year Limited Warranty
