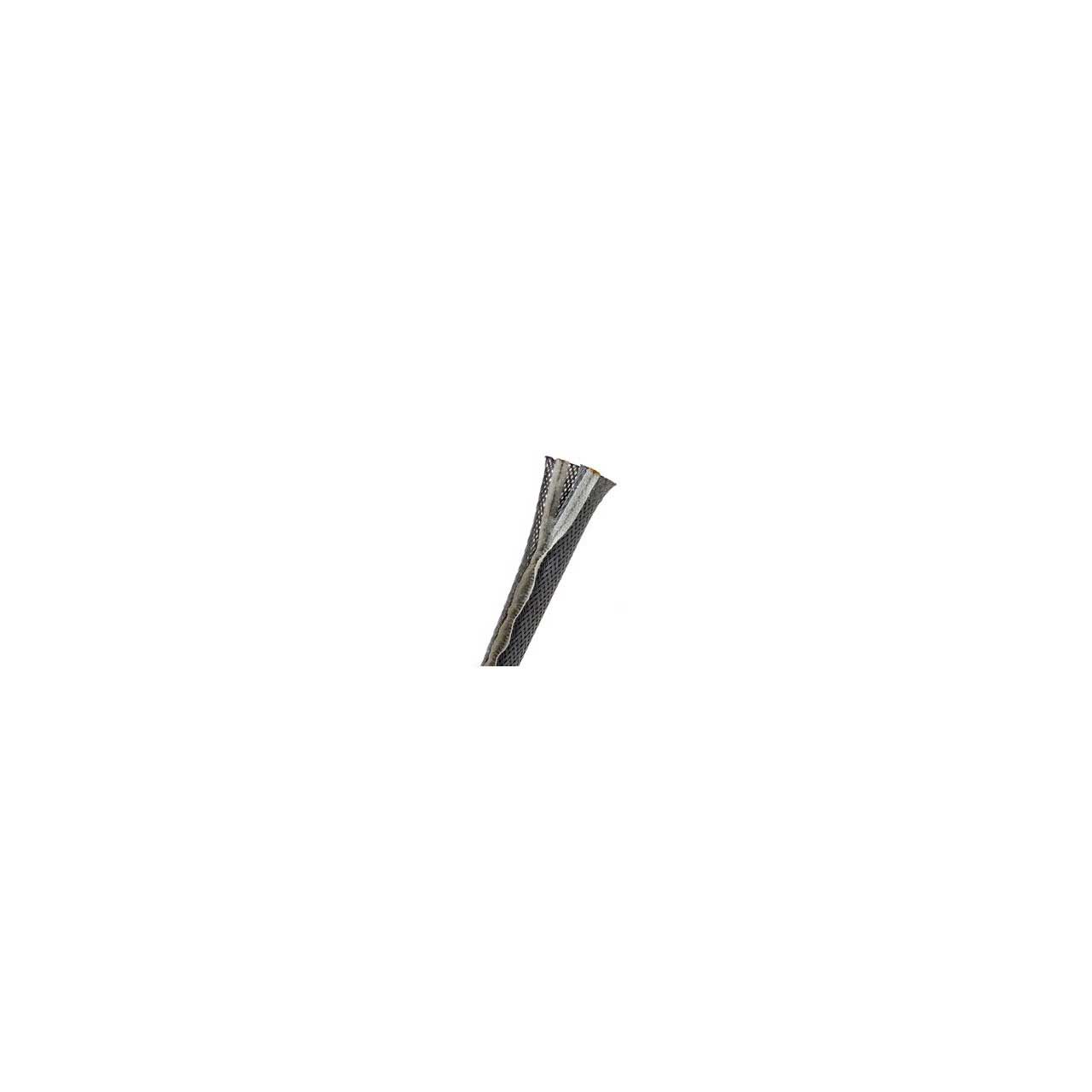

Techflex FWN1.25 1.25-Inch Flexo Wrap Expandable Open Weave Sleeve with Durable Hook & Loop - Gray - 100-Foot

ITEM #: TFX-FWN125GY-100 MFG #: FWN1.25GY 100FT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$219.00

Our Price:

$199.00

Availability: In Stock
iAvailability Description Popup


FWN1.25GY 100FT - Overview

FLEXO WRAP (FW) is an exclusive product engineered and manufactured by Techflex. FW provides the perfect solution to a wide variety of unique application challenges.

The color matched hook and loop closure provides for easy on and off installation, as well as instant and convenient access for harness break-outs and rework of any specific section along the entire length of the run. Combined with the expandable, open weave design, FW will conform to a wide variety of bundle diameters and will wrap around irregular shapes.

All grades of FW cut cleanly with a hot knife.

FLEXO WRAP is designed for quick and easy management of wire, cable and hose assemblies. Just separate the hook and loop fasteners along the edge of the material and slip the entire length of FW around or under your harness or component assembly. The wide expandability range allows FW to easily fit around odd-shaped connectors and gently constrict around the diameter of your wires. When the FW is in place, simply seal the hook and loop along the edges.

  • Specifications:

    • Physical Properties
    • Monofilament Thickness (ASTM D-204) .010
    • Flammability Rating
    • Recommended Cutting Hot Knife

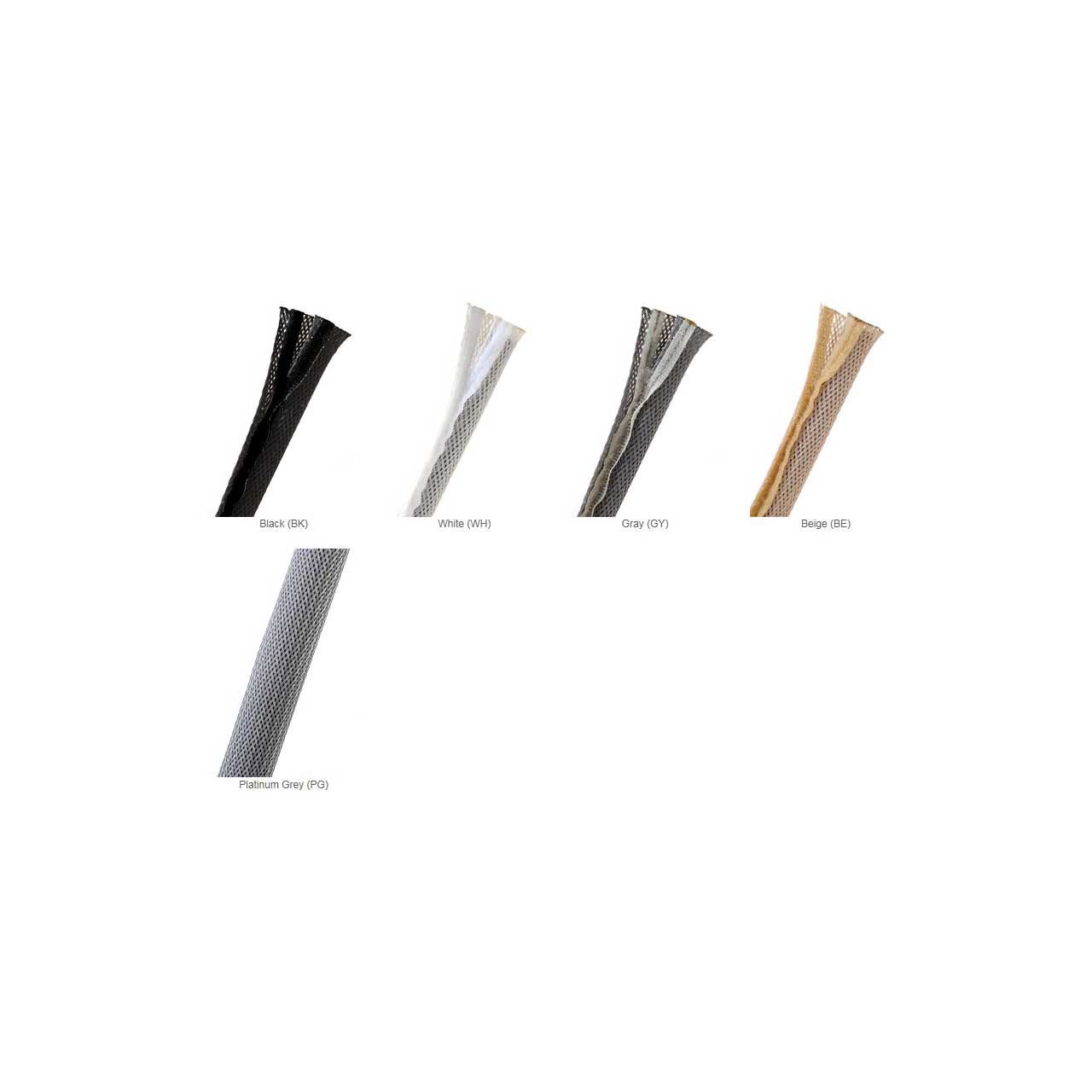

    • Colors 4
    • Wall Thickness .025
    • Tensile Strength - Yarn (ASTM D-2265) lbs. 7.5
    • Abrasion Resistance Medium
    • Specific Gravity 1.38
    • Moisture Absorption % (ASTM D-570) .1 - .2

    • Hard Vacuum Data (ASTM E-595 at 10-5 torr)
    • TML .19
    • CVCM .00
    • WVR .16
    • Smoke D-Max (ASTM E-662) 56
    • Outgassing Medium
    • Oxygen Index (ASTM D-2863) 21

    • Chemical Resistance
    • 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected
    • Aromatic Solvents 2
    • Alipahtic Solvents 1
    • Chlorinated Solvents 3
    • Weak Bases 1
    • Strong Bases 2
    • Salt Water (O-S-1926) 1
    • Hydraulic Fluid (MIL-H-5606) 1
    • Lubricating Oil (MIL-A-8243) 1
    • De-Icing Fluid (MIL-A-8243) 1
    • Strong Acids 3
    • Strong Oxidants 2
    • Esters/Ketones 1
    • UV Light 1
    • Petroleum 1
    • Fungus (ASTM G-21) 1
    • Salts 1

    • Operating Temperatures
    • Minimum Continuous -94°F/-70°C
    • Maximum Continuous (MIL-I-23053) 257°F/125°C
    • Melt (ASTM D-2117) 482°F/250°C

    • Other Information
    • Halogen Free Yes
    • RoHS Yes
    • SVHC None
    • UL/CSA Yes
