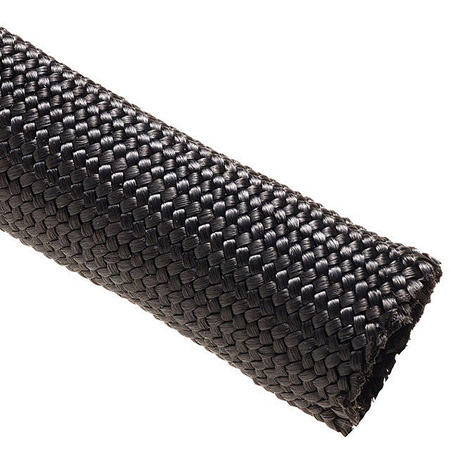

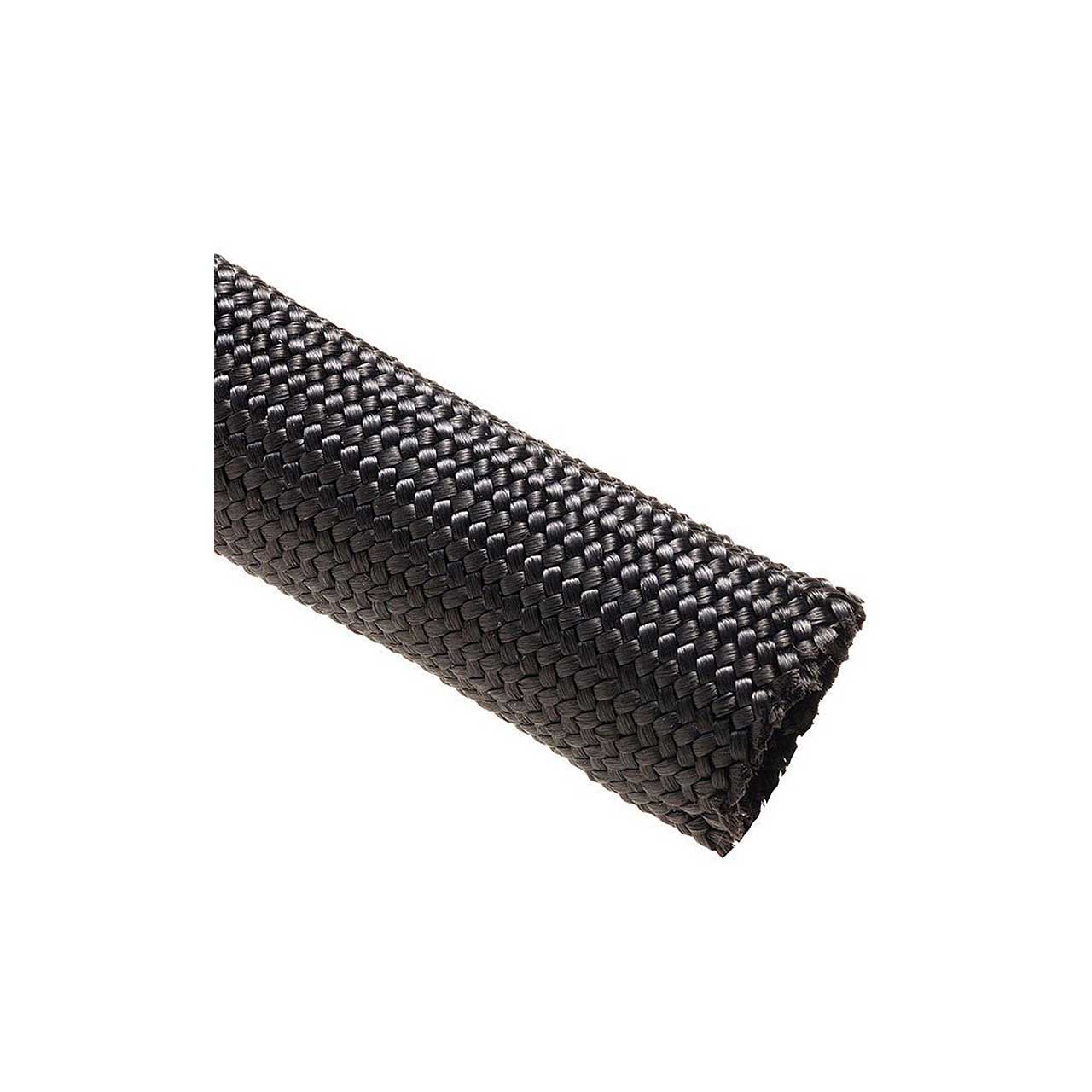

Techflex NMN1.00 1-Inch Military Grade Nylon Multifilament Sleeving - Black - 200-Foot

ITEM #: TFX-NMN100BK MFG #: NMN1.00BK 200FT

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$199.00

Our Price:

$169.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NMN1.00BK 200FT - Overview

Under the hood or across the floor, Nylon Multifilament (NM) is the perfect sleeving product for protecting and improving the appearance of wires and cables. NM has been used in military wire harness applications for many years. NM’s fabric-like softness and flexibility hide surprisingly tough specifications. The high coverage sleeving meets or exceeds military specifications A-A-59301. NM is highly resistant to abrasion, cuts, common automotive and marine chemicals, UV damage and vibration. It will not rot or retain moisture. The wide operating temperature range allows NM to protect delicate wiring in engine compartments and near exhaust systems. NM creates a unique and attractive retro look when installed on a/v cables. Nylon Multifilament sleeving is available in Black.

  • Features:

    • Dense, Full Coverage Construction
    • Economical and Easy to Install
    • Cut and Abrasion Resistant
    • Soft, Pliable, and Quiet
    • Halogen Free
    • Resists Gasoline and Engine Chemicals
    • Wide Operating Temperature Range

  • Specifications:

    • Physical Properties
    • Monofilament Thickness (ASTM D-204)
    • Flammability Rating
    • Recommended Cutting: Hot Knife
    • Colors: 1
    • Wall Thickness: .03 - .06
    • Tensile Strength - Yarn (ASTM D-2265) lbs.: 10.5
    • Abrasion Resistance: Extremely High
    • Specific Gravity: 1.14
    • Moisture Absorption % (ASTM D-570): 2.5
      Hard Vacuum Data (ASTM E-595 at 10-5 torr)
    • TML: 1.10
    • CVCM: .01
    • WVR: .69
    • Smoke D-Max (ASTM E-662): NA
    • Outgassing: High
    • Oxygen Index (ASTM D-2863): 22
      Operating Temperatures
    • Minimum Continuous: -49°F/-45°C
    • Maximum Continuous (MIL-I-23053): 248°F/120°C
    • Melt (ASTM D-2117): 428°F/220°C
      Other Information
    • Halogen Free: Yes
    • RoHS: Yes
    • UL/CSA: No
