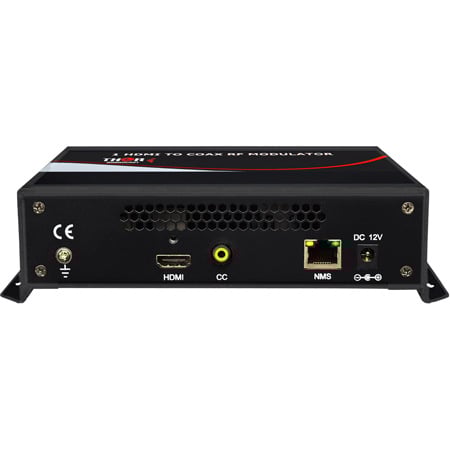

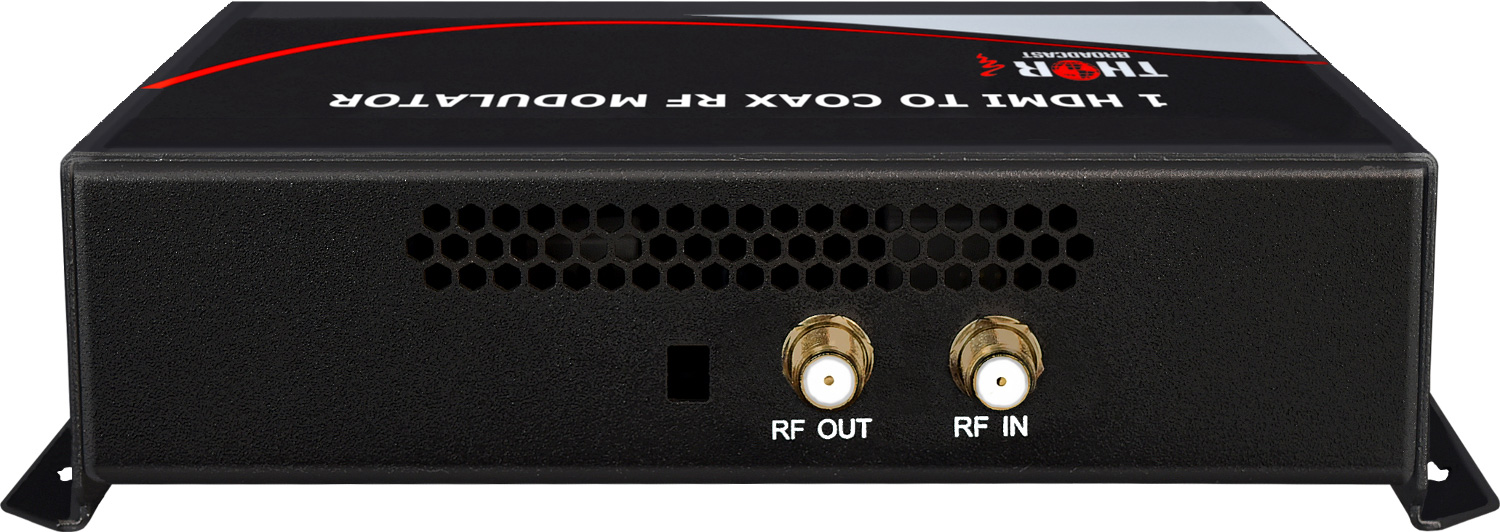

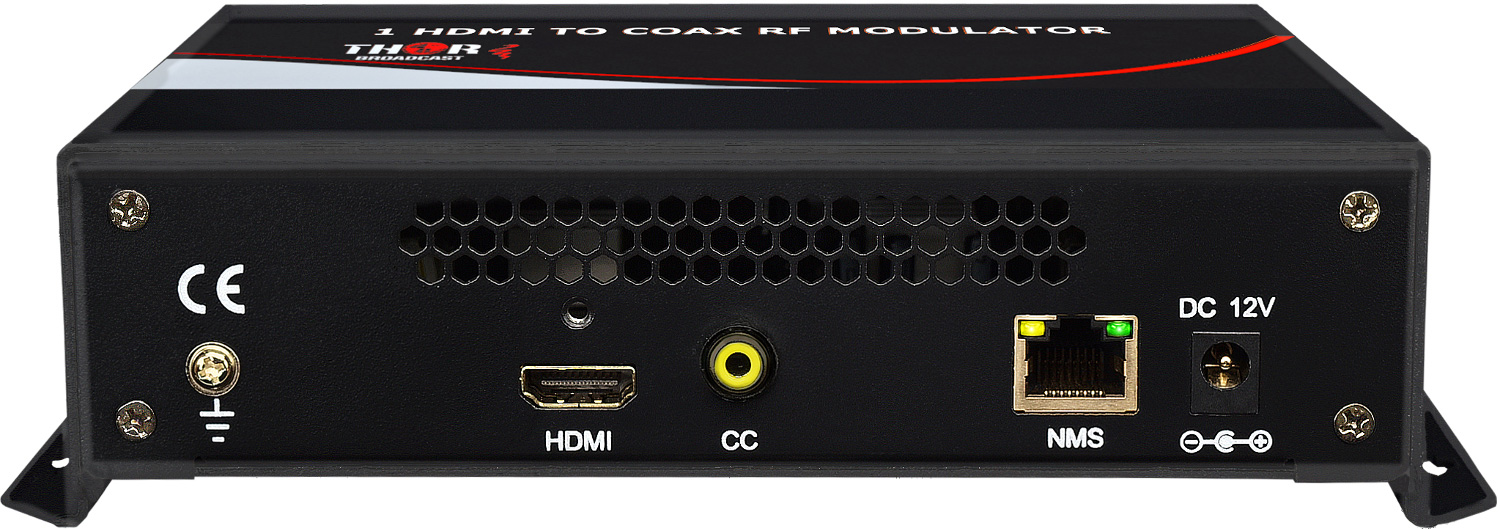

Thor Fiber H-HDMI-CC-RF Networked HDMI HD Video to Coax Digital RF Modulator with Closed Captioning

ITEM #: THR-H-HDMI-CC-RF MFG #: H-HDMI-CC-RF

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the THR-H-HDMI-CC-RF

H-HDMI-CC-RF - Overview

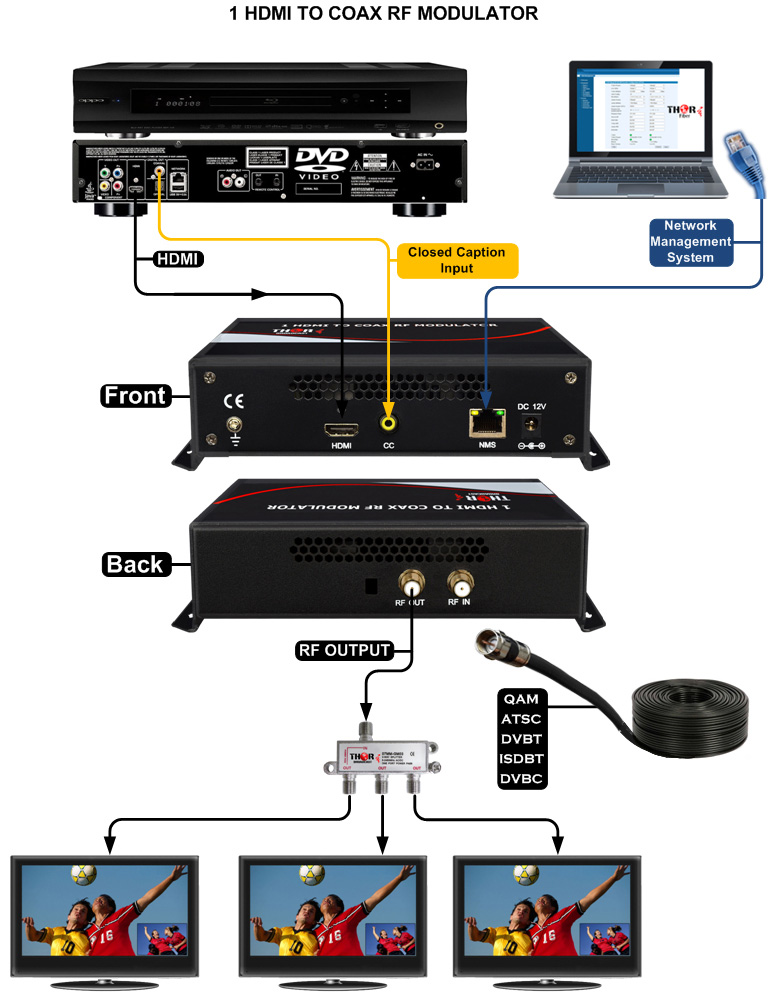

The Thor Fiber H-HDMI-CC-RF is the most unique and cost effective Networked Digital HDMI RF modulator with CC ( closed captioning ) designed to allow any HDMI source like an STB, satellite receiver, HDMI camera , DVD player, Computer, ROKU device and convert to any RF TV channel of your choice. This Thor Modulator is an all-in-one device integrating HD MPEG2 encoding with AC3 Dolby Audio and CC input with internal digital modulator. Converts HD audio / video signals from any device into DVB-C/T/ATSC/ISDB-T RF output.

Unit supports any HD source with the following video resolutions : 720p, 1080i, 1080p. The Closed Cationing input is CVBS - baseband video analog RCA input, it reads CC form the CVBS NTSC Analog line 21

Simply connect to any PC and control the unit via Thor Broadcast's proprietary GUI which has been touted as being the best on the market. This unit is plug and play and has excpetional quality for a very low price to help anyone with any budget create their very own RF channel which can be viewed on thousands of televisions simulaneously.

  • Features:

    • HDMI Input - HDCP compliant ( works with any HDMI device )
    • 10/100 Ethernet NMS port for control, setup and monitoring
    • Supports CC (Closed Captioning)
    • RF ouput could be set to any CATV format as QAM, ATSC, DVB-T, or ISDB-T
    • RF output power is +24dbmv; enough for distributing HDTV video to 100's TV over existing Coax cable
    • RF power could be controlled over the network via NMS Gui (Proprietary)
    • MPEG2 video encoding
    • AC3 Audio encoding
    • Video bit rate 1-19.5Mbps can be controled over the network
    • Supports any CATV RF agile channels form 57-1000Mhz, channels 2 -135
    • Equivalent to Pro Video Instruments HDMI-AV-CC / 0649070909044

  • Specifications:

    • HDMI Encoding Section
    • Video: Encoding MPEG2
    • Interface: HDMI input
    • Input Resolution: [email protected]/60i; 576@50i; 720@50/59.94/60p; 1080@50i; [email protected]/60i; 1080@50p; [email protected]/60p
    • Output Resolution: 480@30p; 576@25p; 720@25/30p; 1080@25p; 1080@30p; 1080@25p; 1080@30p
    • Aspect Ratio: 16:9
    • Bit rate 1.000~20.000 Mbps
    • Audio Encoding Sample rate: 48KHz - MPEGI layer 2, AAC, AC3
    • Sample rate: 48KHz
    • Bit rate: MPEGI layer 2: 192kbps; MPEGI layer 2 AAC: 18~297kbps; AC3: 128kbps

      DVB-C Modulator Section
    • Standard: J.83A (DVB-C), J.83B
    • MER: ≥35dB
    • RF frequency: 100-1000MHz, 1KHz step
    • RF output level: 0~ 47dbm (44~90 dbæV), 1db step
    • Symbol rate: 3.000~7.000Msps adjustable
    • Constellation: J.83A - 16/32/64/128/ 256 QAM; J.83B - 64/ 256 QAM
    • Bandwidth: J.83A - 8M; J.83B - 6M

      DVB-T Modulator Section
    • Standard: DVB-T COFDM
    • Bandwidth: 2M, 3M, 4M, 5M, 6M, 7M, 8M
    • Constellation: QPSK, 16QAM, 64QAM
    • Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
    • Guard Interval: 64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
    • Transmission Mode: 2K, 8K
    • MER: ≥35dB
    • RF frequency: 100-1000MHz, 1KHz step
    • RF output level: 0~ 47dBm, 1db step

      ISDB-T Modulator Section
    • Standard: ARIB STD-B31
    • Constellation: QPSK, 16QAM, 64QAM
    • Guard Interval: 1/32, 1/16, 1/8, 1/4
    • Transmission Mode: 2K, 4K, 8K
    • Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
    • RF frequency: 100~1000MHz, 1KHz step

      ATSC Modulator Section
    • Standard: ATSC A/53
    • Constellation: 8 VSB
    • RF output level: 0~47dbm (44~90 dbæV), 1db step
    • MER: ≥35dB
    • RF frequency: 100~1000MHz, 1KHz step

      System
    • Management: Web Proprietary Thor NMS GUI
    • Language: English
    • Upgrade: Serial port

      General
    • Power supply: 12V
    • Dimensions: 7.9 inch x 5.6 inch x 2 inch (203 x 144 x 52mm)
    • Weight: < 2.2 lbs (1kg)

  • Item Includes:

    • Power supply
