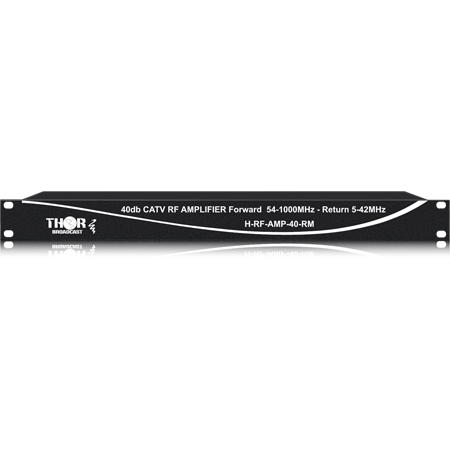

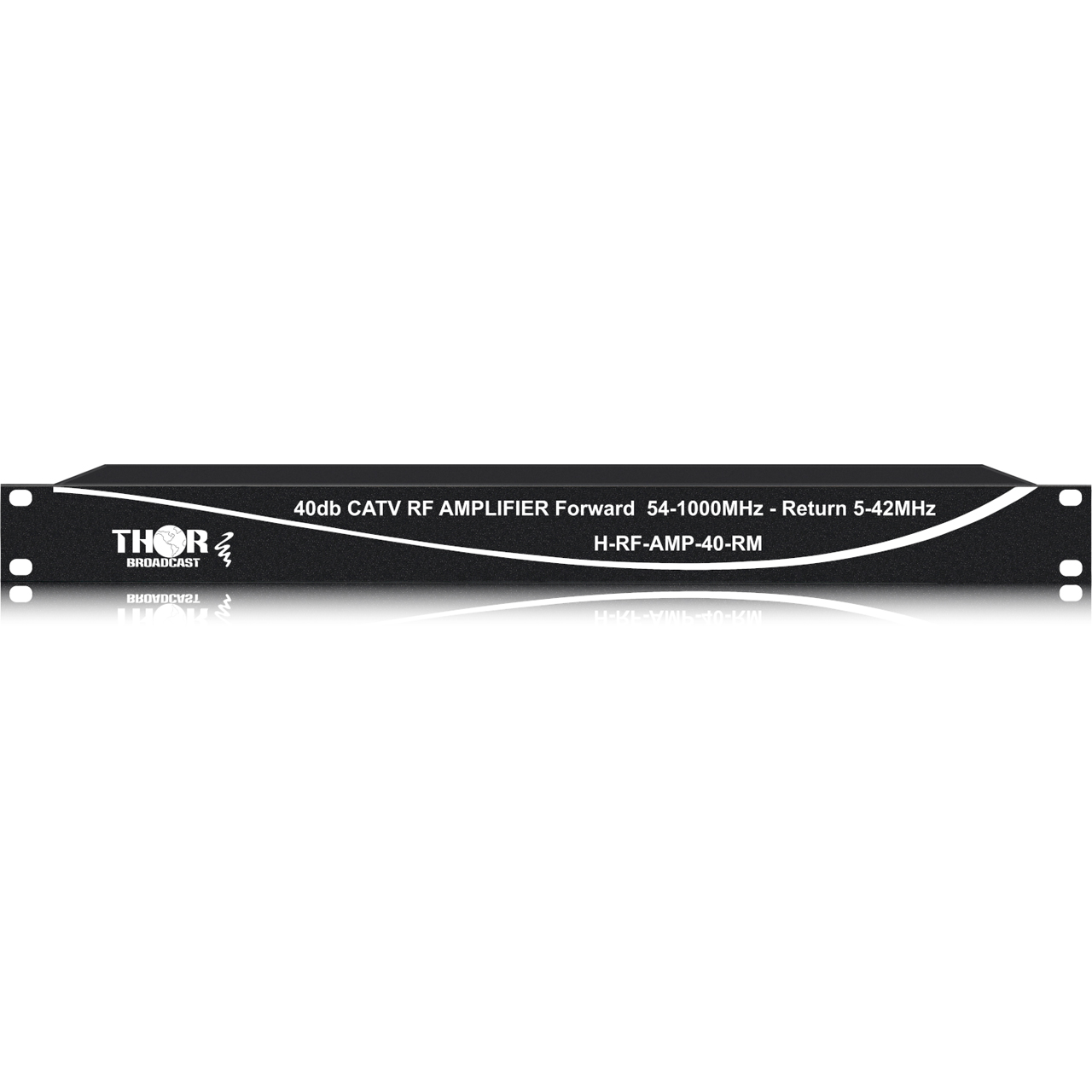

Thor Broadcast H-RF-AMP-40-RM 40db CATV Rackmount RF Amplifier - Forward 54-1000MHz - Return 5-42MHz

ITEM #: THR-H-RF-AMP40RM MFG #: H-RF-AMP-40-RM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Thor Fiber
Free Shipping with $49 Minimum Order

List Price:

$442.80

Our Price:

$369.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

H-RF-AMP-40-RM - Overview

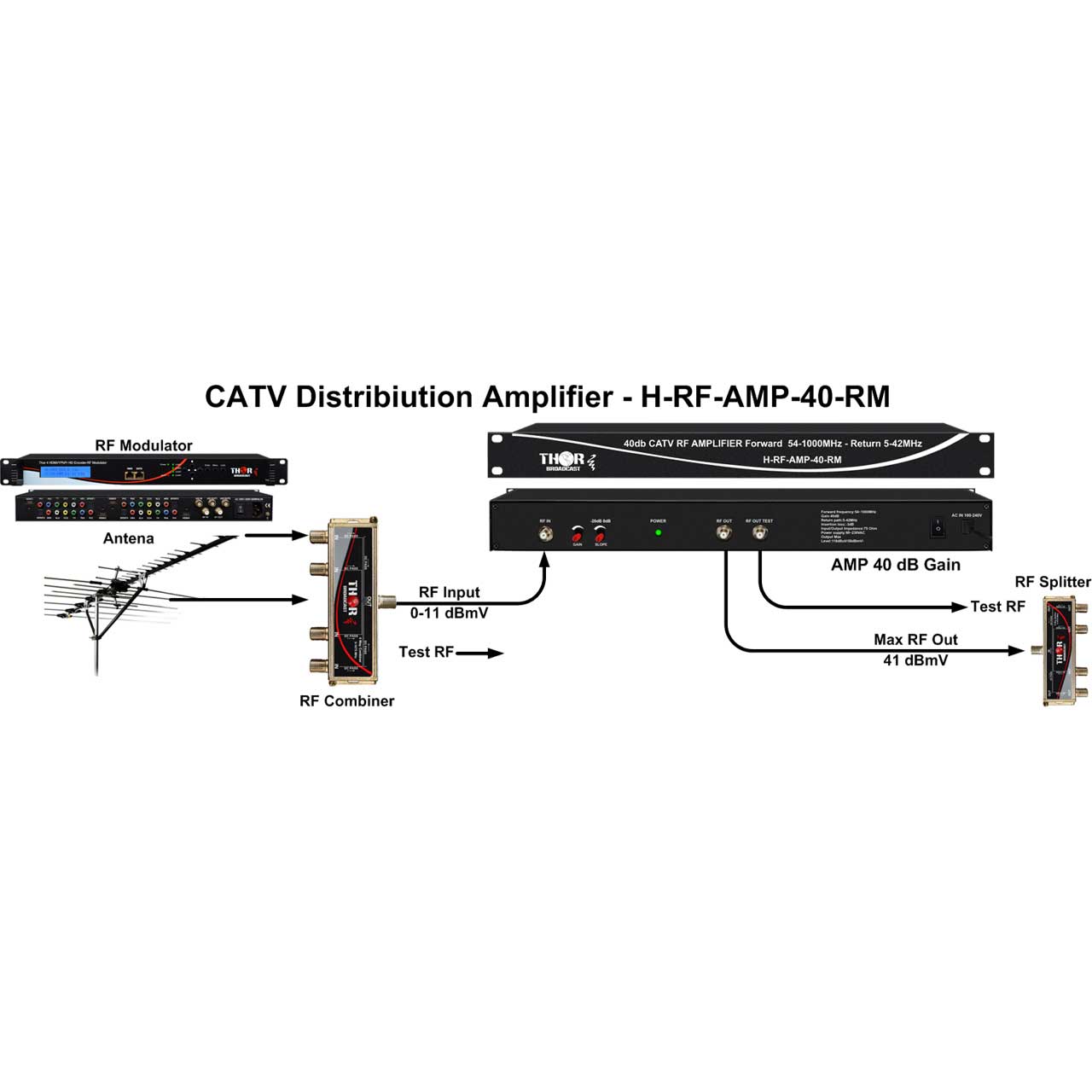

This amplifier makes an excellent distribution system amplifier for heavily loaded MDU and broadband CATV and SMATV systems. Because of its extremely low-noise figure and low distortion, the H-RF-AMP-40-RM is ideally suited for use in larger networks where amplifier cascading is required.

Applications Include:

- CATV RF QAM over coax amplification
- The 40dB gain from off air antenna ATSC / DVB-T / ISDB-T
- Analog RF - NTSC / PAL video amplification

  • Features:

    • High output level 40 dB
    • High Voltage Surge Protection
    • Broadband 54-1000MHz frequency range (Channels CATV 2-158)
    • High Return Loss against interference
    • Power LED indicator
    • Optimum for Trunk Distribution
    • Hybrid module design to obtain excellent quality

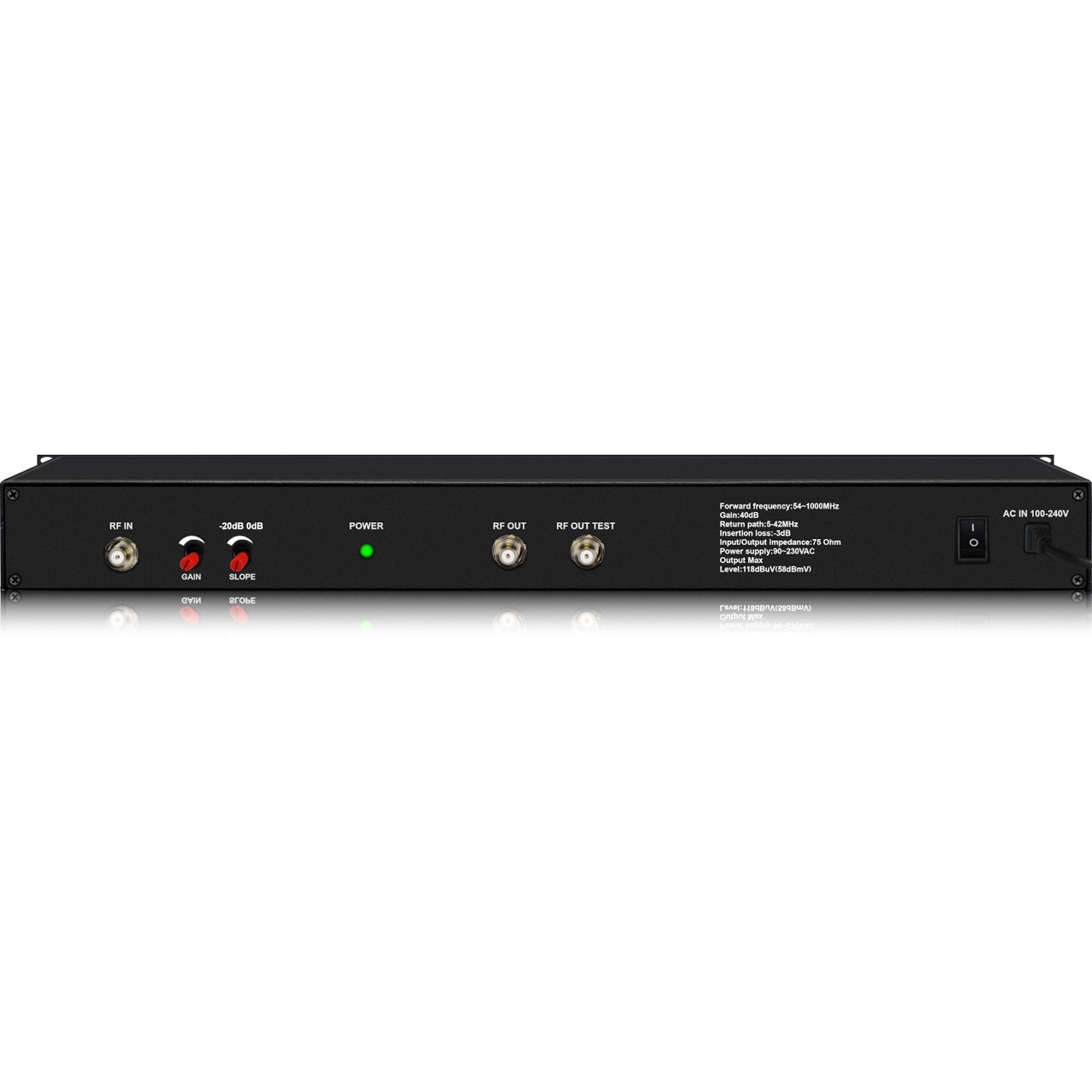

    • Adjustable gain and slope for fine tuning systems
    • -20 dB test ports for easy trouble shooting
    • 60 dBmV high output level
    • 40 dB gain for optimal carrier-to-noise ratio and superior picture quality
    • ± 0.5dB flatness across band provides low distortion and excellent frequency response
    • Employs state-of-the art hybrid push-pull technology for distortion-free audio-video quality
    • Adjustable slope and gain controls for easy system balancing
    • Easy-access controls and lowloss (-20dB) test point enable simplified setup and performance monitoring
    • Shielded enclosure provides over 95dB RFI shielding performance reducing leakage and ingress
    • Built-in lightning and line voltage surge protection protects the unit from damage


  • Specifications:

    • Bandwidth-CA-30/1000: 54 ~ 1000MHz
    • Bandwidth-CA-30/550: 54 ~ 550MHz
    • Gain (FWD) 54~1000 MHz: 30dB
    • Gain (FWD) 54~550 MHz: 30dB
    • Max. Output (158 ch.) (CA-30/1000): 40 dBmV
    • Max. Output (82 ch.) (CA-30/550): 43 dBmV
    • Flatness: 0.5dB
    • Noise Figure (FWD) CA-30/1000: 5dB
    • Noise Figure (FWD) CA30/550: 4.5dB
    • Composite Second Order (FWD): 70dB
    • Composite Triple Beat (FWD): 61dB
    • Input Test Point Loss: 20dB
    • Power Input: 115VDC
    • Power Required: 4Watt
    • Dimensions: 8" L) x 2.75" (D) x 4.5" (H)
    • Weight: 2.3 lbs.
    • Input Frequency Range: 50~860 MHz
    • Output Max Level: 60 dBmV
    • Maximum Gain: 32 dB
    • Gain Control Range: 0 ~ -20dB
    • Slope Control Range: 0 ~ -20dB
    • Noise Figure: 7.5 dB
    • Flatness: +/-2 dB
    • Return Loss: 18 dB
    • Input / Output Impedance: 75 ohm
    • Input / Output test point: -20 dB
    • Connectors: All "F" type female
    • Power requirements: AC 110V or AC 220V
    • Power Consumption: 10 W
    • Operating Temperature: -10 ~ 60 °C
