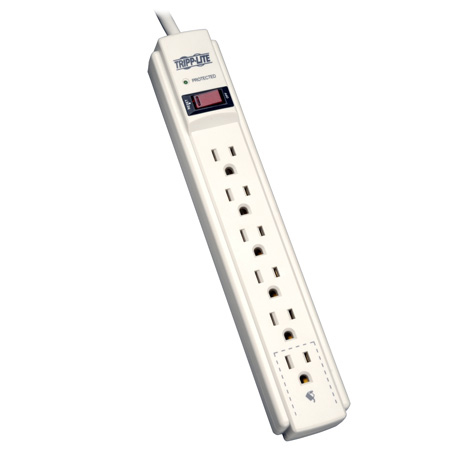

TLP604 - Overview

Perfect for your home or office workstation, the TLP604 Protect It!r 6-Outlet Surge Protector features a surge protection rating of 790 joules to defend your sensitive electronic components against strong surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $20,000 for life (valid in the U.S., Canada and Puerto Rico only).

Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the TLP604 protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

Your devices plug into six NEMA 5-15R outlets, one of which is placed at the end to accept a bulky transformer without blocking adjacent outlets. An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. A diagnostic LED confirms your connected equipment is protected.

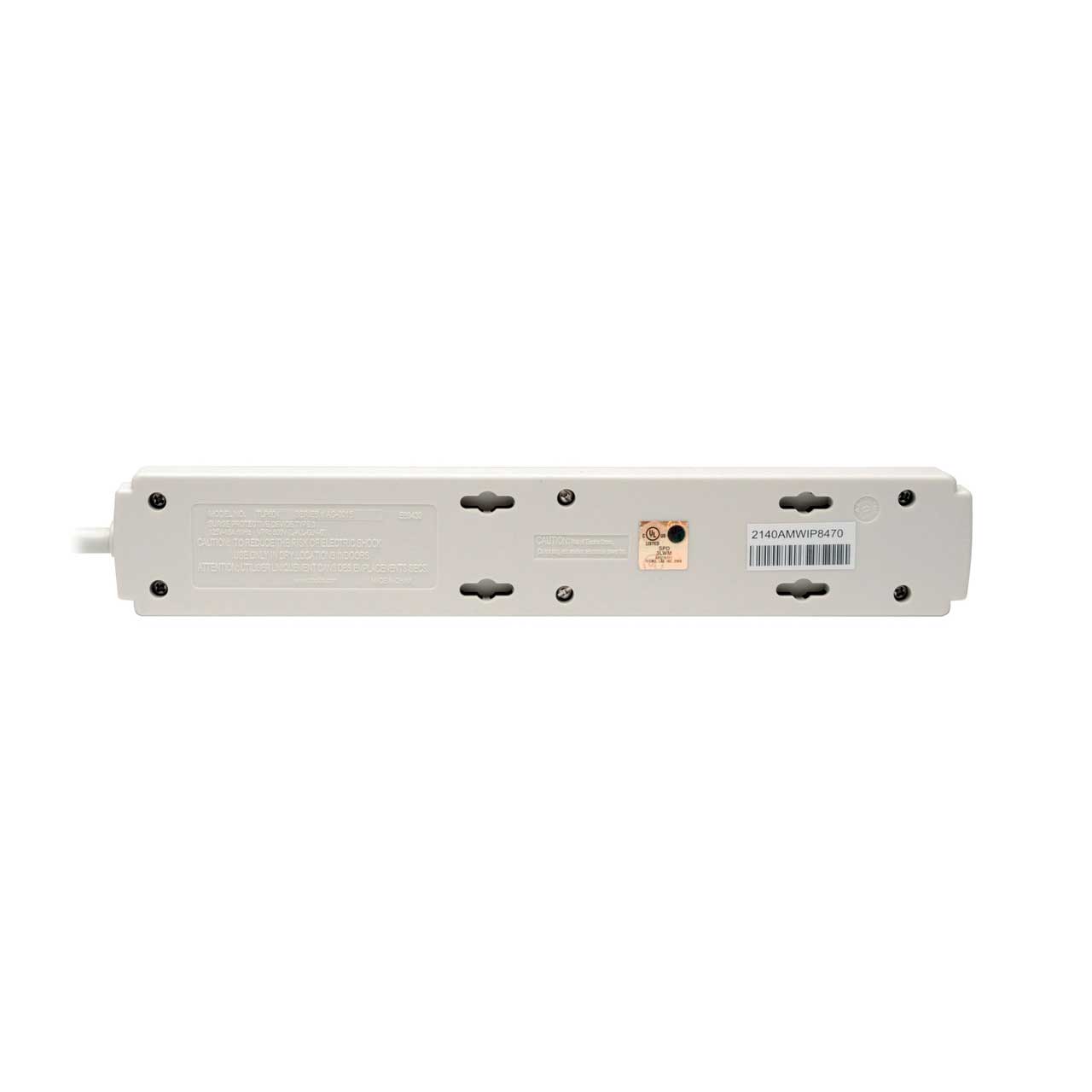

The four-foot AC power cord with NEMA 5-15P plug reaches nearby outlets to fit easily into your workstation or home theater setup. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the light gray plastic housing.

  • Features:

    • Protects your computer, printer, scanner, router, modem and other small home electronics against even the strongest surges and spikes
    • Recommended for any desktop, network or home electronics application requiring AC line protection
    • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
    • Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
    • Exceeds IEEE 587 Category A and B surge suppression specifications
    • 6 NEMA 5-15R AC outlets accept most computers and peripherals
    • Special end outlet designed for bulky transformers without blocking other outlets
    • Lighted on/off switch provides one-touch control over connected equipment
    • Integrated 15A circuit breaker shuts down outlets in case of power overload
    • Diagnostic LED confirms protection status at a glance
    • Conforms to current UL 1449 3rd Edition safety standards
    • 4 ft. AC power cord with NEMA 5-15P plug reaches nearby outlets
    • Keyhole slots on bottom panel provide convenient wall or desk mounting options
    • Light gray plastic housing designed for long life

  • Specifications:

    • Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (6) 5-15R
    • Output (Watts): 1800
    • Circuit Breaker (amps): 15
    • Transformer Accommodation: Supports 1 large transformer plug accessory without covering remaining outlets, accepts up to 4 transformers total
    • Outlet Orientation: Single row
    • Right-Angle Outlets: No

      Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 120V (110-125V)
    • Input Connection Type: NEMA 5-15P
    • Input Cord Length (ft.): 4
    • Input Cord Gauge Type: 14 gauge, SJT
    • Voltage Compatibility (VAC): 120
    • Maximum Surge Amps: 36000
    • Right-Angle Plug: No

      Surge/Noise Protection
    • AC Suppression Joule Rating: 790
    • AC Suppression Response Time: < 1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS): 150
    • UL1449 Let Through Rating: 500V

    • Shipping Dimensions (HxWxD): 8" x 4" x 1.30"
    • Shipping Weight (lbs.): .86
    • Unit Dimensions (HxWxD/): 10.8" x 1.85" x 1.23"
    • Unit Weight (lbs.): .80
    • Material of Construction: Plastic
    • Integrated Keyhole Mounting Tabs: Keyhole mounting tabs enable wall mounting
    • Housing Color: Light Gray
    • Receptacle Color: Light Gray
    • Color (AC Line Cord): Light Gray
    • Outlets Measurement (Center to Center): 28.5mm
    • Keyhole Slot Mounting Measurement (Center to Center): Distance between slots = 101mm; Distance between slot height = 28mm

  • GTIN:

    0037332100498
