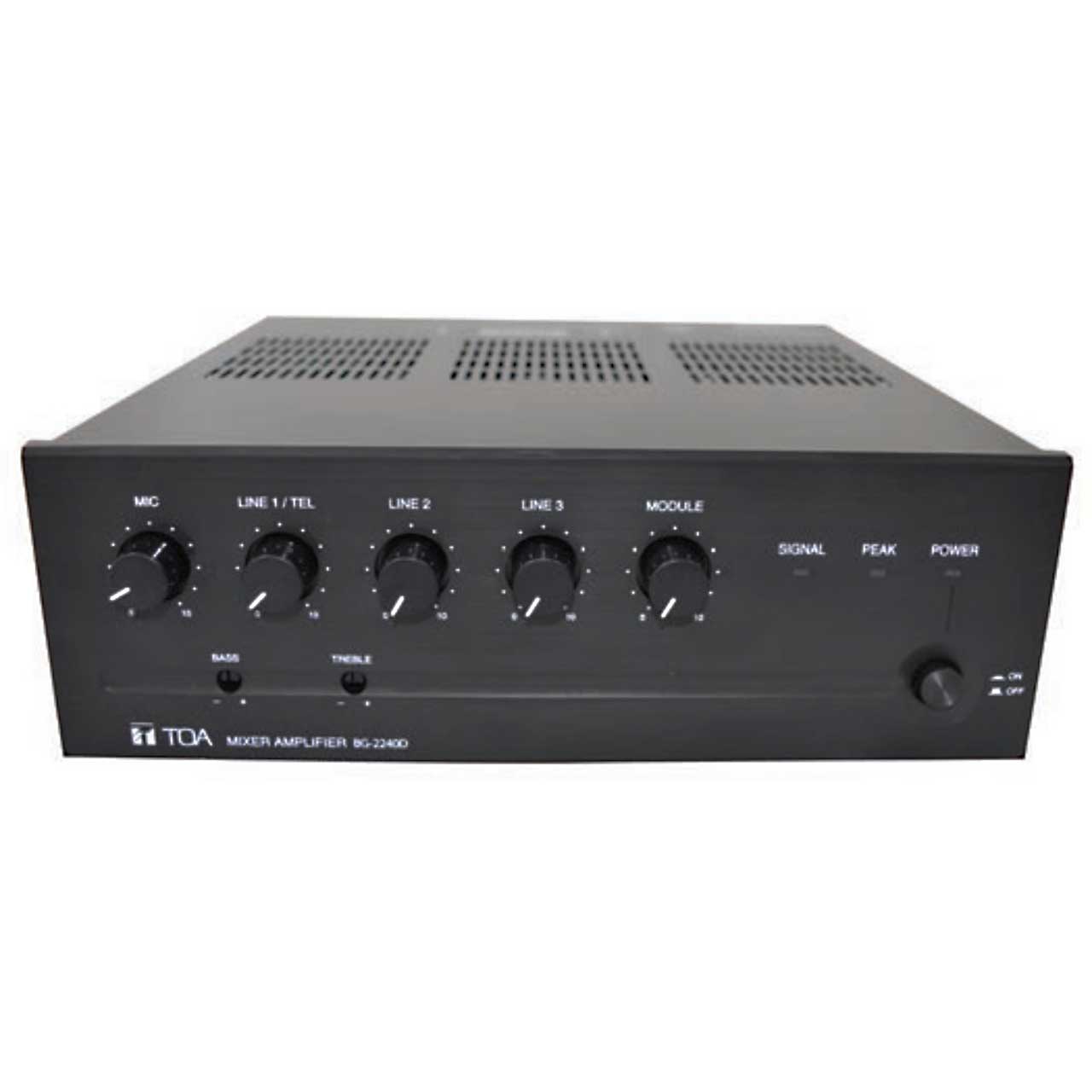

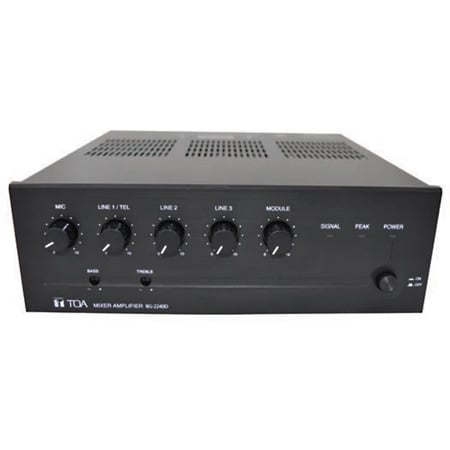

TOA BG-2240D-AM 5-Input Mixer Amp 240W@70V Class D Power

BG-2240D-AM - Overview

• Features:

  • Each input freely assignable to the MOH output.
  • Automatic or manual mute function.
  • Easy setting of each function with the rear-mounted DIP switches. (Each input to MOH output assignment settings, Mute settings, LINE 1/TEL level settings, and Phantom power ON/OFF setting)
  • Supplied volume control covers prevent accidental operation of input knobs.
  • Front operable bass and treble controls.
  • Also front panel recessed knobs help to prevent accidental operation.
  • Removable input/output terminal blocks facilitate installation and maintenance.
  • Besides, RCA jacks provided for Lines 2 and 3.
  • External remote volume control for speaker output level adjustment


• Specifications:

  • Power Output: 240 W
  • Power Consumption: 300 W (rated output), 55 W (based on cULus standards)
  • Frequency Response: 50 Hz - 20 kHz
  • Total Harmonic Distortion (THD): 0.8% or less, at 1 kHz, 1/3 rated output, LPF 20 kHz
  • Output Regulation: 2 dB or less, no load to full load (1 kHz)
  • Phantom Power: On/Off switch for Mic, +24 VDC
  • Signal-to-Noise Ratio: Mic: 60 dB or more, Line 1/TEL, Line 2, 3
  • Module: 73 dB or more (A-weighted, Tone Controls: Centered)
  • Tone Control: Bass: ±10 dB at 100 Hz
  • Treble: ±10 dB at 10 kHz
  • Muting: Manual mute/Automatic mute
  • Power Requirements: 120 VAC, 60 Hz
  • Operating Temperature: Operating Temperature: 32 to 104°F / 0 to 40°C
  • Operating Humidity: 35 to 80% RH (no condensation)
  • Finish: Panel: ABS resin, black
  • Case: Steel plate, black, paint
  • Dimensions (W x H x D): 10.4 inch x 3.7 inch x 10.5 inch (263.9 x 94.2 x 267.2 mm)
  • Weight: 7.7 lb (3.5 kg)

    Inputs
  • Mic: -60 dB*, 600 Ohms, electronically balanced, removable terminal block
  • Line 1: -10 dB*/TEL: -20 dB
  • Line 1/TEL: selectable, 10 kOhms, electronically balanced, removable terminal block
  • Line 2, 3: -10 dB, 10 kOhms, unbalanced, removable terminal block or RCA jack Module

    Outputs
  • Speaker: 70 V (21 Ohms), balanced, removable terminal block
  • MOH: 0 dB*, 600 Ohms, balanced, removable terminal block
  • Line: 0 dB*, 600 Ohms, unbalanced, removable terminal block
  • *0 dB = 1 V

    Controls
  • Mic gain control
  • Line 1/TEL gain control
  • Line 2 gain control
  • Line 3 gain control
  • Module: gain control
  • Bass tone control
  • Treble tone control
  • MOH out gain control
  • Mute control (Manual mute)
  • Remote volume control
  • Mute sensitivity control
  • Line 1/TEL selector switch
  • Phantom power switch (Mic)
  • Auto mute switch (Mic, Line 1/TEL, Module)
  • Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module)
  • MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module)
  • Power On/Off switch
  • Indicators: Power LED
  • Signal level LED
  • Peak LED
