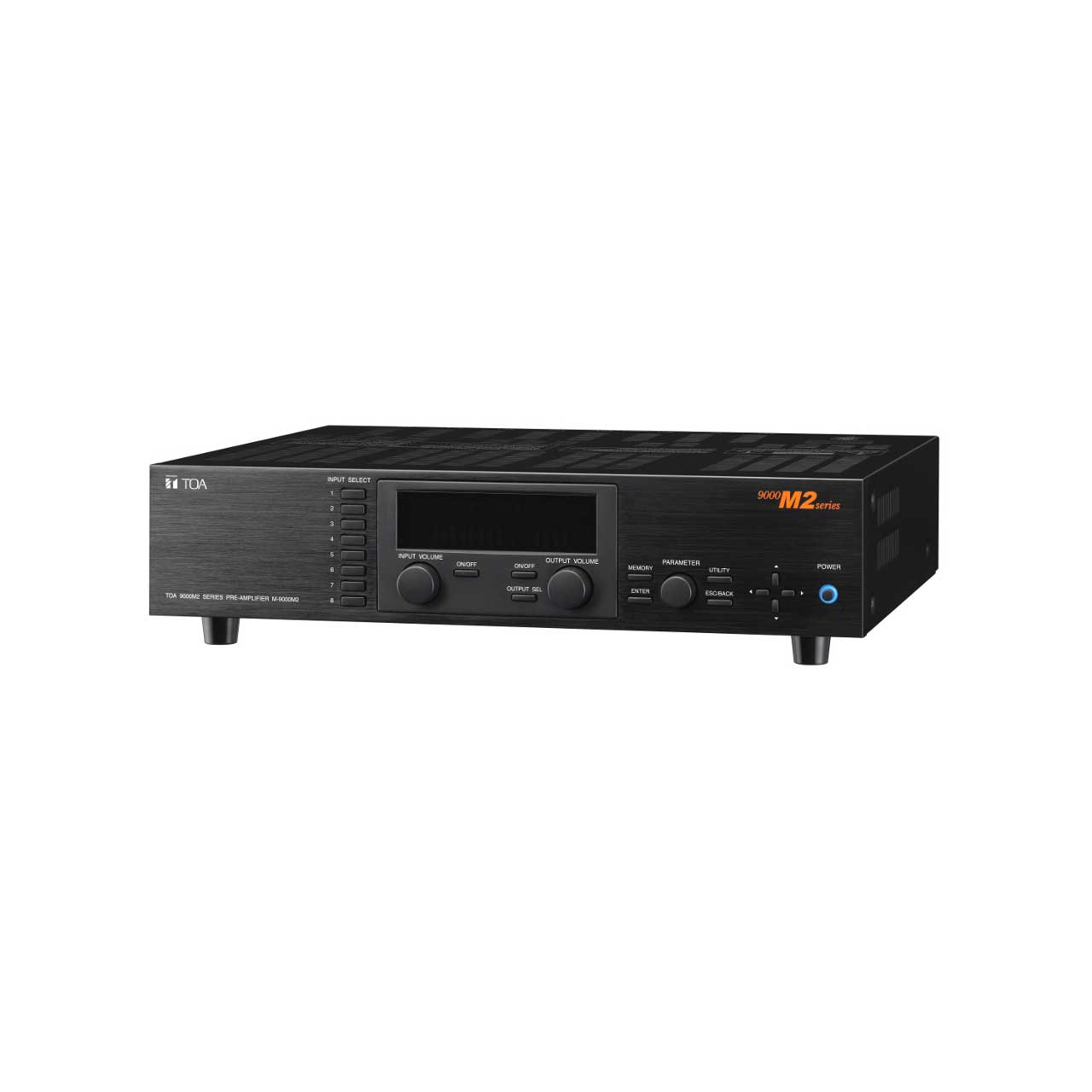

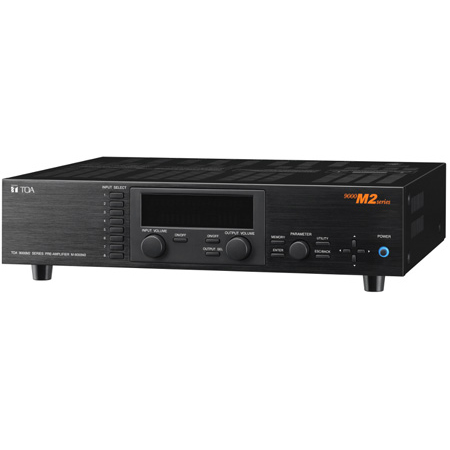

TOA M-9000M2 CU Modular Digital Matrix Mixer

Name: TOA M-9000M2 CU Modular Digital Matrix Mixer
Brand: TOA Electronics, Inc.
SKU: TOA-M-9000M2CU
Price: 726.00 USD
Availability: InStock

ITEM #: TOA-M-9000M2CU MFG #: M-9000M2 CU

TOA Electronics, Inc.

List Price:

$898.00

Our Price:

$726.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

M-9000M2 CU - Overview

The TOA 9000M2 Series Digital Matrix Mixer/Amplifiers redefines the conventional mixer/amplifier category by combining a modular matrix mixer, digital signal processor (DSP) and amplifiers in a compact, two rack space package. The versatile new series is ideal for multi-zone paging, music distribution and room-combining applications. The 9000M2 Series models include dual and single channel amplifiers with high or low impedance outputs plus a matrix mixer-only version. All models allow for easily configured, custom systems with up to eight mic/line inputs and eight outputs. Each 9000M2 Series chassis has two output channels with built-in DSP, including ; ten band parametric EQ, compressor, deley and more. Input and output modules include additional DSP.

A new integrated operating mode provides powerful functionality for both simple mixing and complex multi-zone paging applications. Features include telephone zone paging, automatic microphone mixing and ambient noise control.

Features:
- Multiple Input Priority Modes sets priority order when multiple inputs with the same priority level and output assignment are broadcast
- First-In-First-Out (FIFO): input that occurs first is broadcast
- Last-In-First-Out (LIFO): the most recent input is broadcast
- MIX: all inputs are simultaneously mixed and broadcast
- Voice Operated (VOX) paging activation with adjustable threshold/sensitivity and gate release time
- Stereo Link - Mirrors all the settings of one channel to the adjacent channel, reducing redundant setup tasks for stereo signals
- Speaker Line Switching - select up to four speaker lines from a single amplifier output using optional model SS-9001 Speaker Selector and AD-246 Power Supply
- Mixer Out/Power Amp In Patching Loops (Except M-9000M2) for connection of external processor(s)
- Balanced Line Output(s) - two: M-9000M2, one: A-9060SM2, A-9120SM2, A-9240SHM2; expandable with T-001T dual line output modules
- Keylock Security sets password-protected access to prevent access to Input, Output, Utility & Power functions
- Alphanumeric Input/Output Channel and Memory Naming
- Two Remote Volume Control Terminals on mainframe
- Four Control Inputs - programmable to activate Paging/Scene Memory, Volume Up/Down (Input or Output), Mute (Input or Output),
- Power On/Off, Emergency Mute, Sync On/Off (expandable to twelve with C-001T module). Works with optional ZM-9003 or custom contact panel
- Four Control Outputs (open collector) programmable to activate external relays (expandable to twelve with C-001T module) synchronized with Event/Scene Memory, Channel On/Off (Input or Output) and Power On/Off. Works with optional ZM-9003 or custom contact panel.
- RS-232C serial port
- Allows upload & download of programming templates and firmware upgrades as well as real-time control of various parameters.
- Control protocol available
- AMX and Crestron control modules available
Specifications:
- Output Power: n/a
- Audio Input: Max. 8 channels, modular construction (modules optional)
- Audio Output: Preamplifier output 1, 2: 0dBV, 600, balanced, removable terminal block (3 pins)
- Power Bandwidth: 20Hz - 20kHz, 0.008% THD
- Frequency Response: 20Hz - 20kHz +1, -3dB
- Total Harmonic Distortion: 0.008% (22kHz LPF, 1kHz, +10 dBV output)
- S/N Ratio: At Input short, 20Hz - 20kHz, ALL FLAT or OFF setting
- Output volume min.: 90dB Output volume max.: 61dB (input 1 vol.: 0dB,other inputs:OFF)
- Crosstalk: 64dB or more at 20kHz
- Tone Control: Bass: +/-12dB (at 100Hz), Treble: +/-12dB (at 10kHz) Parametric EQ: 10 bands, Freq: 20Hz - 20kHz, 31 steps, Various range: +/- 12dB, Q: 0.3 - 5
- Speaker Equalizer: 30 (presets for TOA speakers)
- High-pass Filter: -12dB/oct, Variable frequency range: 20Hz - 20kHz, 31 steps
- Low-pass Filter: -12dB/oct, Variable frequency range: 20Hz - 20kHz, 31 steps
- Compressor: Depth: 1 - 5
- Delay: 0 - 40 ms (1 ms steps), maximum 40 ms (CH1 + CH2) Scene/Paging Memory: 32/32
- Auxiliary Function: Key lock function
- Control Input/Output:RS-232C, D-sub connector (9P, female)
- Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3V DC, short-circuit current: 1mA or less, removable terminal block Control output: 4 outputs, open collector output, withstand voltage: 27V DC, control current: 50mA, removable terminal block Remote volume: 2 channels, connect a 10k?/linear taper variable resister or 0 - 10VDC, removable terminal block"
- Power Source 120V AC, 60Hz
- Power Consumption: 40W
- OperatingTemperature 14° to 104°F (-10° to 40°C)
- Operating Humidity 35% to 80% RH (no condensation)
- Finish Panel: aluminum, hair-line, black; Case: surface-treated steel plate, black paint
- Dimensions (W x H x D): 16.54" x 4.24" (3.5" w/out feet) x 13.9" (420 x 107.6 x 353mm)
- Weight (without modules): 13.23 lbs. (6 kg)
