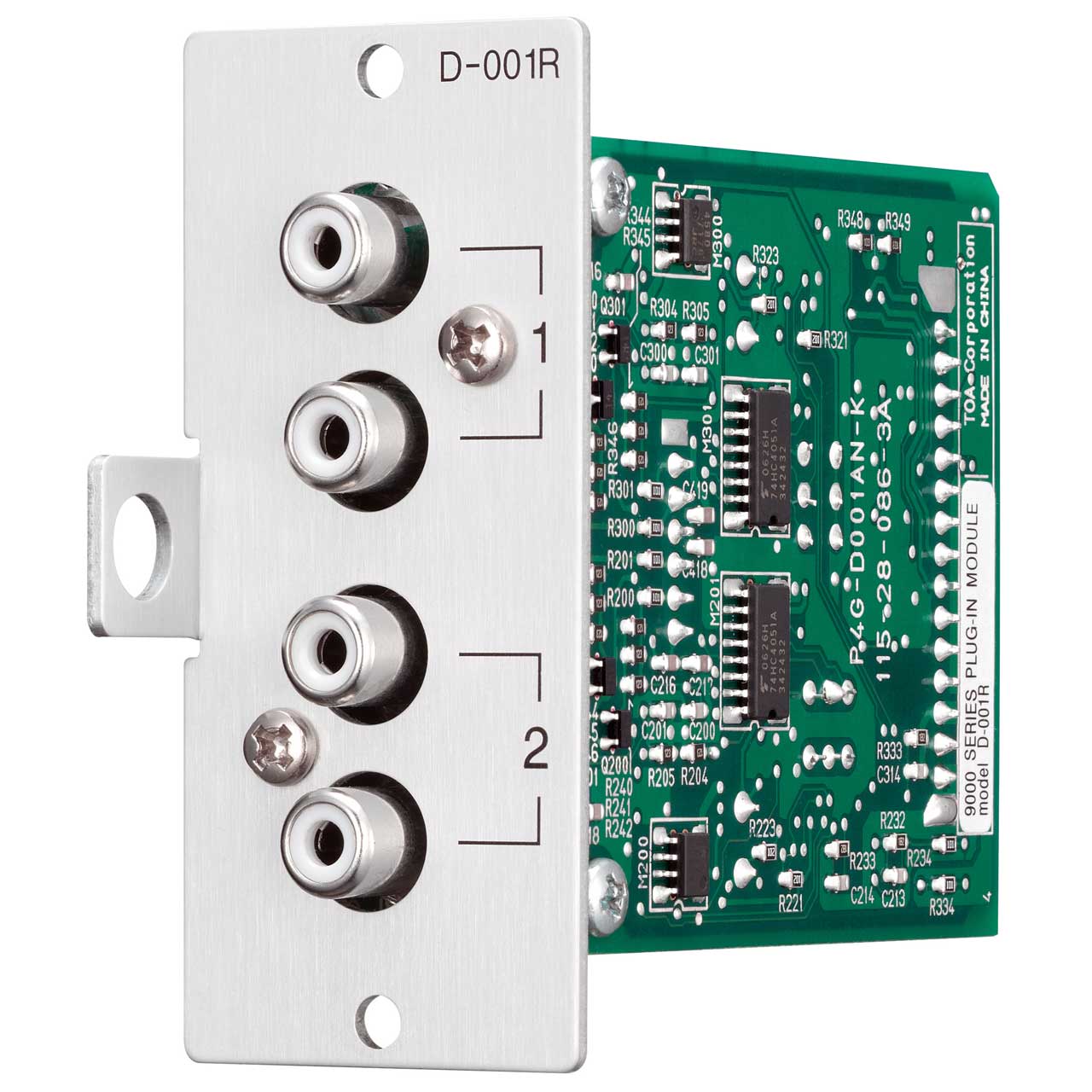

TOA D-001R Line Input Module with DSP Stereo Summing Dual RCA Jacks RCA Jacks

D-001R - Overview

• Specifications:

  • Power Requirement +24 V DC, -24 V DC, +6 V DC
  • Current Consumption 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
  • Intput 2 channels, 2 RCA/ch mixed, 10 k ohms, unbalanced, RCA pin jack
  • Intput Sensitivity -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
  • Frequency Response 20 . 20,000 Hz, +1, -3 dB
  • THD + N 0.008% (at 1 kHz, 20 . 20,000 Hz BPF, Input sensitivity: -10 dB)
  • S/N Ratio Over 70 dB (at 20 . 20,000 Hz BPF, Input short, Input sensitivity: -10 dB)
  • Cross Talk Over 75 dB (at 20 kHz, Input sensitivity: -10 dB)
  • A/D Converter 24 bit Ÿ›Ÿ°ADC
  • Sampling Frequency 48 kHz
  • Tone Control Bass: _}12 dB (at 100 Hz), Treble: _}12 dB (at 10 kHz)
  • Parametric Equalizer 10 bands, Frequency: 20 . 20,000 Hz, 31 steps,
  • Variable range: _}12 dB, Q: 0.3 . 5
  • High-pass Filter -12 dB/oct, Variable frequency range: 20 . 400 Hz, 14 steps
  • Low-pass Filter -12 dB/oct, Variable frequency range: 4,000 . 20,000 Hz, 8 steps
  • Compressor Depth: 1 . 5
  • Operating Temperature -10_
  • Finish Panel: Aluminum, hair-line
  • Dimensions 35 (W) 78 (H) 91.5 (D) mm
  • Weight 82 g
  • Accessory Module mounting screw 2
