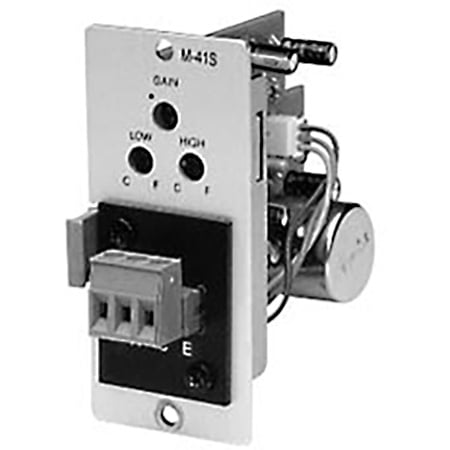

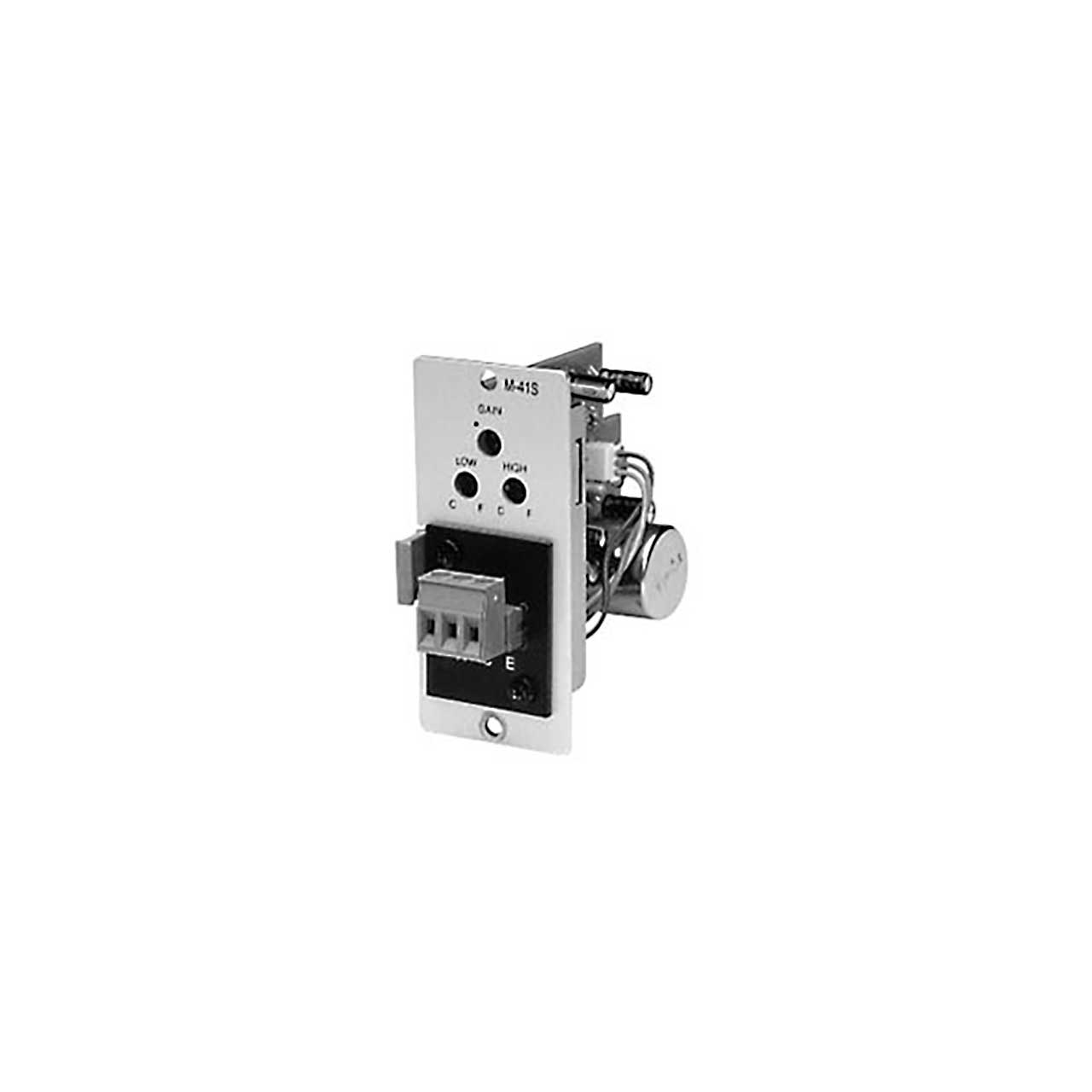

TOA M-41S 200 Ohm Balanced Mic Input Module w/Mute-Send Terminal Block

Name: TOA M-41S 200 Ohm Balanced Mic Input Module w/Mute-Send Terminal Block
Brand: TOA Electronics, Inc.
SKU: TOA-M41S
Price: 103.00 USD
Availability: PreSale

ITEM #: TOA-M41S MFG #: M-41S

TOA Electronics, Inc.

Types:

Types

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$128.00

Our Price:

$103.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

M-41S - Overview

The TOA M-41S is a microphone module to be used in conjunction with the 900 series or AX-1000 amplifier.The M-41S has a phantom power supply and a 600 Ω balanced input. The module also has a voice-activated muting control output.

Specifications:
- Power Source: 24 V DC
- Current Consumption: Under 15 mA
- Input Sensitivity (Rated Output 100 mV ): 0.2 - 5.0 mV (adjustable)
- Low Cut Filter (100 Hz ): -5 to -15 dB
- High Cut Filter (10 kHz ): -7 to -13 dB
- Noise Output (20 - 20,000 Hz BPF): Under 50 æV
- Distortion: Under 0.2%
- Frequency Response: 25 - 20,000 Hz
- Phantom Power: Over 20 V
- Signal-Activated Muting: 0.3 - 0.8 mV
- Input Connector: 3P terminal block
- Output Connector: 6P card edge-connector
- Dimensions: 35 (W) x 78 (H) x 88 (D) mm
- Weight: 80 g
