TOA M-61S 200ohm Balanced Mic Input Module With Compressor and Screw Terminals

Name: TOA M-61S 200ohm Balanced Mic Input Module With Compressor and Screw Terminals
Brand: TOA Electronics, Inc.
SKU: TOA-M61S
Price: 107.00 USD
Availability: PreSale

ITEM #: TOA-M61S MFG #: M-61S

TOA Electronics, Inc.

Types:

Types

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$132.00

Our Price:

$107.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

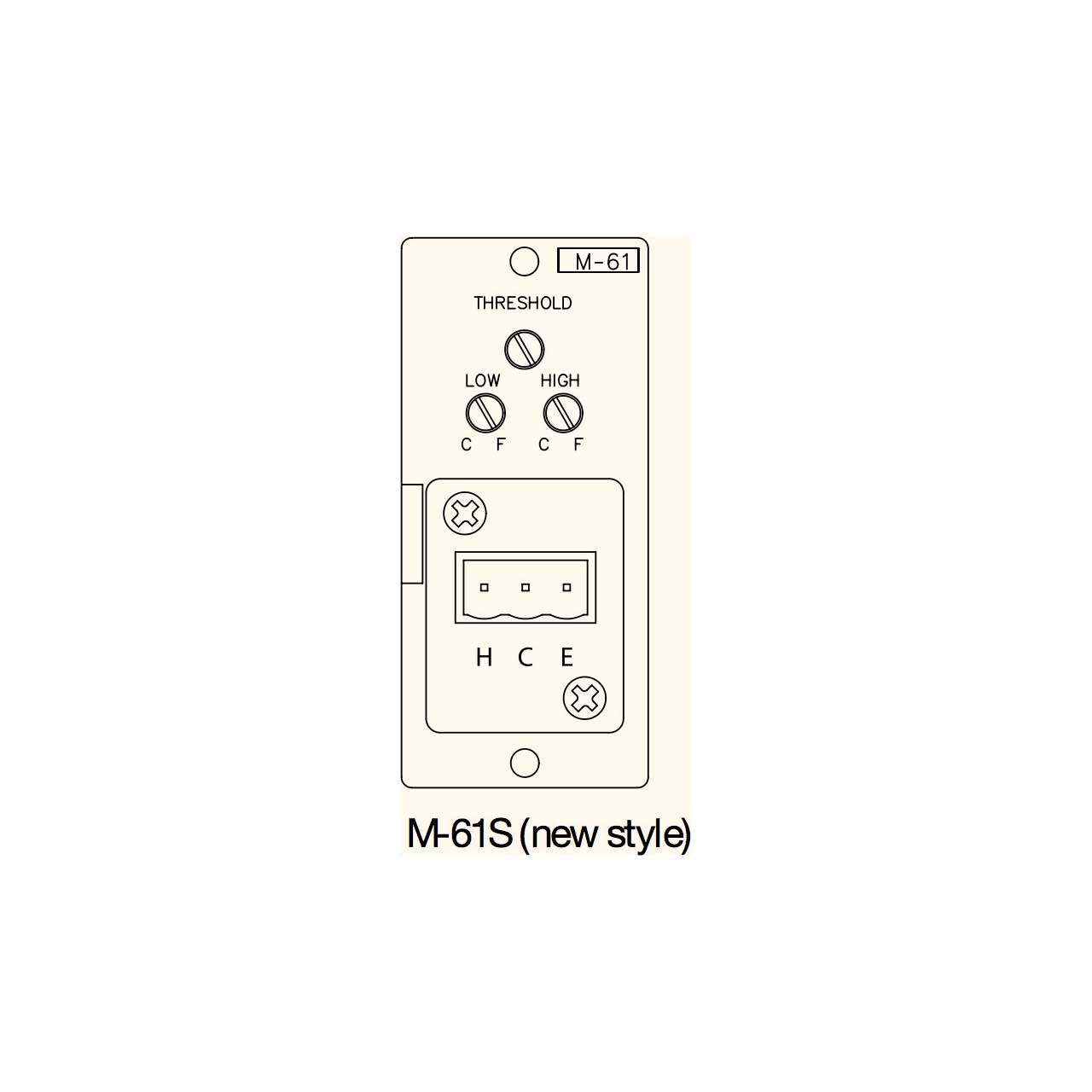

M-61S - Overview

TOA M-61S for balanced, low impedance microphones.- high and low cut fileters for tone control, 4.2k Hz and 330 Hz, 6 dB/octave.

Features:
- Phantom Power, +22V DC for condenser-type microphones. Activate by default, cut Jumper J1 to disable.
- Compressor Function Helps Prevent Overload And Distortion, activates when the module's input signal exceeds a preset, adjustable threshold.
- Compression Ratio: 2:1 (fixed), reduces the module's output signal level to 1 dB for every 2 dB increase in input siganl level.
- Threshold Control - turn CW to lower threshold (to activate compressor function with lower input signal) and CCW to increase threshold (to activate compressor function with higher input signal).
- Connector: removable terminal block
Specifications:
- Faceplate Controls: Gain, low cut filter, voice gate sensitivity
- PCB Controls: Phantom power defeat
- Input Impedance: 600 ohms, balanced transformer-isolated
- Sensitivity: -70 to -50 dBu
- Gain: 32 to 52 dB
- Gain Sensitivity: -58 dBu to always open
- Noise (EIN): -126 dBu, 200 ohms terminated
