TOA RS-150 Economy Indoor Remote Sub-Station

ITEM #: TOA-RS-150 MFG #: RS-150

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$125.00

Our Price:

$101.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RS-150 - Overview

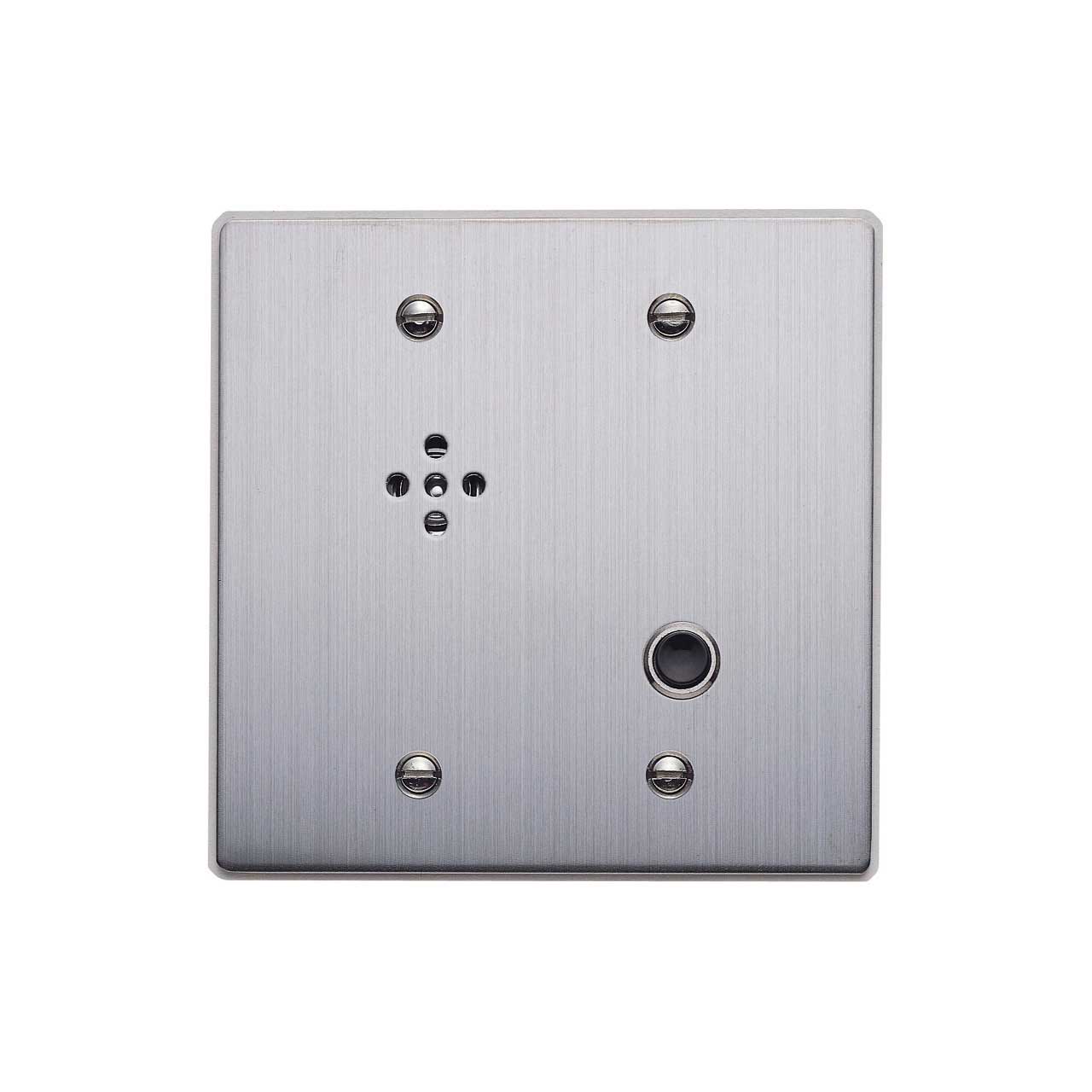

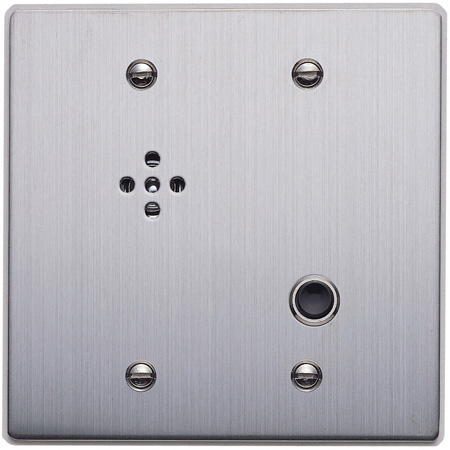

The TOA Electronics RS-150 single button indoor call panel substation is designed to be used with the N-8000RS or N-8010RS substation interfaces. The 4cm (1.57in) speaker provides clear audio and the single black call button allows for simple call-in operation. The call button can be programmed to report to any master station based on job specification. It requires 3-conductor shielded twisted pair (STP) wiring and mounts in a standard US dual gang flush or wall mount box.

  • Features:

    • Modulate 4 RF carriers including all sub programs and streams
    • Provides industry standard multiplexed and remapped outputs on ASI & IP
    • 9x IP stream outputs (8 SPTS, 1 MPTS) in UDP, RTP, or RTSP video protocols
    • Advanced network managment system on dedicated network port and IP address
    • Modulator available in QAM (DVB-C), Satellite (DVB-S2) or OTA (DVB-T) -- (model dependant)
    • Supports Closed Caption 608 and 708 systems, supports Dolby AC/3 Pass Through
    • H-4LNB-QAM-IP-LL 4 satellite LNB's RF + 2 ASI's to QAM and IP
    • H-4ATSC-QAM-IP-LL 4 ATSC RF +2 ASI's to QAM and IP

  • Specifications:

    • Rated Input: 1W
    • Rated Impedance: 625Ω 1W/25V
    • Wiring: Two-core shielded cable
    • Transmissions Rage: 546 yd (AWG241); 874 yd (AWG22); 1421yd (AWG19)
    • Operating Temperature: -10 °C to +50 °C
    • Finish: Panel: Stainless steel hairline; Call button: Resin
    • Dimensions(W x H x D): 4.7 inch x 4.7 inch x 1.9 inch (120 mm x 120 mm x 48.5 mm)
    • Weight: 0.9 lbs (410 g)
