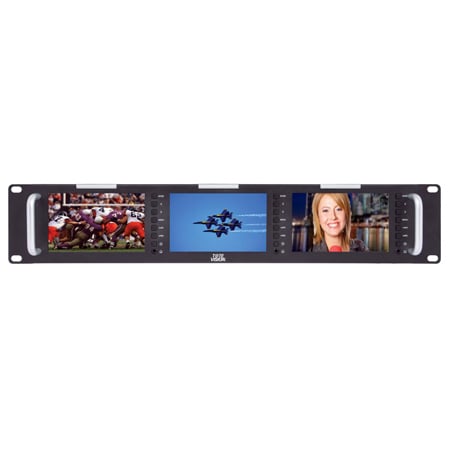

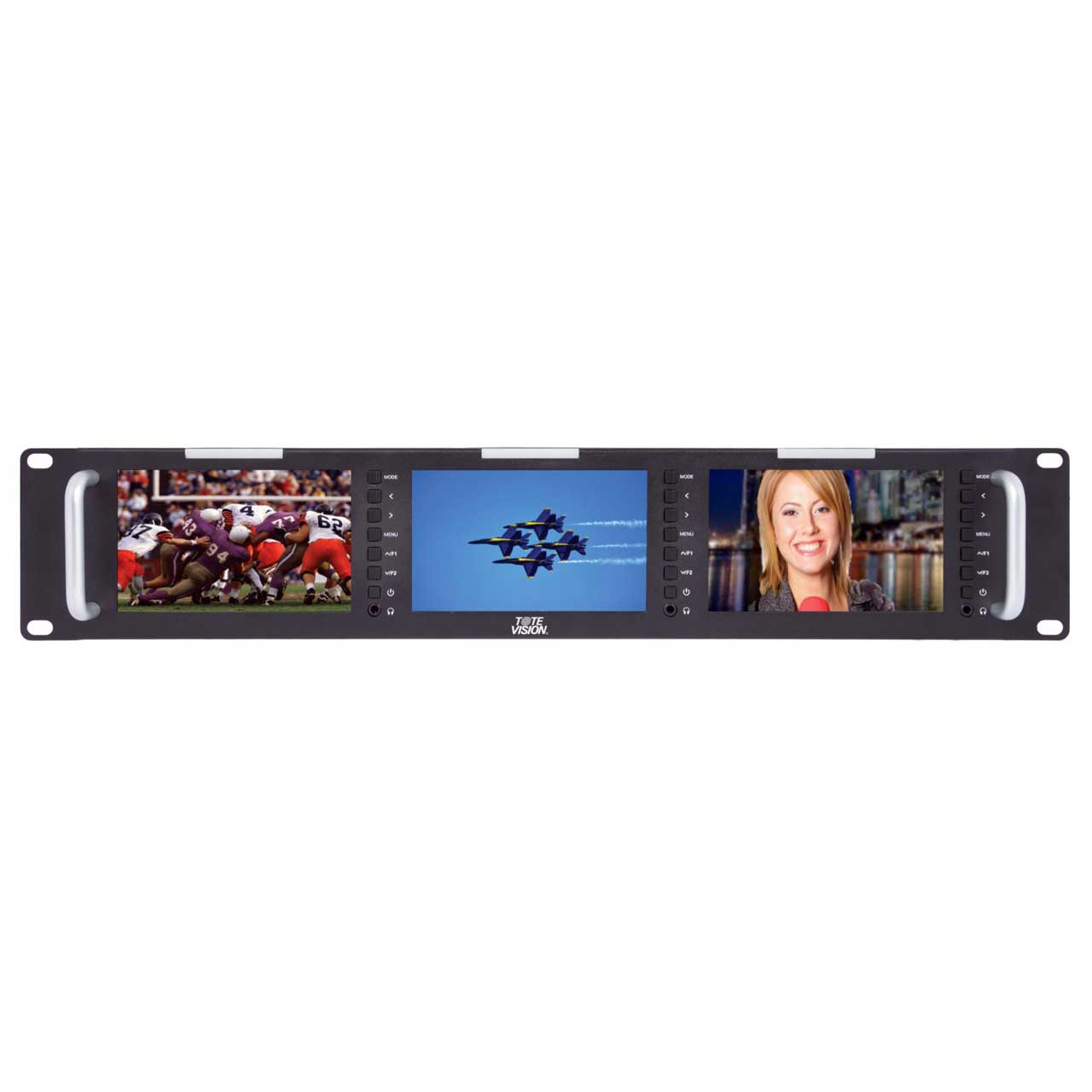

ToteVision LED-504HDMx3 Rack-mounted Triple 5 Inch LCD Monitors

LED-504HDMX3 - Overview

• Features:

  • LED backlight provides a brighter picture using less power
  • Loop-through HDMI and Composite (CVBS) Connections
  • Multiple features include Pixel to Pixel, Center Marker (80%, 85%, 90%, 93%, 96%, 2.35:1), Image Flip, Check Field, and Image Freeze
  • Monochrome and color peaking modes for fine control optimizing focus
  • Built-in Tally indicators (Red, Green, Yellow LED lights)
  • Durable metal housing with slim <2" depth and 2RU height


• Specifications:

  • Mount: Rack - 2 RU
  • Resolution: 800 (H) x 480 (V)
  • Aspect Ratio: Native 16:9 with automatic signal resolution scaling; NTSC/PAL Auto Sensing; Image Flip (H-mirror, V, H/V) function
  • Visible Screen Size: Each Screen: 4.25" x 2.55"
  • Back Light: LED (50K)
  • HD Compatible: Yes, displays up to 1080p
  • Brightness: 500 Nit
  • Contrast: 500:1
  • Dot Pitch: 0.045mm (H) x 0.135mm (V)
  • Color Depth: 8 bit, 16.7 million colors
  • Response Time: 10ms/10ms (Rising/Falling)
  • Viewing Angle: 70/70/50/70 (L/R/T/B)

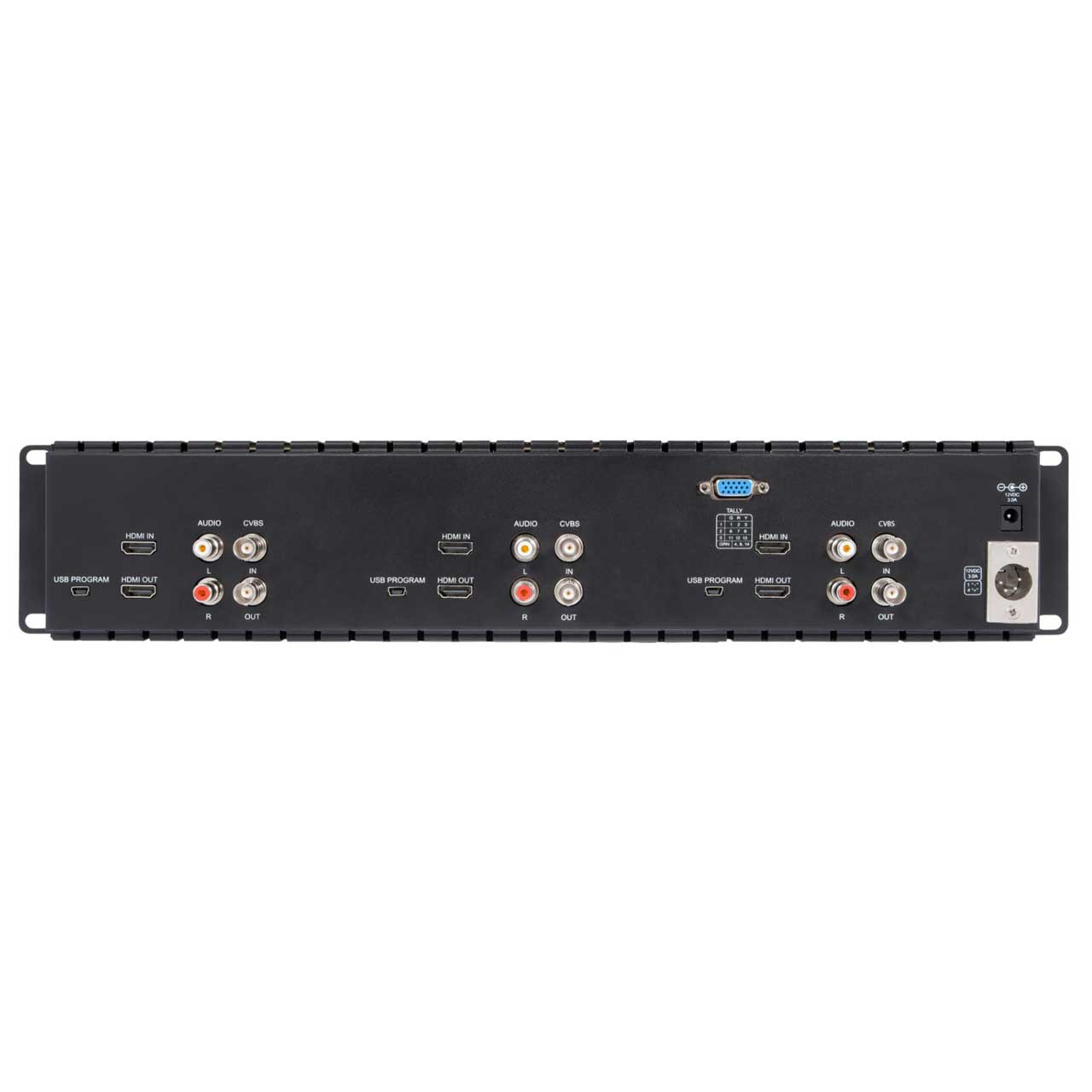

  • HDMI: Each Screen - 1x Input, 1x Output (Looping)
  • Composite: Each Screen - 1x BNC Input, 1x BNC Output (Looping)
  • Power: 1x 2.1mm DC Input with power supply included; standard 4-pin XLR input port; Auto Power On function
  • Operating Temp: -4°F - 131°F
  • Humidity: 20% - 80%
  • Power Requirements: 9VDC - 24VDC; 3 Amp; Positive Pin; Negative Ground
  • Power Consumption: <25 Watts
  • Product Weight:
    - Net: 3.46lbs
    - Gross: 6.6lbs
