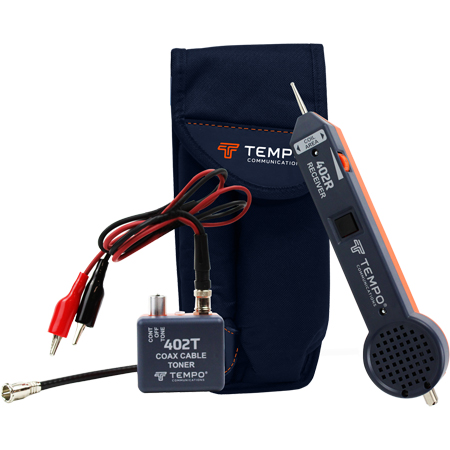

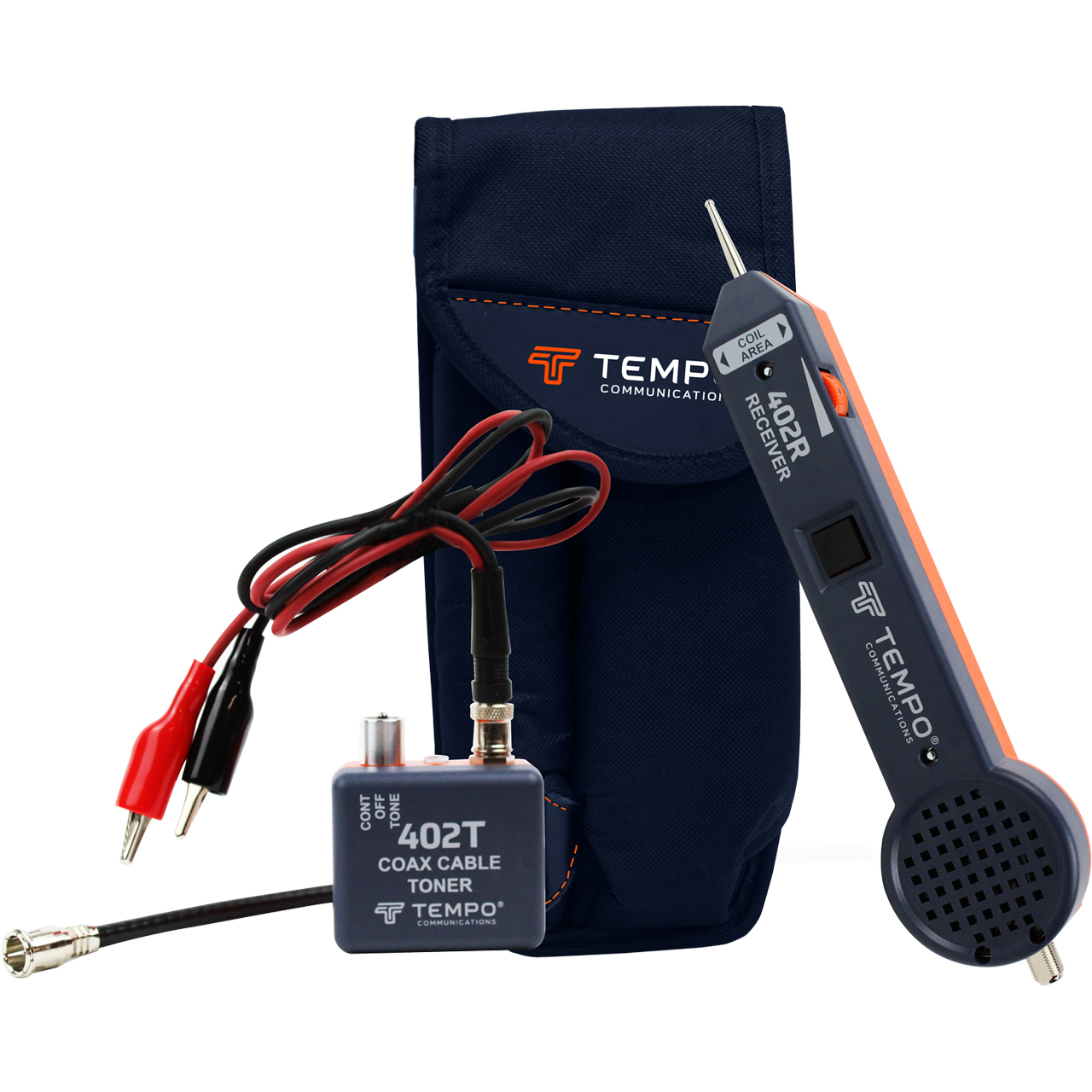

Designed specifically for the CATV industry, the Tempo Communications 402K sends tone through any passive device along the cable path, such as splitters, taps, and directional couplers. The transmitter is equipped with female F-type connectors and provide both audible and LED test and tone indications. Each 402K kit consists of: the 402T Tone Generator, 402R Tone Probe receiver, one male F-to-F connector adapter cable, one male F-to-alligator clip adapter cable, and a 700C carrying case. No more long delays trying to figure out non-tagged or mis-tagged cable drops; the Model 402K is simple to use and provides fast, accurate results.
With its user defined tone output, up to four 402T Toner units can be used simultaneously for tracing multiple cable runs.
As a continuity tester, the Model 402K provides both audible tone and LED display to indicate resistance levels and dentify mis-tagged cable drops.
The unit will even identify the presence of AC or DC voltage on the cable under test.
The 402R receiver provides three methods of signal detection:
• Electrostatic pickup for non-terminated cables
• Electrostatic pickup for terminated or shorted cables
• Direct connection when identifying passive devices
