LVPRO40 - Overview

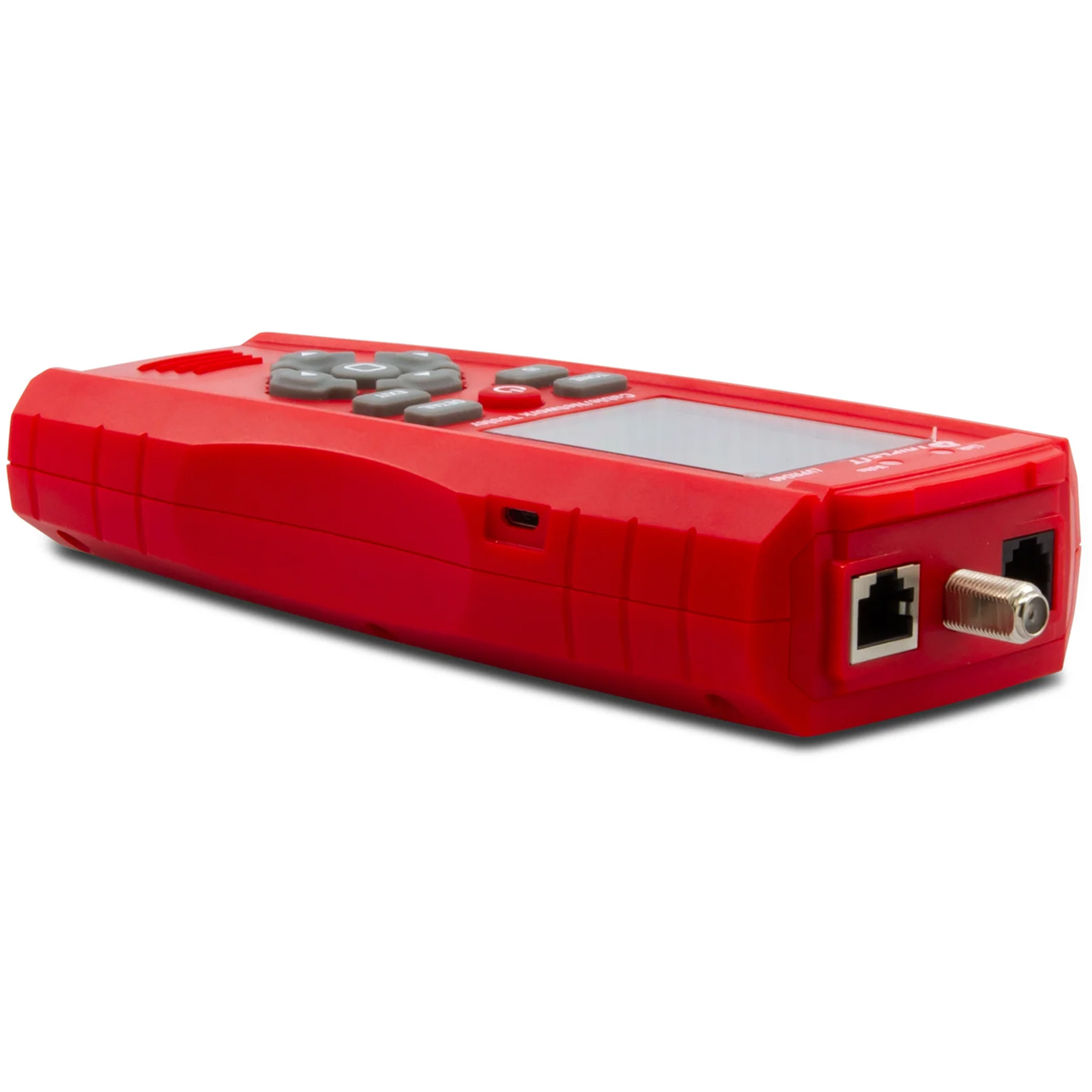

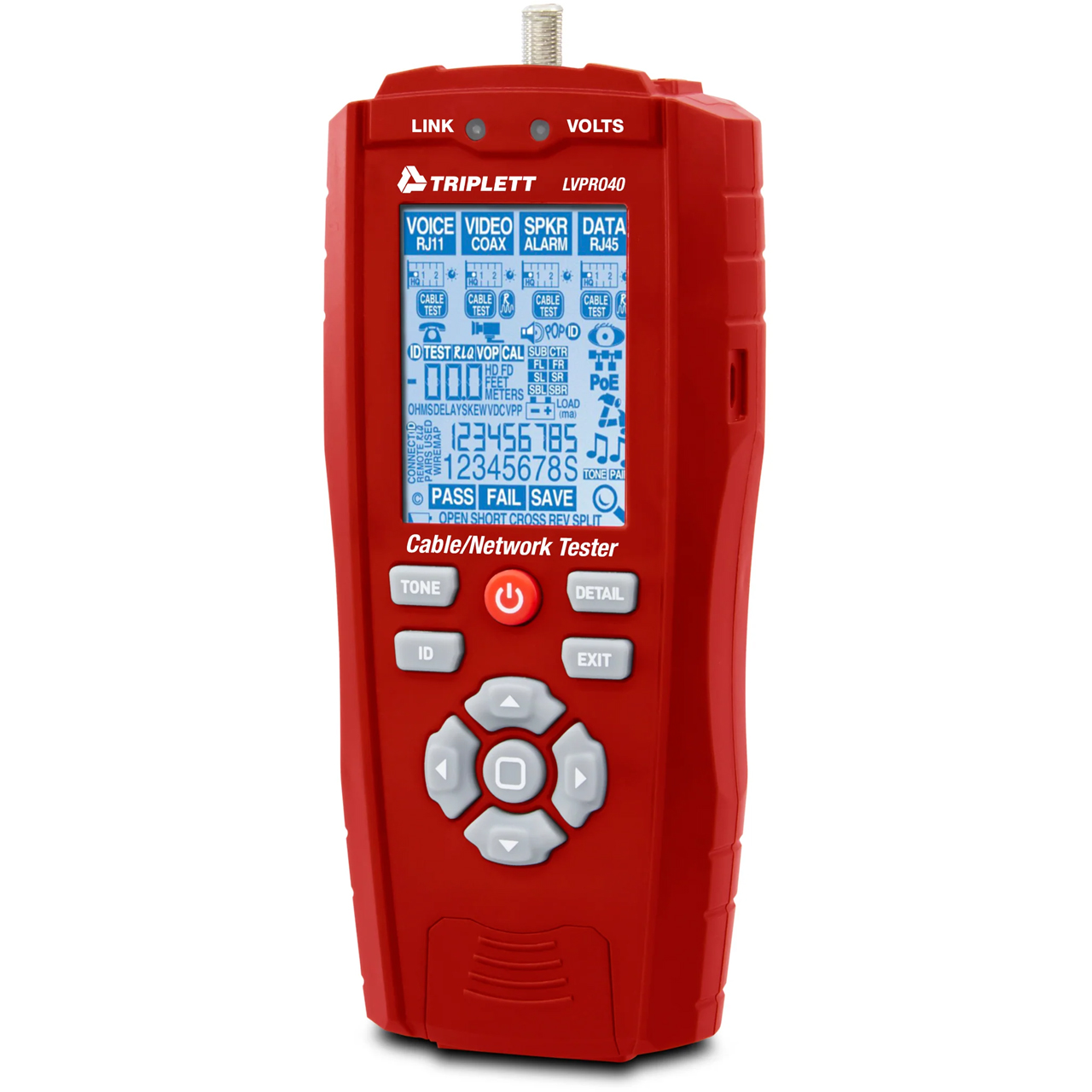

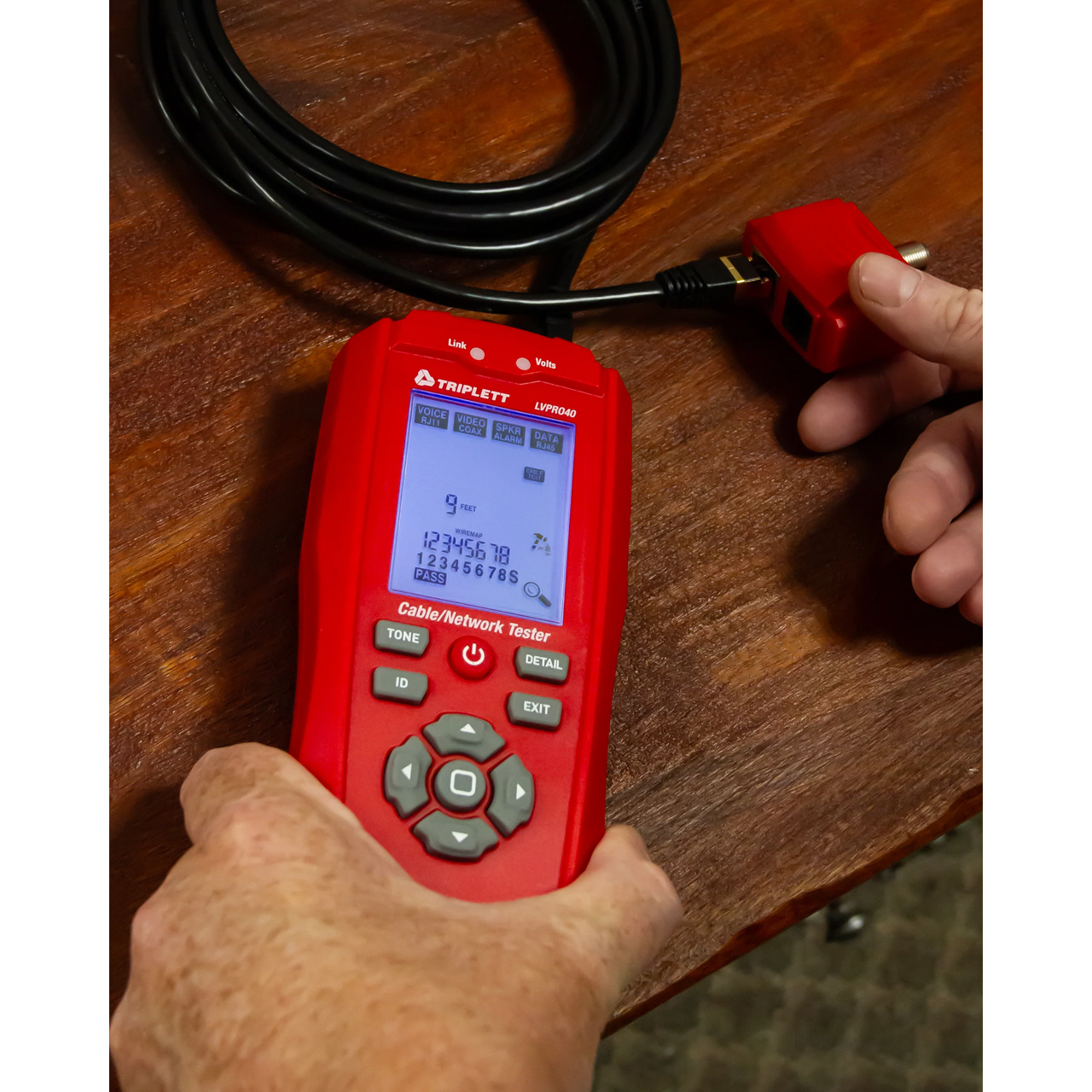

The Triplett Model LVPRO40 10Gb Multifunctional Low Voltage Cable/Network Tester offers a comprehensive solution for LAN installers and repair technicians. It tests and traces both twisted pair (CAT5E/6/6A/7) and coax cables, checks twisted pair continuity, opens/shorts, reversals, and split pairs. 8 RJ45 remotes allow for the testing of up to 8 cables. In addition, it runs a variety of cable testing procedures such as wiremap, timing tests (delay, skew), impedance measurement, Ethernet switch port blink, cable length, PoE volts, loaded battery test and 10M/100M/1G/10G indication. Plus it gives you the ability to store and print up to 250 test reports. It features a 2.8" backlit graphical LCD, built-in RJ11, RJ45, and coax ports. Use the tone mode to trace cables effortlessly. Its auto power off feature and 70VDC input protection add to the convenience and safety.

  • Features:

    • Works with virtually all cable types including speaker cable, coax, alarm cable and Category cable (CAT5,6,7)
    • Adjustable VOP (velocity of propagation) Function allows the LVPro to be calibrated to other unique cable types
    • Perform detailed wire-mapping including Skew, Delay & Ohms
    • Port Blink
    • Measure cable distance to open or short (TDR)
    • Test coax and RJ11 cables for faults
    • Check line voltage on RJ45 (PoE) and telephone lines
    • Measures network speed capabilities
    • POE Test, Network Test, Battery load, memory stores up to 250 test and printing capability
    • Utilizes 8 smart remotes to allow additional testing of up to 8 cables without having to change remotes
    • Downloadable LVPro Manager software for easy reporting of results


  • Specifications:

    • Cable Types:
      - UTP, FTP and SSTP twisted pair, telephone, speaker and alarm wire
      - 50Ω, 75Ω, 93Ω coax cable
    • Cable Tests: Opens, shorts, reversals, split pairs, wiremap, propagation delay, skew, ohms Feet/metric selectable
    • Cable Length Test:
      - Range: 1999' (610m) Resolution: 1.5' (0.5m)
      - Adjustable and standard VOP settings
      - RLQ (Return Loss Quality)
      - Accuracy: ±(2% + 3ft/1m)
    • Network Devices:
      - 10M/100M/1G/10G advertised speed and cable pairs used
      - PoE pairs and cable pairs used
      - CCTV camera video signal: measure peak to peak volts
      - CATV (cable TV) requires min 30mV peak to peak signal
      - Battery test: 100mA loaded test for 12V alarm
    • POE Detection: POE standards: 802.3AF, 802.3AT, 802.3BT
    • Ethernet Port Test: Yes
    • Cable Location: Yes
    • Port Blink: Lights the LED on the port switch
    • Power: 3x AA batteries
    • Dimensions: 7.1 x 3.2 x 1.5" (181mm x 81mm x 37.2mm)
    • Weight: 9.2oz (260g)

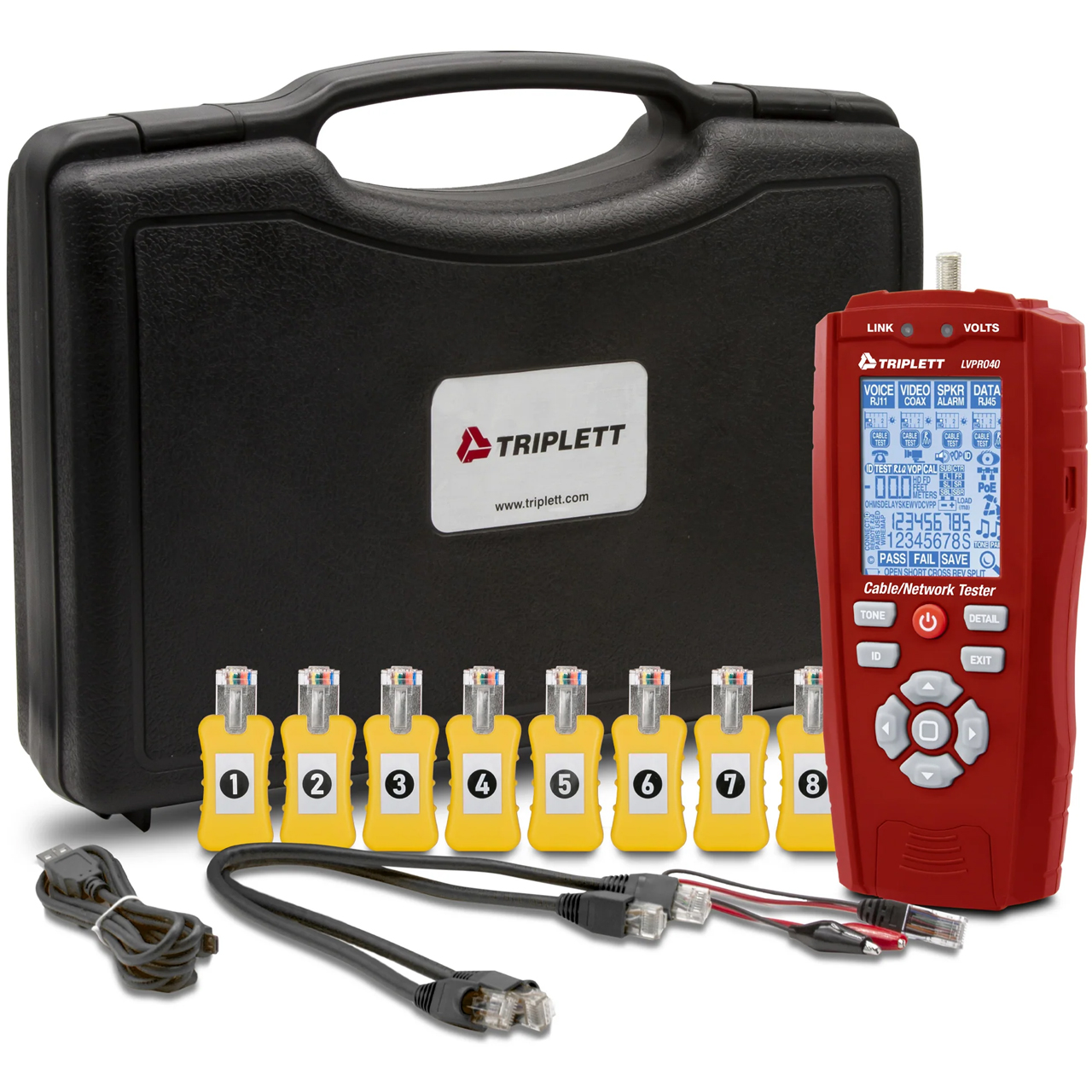

  • Item Includes:

    • 8x remotes
    • 1x USB cable
    • 1x RJ45 to RJ45 connector cable
    • 1x RJ45 cable with alligator clips
    • 3x AA batteries


  • Warranty:

    • 1 Year Warranty
