Tripp Lite HCRK-54 Medical Mobile Cart Power Kit 54A 300W 3 Outlet UL 60601-1

HCRK-54 - Overview

• Features:

  • Provides UL 60601-1 compliance for connected mobile equipment (used in every sector of healthcare facilities, both inside and outside of patient-care areas)
  • Adds reliable mobile AC power source for medical carts
  • Medical-Grade Mobile Power Supply (included) features an isolation transformer, providing UL 60601-1 compliance for connected equipment
  • The Power Supply's advanced 3-stage charger recharges batteries faster and safer than conventional chargers
  • The Power Supply's internal Automatic Transfer Switch (ATS) allows the power supply to simultaneously run connected equipment while recharging the battery module
  • The Power Supply also features 3 NEMA 5-15R AC outlets, a 10-ft. coiled AC input cord with a hospital-grade NEMA 5-15PHG plug, a USB communication port and a compact, all-metal housing that stands up to the most demanding environments


• Specifications:

  • Input
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 15A 120V
  • Input Connection Type: NEMA 5-15P-HG Hospital-Grade
  • Voltage Compatibility (VAC): 120
  • Voltage Compatibility (VDC): 12
  • Input Cord Length (ft.): 10

    Output
  • Frequency Compatibility: 60 Hz
  • Pure Sine Wave Output: No
  • Output (Watts): 300
  • Nominal Output Voltage(s) Supported: 120V
  • Output Receptacles: (3) 5-15R
  • Continuous Output Capacity (Watts): 300
  • Peak Output Capacity (Watts): 750

    Battery
  • DC System Voltage (VDC): 12
  • Battery Charge: Equal to discharge time. Includes advanced 3-stage (10A) battery charger

    User Interface, Alerts & Controls
  • Front Panel LEDs: On Remote User Interface (RUI): Output AC Power, Battery Charge Level and Battery Charging Status
  • Switches: On Remote User Interface (RUI): On/Off Switch and Alarm-Mute Switch
  • Audible Alarm: Low Battery Alarm

    Surge / Noise Suppression
  • EMI / RFI AC Noise Suppression: Yes

    Physical
  • Cooling Method: Fan
  • Form Factors Supported: Retrofits most standard medical cart configurations
  • Material of Construction: Power Supply and Battery Module: metal
  • Shipping Dimensions (hwd / in.): 19.40 x 15.10 x 17.90
  • Shipping Weight (lbs.): 84.00

    Communications
  • Network Monitoring Port: USB


• Item Includes:

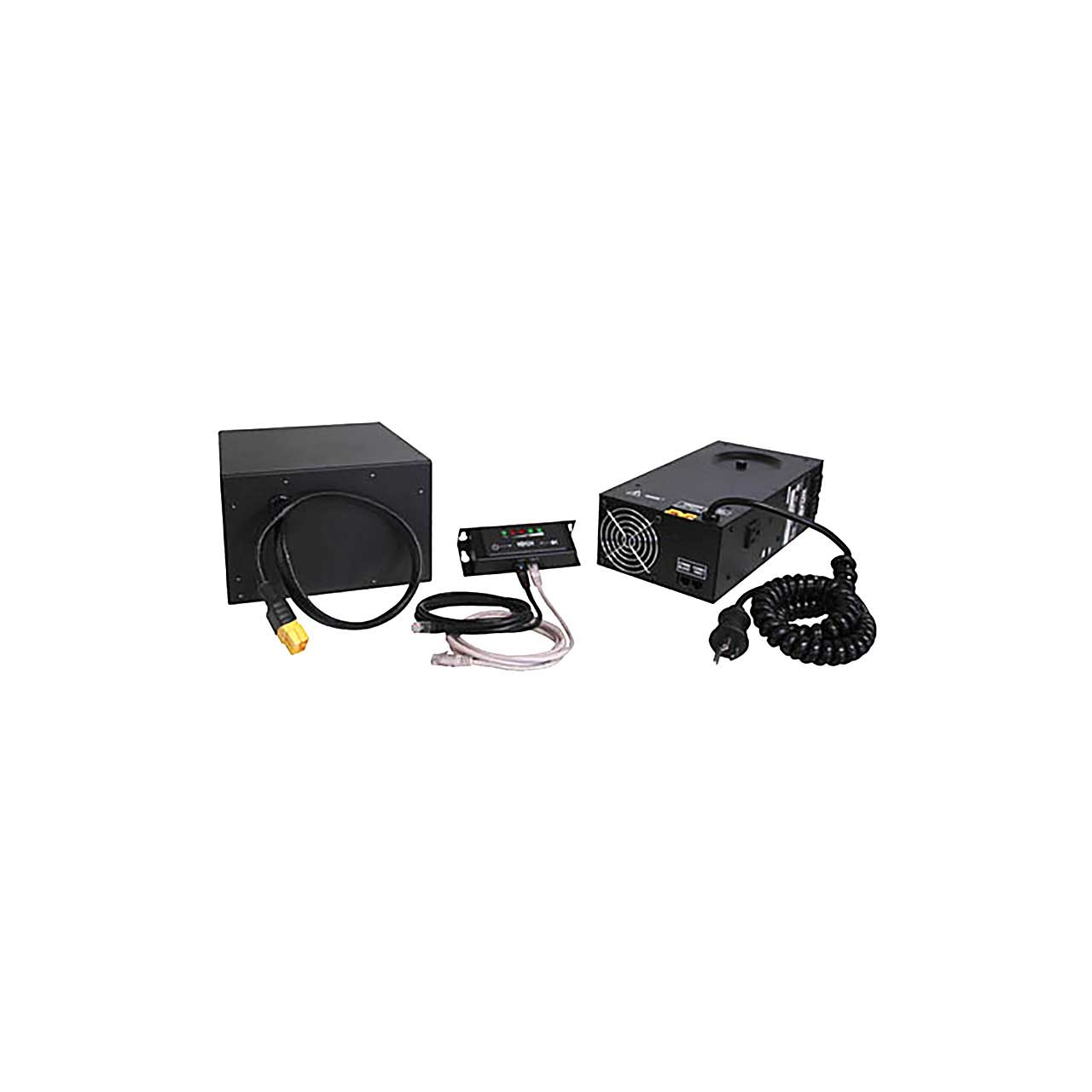

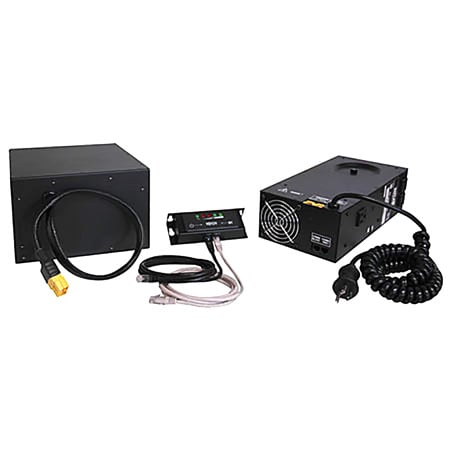

  • 1x Medical-Grade Mobile Power Supply
  • 1x 54-amp hour user-replaceable Battery Module and cabling
  • 1x PowerAlert Software CD and USB cable
  • 1x Remote User Interface (RUI) and cabling
  • 1x Mounting Hardware Kit and owner's manual with warranty information


• GTIN:

  0037332142795
