Tripp Lite MT-6PLUS Under Monitor Isobar Surge Protector 6 Outlet 10ft Cord 1440 Joule

ITEM #: TRL-MT-6PLUS MFG #: MT-6PLUS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-MT-6PLUS

MT-6PLUS - Overview

Premium protection for your computer, printer, router and other peripherals, the Tripp Litee MT-6PLUS Isobar® 6-Outlet Under-Monitor Surge Protector features a network-grade surge protection rating of 3150 joules to defend your sensitive electronics against even the strongest surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $100,000 for life (valid in the U.S., Canada and Puerto Rico only).

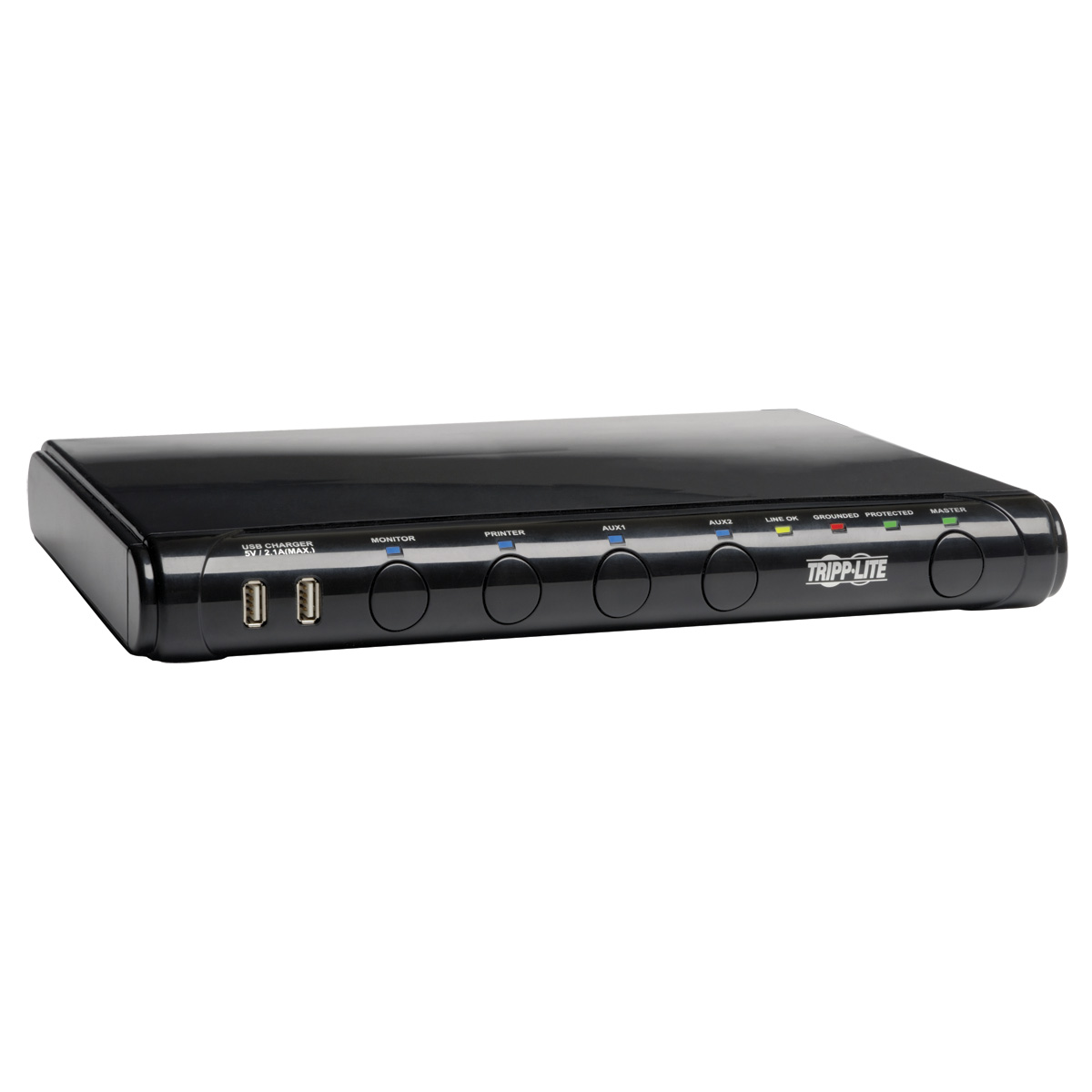

The MT-6PLUS features a low-profile design that integrates easily into your home or office computer setup. It fits right underneath your monitor, so LEDs are visible and power switches are accessible.

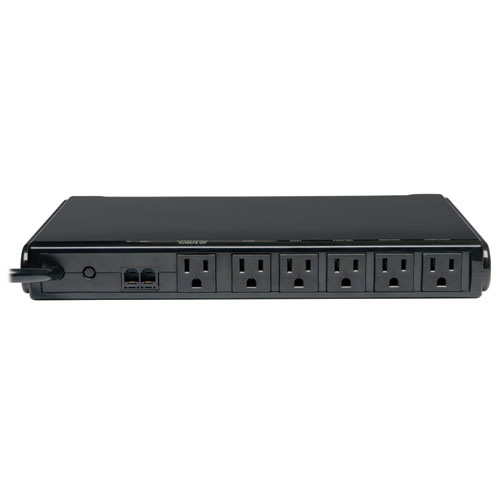

Your devices plug into six rear NEMA 5-15R outlets, five of which can all be switched on and off with a front-panel master button. Four outlets are individually controllable via additional front-panel buttons, giving you complete control over their power status. One outlet provides constant power, even when the master button is switched off--perfect for a router or modem that needs to stay powered 24/7.

Because residential power outlets have three wires--hot line (H), neutral (N) and ground (G)--the MT-6PLUS protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

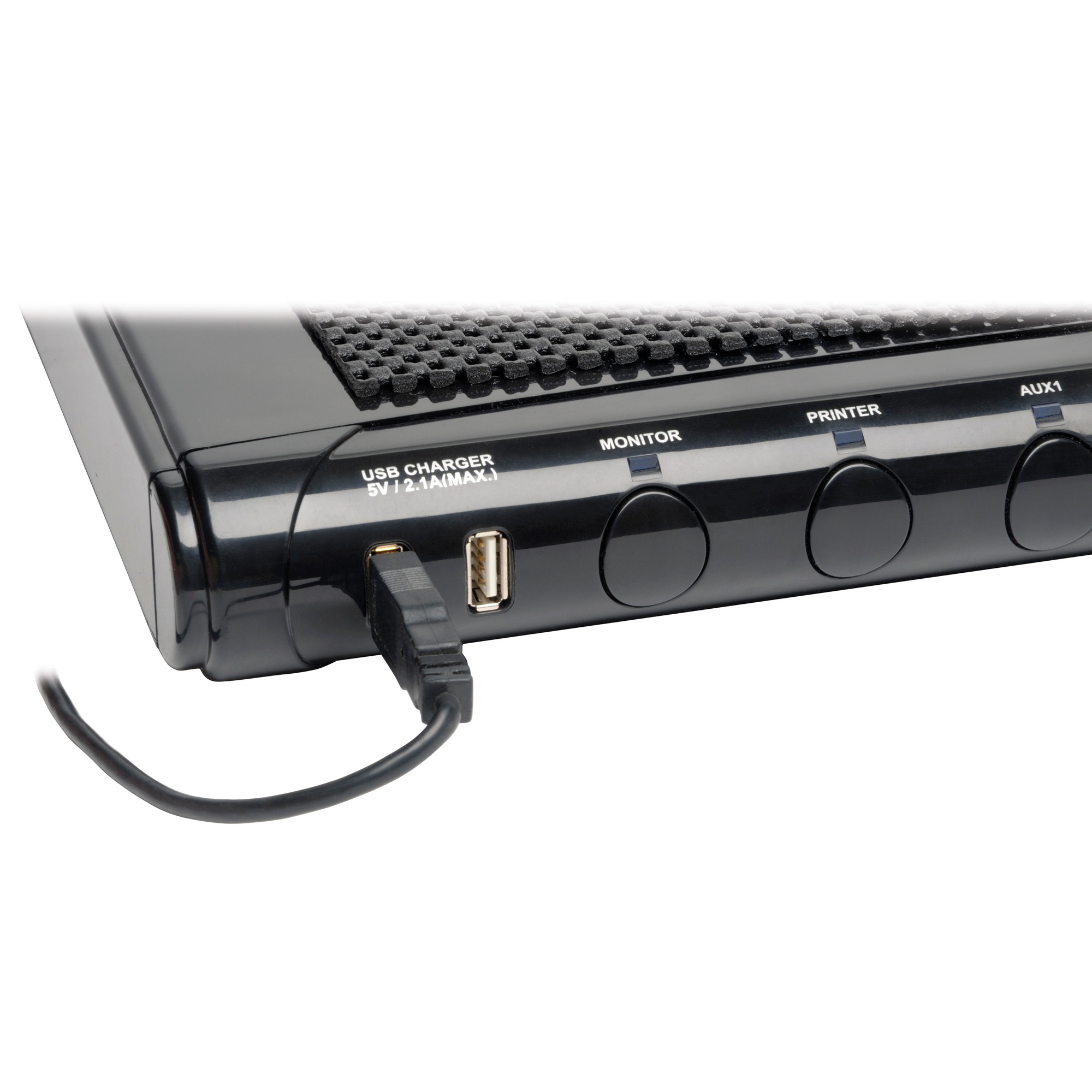

The MT-6PLUS's unique protection system prevents disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors remove EMI/RFI interference and prevent system crashes, reboots and performance problems. A pair of RJ11 jacks also provides single phone line protection for modems, fax machines and cordless phones. Dual USB charger ports deliver up to 2.1 total amps for keeping your mobile devices at 100% capacity.

For safety and security, an integrated 15A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. Eight front-panel LEDs show a variety of power, protection and line fault statuses at a glance.

  • Features:

    • 6 NEMA 5-15R surge-protected rear outlets
    • Network-grade 3150-joule surge protection rating
    • Low-profile design fits beneath monitor or laptop
    • Fax/telephone line/modem surge protection
    • 8 ft. AC power cord with NEMA 5-15P plug
    • This product is covered by a Lifetime Limited Warranty (coverage details)
    • $100,000 Ultimate Lifetime Insurance
    • Protects your home/office computer and its peripherals against even the strongest surges and spikes
    • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
    • Blocks disruptive EMI/RFI line noise up to 80 dB that can cause equipment damage or data loss
    • Exceeds IEEE 587 Category A and B surge suppression specifications
    • RJ11 jacks protect fax, phone and modem signals

  • Specifications:

    • Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 120V (110-125V)
    • Input Cord Gauge Type: 14 gauge; SJT
    • Voltage Compatibility (VAC): 120
    • Maximum Surge Amps: 84000
    • Input Plug Type: NEMA 5-15P
    • Input Cord Length (ft.): 8
    • Right-Angle Plug: No
    • Integrated Cord Clip: No

      Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output (Watts): 1800
    • Output Receptacles: (6) 5-15R
    • Circuit Breaker (amps): 15
    • Transformer Accommodation: (3) Yes
    • Right-Angle Outlets: No

      User Interface, Alerts & Controls
    • Diagnostic LED(s): Yes
    • Switches: Includes 5 front panel switches - MASTER SWITCH controls all output receptacles (except the one marked "unswitched"), INDIVIDUAL OUTLET switches control 4 individual output receptacles
    • Diagnostic LED Details: PROTECTION PRESENT (green), GROUNDED (red), LOW OK (yellow) , MASTER(green), MONITOR, PRINTER, AUX1 AND AUX2(blue)

      Charging
    • Charging Ports / Amps: (2) 2.1A

      Surge / Noise Suppression
    • AC Suppression Joule Rating: 3150
    • AC Suppression Response Time: NM = 0 ns. CM = <1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS): 140
    • AC Suppression Surge Current Rating: 132,000 amps
    • AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes and VHF capacitors
    • Safe Thermal Fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
    • UL1449 Let Through Rating: 330 L-G, 400 L-N, 400 N-G
    • IEEE587 Cat. A Ringwave Let-Through: Less than 35 volts
    • EMI / RFI Filtering: 40-80 dB
    • Immunity: Conforms to IEE 587 / ANSI C62.41
    • Automatic Shut-Off: Yes

      Dataline Surge Suppression
    • Telephone/DSL Protection: Yes
    • Telephone/DSL Protection Details: 1 line
    • Cable (Coax) Protection: No
    • Network (Ethernet) Protection: No

      Physical
    • Anti-Microbial Protective Coating: No
    • Color: Black
    • Color (AC Line Cord): Black
    • Form Factors Supported: Supports under monitor placement as a power control center for an entire PC system with peripherals
    • Housing Color: Black
    • Integrated Keyhole Mounting Slots: No
    • Material of Construction: Plastic
    • Receptacle Color: Black
    • Shipping Dimensions (hwd / in.): 2.25 x 11.80 x 12.50
    • Shipping Weight (lbs.): 3.60
    • Unit Dimensions (hwd / in.): 1.7 x 12.5 x 9.53
    • Unit Weight (lbs.): 3.88

      Standards & Compliance
    • Canada: cUL
    • Approvals: Exceeds IEEE 587 category A&B specifications
    • UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
    • UL1283 (EMI Filter): UL1283
    • UL1363 (Power Tap): UL1363
    • UL497A (Communications): UL497A
    • FCC Part 68 (Communications): FCC Part 68
    • Industry Canada (Communications): Industry Canada

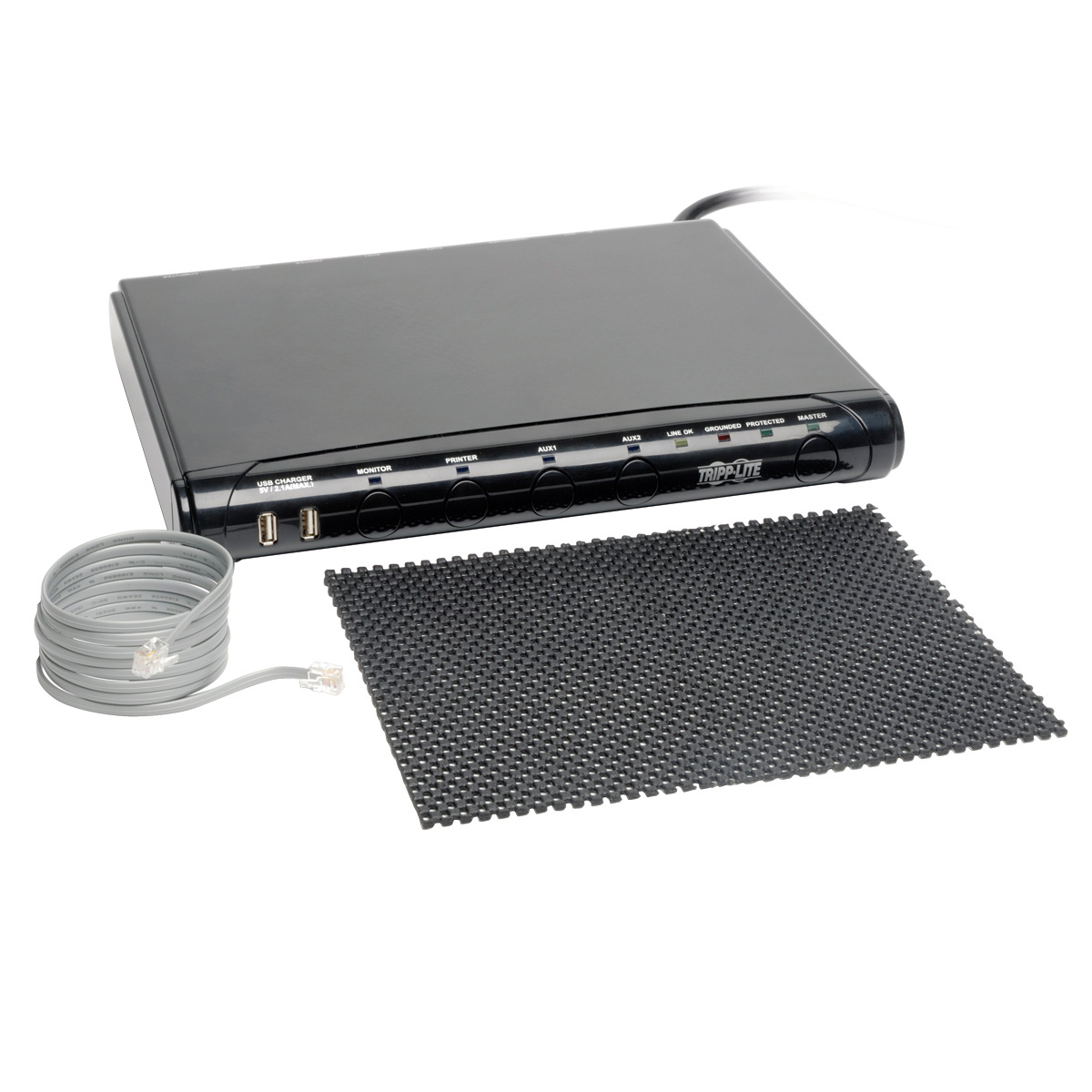

  • Item Includes:

    • 1x MT-6PLUS Isobar 6-Outlet Under-Monitor Surge Protector
    • 1x RJ11 telephone cable, 6 ft.
    • 1x Protective mat
    • 1x Owner's manual

  • GTIN:

    0037332010681
