Tripp Lite N060-004 4U Hinged Wall-Mount Patch Panel Bracket

ITEM #: TRL-N060-004 MFG #: N060-004

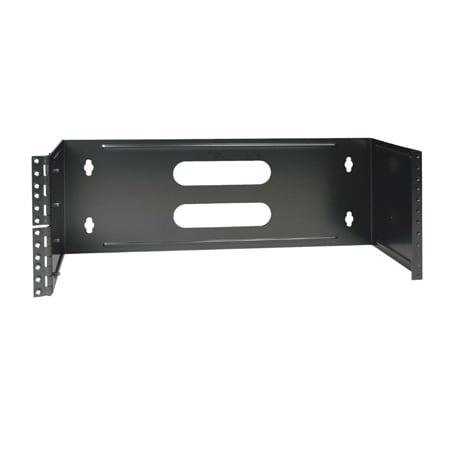

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$111.05

Our Price:

$44.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


N060-004 - Overview

Tripp Lite's heavy duty 14-gauge steel, 4U (7.0") wall mount patch panel bracket, is the ideal alternative to a full size rack. Standard EIA 19-inch width allows installation of any 19inch patch panel. Laser cut metal ( not punched ) keeps all edges smooth, greatly reducing the possibility of injury, and, wear on cable jackets. Universal mounting for right or left hinging. Keyholes are spaced 16 inches for mounting on wall studs. Stamped, horizontal reinforcement ribs allow for greater sturdiness and stability, and allow the addition of a rear cutout for feeding cable through a wall opening. Smooth, glossy black finish.

  • Features:

    • 4U height (7.0 Inch), 6 inch depth
    • Laser cut for smooth edges
    • 16 -inch center mounting
    • Universal left or right hinge mounting
    • Rear cut-out for through the wall cabling
    • Standard EIA 19inch width accepts any manufacturers EIA compliant patch panel
    • Smooth, black glossy finish
    • Heavy duty 14 gauge steel with stamped reinforcement ribs

  • Specifications:

    • Accessories Type: Mounting Accessories
    • Rack Height (U Spaces): 4
    • Maximum Device Depth (in.): 5.5
    • Maximum Device Depth (cm): 13.97
    • Shipping Dimensions (hwd / in.): 6.5 x 20.5 x 7.5
    • Shipping Dimensions (hwd / cm): 16.51 x 52.07 x 19.05
    • Shipping Weight (lbs.): 5.7
    • Shipping Weight (kg): 2.59
    • Unit Dimensions (hwd / in.): 7 x 19 x 6
    • Unit Dimensions (hwd / cm): 17.78 x 48.26 x 15.24
    • Unit Weight (lbs.): 5
    • Unit Weight (kg): 2.27
    • Color: Black
    • Weight Capacity - Stationary (lbs.): 35
    • Weight Capacity - Stationary (kg): 16
    • Maximum Device Depth (mm): 140
    • NOM (Mexico): Tested to NOM (Mexico)
    • Approvals: EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS, UL 60950
    • Product Warranty Period (Worldwide): 5-year limited warranty

  • Item Includes:

    • 4U Wallmount Patch Panel Bracket
    • Package 10 mounting screws

  • Warranty:

    • 5 Year

  • GTIN:

    0037332126405
