Tripp Lite N286-01GSX-MDLC Cisco Compatible 1000Base-SX SFP Transceiver with DDM MMF 850nm 550M LC

Name: Tripp Lite N286-01GSX-MDLC Cisco Compatible 1000Base-SX SFP Transceiver with DDM MMF 850nm 550M LC
Brand: Tripp Lite
SKU: TRL-N28601GSXMDL
Price: 65.00 USD
Availability: PreSale

ITEM #: TRL-N28601GSXMDL MFG #: N286-01GSX-MDLC

Tripp Lite

List Price:

$142.07

Our Price:

$65.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

N286-01GSX-MDLC - Overview

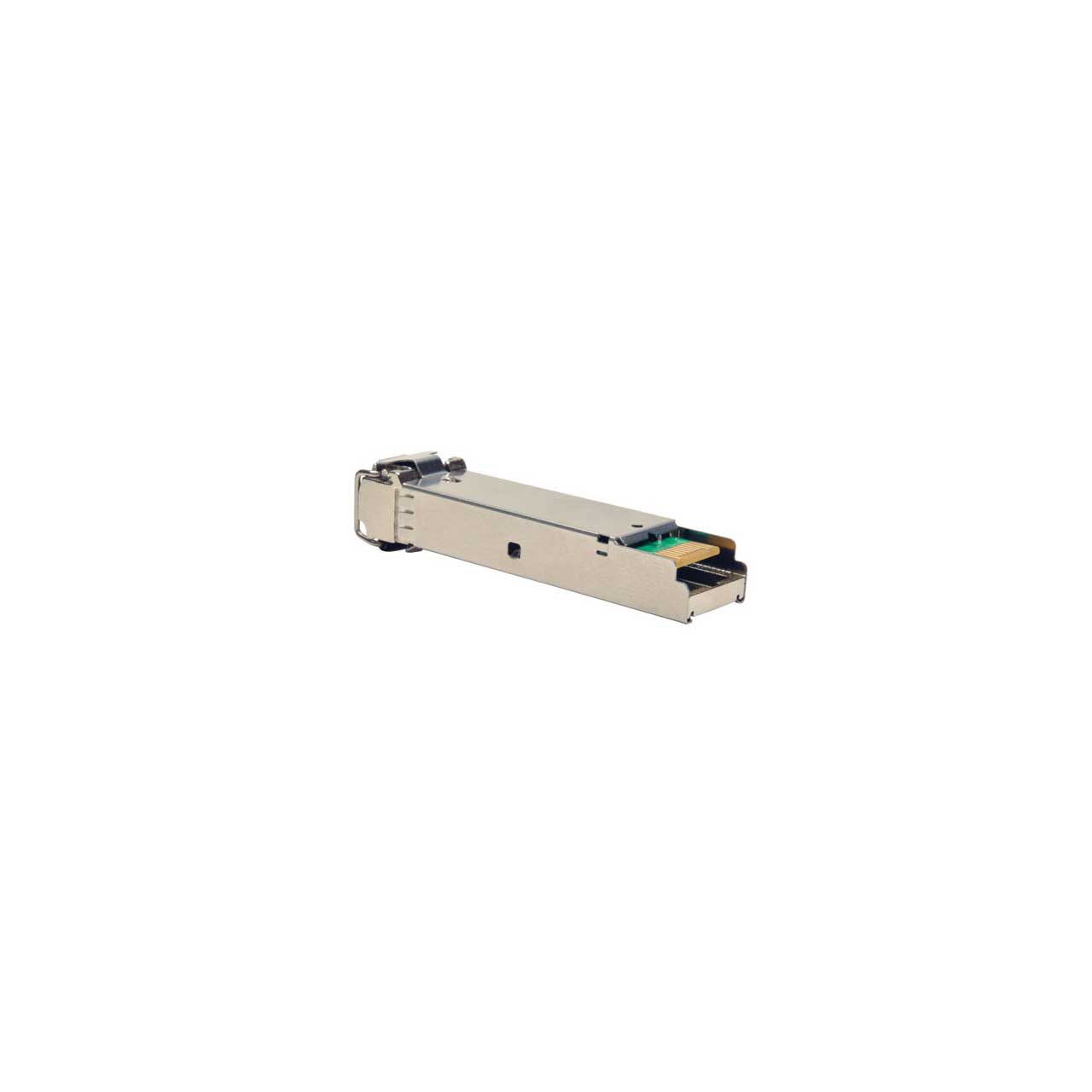

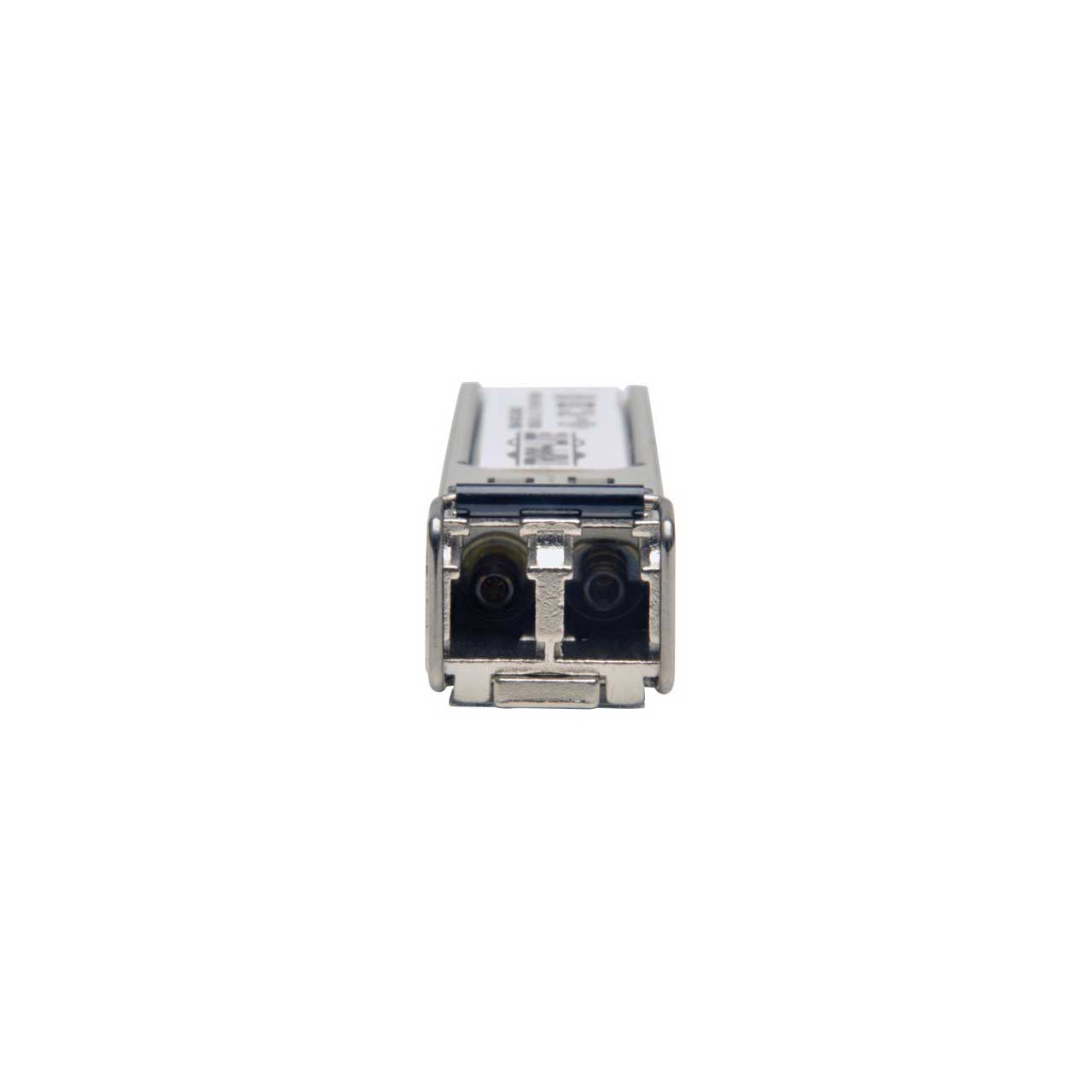

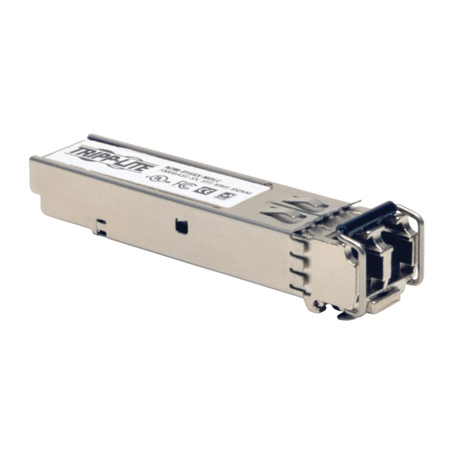

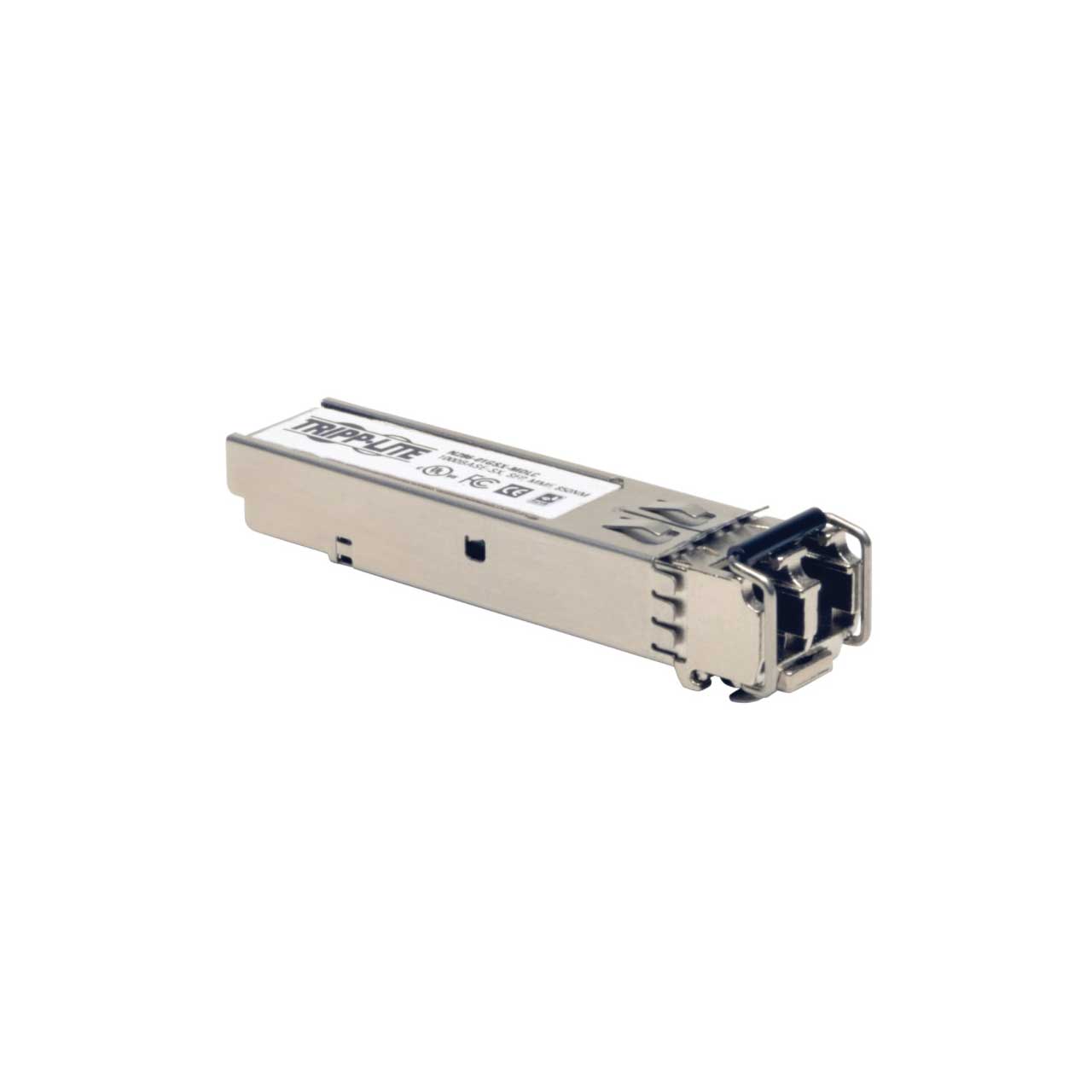

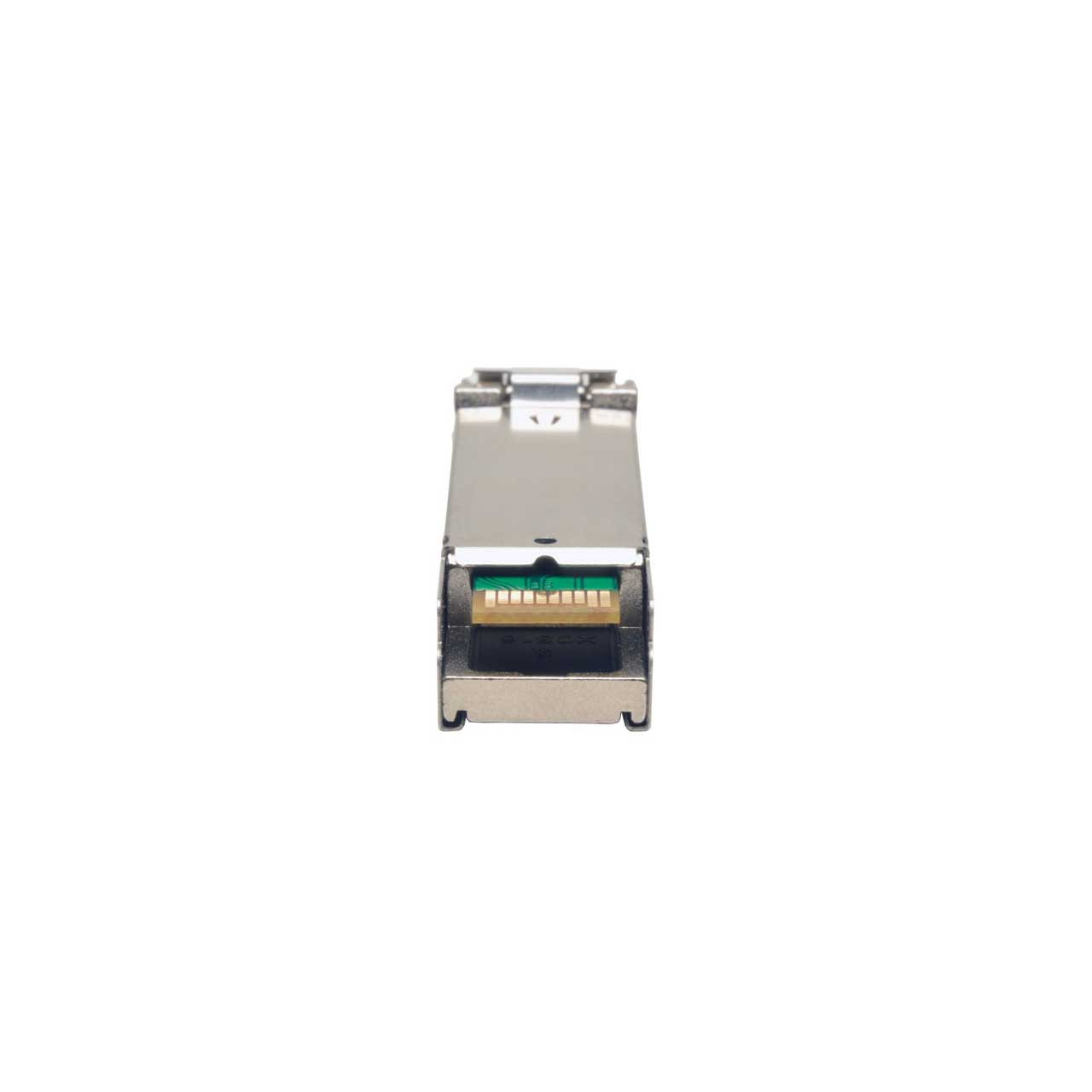

Tripp Lite N286-01GSX-MDLC, SFP+ (mini-GBIC) transceiver module, is designed for use with Cisco networking equipment, and is functionally equivalent to Cisco part number GLC-SX-MMD. This transceiver is manufactured to meet or exceed the specifications of the original Cisco unit, and to comply with Multi Source Agreement (MSA) standards. Tripp Lite guarantees 100% compatibility with Cisco networking hardware, and will initialize and perform identically to an OEM transceiver.

Features:
- Cisco switch compatible Comparable to GLC-SX-MMD
- Compliant with SFP Multi-Source Agreement (MSA) standards
- 1000Base-SX transceiver supports data transfer rates up to 1.25Gbps
- 300 meter transmission distance using 62.5/125 Multimode cabling
- 500 meter transmission distance using 50/125 Multimode cabling
- 850nm wavelength VCSEL Laser
- Duplex LC Connector
- Electrical interface compliant with SFF-8431
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-pluggable
Specifications:
- Accessories Type: Transceiver
- Unit Dimensions (hwd / in.): 0.33 x 0.52 x 2.24
- Unit Dimensions (hwd / cm): 0.84 x 1.32 x 5.69
- Unit Weight (lbs.): 0.05
- Unit Weight (kg): 0.02
- Storage Temperature Range: 0.33 x 0.52 x 2.24
- Relative Humidity: 5 to 95% RH, Non-Condensing
- Operating Temperature: 32F - 158F
- Signal Range (m): 500
- Side A - Connector 1: SFP+ (MALE)
- Side B - Connector 1: LC DUPLEX (FEMALE)
- Product Warranty Period (Worldwide): 3-year limited warranty
Item Includes:
- N286-01GSX-MDLC Transceiver
- Quick Start Guide
Warranty:
- 3 Year
GTIN:
0037332185488
