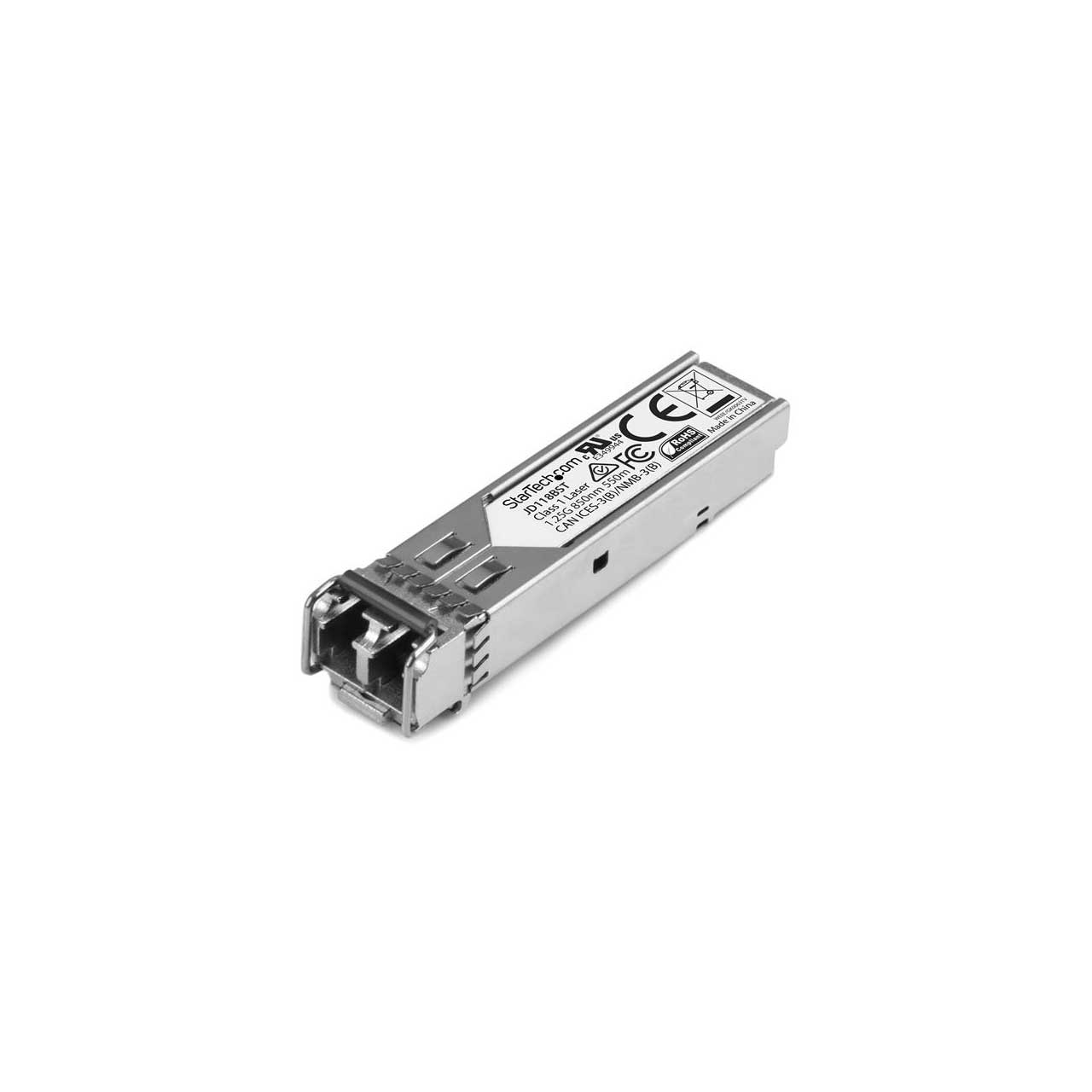

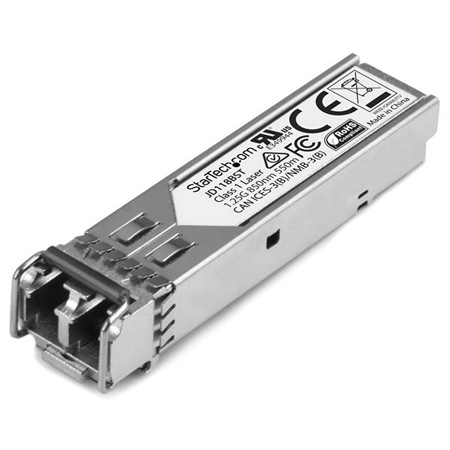

StarTech JD118BST Gb Fiber SFP - 1000Base-SX - HP JD118B Compatible

ITEM #: ST-JD118BST MFG #: JD118BST

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$52.99

Our Price:

$45.32

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


JD118BST - Overview

The StarTech JD118BST Gigabit fiber SFP is compatible with HP networking equipment and engineered by StarTech to deliver what you need most in your network connections: reliable performance. Built to exacting specifications and fully tested to ensure maximum performance, you can install this high-quality fiber transceiver module into HP switches and routers that support the HP JD118B transceiver module, as well as other major brands of networking equipment.

This 1000Base-SX SFP delivers Gigabit connectivity over multimode fiber cable, with a range of up to 550 m (1804 ft.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.

Built for reliable network performance
This multimode SFP transceiver is manufactured by StarTech to meet or exceed OEM specifications and comply with the industry's MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

Fully compatible with HP and other major brands
The MM Gigabit SFP is engineered to the highest quality standards and is 100% HP compatible, equivalent to the HP JD118B transceiver. The StarTech SFP transceiver is configured and fully tested to ensure it works seamlessly with HP or other major brands of networking equipment.

You can be assured that the use of StarTech SFP products should not affect the warranty protection of your networking equipment.

Convenient and scalable
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that's compatible with a multitude of Gigabit networking devices.

Ideal for use in switches, routers, and other networking equipment, the SFP provides reliable performance, allowing you to expand your network to remote segments cost-effectively. This GbE fiber SFP supports multimode fiber cable with a maximum distance of 550 m or 1804 ft., maximum data rates of up to 1.25Gbps, and Digital Diagnostics Monitoring (DDM / DOM).

  • Features:

    • Delivers reliable Gigabit Ethernet connections for 1000Base-SX compliant networks
    • 100% HP compatible SFP, equivalent to HP JD118B
    • Backed by lifetime warranty and free lifetime technical support
    • Meets or exceeds OEM specifications and MSA (Multi-Source Agreement) industry standards
    • Supports Digital Diagnostics Monitoring (DDM)
    • 850 nm optical wavelength
    • Supports multimode (maximum distance 550 m / 1804 ft.)
    • LC fiber connector
    • Maximum data rates up to 1.25Gbps
    • Hot-pluggable

  • Specifications:

    • Hardware: IEEE 802.3z 1000BASE-SX
    • Compatible Networks: 1000 Mbps
    • DDM: Yes
    • Fiber Operating Mode: Full-Duplex
    • Fiber Type: Multimode
    • Max Transfer Distance: 1804 Feet
    • Maximum Data Transfer Rate: 1.25 Gbps
    • Wavelength: 850nm

      Connector(s)
    • Local Unit Connectors: 1 - Fiber Optic LC Duplex Female

      Special Notes/Requirements
    • Note: For use in Gigabit fiber networking equipment and media converters
    • System and Cable Requirements: MSA or HP compliant SFP port

      Environmental
    • Humidity: 5~95% RH
    • Operating Temperature: 32°F to 158°F
    • Storage Temperature: -40°F to 185°F

      Physical Characteristics
    • Color: Silver
    • Enclosure Type: Aluminum
    • Product Height: 0.5 in
    • Product Length: 2.2 in
    • Product Weight: 1 oz
    • Product Width: 0.5 in
    • Shipping Weight: .1 lb

  • Item Includes:

    • SFP transceiver

  • GTIN:

    0065030868532
