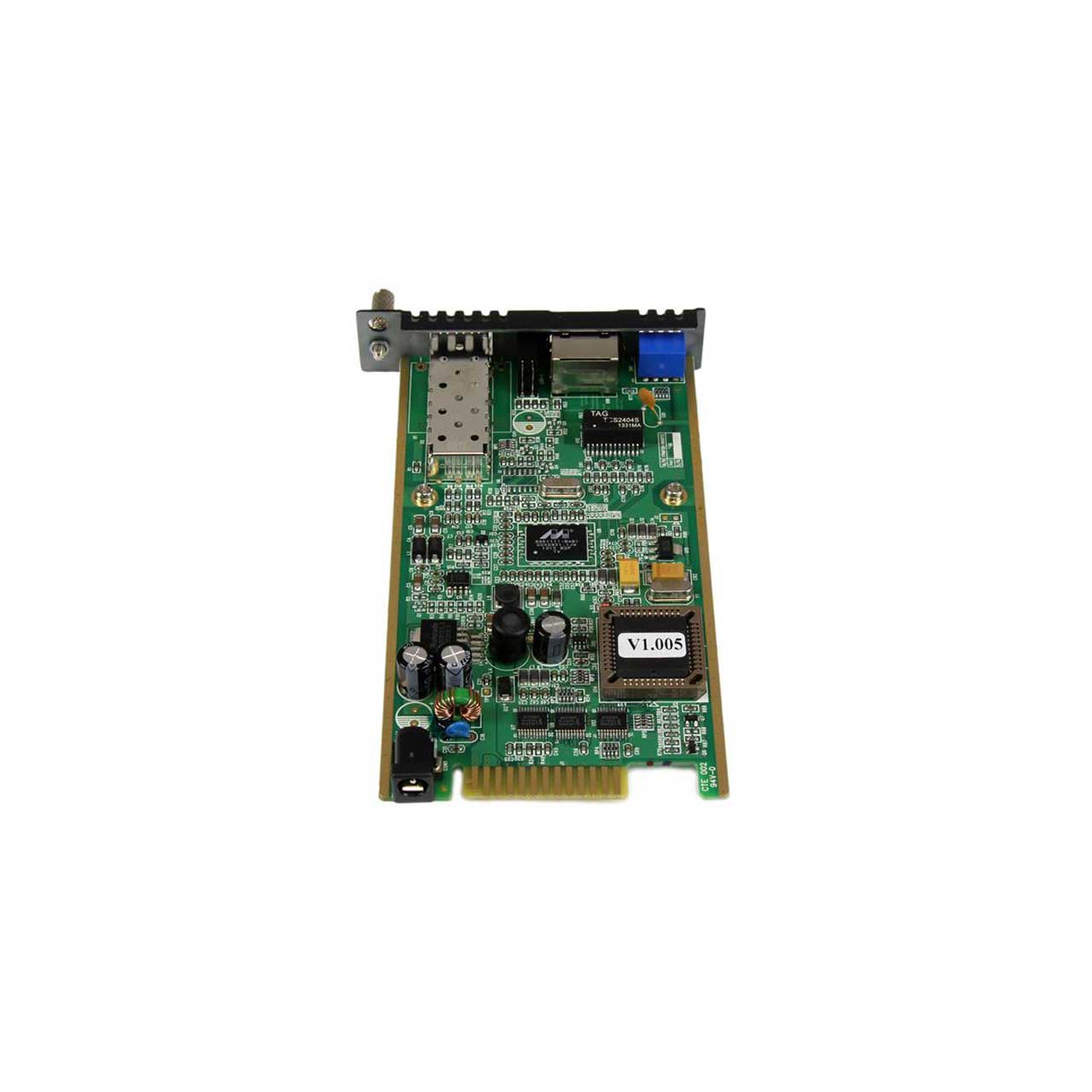

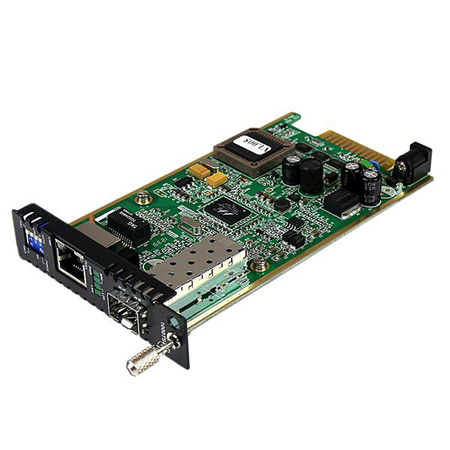

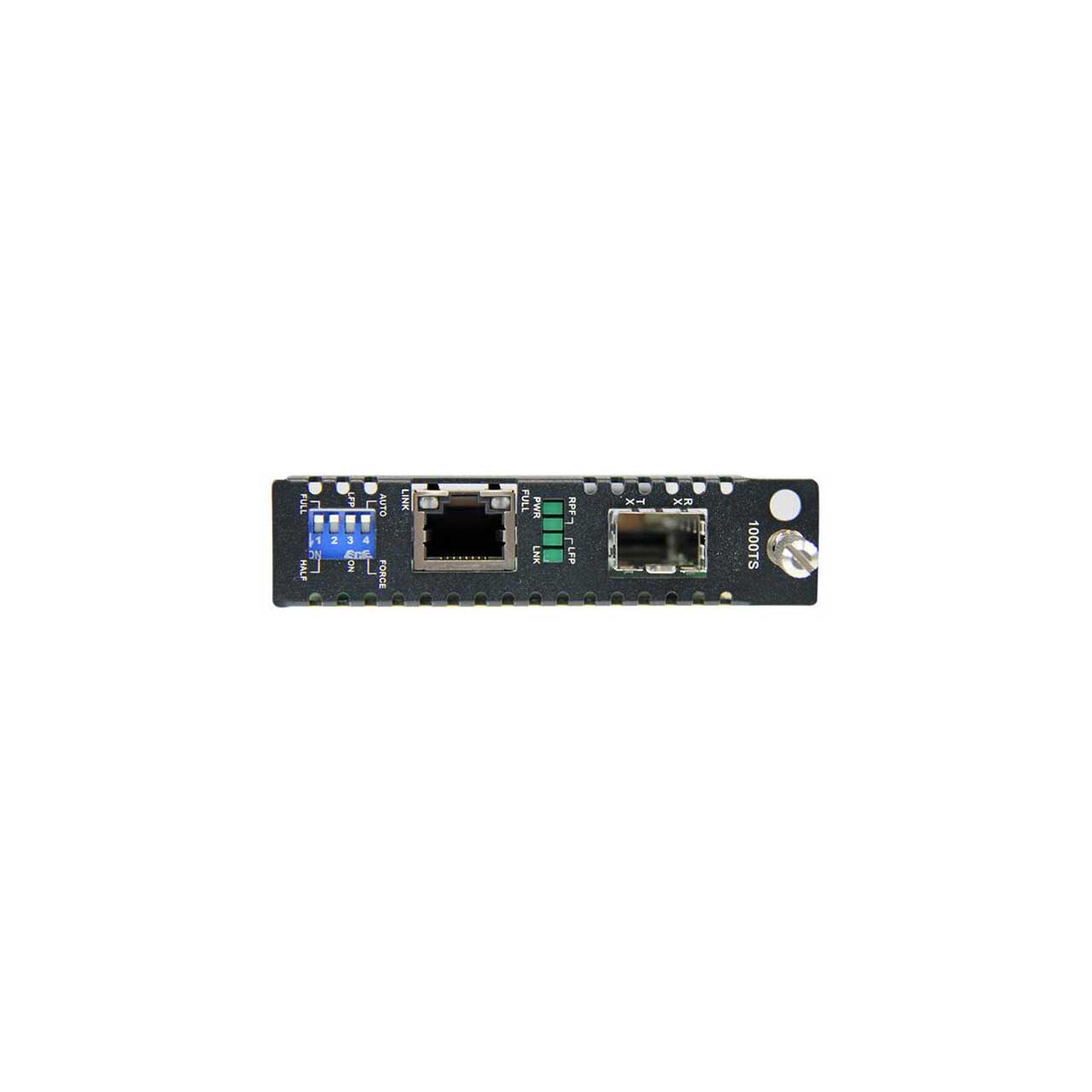

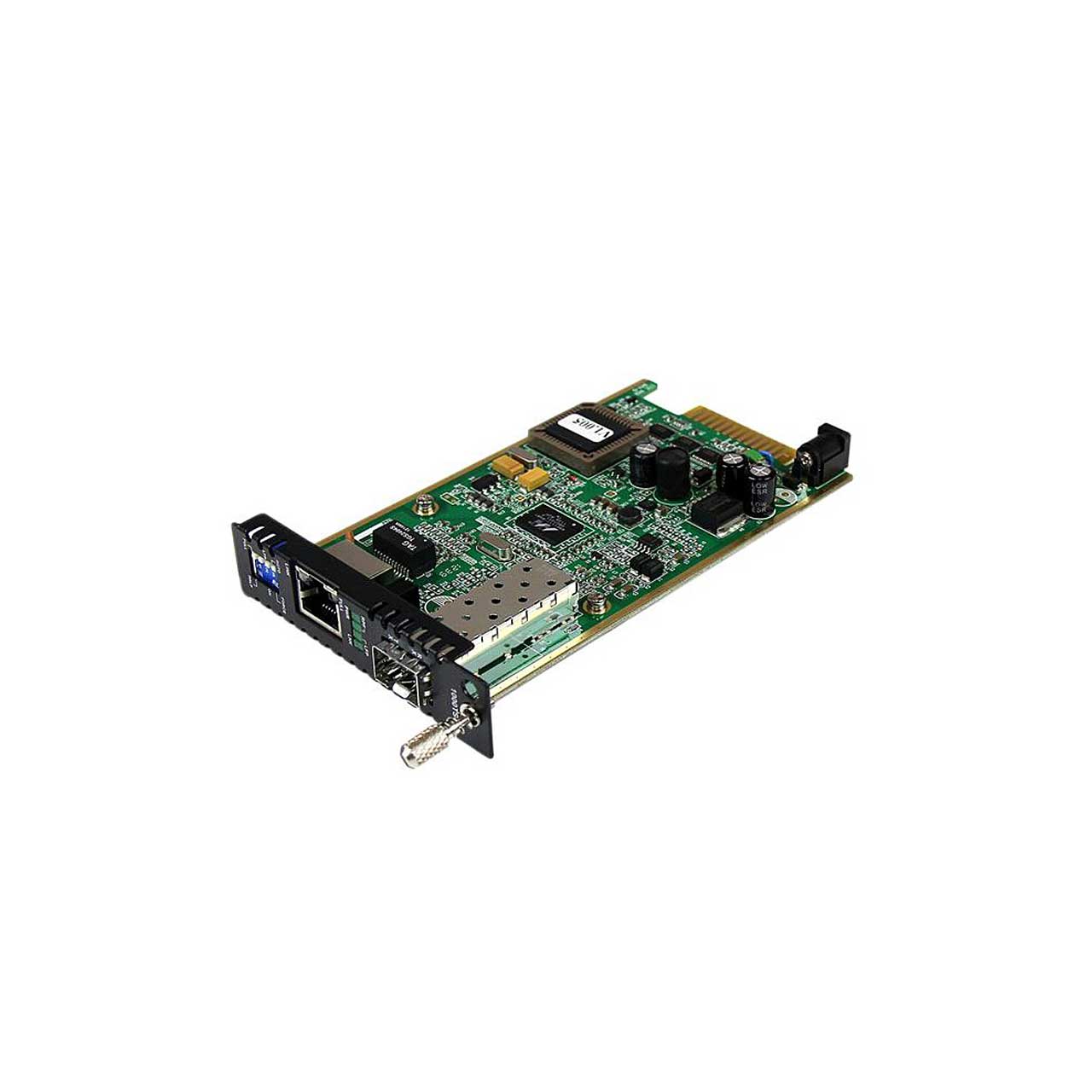

StarTech ET91000SFP2C Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot

ITEM #: ST-ET91000SFP2C MFG #: ET91000SFP2C

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$130.99

Our Price:

$122.05

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ET91000SFP2C - Overview

The ET91000SFP2C Open SFP Fiber Media Converter card module converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice. A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of Gigabit transceivers for compatible solutions). Designed for applications where multiple chassis-powered media converters are required, this Gigabit media converter ships as a card module that can easily be installed into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). For standalone operation this Gigabit media converter can also be purchased as a standard Open SFP Media Converter (ET91000SFP2). The fiber to Ethernet converter offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • Features:

    • Media Converter card module designed for installation into the ETCHS2U Rackmount Chassis
    • Open SFP slot supports MSA-Compliant Single / Multi-Mode Gigabit SFPs at varying distances
    • Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
    • Supports full or half-duplex operation
    • Easy to use and install
    • Jumbo Frame support

  • Specifications:

    • Hardware
    • Chipset ID: Marvell - 88E1111
    • Industry Standards: IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-LX, IEEE 802.3z 1000BASE-SX
    • PoE: No
    • WDM: No

      Performance
    • Auto MDIX: Yes
    • Fiber Operating Mode: Half/Full-Duplex
    • Maximum Data Transfer Rate: 1.25 Gbps
    • MTBF: 65, 000 Hours

      Connector(s)
    • Local Unit Connectors: 1 - RJ-45 Female, 1 - SFP Slot Female

      Special Notes/Requirements
    • Note: Fiber data transfer speeds and distances are dependent on the SFP used (sold separately)

      Power
    • Center Tip Polarity: Positive
    • Input Current: 1 A
    • Input Voltage: 12 DC
    • Plug Type: M
    • Power Consumption (In Watts): < 8W
    • Power Source: Not Included (not required for standard applications)

      Environmental
    • Humidity: 10~90% RH (Non-Condensing)
    • Operating Temperature: 0°C to 60°C (32°F to 140°F)
    • Storage Temperature: -10°C to 70°C (14°F to 158°F)

      Physical Characteristics
    • Product Height: 0.8 in [21 mm]
    • Product Length: 5.6 in [142 mm]
    • Product Weight: 3.5 oz [100 g]
    • Product Width: 2.9 in [74 mm]

      Packaging Information
    • Shipping (Package) Weight: 5.3 oz [150 g]

  • Item Includes:

    • 1 - Fiber Media Converter
    • 1 - Instruction Manual

  • Warranty:

    • 2 Years

  • GTIN:

    0065030852524
